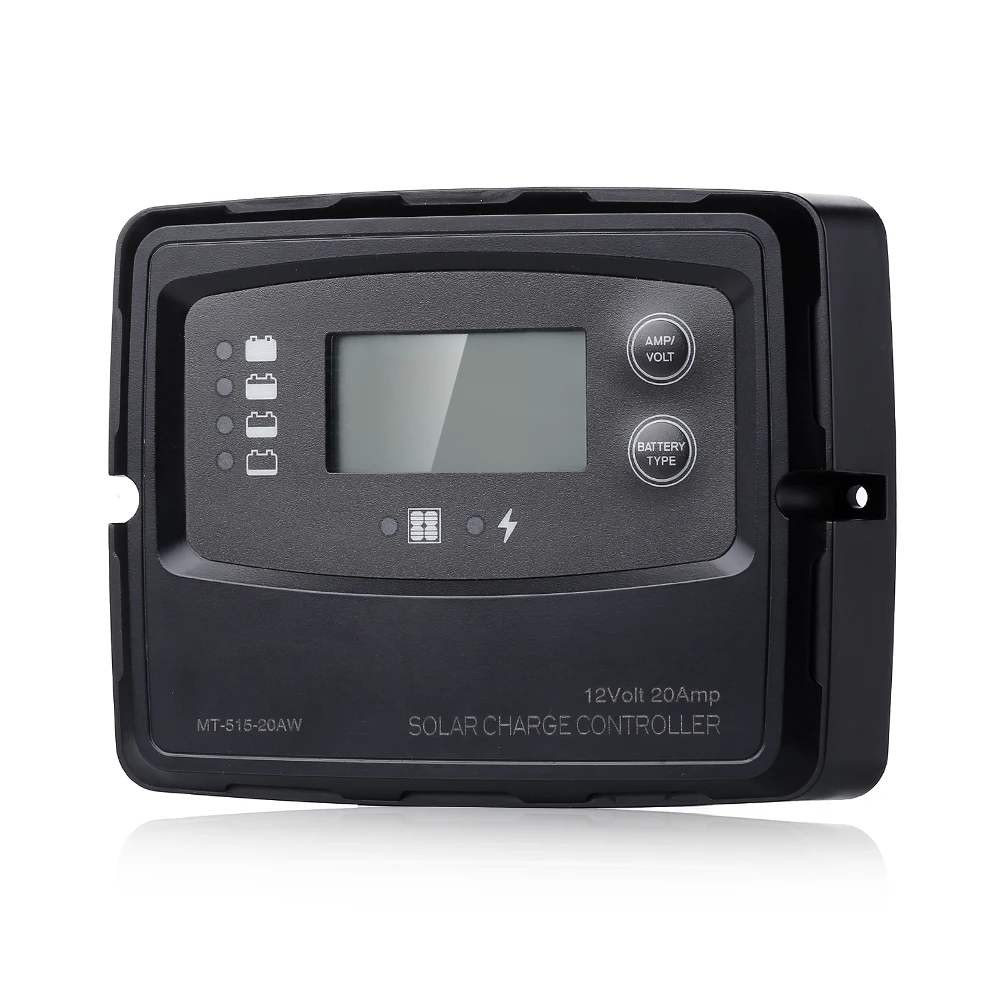

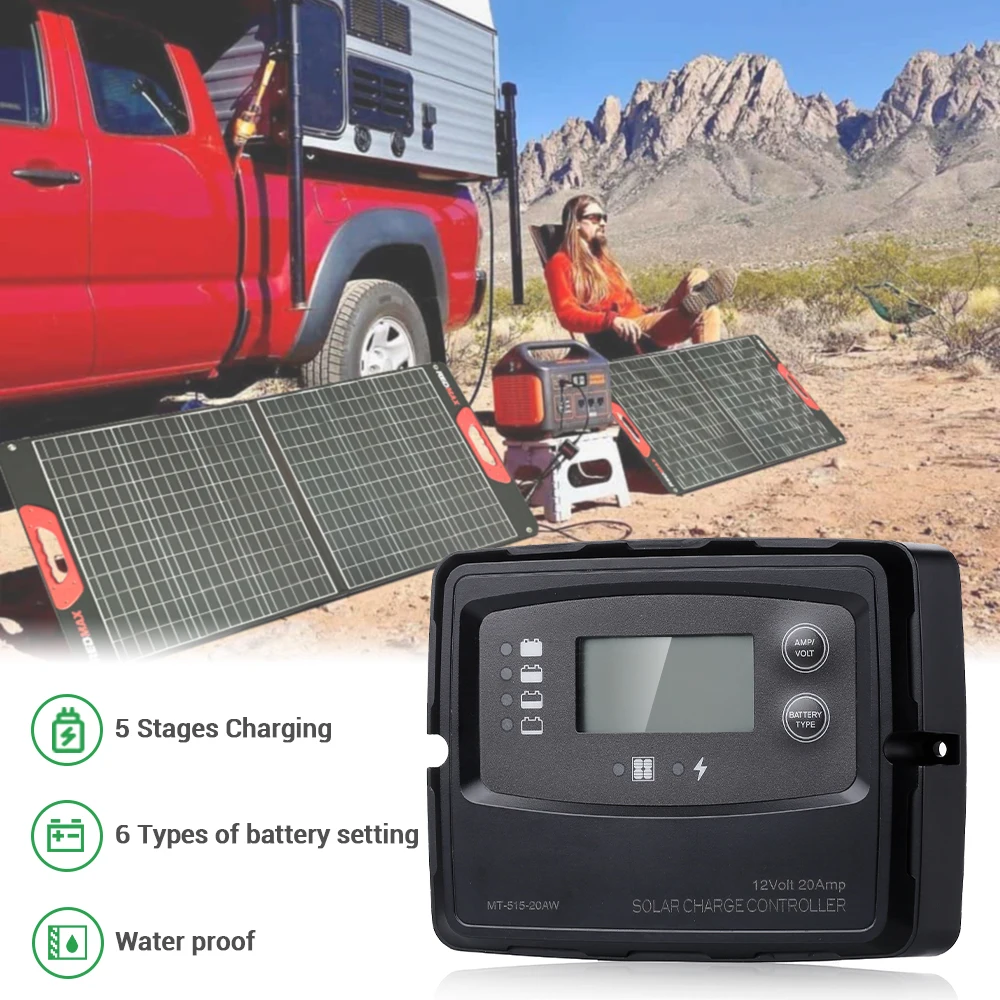

12 Volt Smart solar controller 15A pcb solar water pump controller blind control motor solar
- Category: >>>
- Supplier: Shenzhen Melin Sunergy Co. Ltd.
Share on (60783586677):
Product Overview
Description

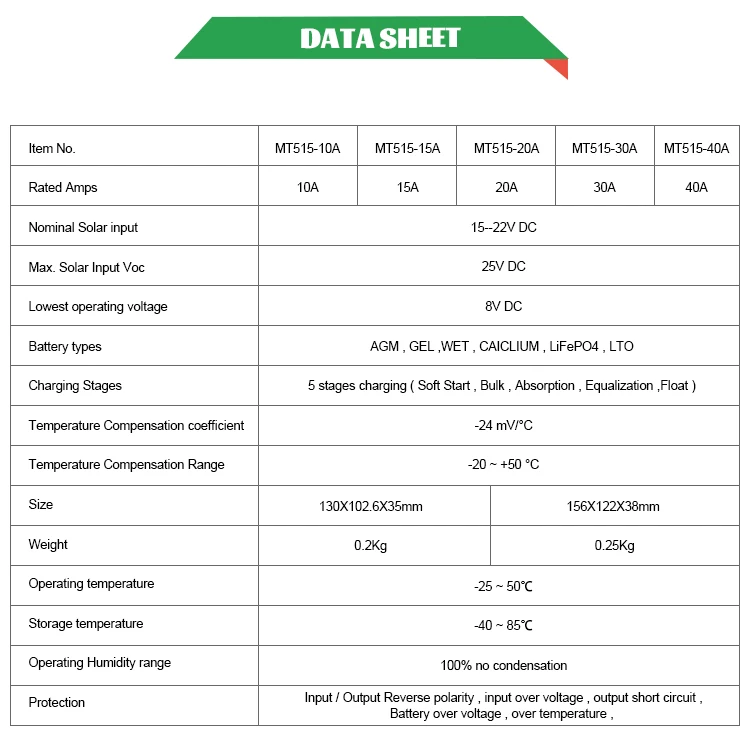

Item No. | MT515-10A | MT515-15A | MT515-20A | MT515-30A | MT515-40A | ||||
Rated Amps | 10A | 15A | 20A | 30A | 40A | ||||
Nominal Solar input | 15--22V DC | ||||||||
Max. Solar Input Voc | 25V DC | ||||||||
Lowest operating voltage | 8V DC | ||||||||

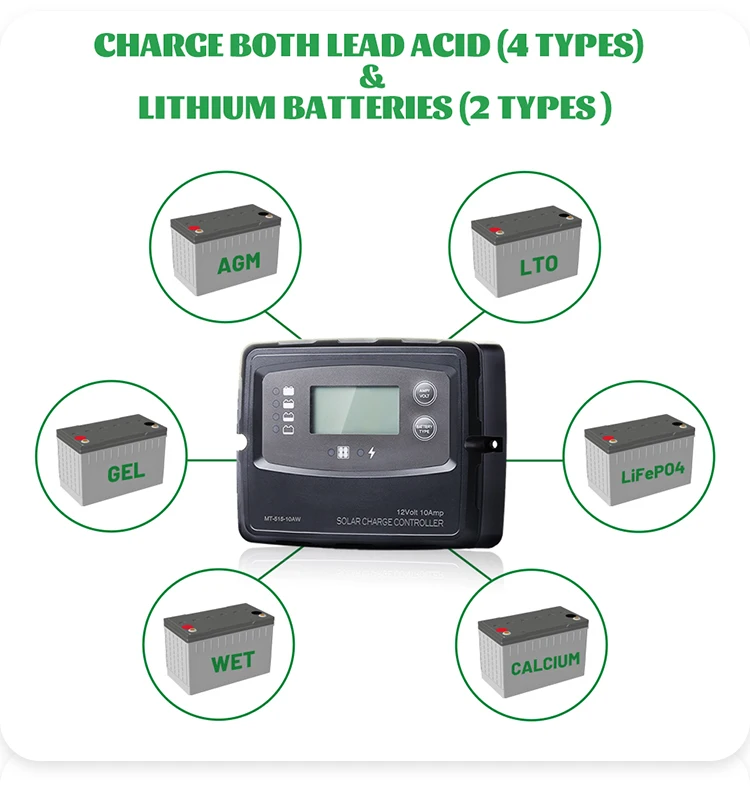

Battery types | AGM , GEL ,WET , CAICLIUM , LiFePO4 , LTO | ||||||||
Charging Stages | 5 stages charging ( Soft Start , Bulk , Absorption , Equalization ,Float ) | ||||||||
Temperature Compensation coefficient | -24 mV/°C | ||||||||
Temperature Compensation Range | -20 ~ +50 °C | ||||||||

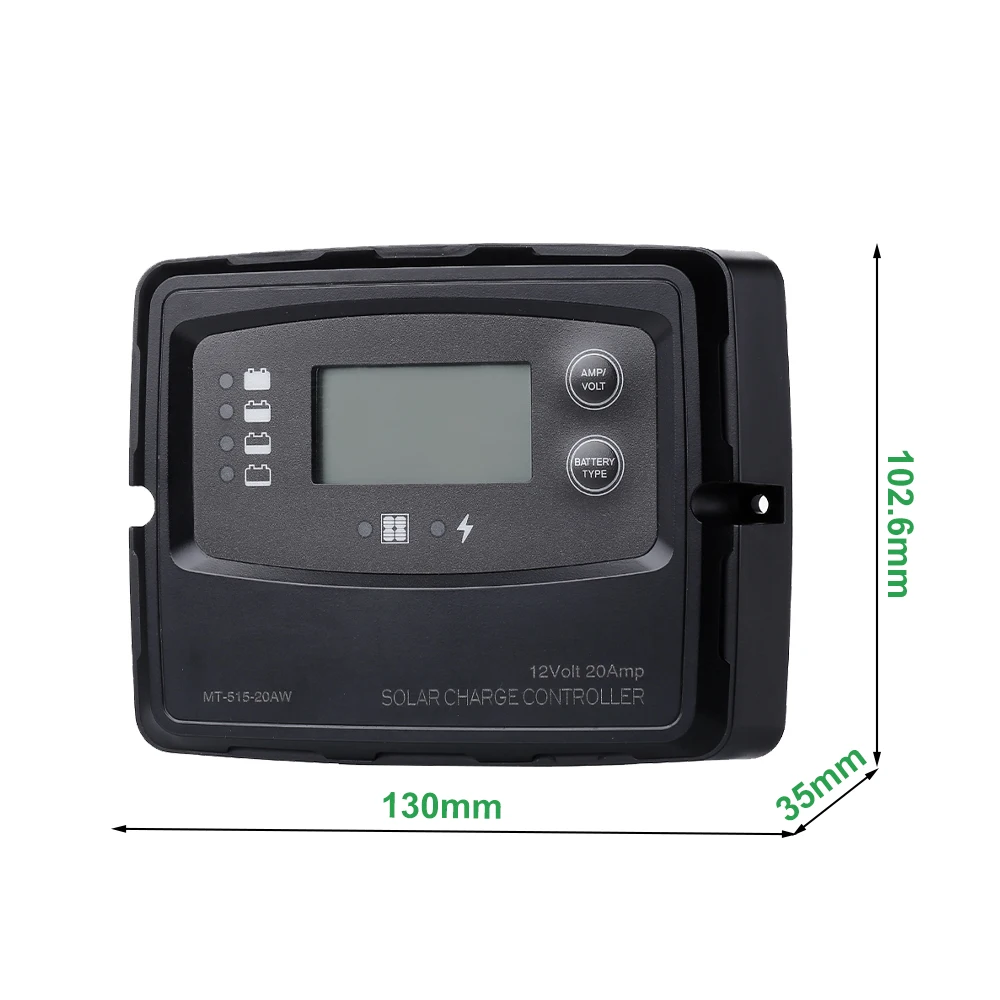

Size | 130X102.6X35mm | 156X122X38mm | |||||||
Weight | 0.2Kg | 0.25Kg | |||||||
Operating temperature | -25 ~ 50℃ | ||||||||
Storage temperature | -40 ~ 85℃ | ||||||||
Operating Humidity range | 100% no condensation | ||||||||
Protection | Input / Output Reverse polarity , input over voltage , output short circuit ,Battery over voltage , over temperature | ||||||||
