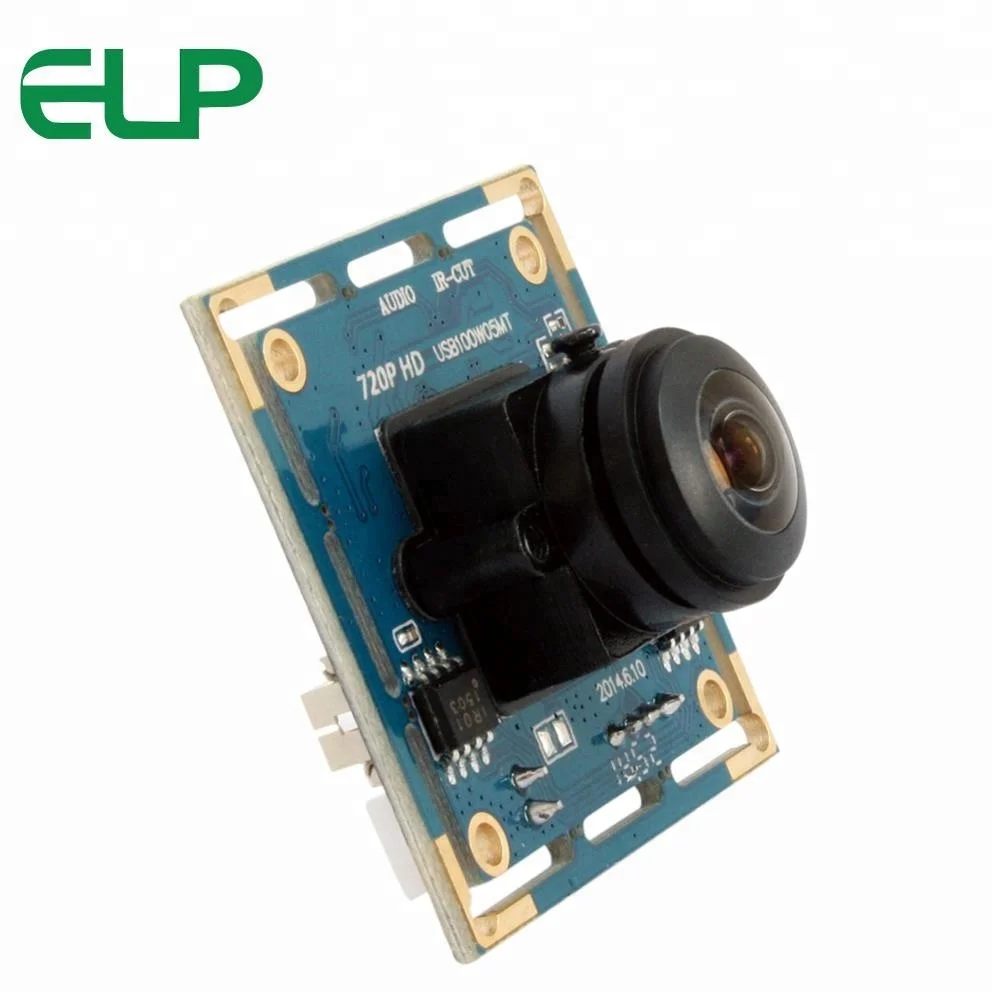

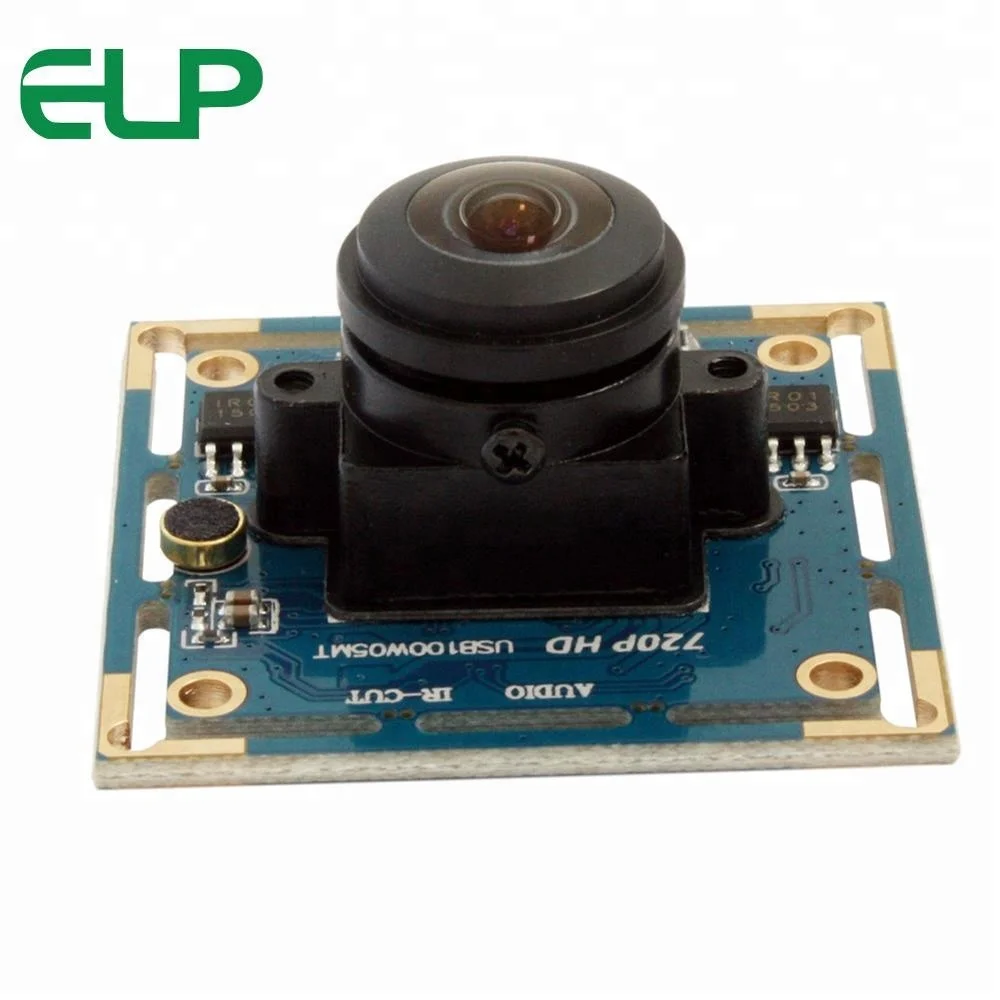

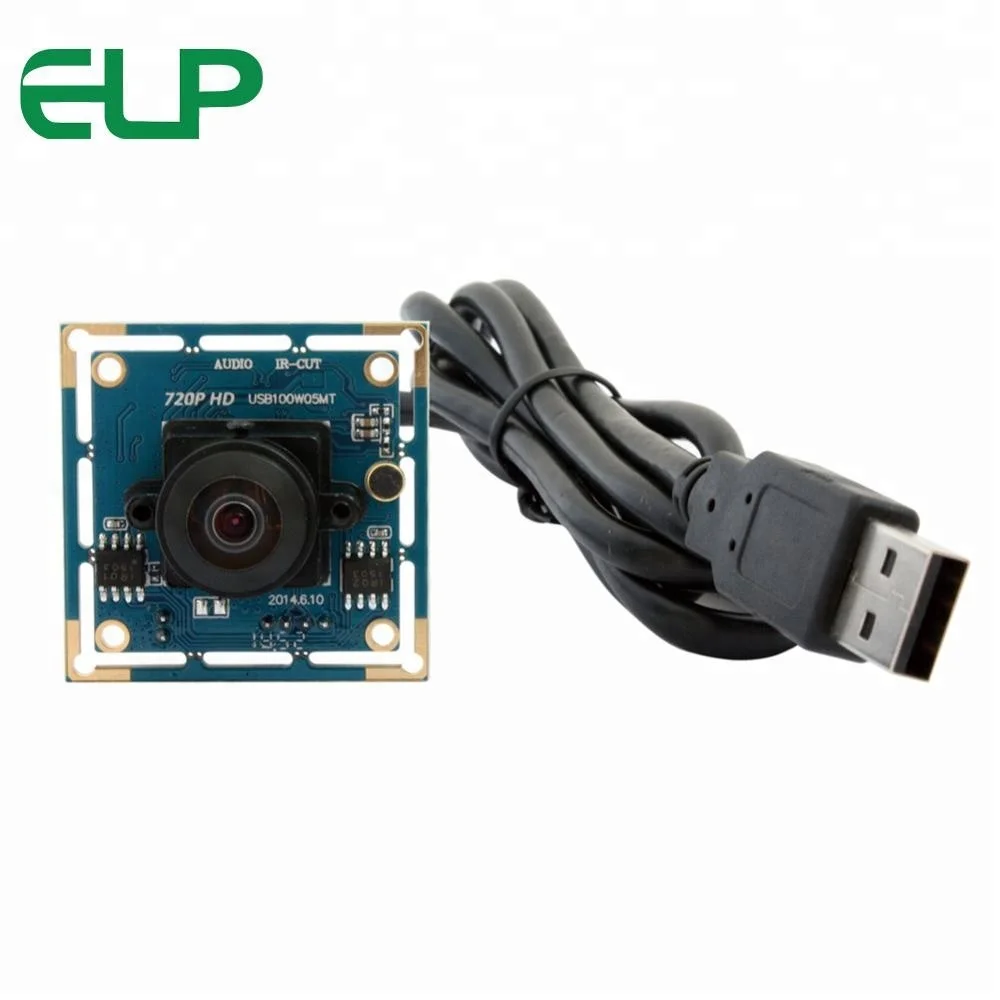

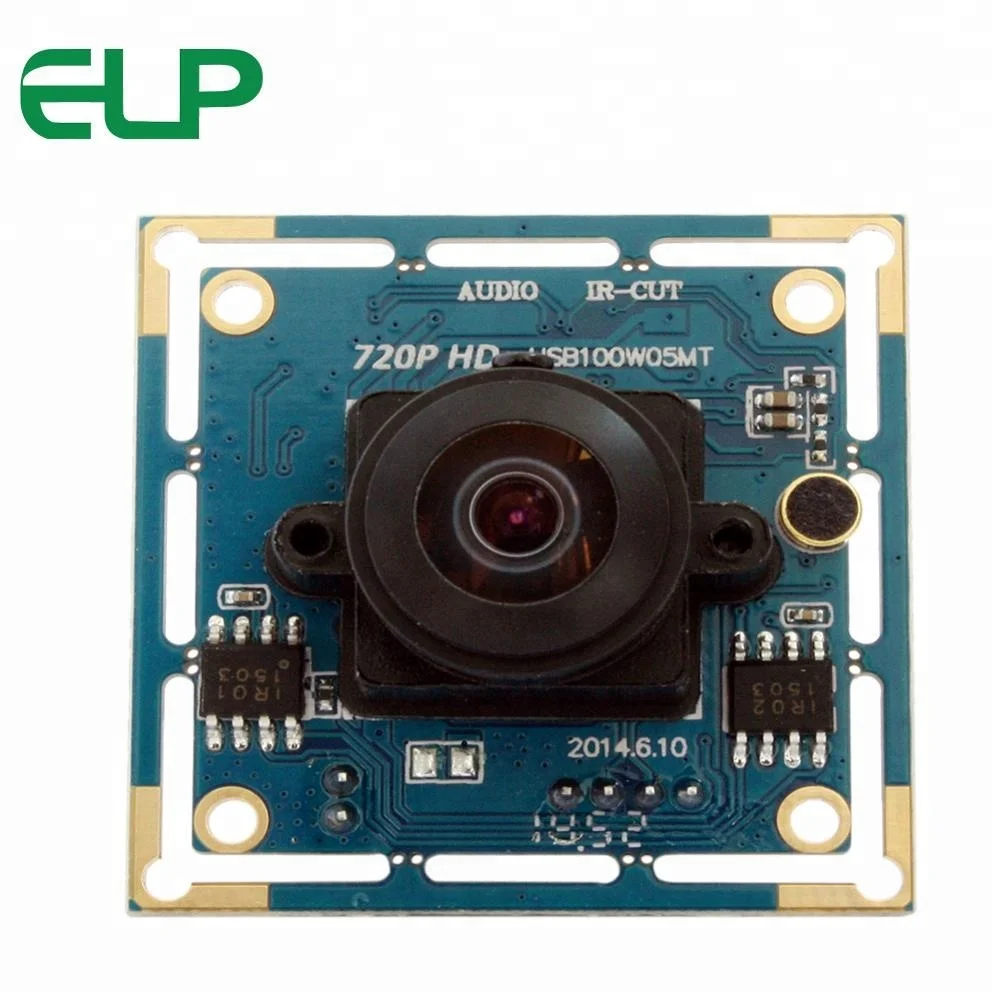

ELP 720P HD Mini usb camera module wide angle M12 fisheye lens CCTV CMOS Camera module for industrial machine vision
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (60783701006):
Product Overview
Description

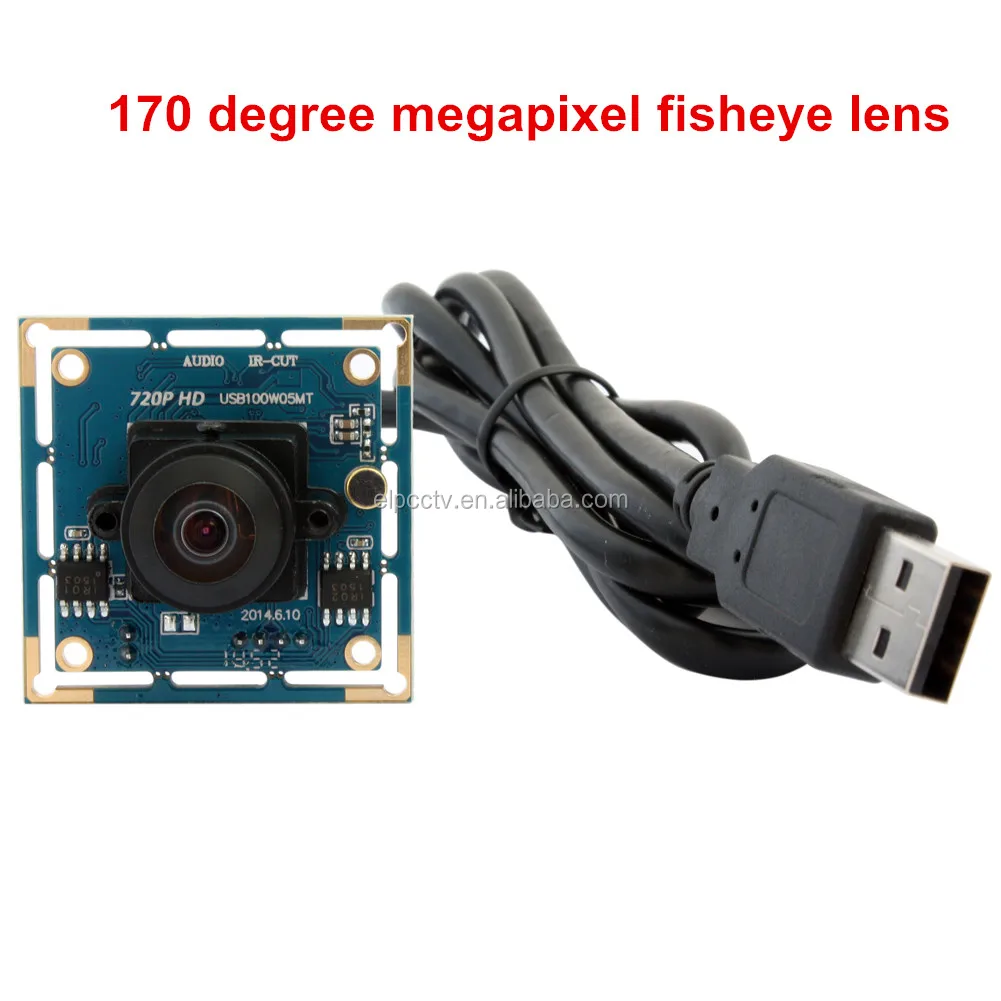

ELP 720P hd mini UVC usb webcam wide angle Cam Board M12 fisheye lens cctv cmos camera module for industrial machine vision
Model: ELP-USB100W05MT-L170
Fetures
*720P resolution 1280x720P HD
*YUY and MJPEG compression format optional
*CMOS 720P sensor for high quality image and low power consumption
*High speed USB 2.0 interface for high resolution PC camera interface
*high pixel technology for sharp image and accurate color reproduction
*low light performance – ideal for any lighting condition
*Super small outline and thin profile for embedded applications
*High frame rate– deliver 30 fps in 1280X720 resolution
*High quality lens, true and undistorted color image
*Low power consumption – ideal for portable equipment
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above

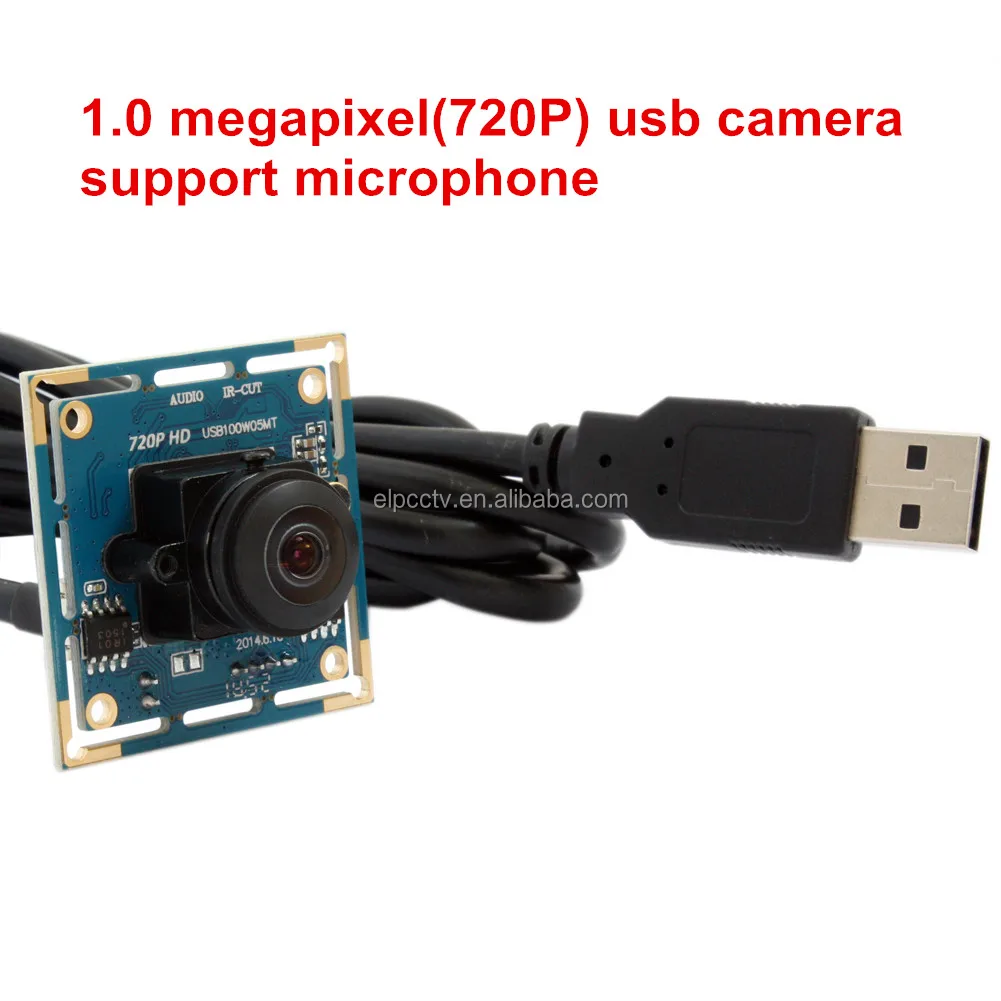

*With audio microhpne on board
Product Description
| Model | ELP-USB100W05MT-L170 (170 degree fisheye lens) |

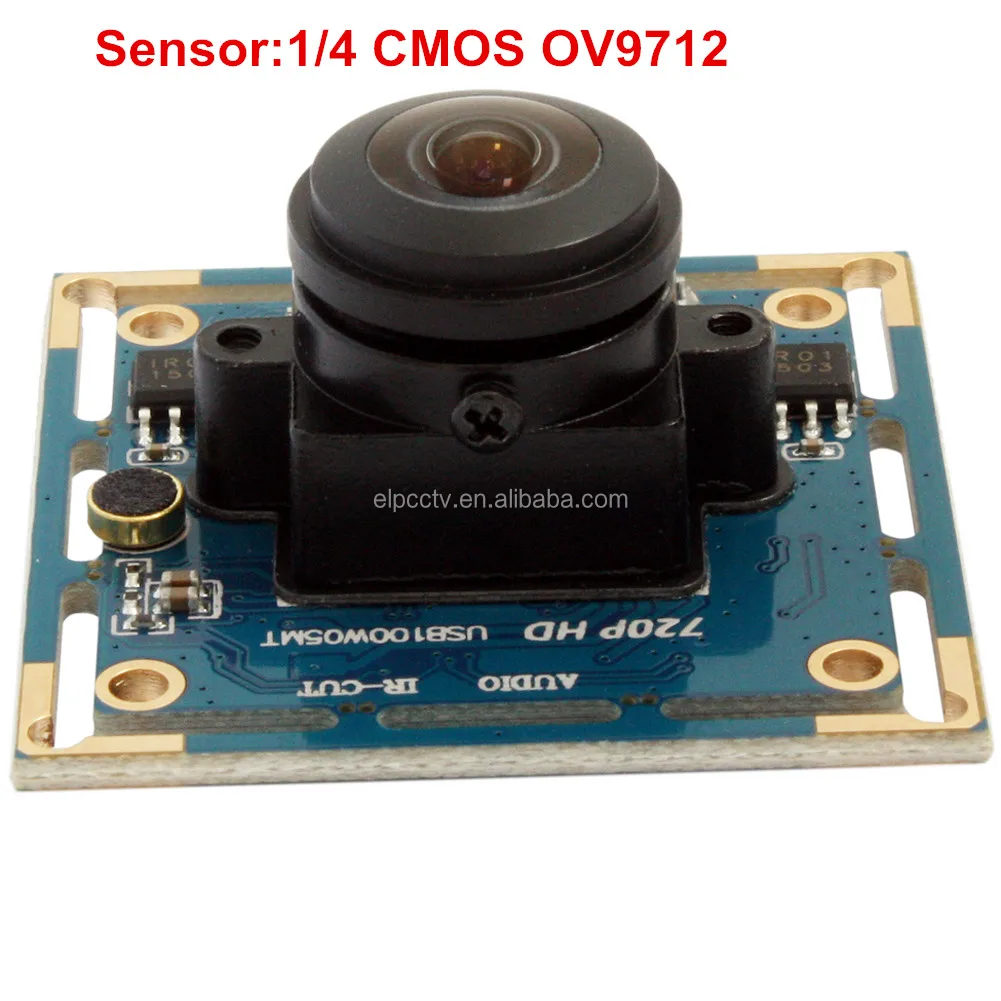

| Sensor | 1/4" CMOS OV9712 |
| Lens size | 100W, 1.0megapixel, 1280X720 |

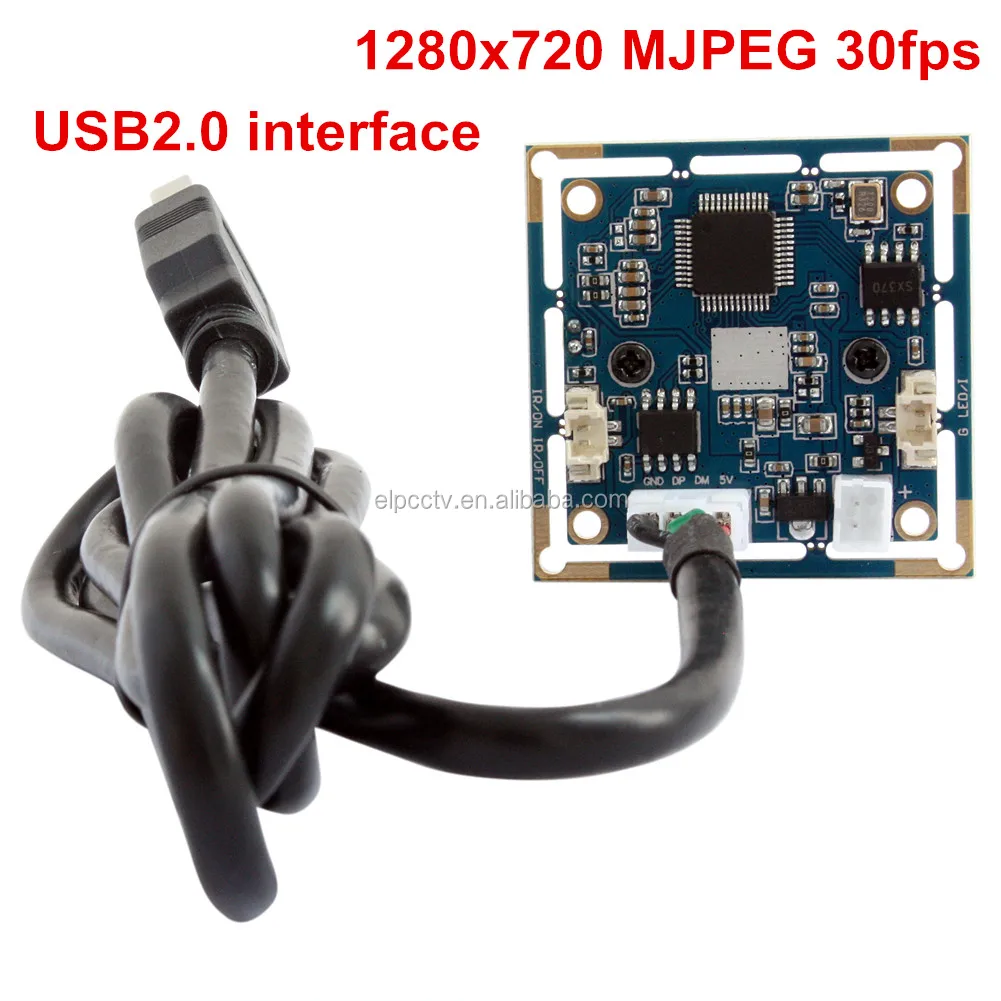

| Max. Resolution | 1280x720 Mjpeg 30fps |
| Picture format | YUY2 |
| MJPEG | |
| USB Protocal | USB2.0 HS/FS, USB1.1 FS |
| Support free driver | USB Video Class(UVC)1.1 |
| Auto exposure AEC | Support |
| Auto white blance AEB | Support |
| Frame rate | 1280 (H) x 720 (V) pixels MJPEG 30fps YUY2 10fps |
| 960 (H) x 720 (V) pixels MJPEG 30fps YUY2 15fps | |
| 800 (H) x 600 (V) pixels MJPEG 30fps YUY2 20fps | |
| 640 (H) x 480 (V) pixels MJPEG 30fps YUY2 30fps | |
| 352(H) x 288 (V) pixels MJPEG 30fps YUY2 30fps | |
| 320 (H) x 240 (V) pixels MJPEG 30fps YUY2 30fps | |
| 176(H) x 144 (V) pixels MJPEG 30fps YUY2 30fps | |
| 160 (H) x 120 (V) pixels MJPEG 30fps YUY2 30fps | |
| Adjustable parameters | Brightness/Contrast/Color saturation /Definition/Gamma/WB |
| Night vision | optional, can choose IR board |
| view angle | about 60 degree |
| voltage | DC 5V |
| current | 150mA |
| work temperature | DEGREES(-20~70) |
| Size | 32x32mm or 38x38mm |
| Support OS | WinXP/Vista/WIN7/WIN8 |
| Linux with UVC | |
| Mac-OS X 10.4.8 or later | |
| Wince with UVC | |
| Android 4.0 or above |
Applications:
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.
used for all kinds of machine as below:
machinery equipment, all-in one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external,evaluator, medical equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
Product Show
Company Information
FAQ
1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
