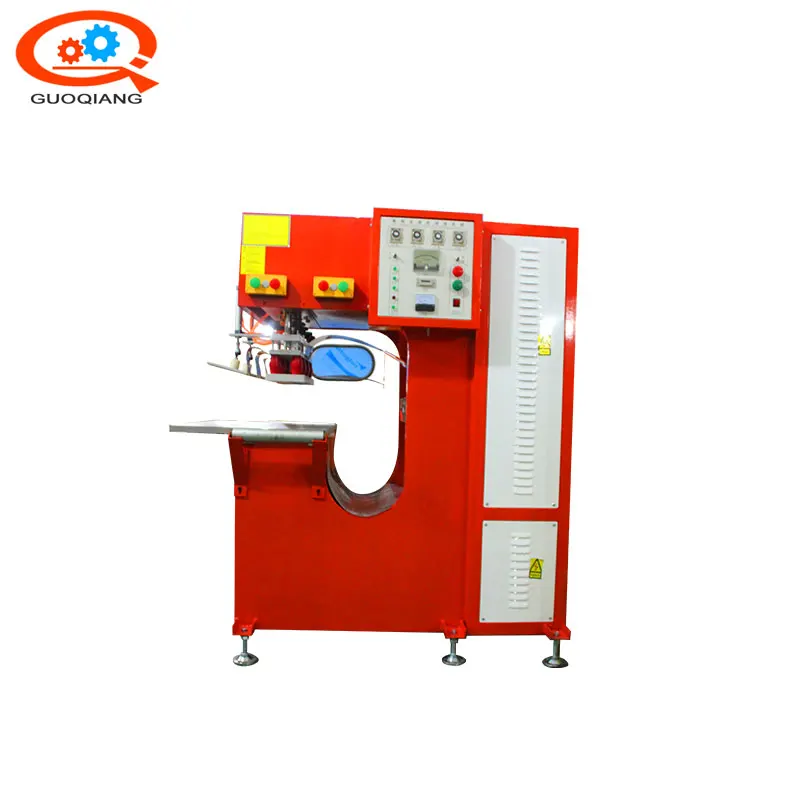

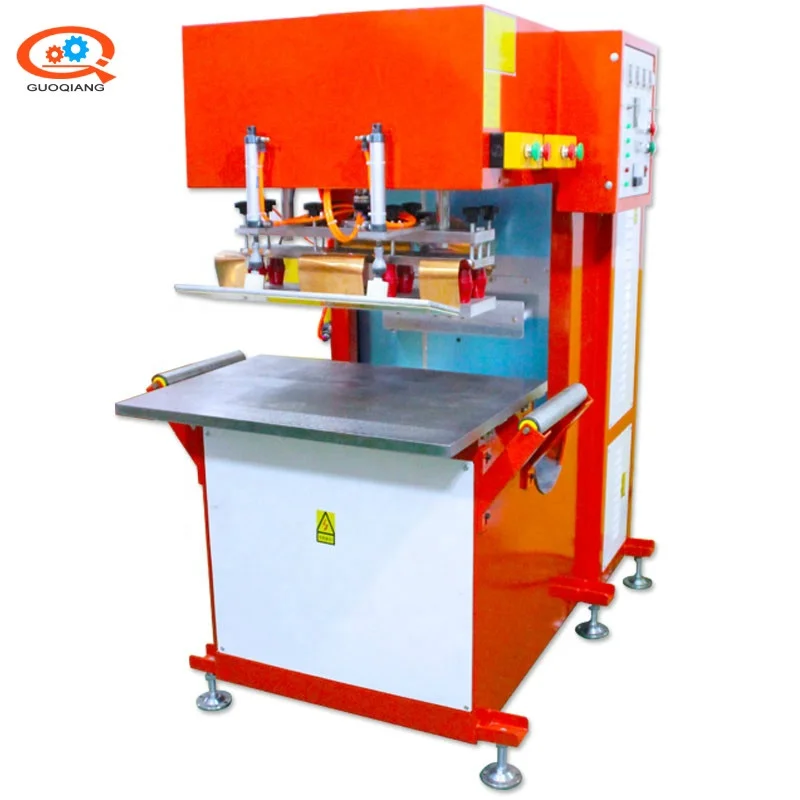

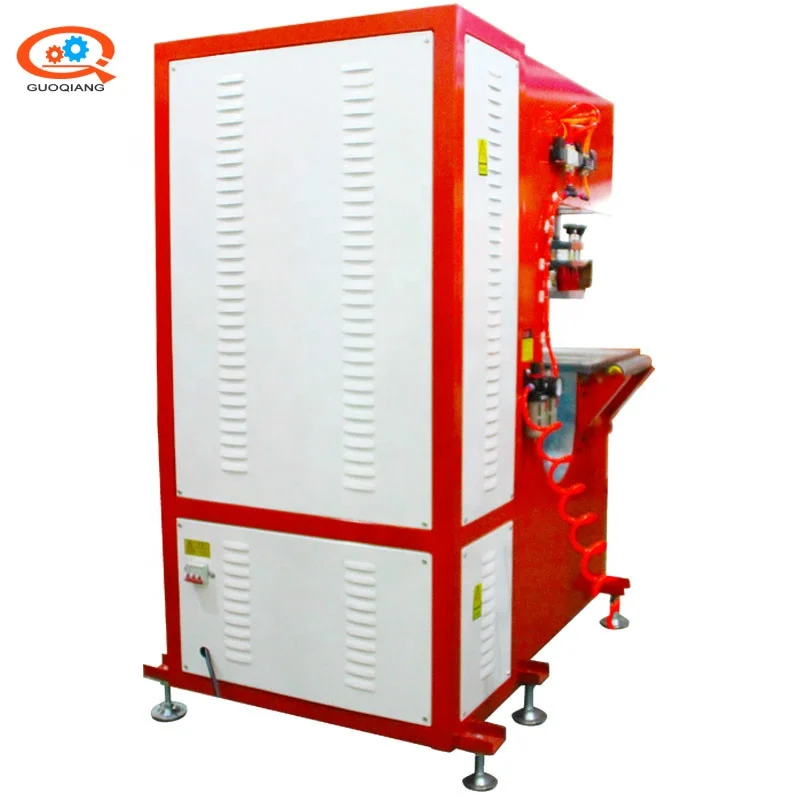

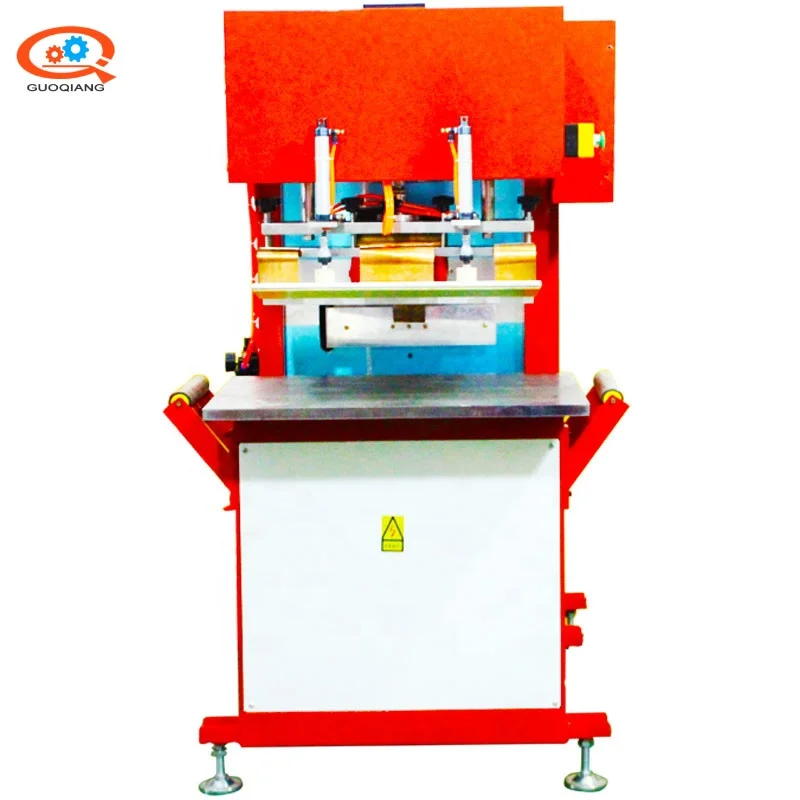

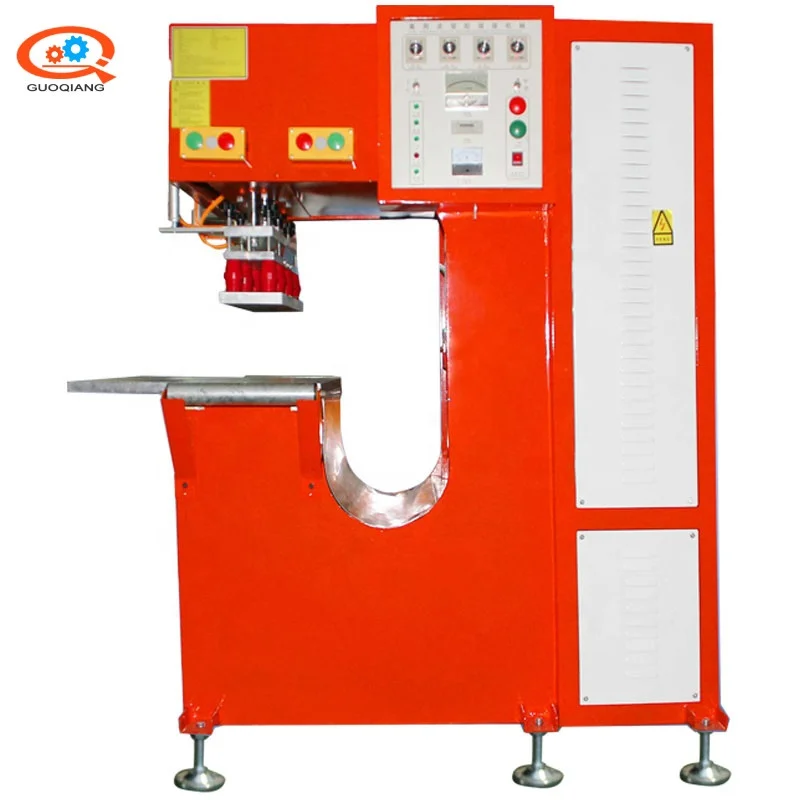

Plastic Tarpaulin Welding Machine/Tarpaulin Sealing Machine/Tarpaulin Welding Machine

Product Overview

Description

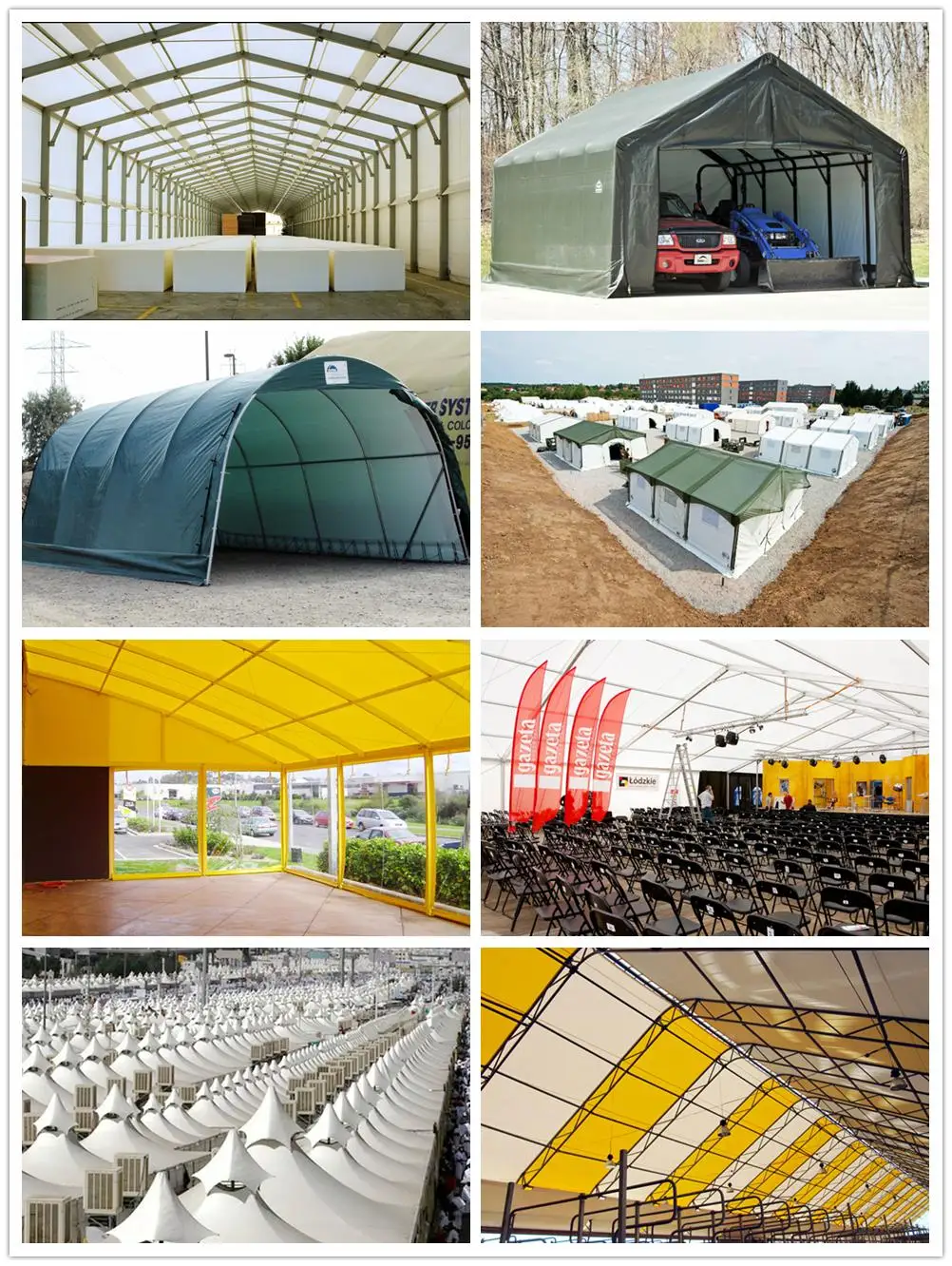

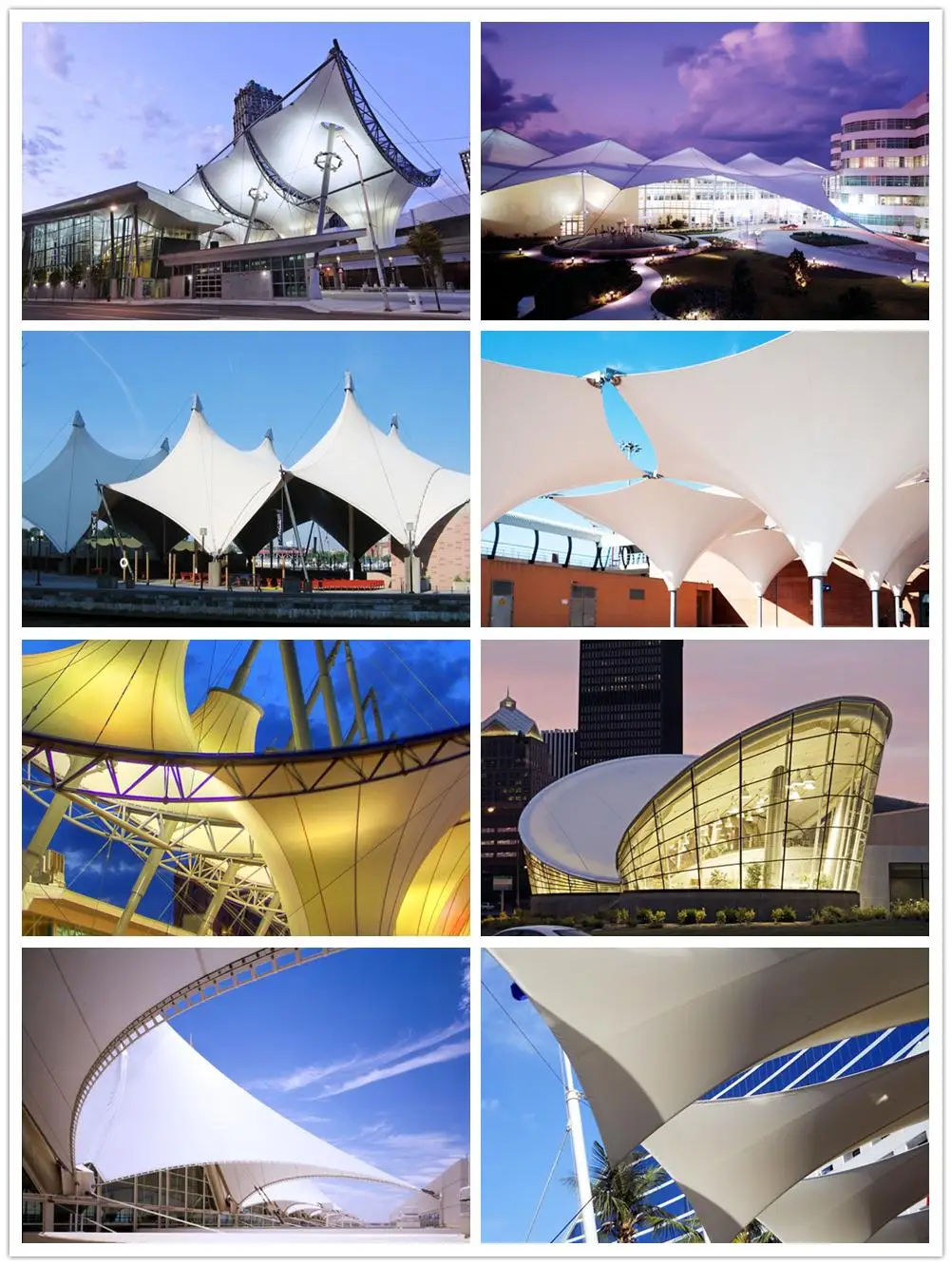

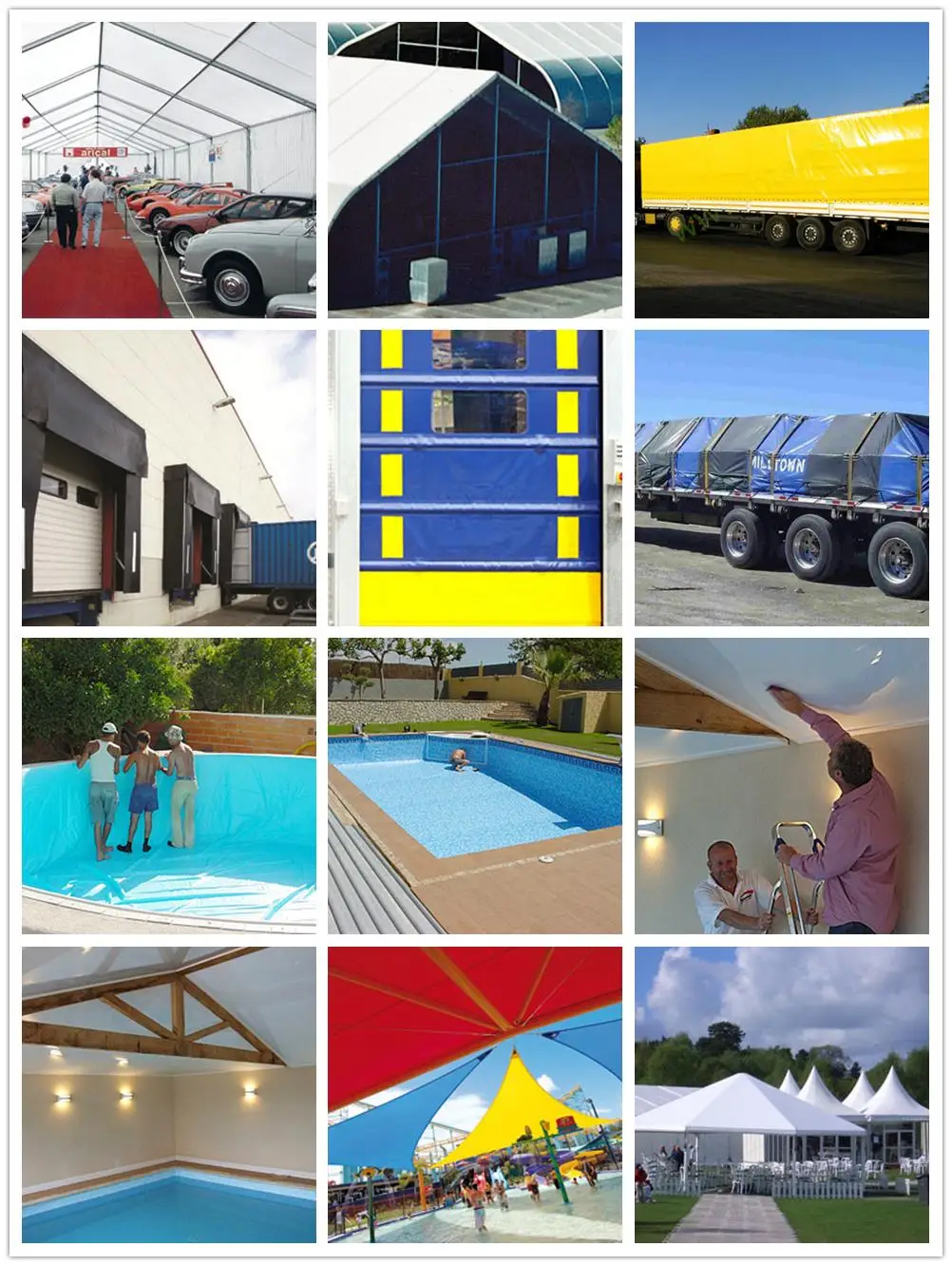

The Machine is designed specifically for production of small and large format tensile structures, membranes, tarpaulin, tents, oil booms, truck covers, swimming pool liners & covers, airline hangars, large billboards, fast doors, side curtains, etc. This basic design machine can be fitted with special impulse electrode for welding non-HF weldable fabrics made of PE and PP, as well as multilayer welding electrode and curved HF electrodes for sealing round window profiles made of clear PVC and any other shapes requiring precision welding. The machine is equipped with special deep and wide trough behind the electrode for material storage and handling. Machine has optional smooth glide wheels for easy movement in-around welded fabric, or relocation to a desired place in manufacturing hall.





• International standard 27.12MHZ frequency.


• Pressure adjustable by controller,


• Used auxiliary heating device, improved work efficiency.


• Equipped with spark protective device, safely protected all parts of the machine.


• Flat mold installation method, it is easier to adjust the mold.


• Universal usage for PVC, PET, PU


• High weld precision and efficiency


• Small footprint and great work ergonomics


• Protective fixed guard - working table HF shielded and filtered



Model No	GCQ-W8KW	GCQ-W10KW	GCQ-W15KW
Voltage	AC220/380/400/415/440V 50/60HZ(Customized)
Output Power	8KW	10KW	15KW
Input Power	10KVA	15KVA	18KVA
HF Frequency	27.12MHZ ±0.6%
Oscillation Tube	8T85RB	8T85RB	8T85RB
Anti-spark Tube	NL-5557	NL-5557	NL-5557
Gap of Electrode	200mm	200mm	200mm
Size of upper electrode	20×700mm	20×800mm	20×1000mm
Machine Size	1200×900×1800	1200×900×1800	1200×900×1800
Machine Weight	500KG	520KG	550KG
