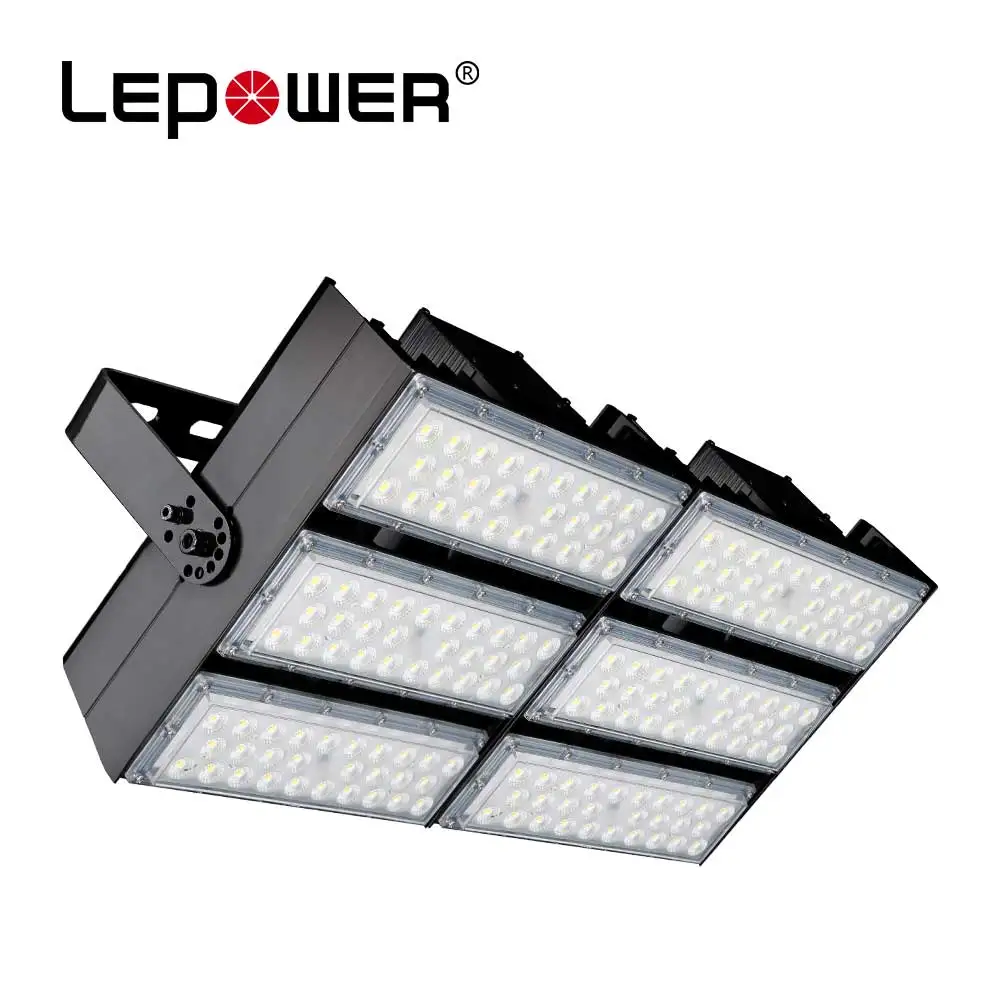

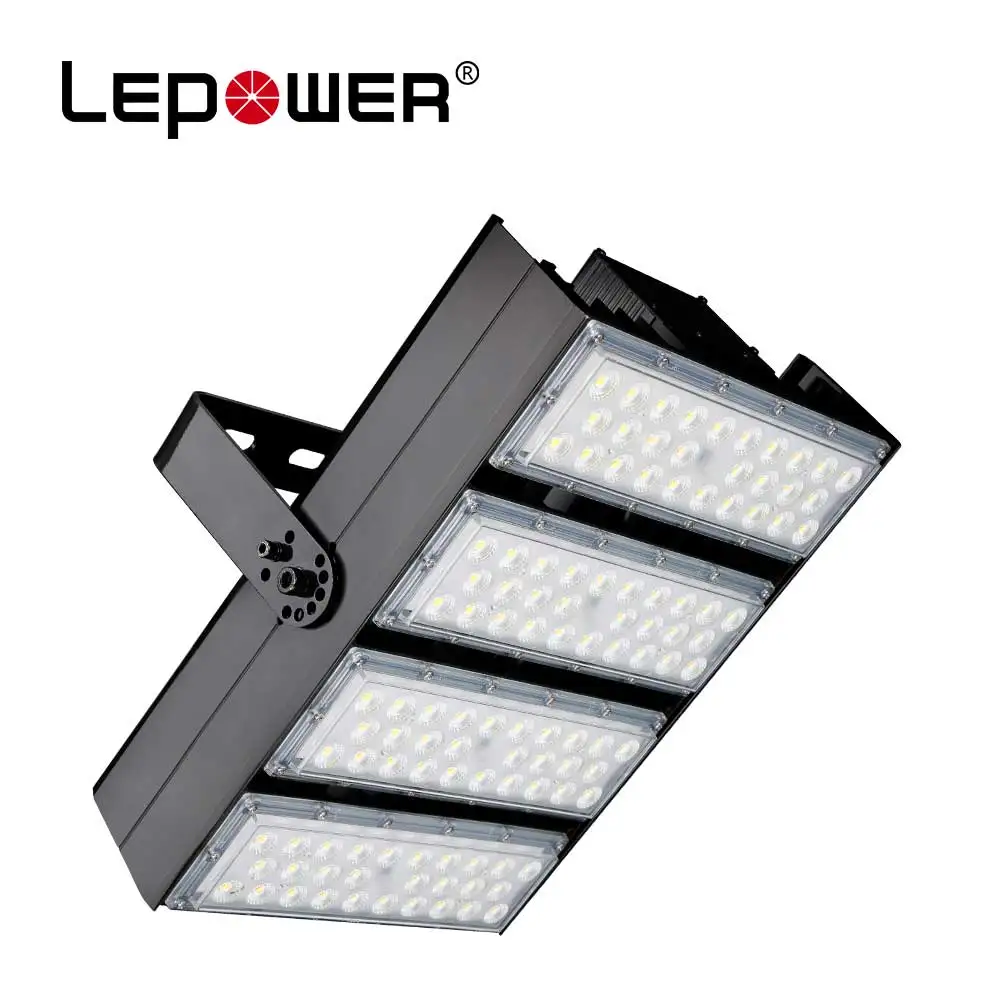

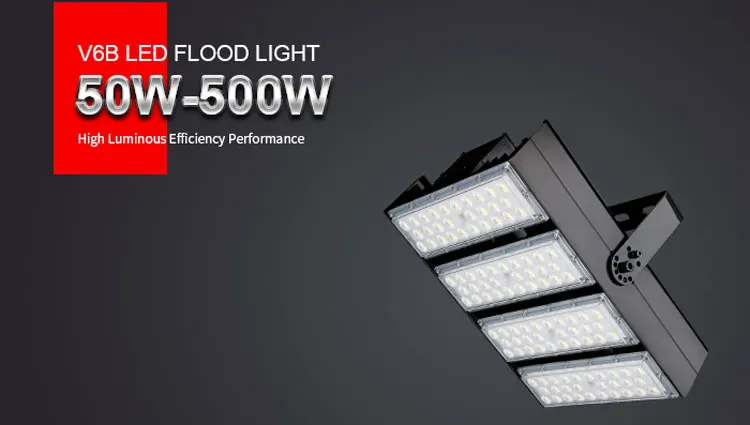

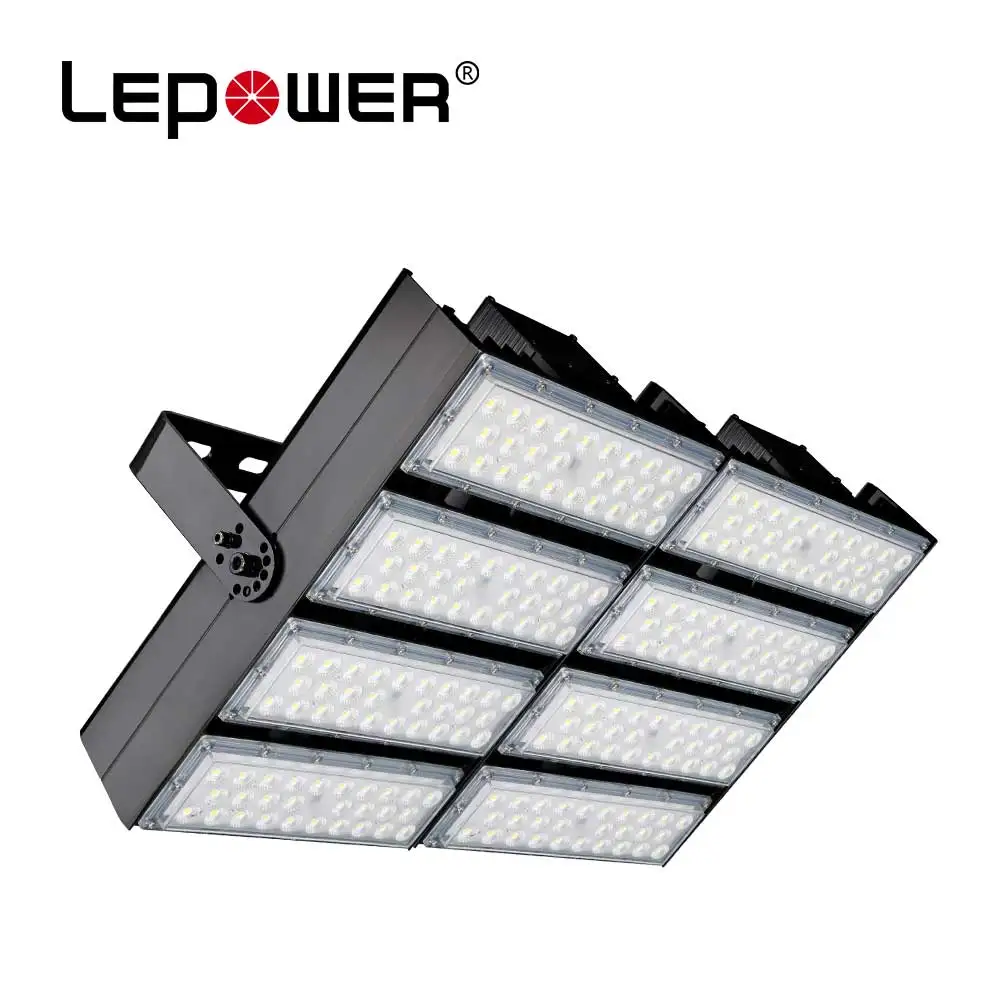

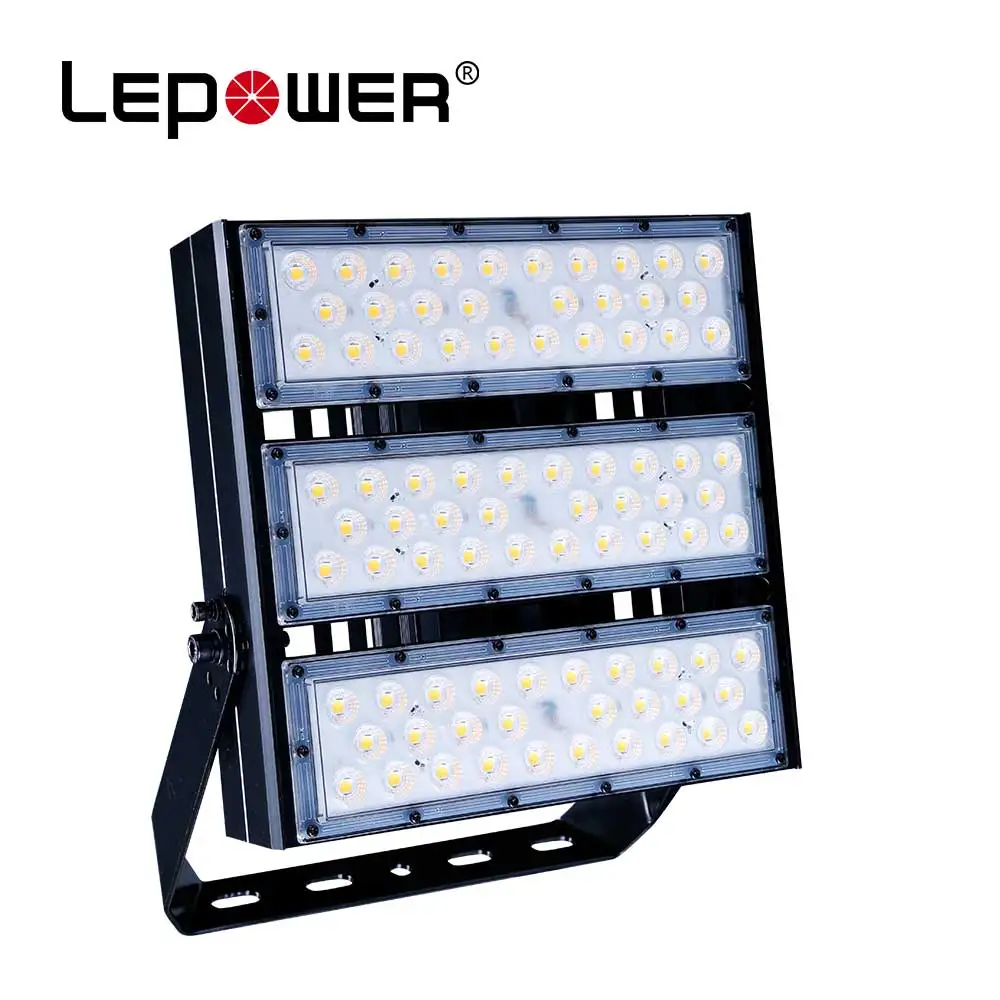

Sports LED floodlight CB 200w 300w 400w 500w LED flood light outdoor area light with high lumen 160lm/w

Product Overview

Description

Shenzhen LEPOWER is a professional manufacturer which own a ISO9001 16000m² factory.

More than 100,000 pcs LEPOWER's LED industrial light installed worldwide every year!!!

We accept the OEM&ODM service. Welcome to contact to us now.



Sports LED floodlight CB 200w 300w 400w 500w LED flood light outdoor area light with high lumen 160lm/w

The features of 50w-500w led flood light series.

Part Number	LY-HB0601	LY-LHB0602	LY-HB0603	LY-HB0604
Wattage	50w	100W	150W	200W
Lumen Output	7500-8000lm	15000-16000lm	22500-24000lm	30000-32000lm
Luminous Efficacy	150-160lm/W	150-160lm/W	150-160lm/W	150-160lm/W
Input Voltage	90-305V AC/200-240V AC   50-60Hz
Beam Angle	10°/25°/45°/60°/90°/145x90°/150x70°
CCT	2800~6500K
CRI	≥70 or ≥80

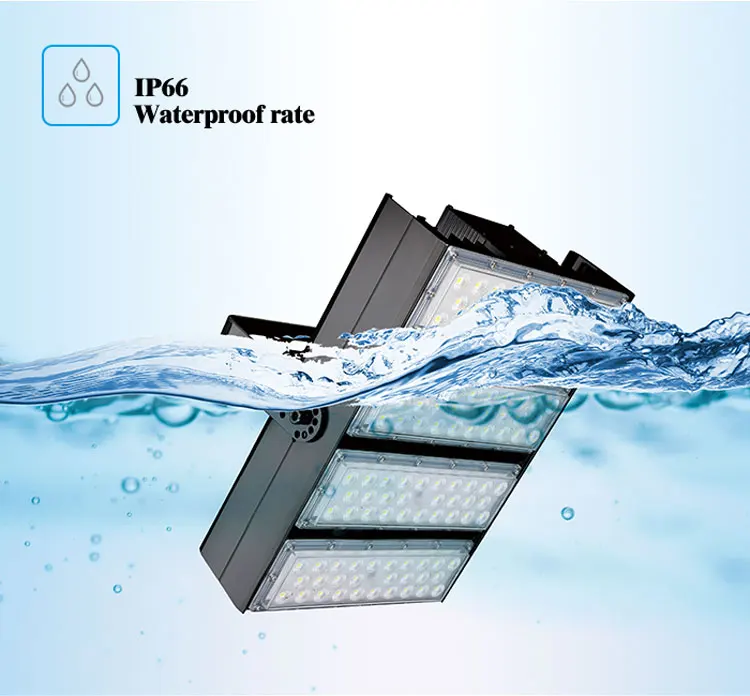

IP & IK Rating	IP66&IK10
Surge protection	Line earth 4KV, Line-line 10KV/20KV available
Power factor	>0.95
Power efficiency	88%	92%	92%	92%
THD	<15% or <20%
Working temperature	-40℃~50℃  20%~90% RH
Storage temperature	-40℃~85℃ 10%~90% RH
Housing material	AL6063-T5
Housing color	Black
Insulation	Class 2
Options	PWM /DALI/1-10V/Timming
Lifespan	>50,000Hrs
Lamp size	260*105*195mm	260*168*195mm	260*258*195mm	348*260*195mm
Packing	4pcs/ctn 450*280*215mm	3pcs/ctn 600*310*255mm	2pcs/ctn 585*310*255mm	1pcs/ctn 400*310*255mm
N.W.	2.5kg	3.0kg	4.0kg	5.0kg



The features of 250w-500w led flood light series.

Wattage	LY-HB0605	LY-HB0606	LY-HB0608	LY-HB0610
Lumen Output	250W	300W	400W	500W
Luminous Efficacy	37500-40000lm	45000-48000lm	60000-64000lm	75000-78000lm
Input Voltage	150-160lm/W	150-160lm/W	150-160lm/W	150-160lm/W
Beam Angle	10°/25°/45°/60°/90°/145x90°/150x70°
CCT	2800~6500K
CRI	≥70 or ≥80
IP & IK Rating	IP66&IK10
Surge protection	Line earth 4KV, Line-line 10KV/20KV available
Power factor	>0.95
Power efficiency	92%	92%	92%	92%
THD	<15% or <20%
Working temperature	-40℃~50℃  20%~90% RH
Storage temperature	-40℃~85℃ 10%~90% RH
Housing material	AL6063-T5
Housing color	Black
Insulation	Class 2
Options	PWM /DALI/1-10V/Timming
Lifespan	>50,000Hrs
Lamp size	438*260*195mm	520*258*195mm	520*348*195mm	520*438*195mm
Packing	1pcs/ctn 490*310*255mm	1pcs/ctn 570*310*255mm	1pcs/ctn 570*400*260mm	1pcs/ctn 570*490*255mm
N.W.	6.0kg	9.0kg	11kg	13kg

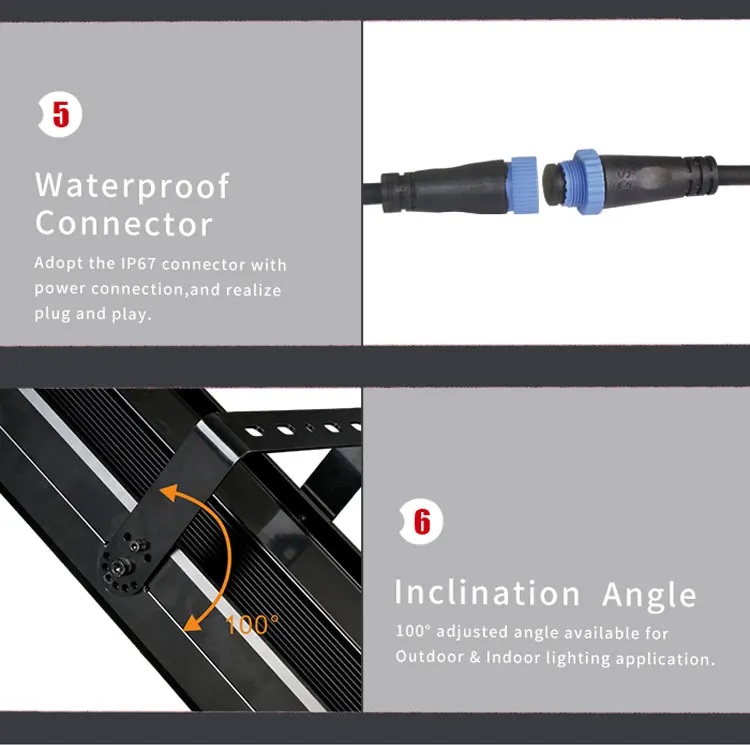

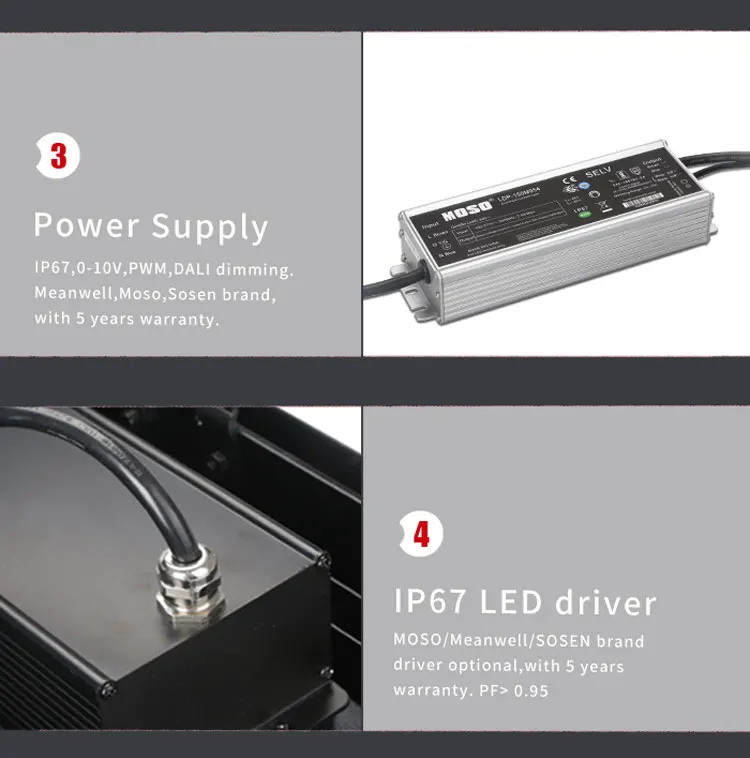

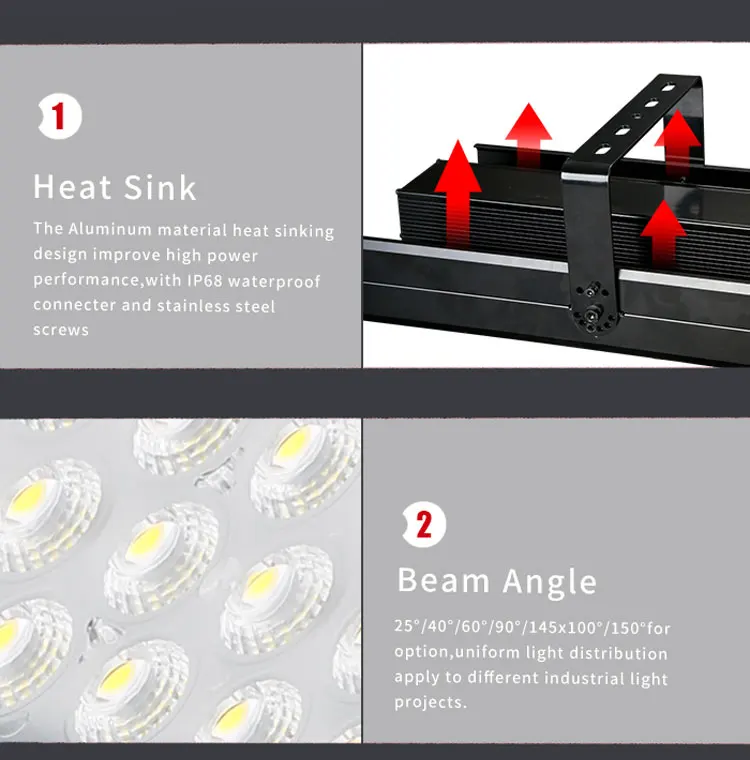

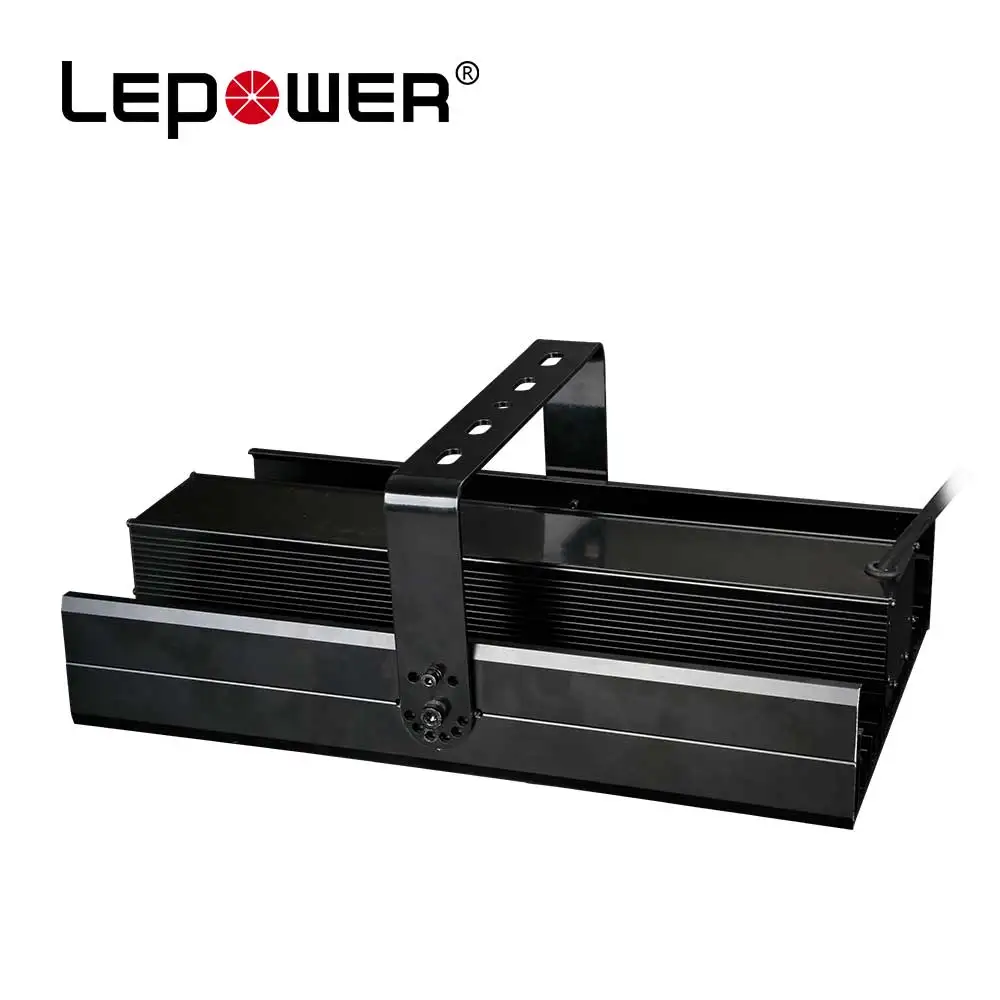

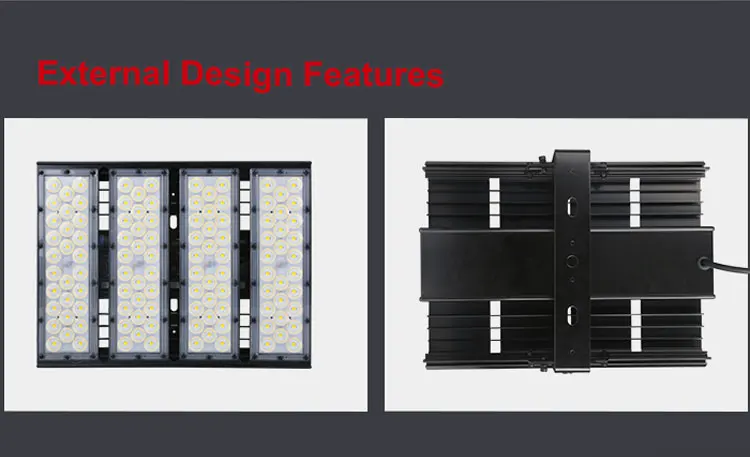

The details pictures of 50W-500w led flood light.

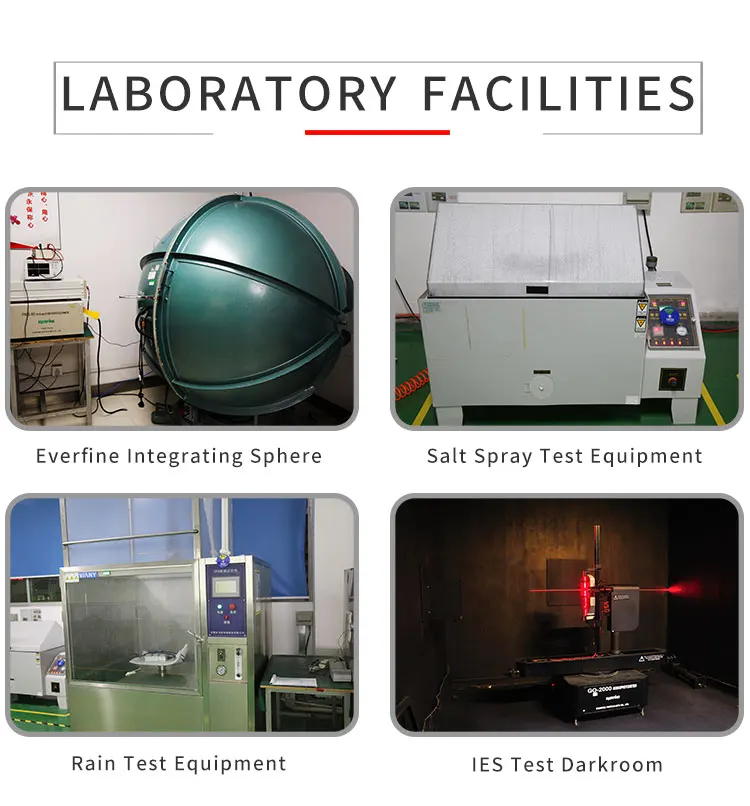

The IES test report of led flood light.

Super high lumen LED flood light. 20% luminous more than normal led light.

200w    >32000lm            400w    >62000lm

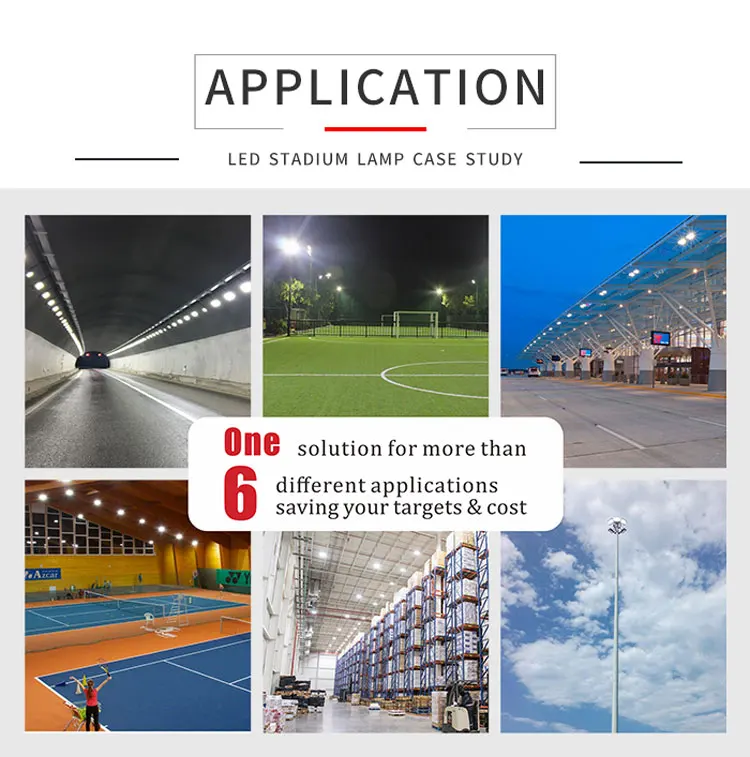

The applicationof 500w led flood light.

Suitable for stadium,tennis court,soccer field,basketball field,playground,air port,city plaza,sea port etc.wide range lighting.

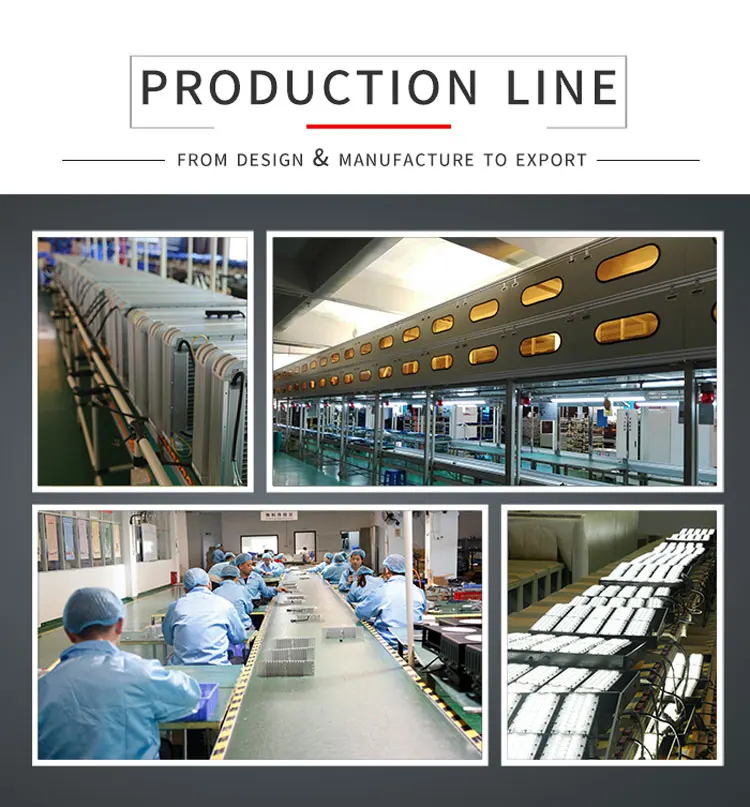

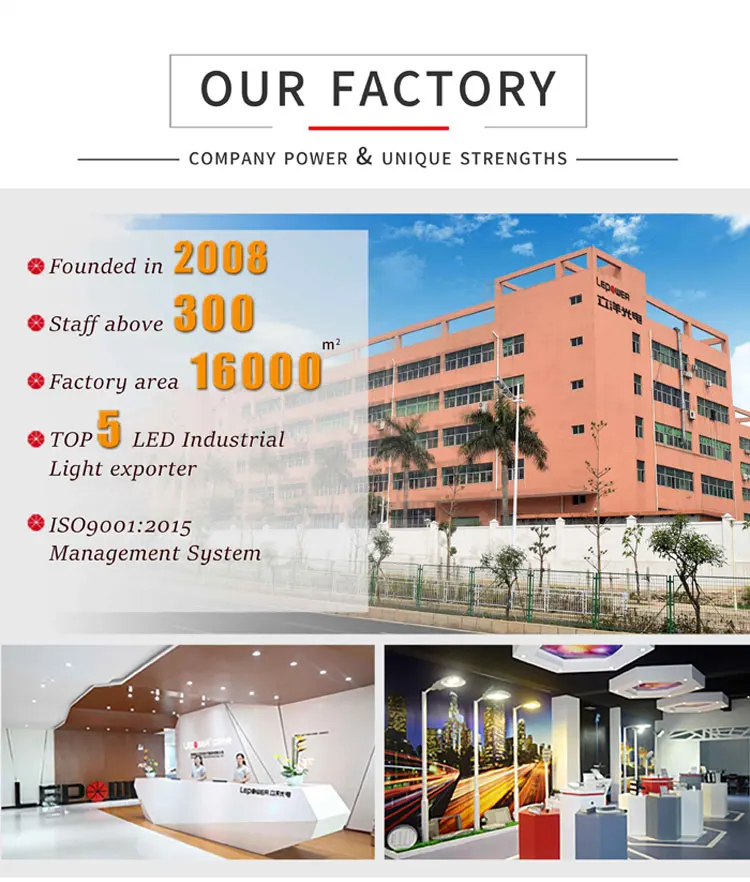

The pictures of our factory's building,office,certificate and production line.







Trading Conditions

1. Payment term: 30% deposit by T/T or Western union; 70% before delivery.

2. Delivery time: 7-9 days for 50pcs; 15 days for 500pcs.

3. Samples time: 5 days.

4. Shipping terms: FOB Shenzhen.

5. Discounts will be determined by quantity.

6. Welcome distributors to cooperate together.



Quality Control

1. Before the order to be confirmed, we will check the material & colour temperature by sample which should be strictly.

2. We will be tracing the different phase of production from the beginning.

3. Every LED lights quality checked & cleaned before packing.

4. Before delivery clients could send one QC or point the third party to check the quality.

5. We will try our best to help clients when problem occurred.



Warranty terms

1. 3/5 years warranty.

2. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, We will provide free/rework new products based on the proof-documents

3. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, We will provide paid maintance within warranty period.

4.  ULCB/SAA/CE/RoHS/TUV



FAQ:

Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.



Q2.Our project is on seaside, what if your lights be corrosion by sea water?
Metal has high corrosion resistance.Besides, we do best on light surface treatment,

electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrision.



Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 pieces,easy know each other better via samples, we look on the long term and win-win cooperation.



Q4. We now have football stadium projects need to do the lighting design,can you help us?
Sure we can, we are the leader of outdoor high power LED flood lights and LED design provider, our design teams can provide  you the best solution. And if you have the tech to make design yourself , we can provide the IES files for you.

Q4.I have a stadium/sport field ,what's your suggestion?
A: please give me the below information:
1. the size of the sport area.
2. the installation height for light.
3. the requirement of the illumination.





Contact us and get full quotation list.

We will take you a new better professional lighting.
