Product Overview

Description


Product Introduction

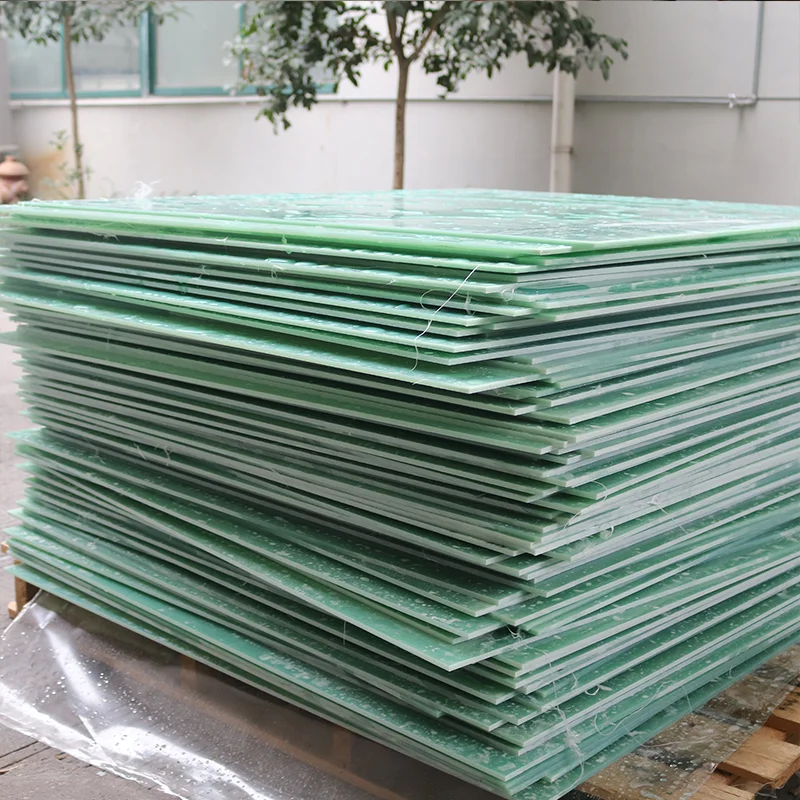

Customizable epoxy resin fiberglass sheet electrical insulation sheet

We have rich experience in production and processing in the field of insulating materials.

Epoxy sheet is a thermosetting industrial laminate consisting of a continuous filament glass cloth material with an epoxy resin binder.
It has characteristics of high strength, excellent electrical properties and chemical resistance.
These properties are maintained not only at room temperature but also under humid or moist conditions.
so it is the common choice used for insulation material.

Product characteristics of the epoxy sheet

1,Fire Resistance: UL94 V-0.
2,Good flatness, smooth surface, no pits, standard thickness tolerances.
3,Low water absorption, has good moisture resistance and good dielectric properties .
4,Stable electrical insulating properties, good electrical performance in dry or wet conditions.
5,High mechanical strength, good processability Punching, Drilling, Machining and Cutting is available.
6,Good mechanical workability.
7,In high temperature electric performance is stable.
8,High mechanical properties and dielectric properties.

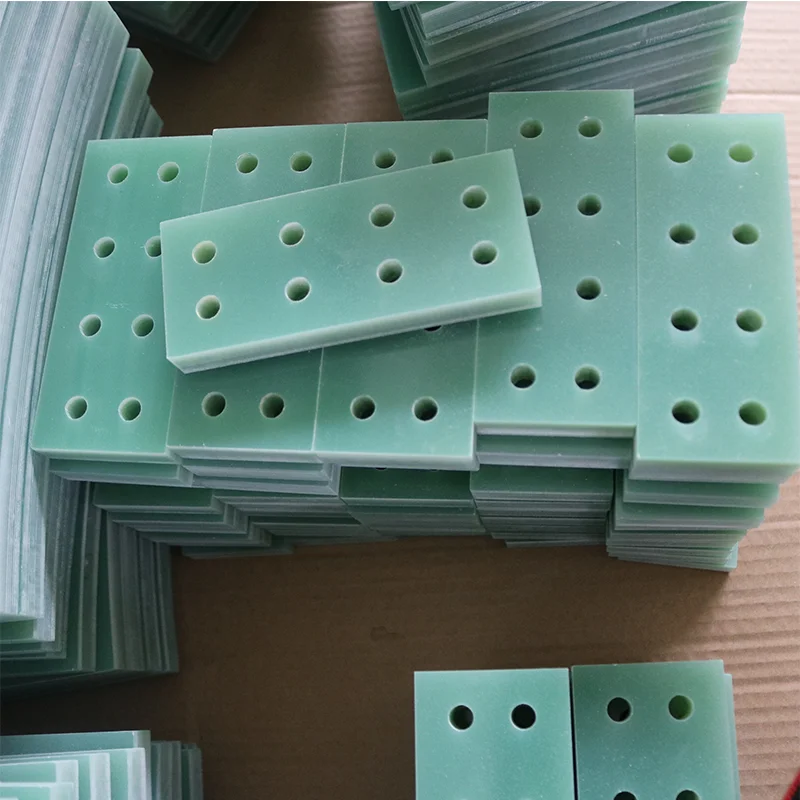

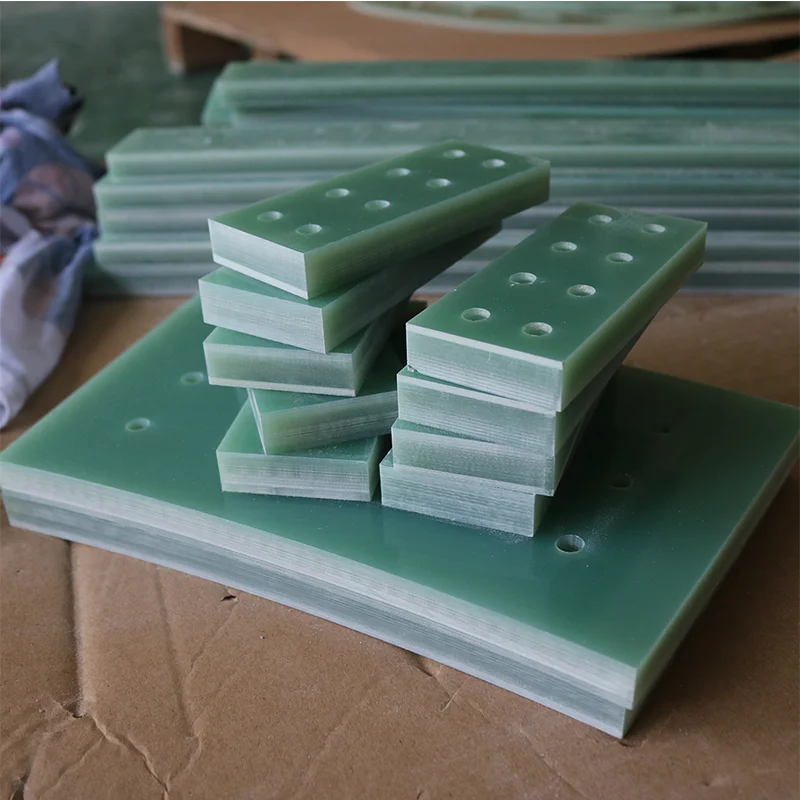

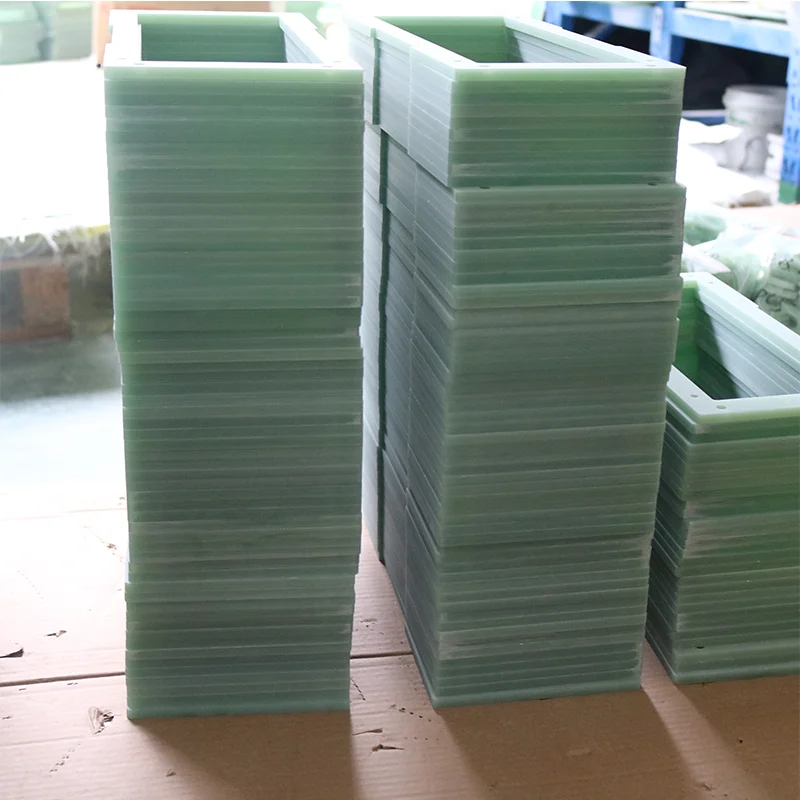

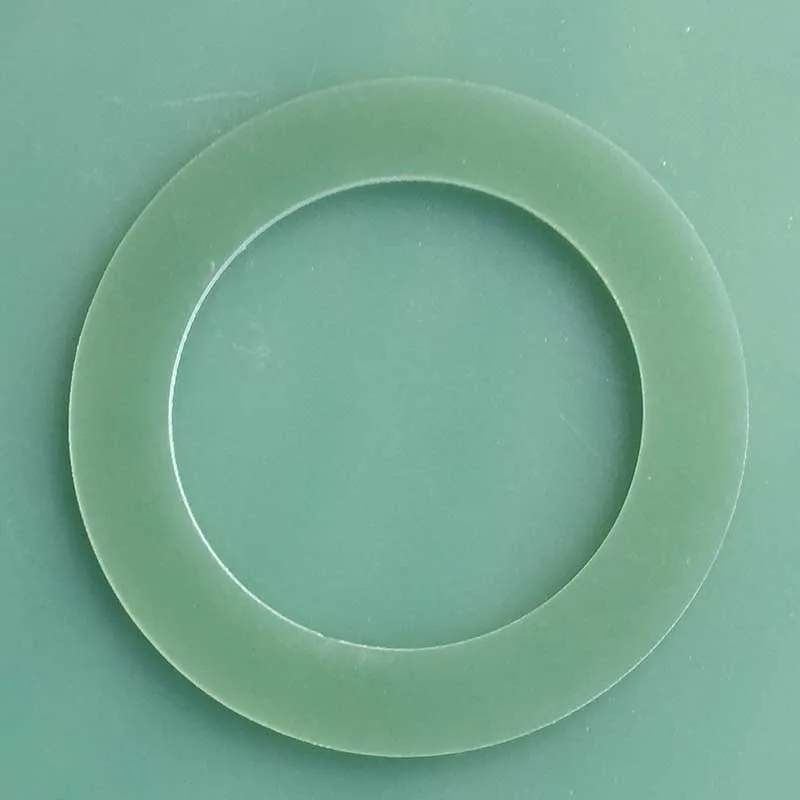

Product Processing

Factory direct sale epoxy resin sheet

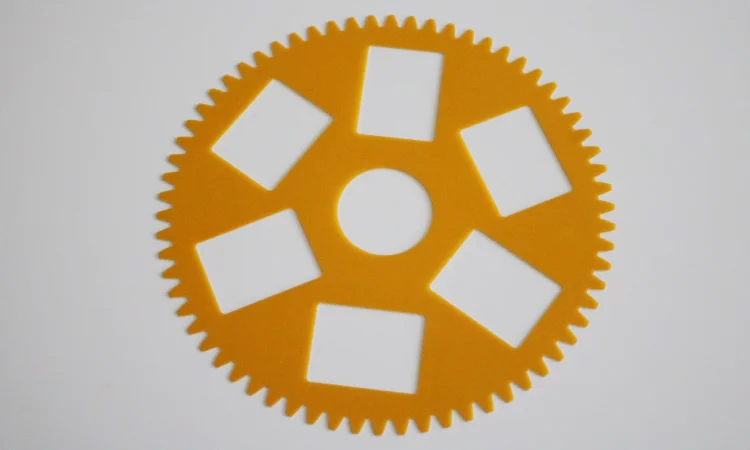

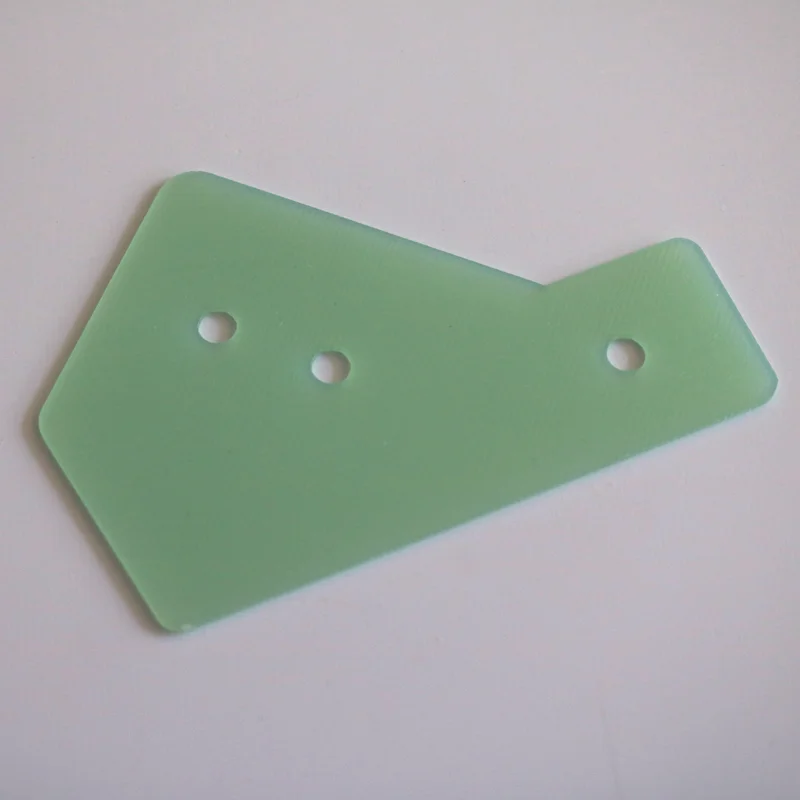

Different sizes and parts are available. Please contact with our sales department directly with supplied CAD&3D drawings, our professional engineering team will quote for you.

Product Parameters
\t
Material
\t
Epoxy resin + Glass fiber cloth
\t
Fire Resistance
\t
UL94 V-0
\t
Size
\t
1020x1220mm, 1020x2040mm,1220x2440mm,1220x3200mm or customized
\t
Thickness
\t
0.1-150mm
\t
Temperature resistance
\t
≥130℃
\t
Color
\t
Aqua green,yellow,black,Titanium white
\t
Warpage
\t
0.3%mm
\t
Processing
\t
supplied CAD or 3D drawings
\t
OEM/ODM
\t
 √
\t
Item
\t
Unit
\t
Result
\t
Voltage Resistance(penetrating)
\t
KV/mm
\t
18
\t
Voltage Resistance
\t
KV/mm
\t
12
\t
Volume resistivity
\t
Ω*cm
\t
10 ^6
\t
Surface resitance
\t
Ω*cm
\t
10 ^6
\t
Compressive Strength(Vertical)
\t
MPA
\t
≥350
\t
Compressive Strength
\t
MPA
\t
≥300
\t
Dielectric constant(50HZ)
\t
/
\t
≤5.5
\t
Bending strength
\t
kg/mm2
\t
≥340
\t
Anti-impact intensity
\t
KJ/ m2
\t
≥33
\t
Density
\t
g/cm³
\t
1.8 - 2.1

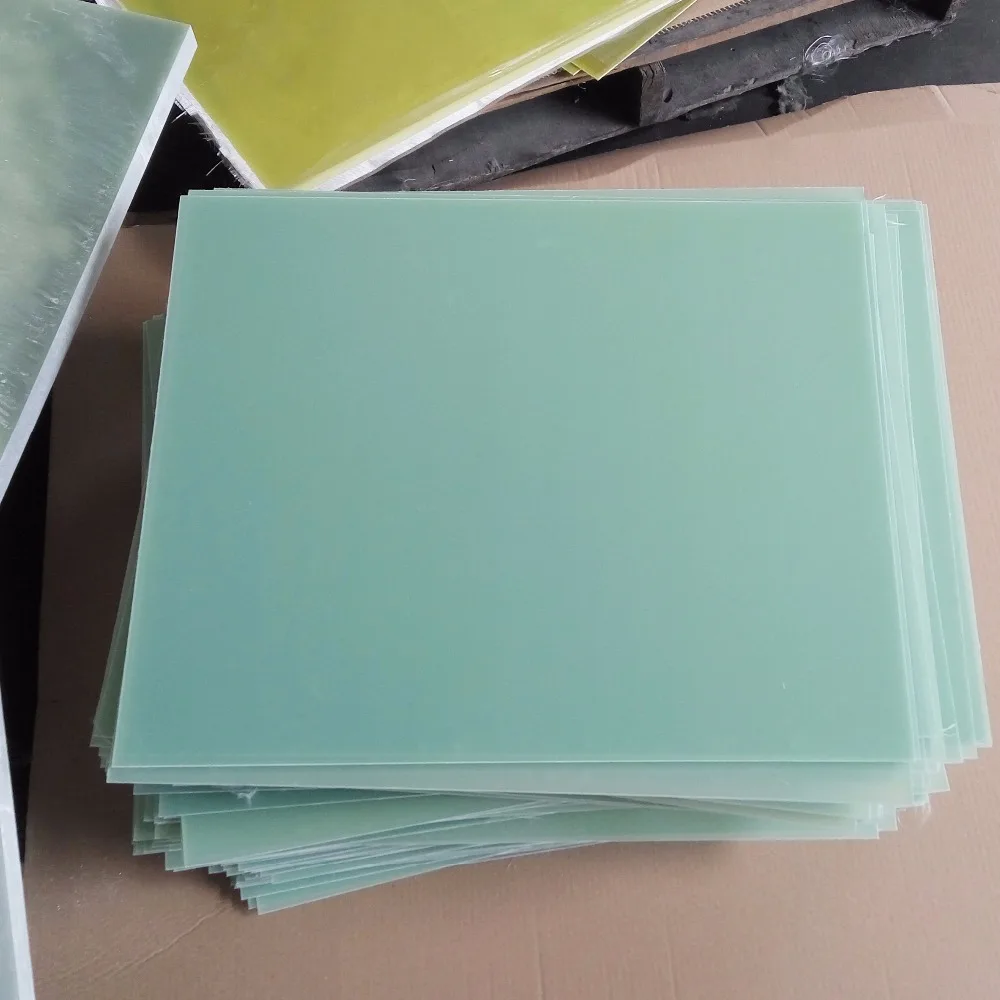

Product Details Show
\t\t\t\t\t\t\t\t\tOur company \t\t\t\t\t\t\t

Suzhou Wanrun Insulation Material Co., Ltd

we established in August 2010,The company is located at Suzhou Taicang City,Jiangsu Province, China(near ShangHai) ,which gives convenient transportation services for our clients.
we are able to provide one-stop manufacture service through our comprehensive product lines include design&process department, production department,assembly department, warehouse.
we have obtained I S O 9 0 0 1,SGS,CTI and CEMT certificates. Other than serve domestic customers in China, our products have also been exported abroad to Netherlands,Israel,Britain,Germany,Chile,India,Switzerland.

About us

We have rich experience in production and processing in the field of insulating materials.

Machine Equipment

We have professional production equipment and professional technical personnel.

Office

We have the perfect sales network and service system.

Our service

1,Our great passion and rational attitude make us highly efficient.
2,We have 8 years experience in the processing of insulating material.
3,Advanced equipments and professional engineers.
4,We are factory with large warehouse.
5,Our priority to quality assures you the reliability of our product.
6,OEM and many other processing services fall within our range.
7,We offer you the high-quality product with competitive prices in hope for longterm cooperation.

\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t

Q1 . Are you a manufacturer or a trading company?

We are a manufacturer, providing OEM & ODM service.

Q2 . What's your main markets?

North American, European, Middle east, Korea, etc.

Q3 . What is the delivery date for a sample?

Usually about 1-3 days for items with general requirements.

Q4 .Are your products conforming to our standards?

Yes, our products can pass the testings as you require, e.g.; CE, RoHS, PSE, ETL, FCC, etc.

Q5 . How do you control the quality?

We control the product quality by IQC, three tests on production lines, and 100% aging testing before packaging.

We are now apply for ISO 9001 and will pass ISO in three months.

Q6 . What's MOQ?

MOQ is 100PCS, but 1000 pcs for new models. Of course, we could accept small trial orders for certain items.

Q7 . Can you give us a favorable discount?

Of course, a favorable discount will be offered if the quantity is sizable.

Q8 . How do you ship the goods and how long does it take?

We usually ship by DHL, UPS, FEDEX, TNT, it usually takes 4-5 days to arrive. By air, by sea are also acceptable.
