OPTO EDU A59.4910 video recording ccd microscope camera
- Category: >>>
- Supplier: Opto-Edu (Beijing) Co. Ltd.
Share on (60783775880):
Product Overview
Description
OPTO-EDU A59.4910 video recording ccd microscope camera
Product Parameter
| A59.4910 Hardware Configuration | |
| Image Sensor | Color |
| Expose | Rolling Shutter |
| Maximum Resolution | 2592x1944(5,038,848 Pixels) |
| Sensor Optical Format | 1/2.5" (5.70mm(H) x 4.28mm(V), Diagonal 7.13mm) |
| Pixel Size | 2.2μm x 2.2μm(BSI) |
| Dynamic Range | 74.3 dB Linear, More Than 96 dB (Interleaved) |
| SNRmax | 40dB |
| Spectral Charatristics | 380-650nm |
| Exposure Capability | 3.9ms-320ms, Automatic And Manual |
| White Balance | Automatic And Manual |
| Preview Modes | 30FPS @2592X1944, 30FPS @1920X1080 30FPS @800X600, 640X480 |
| Record Format | Snapshot Picture Format: JPG, BMP, PNG, TIFF, PDF Resolution: 2592x1944, 1920x1080, 800x600, 640x480 Record Video Format: MJPG Format AVI File Resolution: 1920x1080, 800x600, 640x480 |
| Softwware Environment | |
| Windows System Demand | Microsoft®Windows® XP/7/8/8.1/10 (32&64 Bit) |
| CPU: Equal Or More Than The Second Generation Intel Core 2.8GHz | |
| Memory: 2G Or More | |
| USB Port: USB 2.0 High Speed Port Or Compatible Port | |
| Displayer: Suggest 17 Inches Or Larger | |
| Operating Environment | |
| Operating Temperature | 0℃-40℃ |
| Storage Temperature | -20℃-60℃ |
| Operating Humidity | 30-80%RH |
| Storage Humidity | 10-60%RH |
| Power Supply | Direcct-Current 5V, Supply By USB Port |

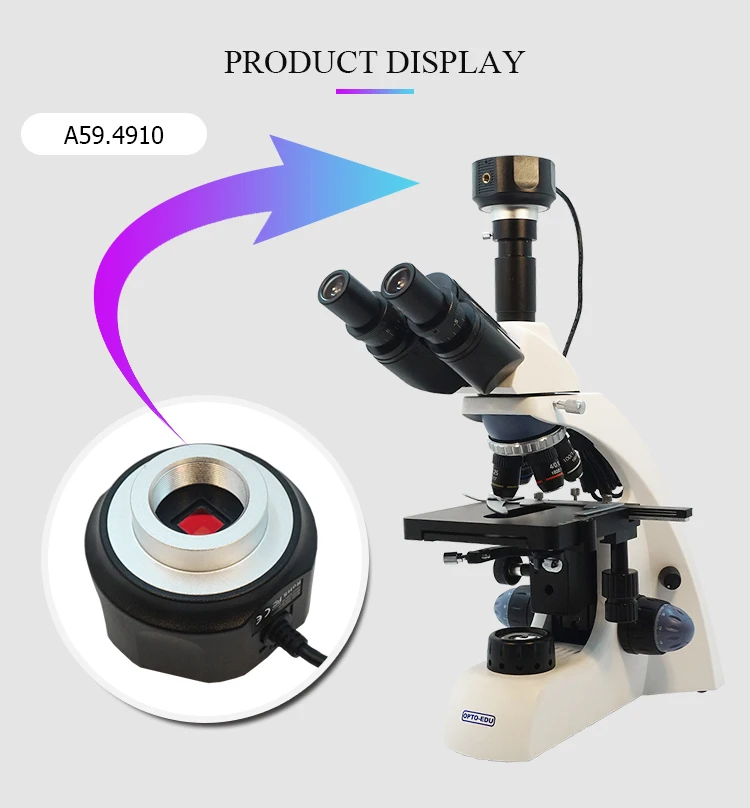

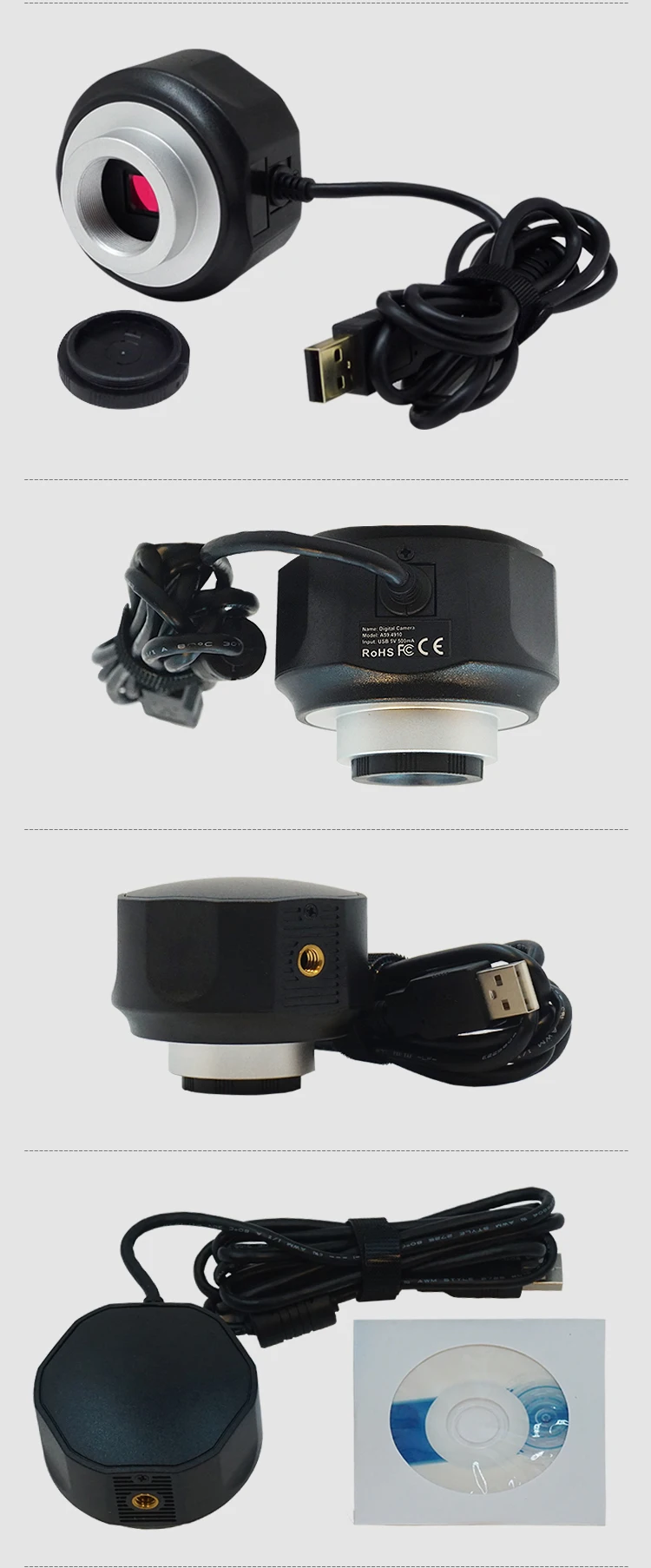

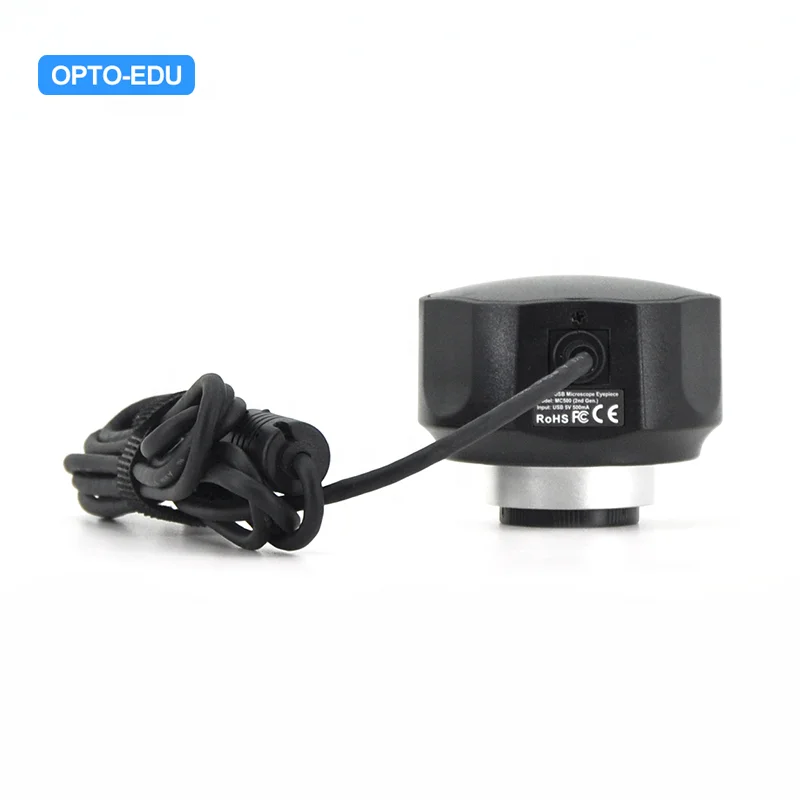

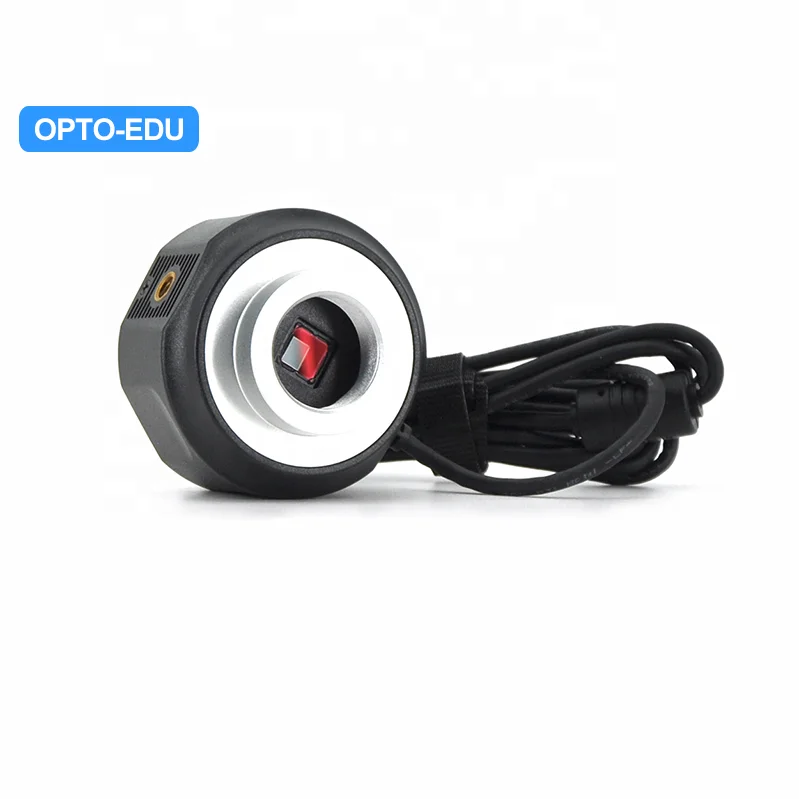

Product Display
Product Feature
--A closed structure with color filter built-in, preventing dust from CMOS sensor.

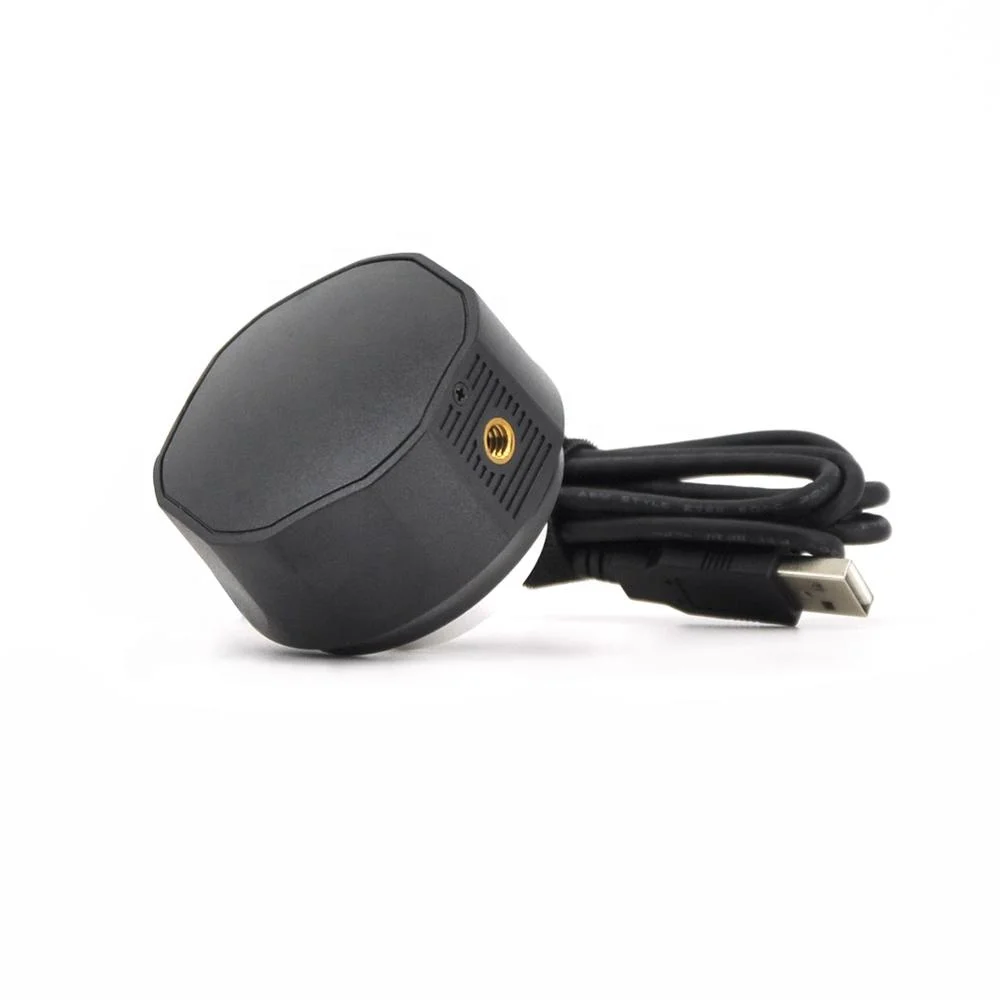

--Designed with commonly used tripod mount 1/4-20A for widely use.
--Reliable electrionic double plates design to resolve over heat problem after long working time.
--5V DC power supply from USB port no need additional power adatper.
--3 Years Quality Warranty!

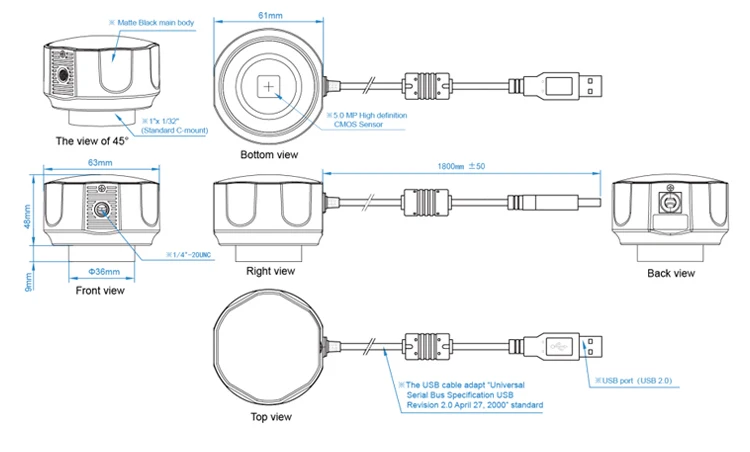

Drawing Display

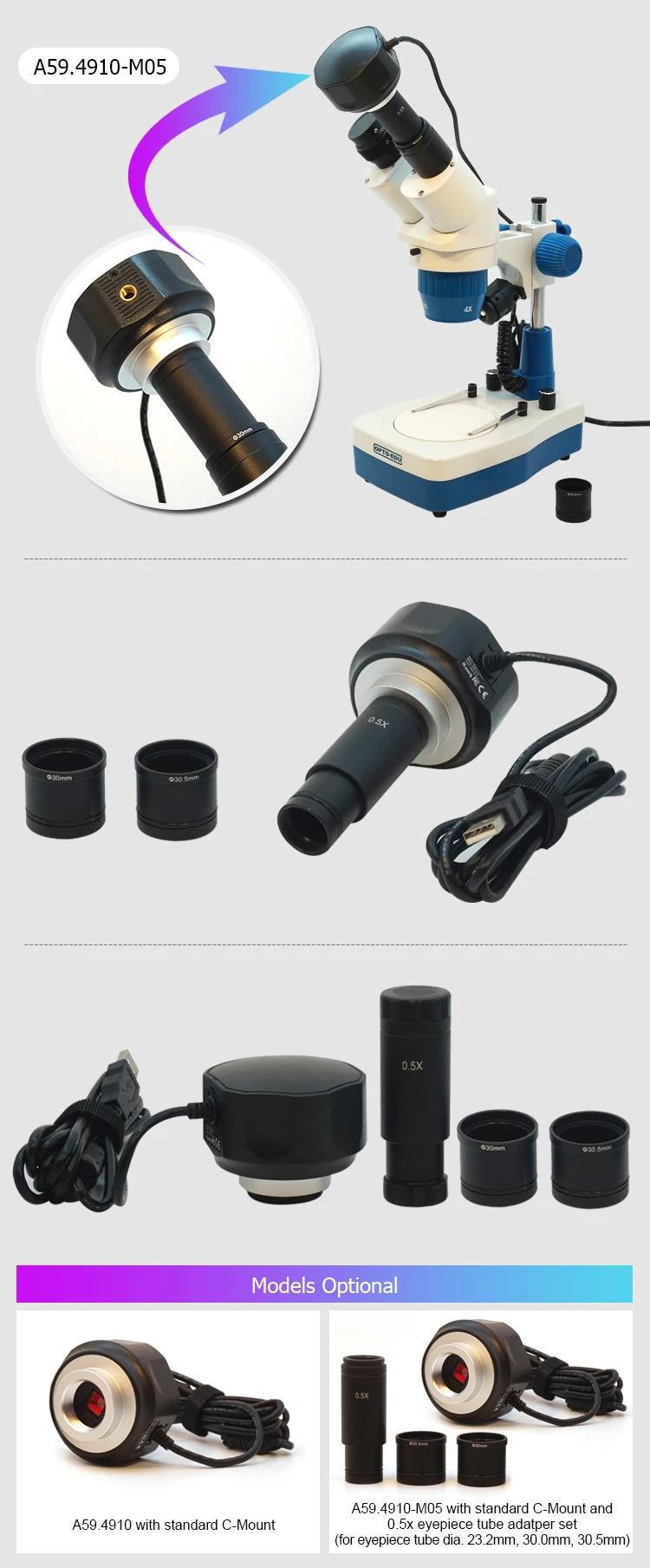

More Choices

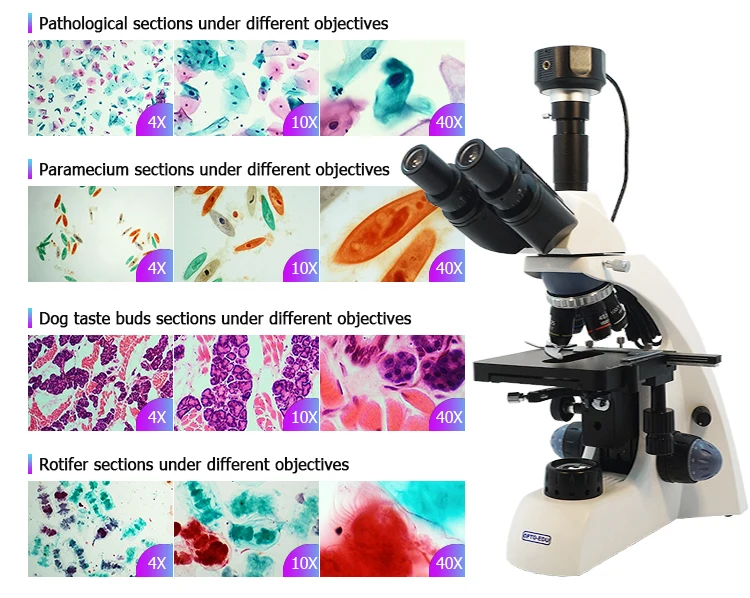

Application & Cases

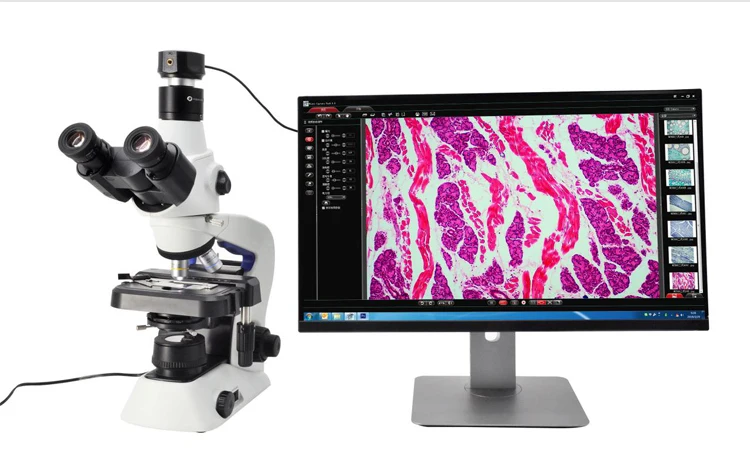

A59.4910 Microscope Camera can be connected to any biological microscopes, stereo microscopes, metallographic microscopes, etc. It has advantages of high frame rate, very nice color performance, clear image, convenient storage, widely used in industrial inspection, teaching research, clinical test, material analysis, machine vision, etc.
Packing & Delivery
Packing : Compact Design Box and Strong Master Carton
Shipping Time : 1-5 Days From Stock
G.W: A59.4910 0.24Kgs/Unit, 11.5Kgs/Carton
A59.4910-M05 0.33Kgs/Unit, 16.0Kgs/Carton
About Us
OPTO-EDU is one of the top professional supplier for microscope from China, we focus in microscope & educational field for more than 20 years. As the top recommended seller for microscope on alibaba, we have full types microscopes, including biological microscope, stereo microscope Metallurgical microscope, inverted microscope, fluorescent microscope, polarized microscope, phase contrast microscope, dark field microscope, multi-viewing microscope, DIC microscope, AFM/STM/SPM microscope, zoom microscope, gem microscope, digital microscope, LCD microscope, comparison microscope Forensic microscope, and all kinds of microscope accessories.

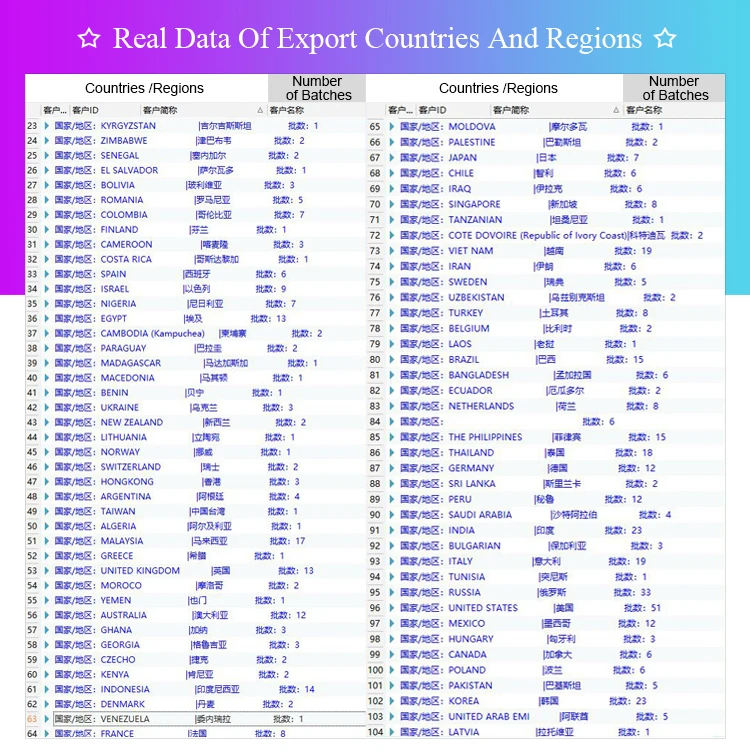

Our customer comes from more than 104 countries, such as United States, Britain, Russia, Canada, Germany, Denmark, Poland, Sweden, UAE, Qatar, Saudi Arabia, Egypt, Mexico, Argentina, Chile, Brazil, Korea, Thailand, India , Indonsia, Philliphine and so on. We have been working tirelessly to supply China's nice quality production to the world market!
