Product Overview


Self Service Payment Kiosk With Card Dispenser And Printer For Mall And Hotel

card dispenser


Product Description



SK-AD3 card issuing machine supports IC/RF card R/W and issuing/collecting functions, which is primarily applicable to self-service terminal equipments such as parking lot management system, expressway toll gate, self-service charging system, self-service card vending terminal, magnetic card management system and electricity bill payment system.



* Supports ISO7816-2 contact type IC card reading/writing

* Supports ISO14443-A contactless Type A/B card reading/writing

* Unique dispensing wheel design: is capable of issuing various embossing cards accurately

* Automatic internal adjustment: ensures accurate issuing cards of different thicknesses

* Multi functions in one device: provide IC/RF card reading/writing, issuing/collecting functions and effectively saves space for the complete machine

* Rear card capture box: provides convenience for card management

* Simple collection channel design: satisfies user requirement for large collection amount

* Multiple sensors: are able to judge the card position and indicate the card status

* Scientific card transfer wheel design: automatically avoids dust accumulation which will lead to slippage

*High-strength wearable plastic channel: is adopted to reduce the risk of metal shielding and increase the success rate of RF card reading/writing

* Multiple levels of sensor circuit protection: prevents optical interference

* PCSC protocol: is available



Communication Method

USB (PC/SC)/ RS232 (optional)

Operating Conditions

Power Supply

DC24V±5%, 2.5A

Quiescent Current


Default Baud Rate


Card Stacker Capacity

175 pcs (0.76mm standard card)

130 pcs (0.76mm embossing card)

350 pcs (0.4mm thickness)

Capture Box Capacity

25 pcs (0.76mm standard card)

Capture Box Capacity

25 pcs (0.76mm standard card)

Service Life

Issuing Life

1,000,000 passes min.

IC Contact

500,000 passes min.

Operation Temperature / Humidity

0°C to 50°C, 0 to 90% RH without condensation

Storage Temperature / Humidity

-25°C to 80°C, 0 to 90% RH without condensation

Net Weight

Approx. 1.6KG (excluding accessories and package)


233L x 69W x 200H mm

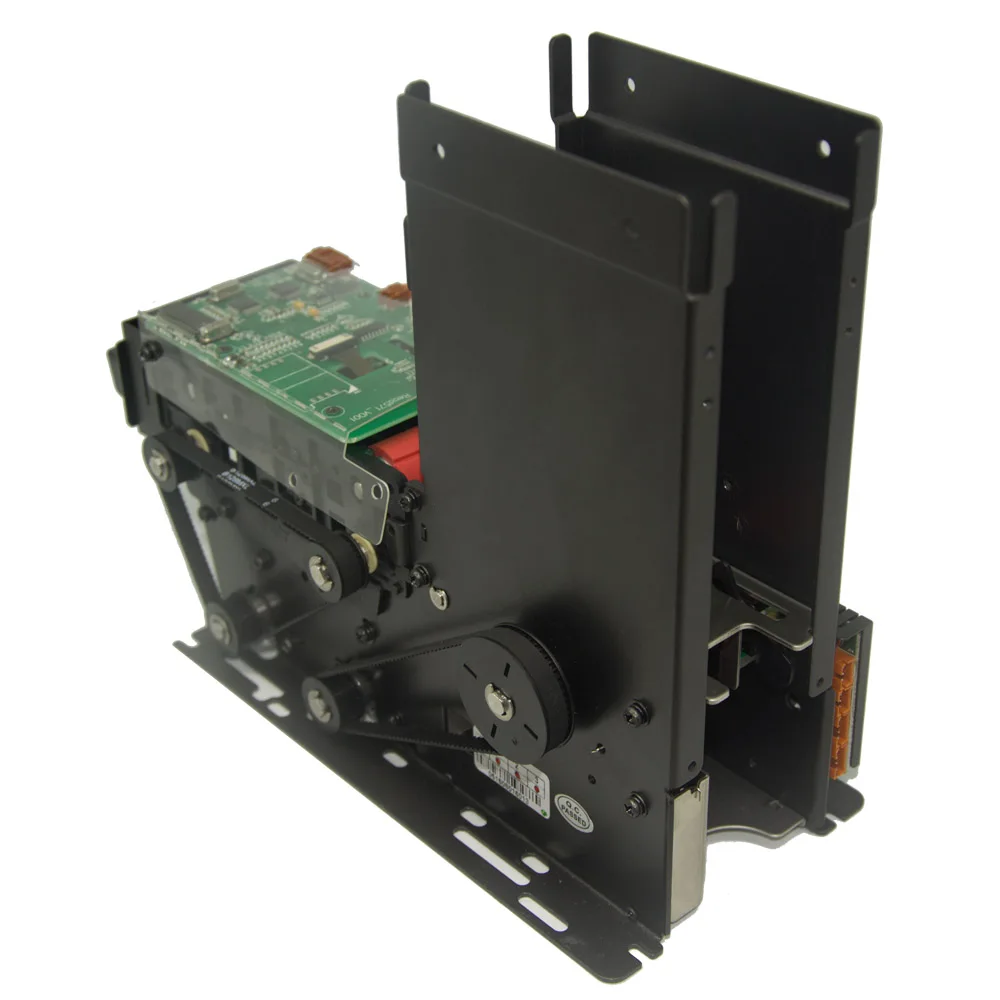

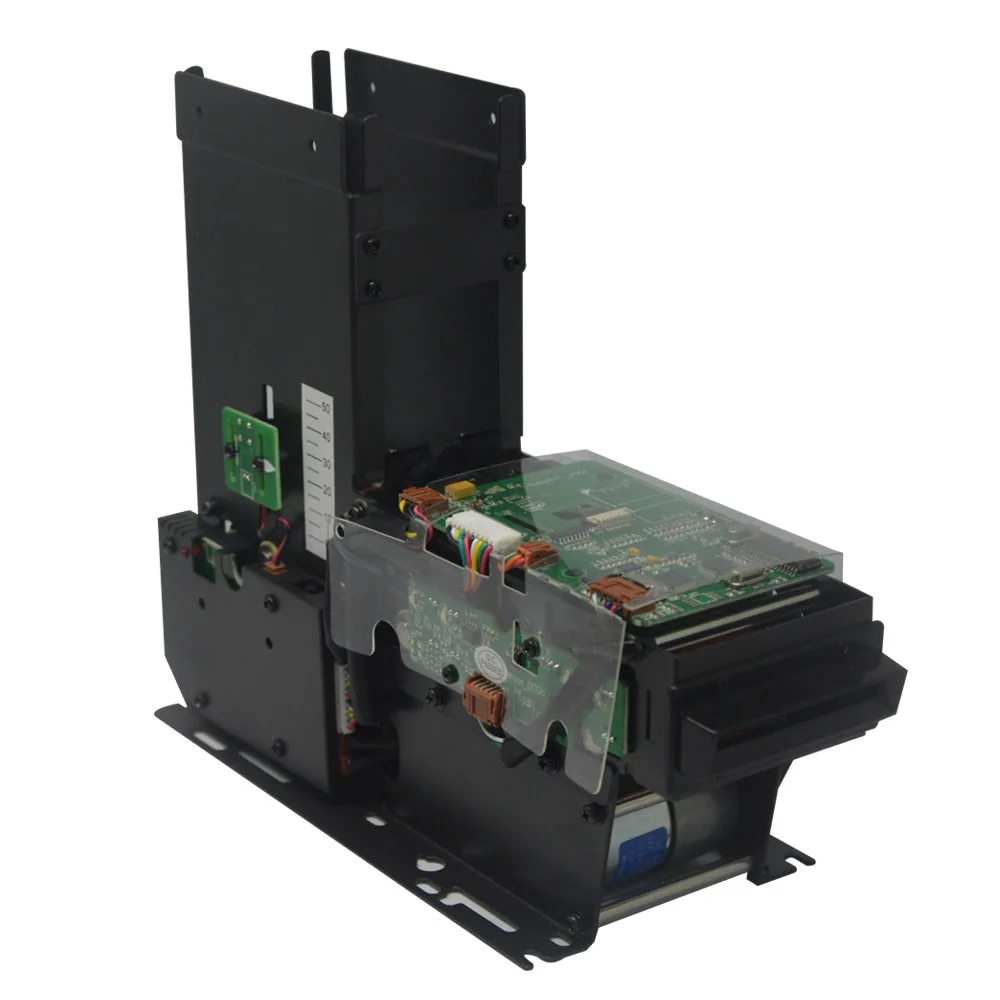

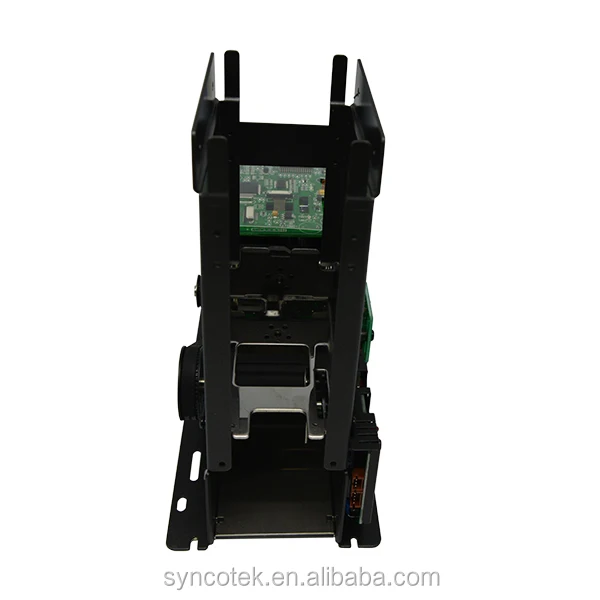

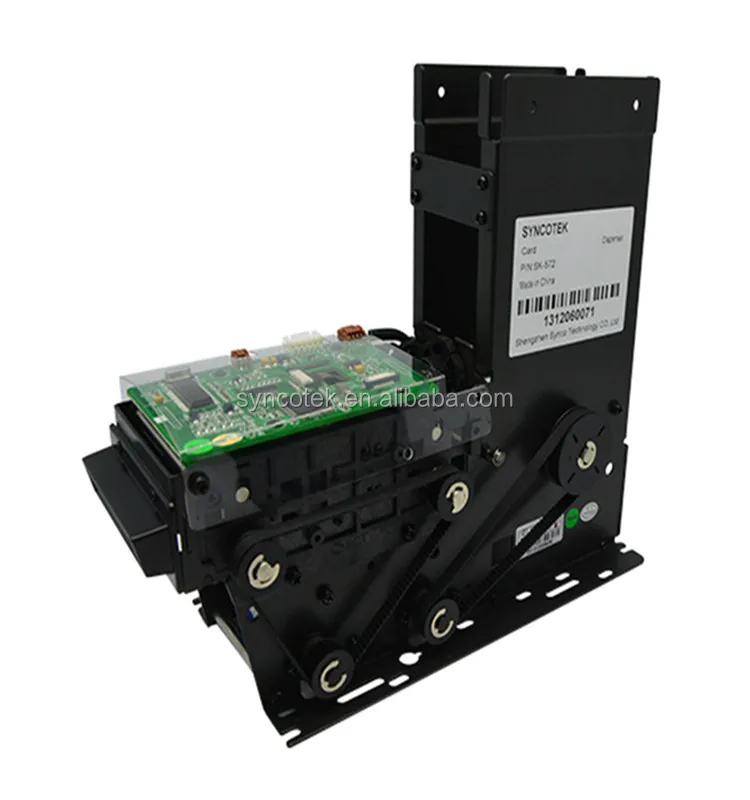

 Detail Pictures


Magnetic Card DispenserMagnetic Card DispenserMagnetic Card DispenserMagnetic Card DispenserMagnetic Card DispenserMagnetic Card DispenserMagnetic Card Dispenser








Company Information


Shenzhen Syncotek Technology Co., Ltd. is a global E-Payment Hardware Solution Provider (HSP), especially in printers and card readers. Founded in 2004, we always adhere to the business principle of Quality First and Customer Foremost. Our main products include POS printers, Mobile printers, Panel printers, Kiosk printers, magnetic card readers and RFID card readers.
Our Services


Our Quality & Service

 Our products have acquired CE, FCC certification and RoHS compliance and NCC, KCC, EK improvement via Taiwan, Korea companies. Our products are with stability, conformity, high performance and competitive price.SYNCO has super excellent and experienced R&D team and sales engineer team which are the guarantee to provide our clients with superior products and service as well as OEM/ODM business. We expect to cooperate with system integrators, strategic partners and product distributors.



Cooperate with us

SYNCOTEK sticks to trustworthy cooperation, creative spirit, positive action, customer concept and strives to realize our value together.
