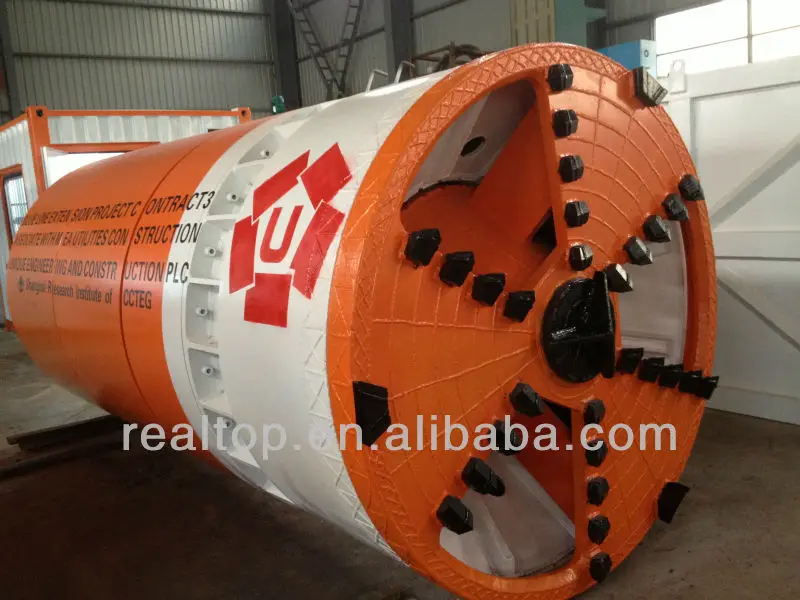

1.Pipe Jacking Machine. 2.Trenchless jacking. 3.Ok for curve jacking. 4.Fast and easy control. 5.National owned,38 years for manufacturing, 11years for oversea experience.
250mm~5000mm Pipe Jacking Machine/Tunnel Boring Machine all available.
Techincal parameters:
Model
DGR1200-QNP
Dimensions
Inner Diameter (mm)
1,200
Outer Diameter (mm)
1,500
Total Length (mm)
4,500
Cutting Part
Motor Power (kW)
30*3
Cutterhead Torque (kN·m)
210
Cutterhead Rotating Speed (r/min)
0-5
Timing Way
VFD
Oil Cylinder of Rectifying
Quantity
4
Thrust Force (kN)
784
Stroke (mm)
60
Rectifying Angle (°)
±2
Hydraulic System
Motor Power (kW)
1.5
Working Pressure (MPa)
25
Slurry In & Out System
Charge Pump(kW)
45
Discharge Pump(kW)
45
Timing Way
VFD
Main Jacking System
Jacking Speed (mm/min)
0~100
Rated Pressure (MPa)
31.5
Rated Jacking Force (kN·m)
1470 *4
Main Pump Power (kW)
22
Timing Way
VFD
Inter jacking System
Jacking Speed (mm/min)
0-100
Rated Pressure (MPa)
31.5
Rated Jacking Force (kN·m)
343*12
Pump Power (kW)
15
The Quantity of Cylinder
12
Stroke(mm)
300
Shaft Size
Jacking Shaft( I/D) (mm)
6,500
Receiving Shaft( I/D) (mm)
4,500
Detail pictures;
The thrust system:
1. Hydraulic pump station
Pressure rating: 31.5Mpa
Speed regulation way of main pump: VVVF.
2. Hydrocylinder
Type: Double-stage with steady trust
Thrust: 1960kN
Stroke: 1750mm x 2.

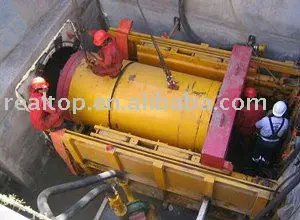

Main jacking system

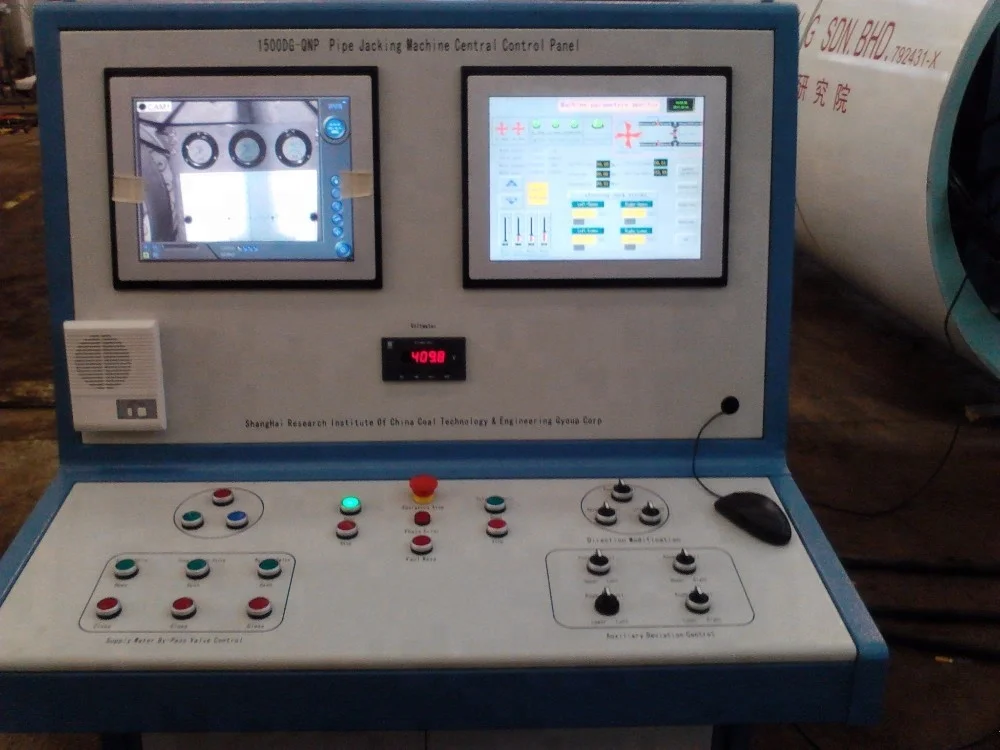

Monitoring system
1. Monitoring system with laser positioning.
2. Functions: equipment control, real-time data acquisition and display, fault alarm, trend analysis, historical data printing etc..
Our Services
1. On site service support.
2. 12 month warranty.
3. Life time service support, spare parts are available.
4. Quick feedback for after service. 7x24h.
5. Design machine according to the needs of clients.
Packaging & Shipping

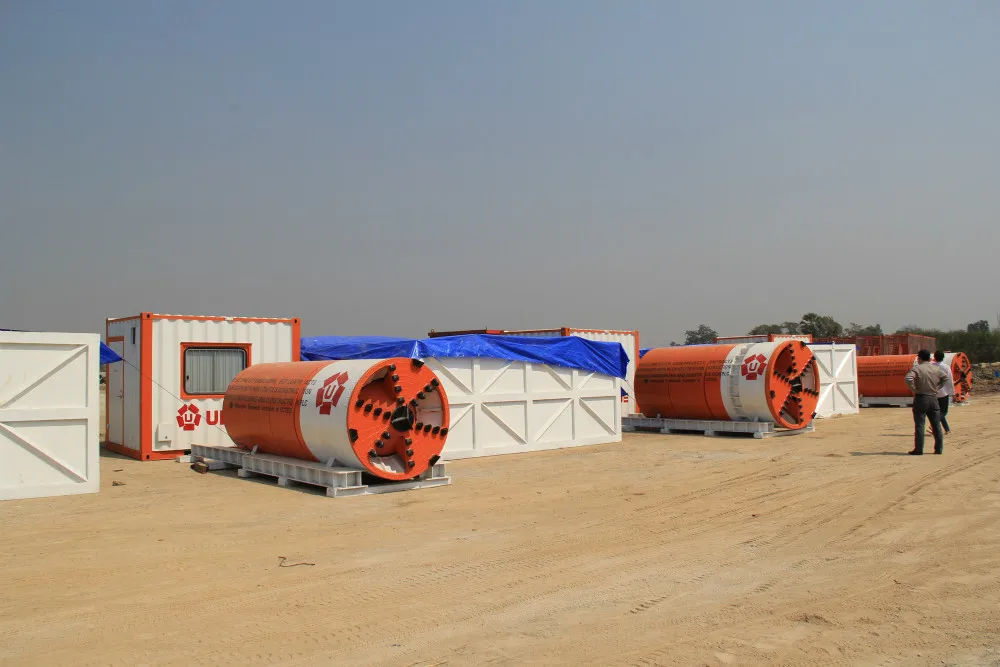

Packing and delivery as below pictures:
Company Information
1. More than38 years experienceon manufacturing Pipe Jacking Machine(TBM), 11 years for overseas market.
3. Multi-disciplinary technologies in one, such as the machinery units, hydraulic system, electric controller (including PLC), Laser system, measuring device, etc.
4. High efficiency, low construction cost, will not to affect the ground traffics, contribute to environmental protection.lower the total cost.
5. More than 20 units applied in Singapore.
6. Concrete jacking pipe, segmental concrete pipe both ok.
7. Design according to the needs of clients.
FAQ
Information needed for quotation accordingly:
1 Project total length, distance for one section, how many sections will be built?
2 Pipe type: concrete or steel etc, single length of the pipe? outer and inner diameter ?
3 Projects information: for water supply, sewage project?
