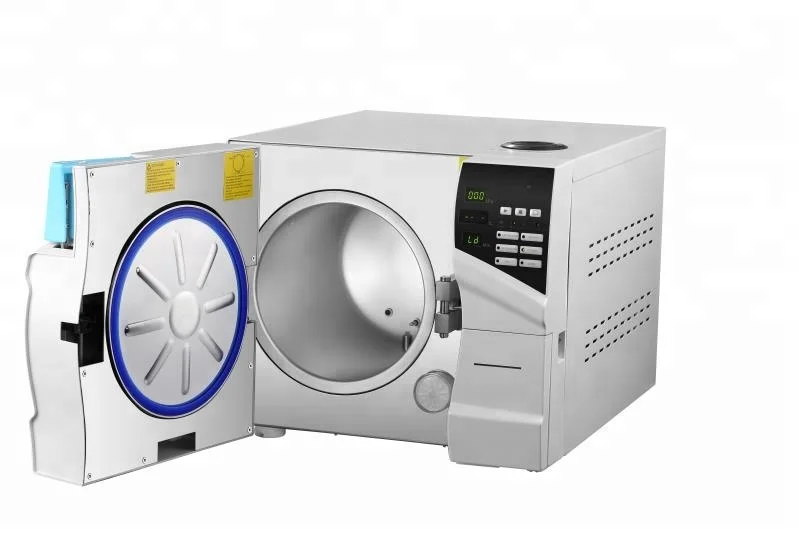

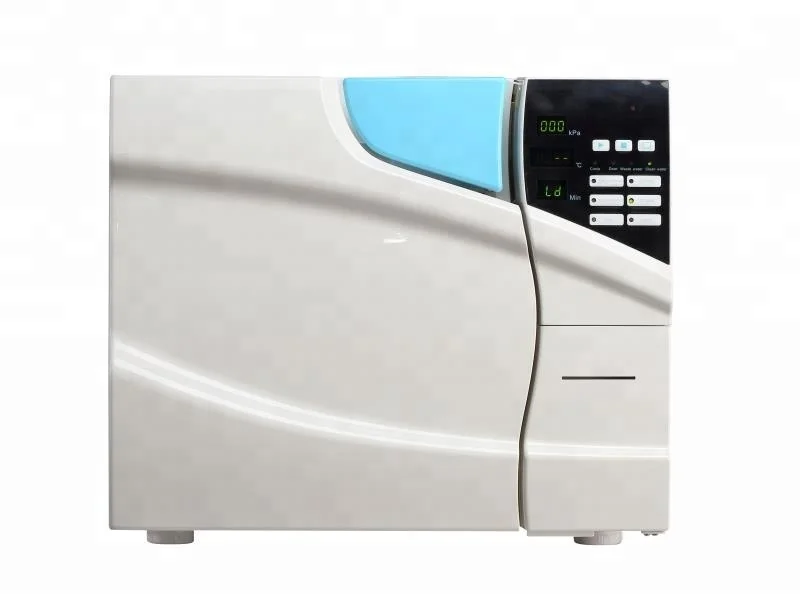

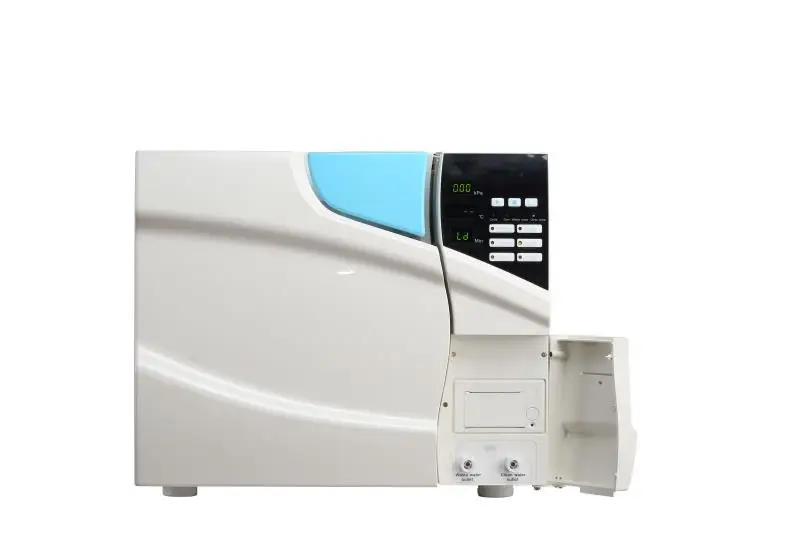

Cheap Medical Autoclave

Product Overview

Description









Model	22L		Material of chamber	Stainless steel 304
Description	Small Autoclave		Colors available	White
Class	B		Screen type	digital
Certification	CE 1023, ISO 13485		Screen size
Standard	BS EN 13060:2004 + A2:2010		Language available	English, Italian, German, Chinese
Frequency	50Hz		Lock system of door	Mechanic + electrical lockers
Plug	3 hole plug		User password	Yes
Wattage	2.4 KW		Output	Thermo printer & USB
Sterilization temperature	105 - 134℃		Capacity	22L
Max working pressure	0.21-0.23MPA		Products size	73*57*51cm
Life span	5 years		GW/NW	61/53KG
Diameter of chamber	25 CM		Power	220V/50Hz, 2.4KW
Depth of chamber	45 CM



*         Relative humidity: ≤80%

*         Atmospheric pressure: >70kPa;

*         Voltage:230VAC, 50Hz, 2500VA

*         The highest working pressure:  0.21~0.23MPa

*         The highest working temperature: 134~137℃



*          Environmental temperature range: 5~40℃

*          Relative humidity: ≤80%

*          No corroding gases



*          Please use a 3-hole socket, and ensure the socket has been connected well with the ground. Do not put the autoclave on a place that the power are difficult to be cut off.

*          Do not use power with different voltage with which stated in this manual.

*          Do not touch the plug or socket with wet hands.

*          Do not pull, change, over-bend or twist the wires, and do not put heavy things on the wires.

*          Do not put the autoclave on an unstable table.

*          Do not block the door of autoclave, and cover the ventilation holes and radiation holes.

*          Do not put anything on the top of autoclave.

*          If you find any abnormal smell or sound during operation, please cut off the power immediately and contact your local distributor or us.



Fully Automatic
8 Preset sterilization programs
Ster. Temp.: 105-134℃
Ster. Time: 4-60 min
Dry time: 1-25min
Vacuum Times: 1-10 times
B&D / Helix / Vacuum testing program

Cleaning Program
Printer & USB Output
Big Stainless Steel Water Tanks

Program	121℃ Solid	121℃ Hollow	121℃ Porous	121℃ Solid	121℃ Hollow	121℃ Porous
Vacuum Times	1	3	3	1	3	3
Temp (℃)	121	121	121	134	134	134
Pressure(KPA)	110	110	110	210	210	210
Time(Min.)	20	20	20	4	4	4
Program	Cotton	Prion	User defined	BD/Helix Test	Vacuum  Test	Clean
Vacuum Times	3	3	User defined	3	1	3
Temp (℃)	134	134	User defined	134	/	105
Pressure(KPA)	210	210	User defined	210	-80	20
Time(Min.)	4	19	User defined	3.5	15	5
