Sliver Fish LiFePO4 36V 10Ah 10.4Ah Electric Bike Li Ion 18650 E Bike Battery xh370 10j

Product Overview

Description

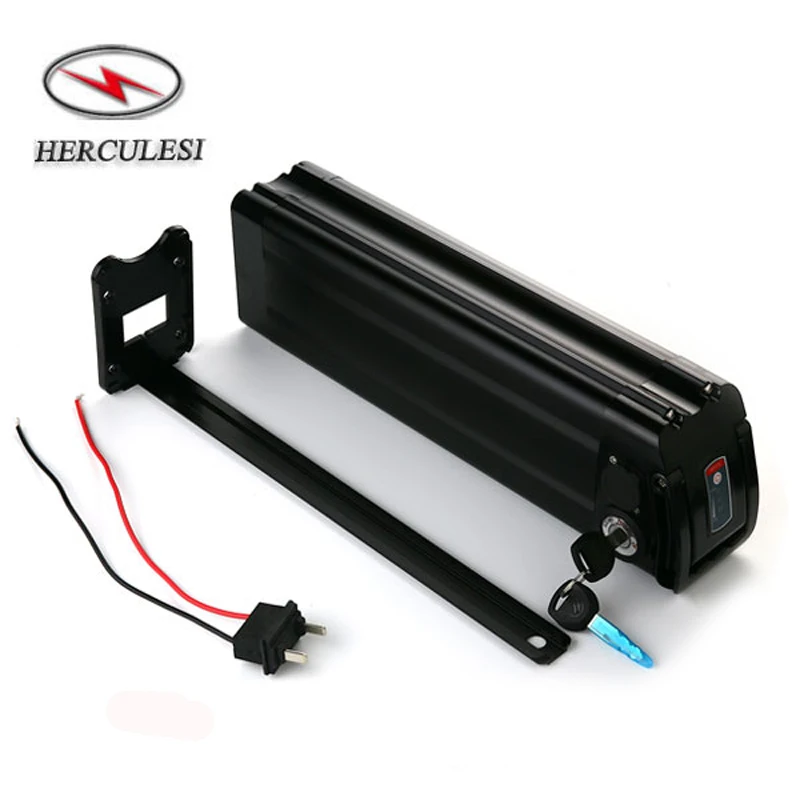

Sliver Fish LiFePO4 36V 10Ah 10.4Ah Electric Bike Li Ion 18650 E Bike Battery xh370 10j

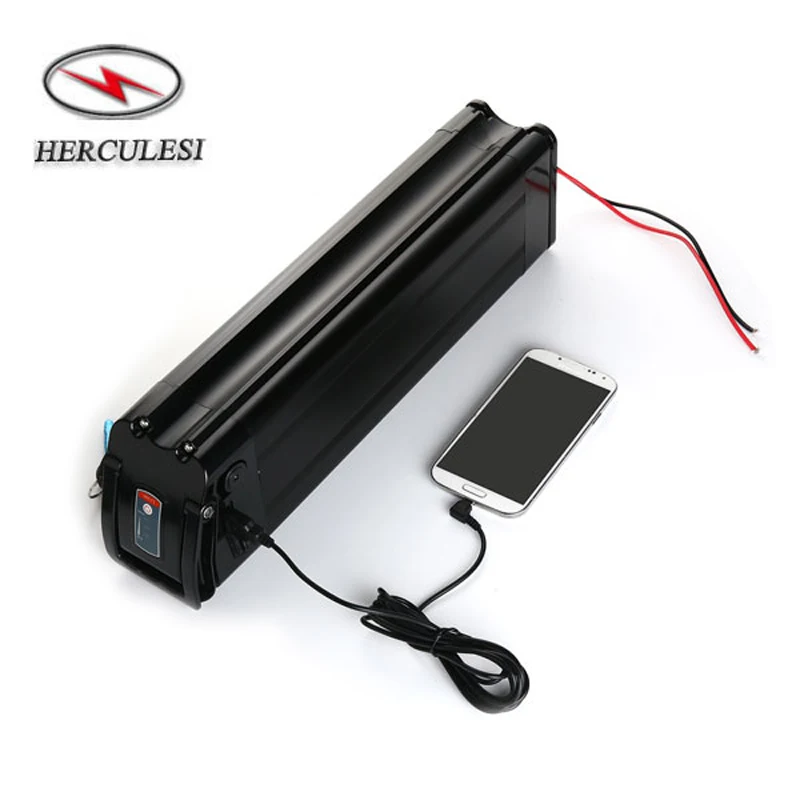

Silver Fish Battery (with LED power display, USB 5V output)
Color: silver / black

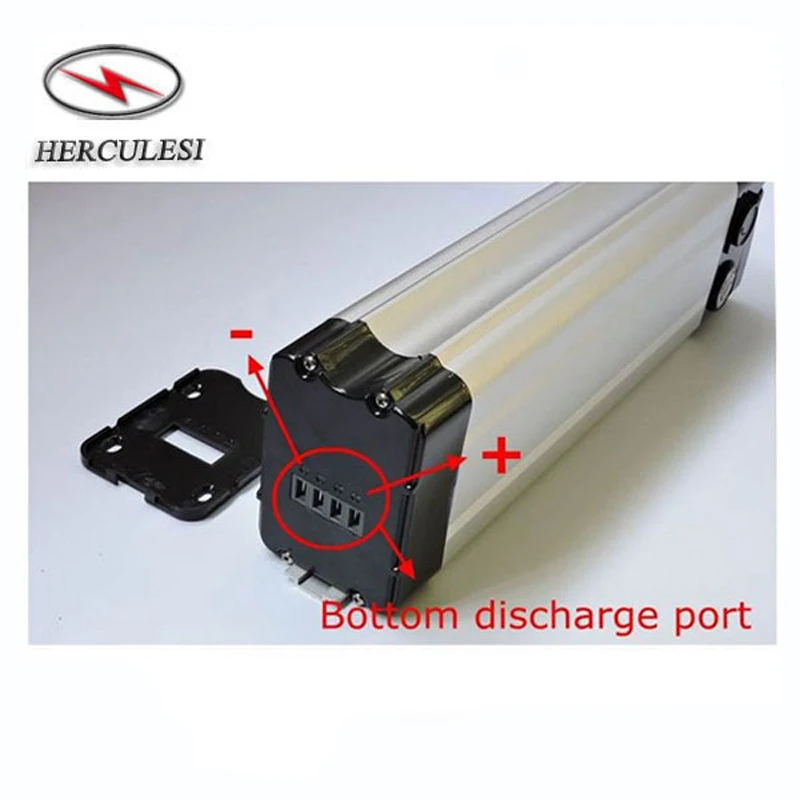

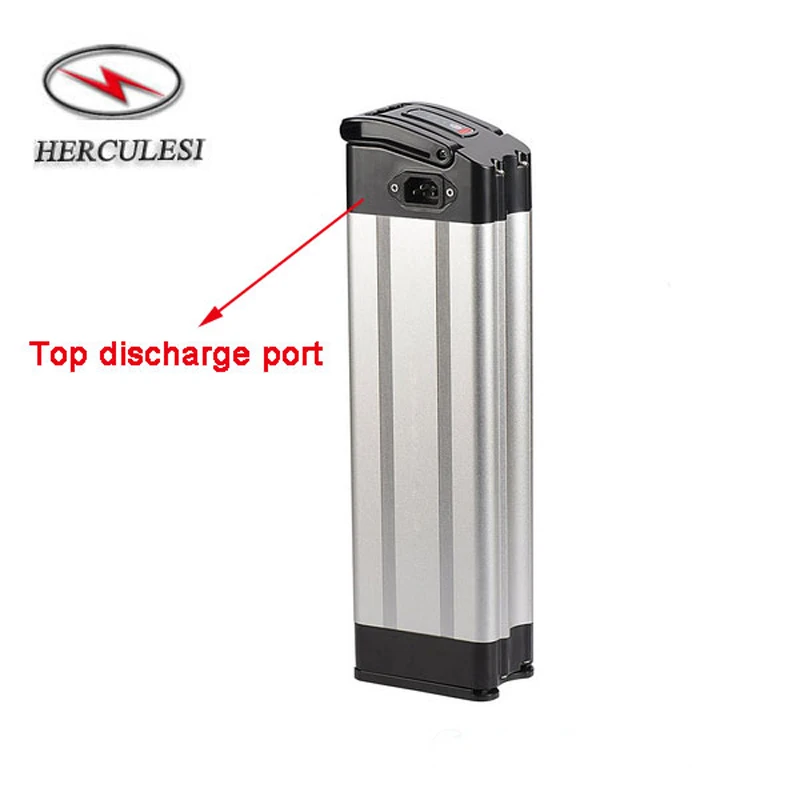

Type: top / bottom discharge
Size: 75*110*390 mm
Max space: 80 pcs of 18650 cell
BMS contstant current: 15-20-30 Amps



24V 8Ah / 10Ah / 12Ah / 15Ah / 20Ah / 25Ah / 30Ah
36V 8Ah / 10Ah / 12Ah / 15Ah / 20Ah / 28Ah
48V 8Ah / 10Ah / 12Ah / 15Ah / 18Ah / 21Ah



Material	Lithium Ion Battery (LiNiCoMnO2)
Nominal Voltage	36V
Nominal Capacity	10Ah
Cell Assembly	18650 3.7V 2500mAh
	10 series with 4 parallel
Built-in BMS (10S 15A BMS)	Over-charge & discharge protection. Temperature control function. Short circuit protection. Balance the cells and ensures long cell life.
Charge	Charge Model	CC / CV
	Charge Current	2A / 5A Charger
	BMS Charge Cut-off Voltage	42V
	Cell Overcharge Protection Voltage	4.2V / Cell
Discharge	Max Continuous Discharge Current	15A
	Peak Discharge Current	30A
	BMS Discharge Cut-off Voltage	28 +/-1V
	Cell Over-discharge Protection Voltage	2.8V / Cell
Working Temperature	Charge Temperature Range	0~45°C
	Discharge Temperature Range	-20~60°C
Cycle Life	800~1000 cycles
Our certifications	ISO9001, UL 1642, CE, ROSH
Dimension	75*110*390 mm
Weight	about 3 Kg
Application	E-Bike, Scooter, Motorcycle...
Warranty	13 Months
Part Included	1× 36V 10Ah Silver Fish Battery 1× 42V 2A Charger









Herculesi is one of white hair for battery business in China since 2008.

1. "Quality is our culture", passed ISO9001, UL 1642, CE, ROSH

2. "With us your money in safe, your bussiness in safe", full refund in case of bad quality.

3. OEM is also welcome in our factory!

4. "Quality is the soul of an enterprise", CE ROSH UN38.3 MSDS can be provided if needed.

5. Fully 13 months warranty with good after customer services.

6. Down tube/ Rear Carrier / Folding / Under Saddle E-Bike, Scooter, Motorcycle, Boat, Wheelchair, Solar Storage, EV, RV, Forklift LiFePO4 battery solution available.



We provide high quality battery to clients all over the world and help cleints deliver battery from China to them by sea and by air at reasonable price. Also we provide necessary technical solution and warranty to you!
