Electric Microbrewery Equipment 300l Beer Making Machine Beer Brewery
- Category: >>>
- Supplier: SHANDONG SHENDONG CO. LTD.
Share on (60783882227):
Product Overview
Description
Electric microbrewery equipment 300l beer making machine with hot liquor tank microbrewery
Product Description
1. 300L Brewery Configurations
Milling system | Malt miller | 150-200kg/h | 1pcs |
Brewhouse | Mash tun/ Lauter tank | Volume is 300L, with false bottom, grant, raker with motor | 1pcs |
Kettle/Whirlpool tank | Volume is 300L, electric heating | 1pcs | |
HLT water tank | Volume is 600L, electric heating | 1pcs | |
Includes plate heat exchanger, wort pump, motors, hops filter, yeast adding tank, oxygen device and pipelines | |||
Fermenting | Fermenters | Volume is 300L or 600L (double batches) | 6pcs |
BBT(option) | Volume is 300L or 600L (double batches) | 2pcs | |
Racking arm, spunding valve, pressure gauge, carbonation stone, sample valve | |||
Cooling system | Glycol tank | Volume 500L or 1000L | 1pcs |
Cold water tank(option) | Volume 800L, cooled by glycol tank | 1pcs | |
Chiller | 5HP, Copeland | 1pcs | |
Cleaning | CIP | 50L two tanks, heated by electric, with pump and trolley | 1pcs |
Controlling | Control cabinet | PLC touch screen or PID controller | 1pcs |
2. 300L Mashing System
300L brewhouse can be in various combination:

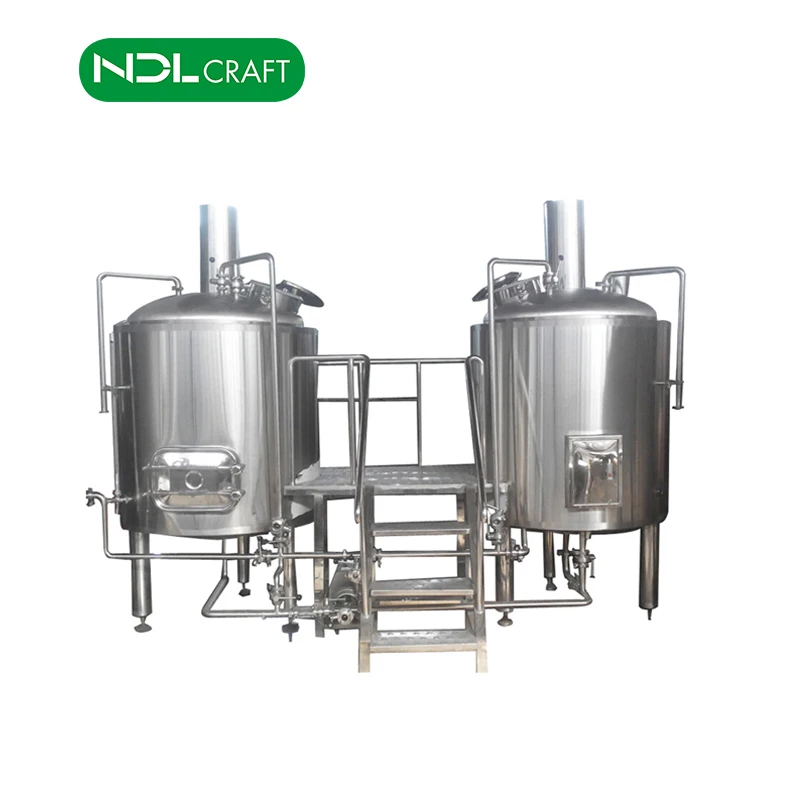

A typical two-vessel
Combination Mash Lauter Tuns are the first combination vessel in these smaller brewhouses line ups. This vessel should be sized to favor the Lauter operation, and have the mechanics for mixing mash and graining out.
Next inline is the combination of the Kettle and Whirlpool tanks. This combination vessel is designed and sized for being primarily a kettle, but is equipped with a tangential fitting for whirlpooling.

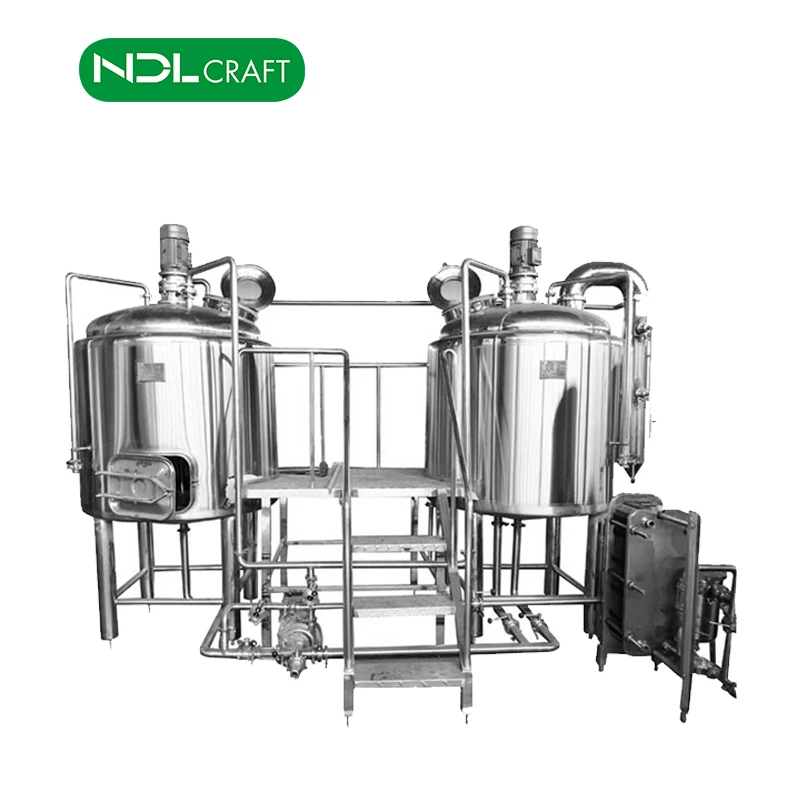

Mash Lauter Tuns + Kettle Whirlpool tanks + Hot Liquor Tank (HLT)
You May Also Like Other Brewhouse Types:
Send Inquiry>>
3. 300L Fermentation System
1). A serials of the fermetation tanks
Fermentation tank series | Volume in US Gallon | Diameter | Height |
100l Fermentation tank | 26US Gallon | 640mm | 1500mm |
200l Fermentation Tank | 53US Gallon | 760mm | 1800mm |
300l Fermentation Tank | 79US Gallon | 860mm | 2000mm |
500l Fermentation Tank | 132US Gallon | 960mm | 2350mm |
1000l Fermentation Tank | 264US Gallon | 1260mm | 2650mm |
2000l Fermentation Tank | 528US Gallon | 1560mm | 3150mm |
3000l Fermentation Tank | 793US Gallon | 1800mm | 3550mm |
5000l Fermentation Tank | 1321US Gallon | 2000mm | 4450mm |

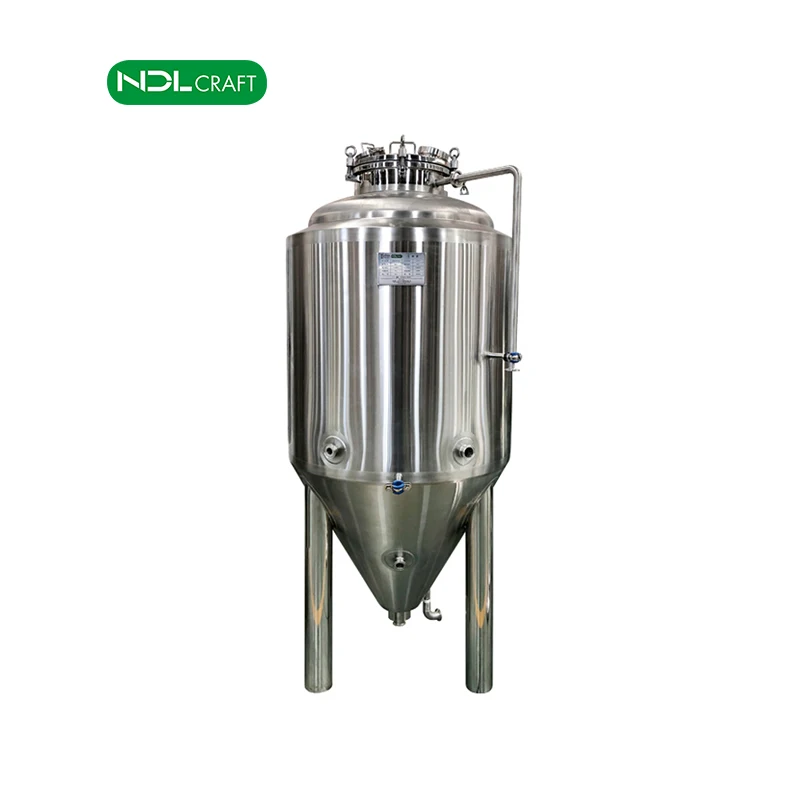

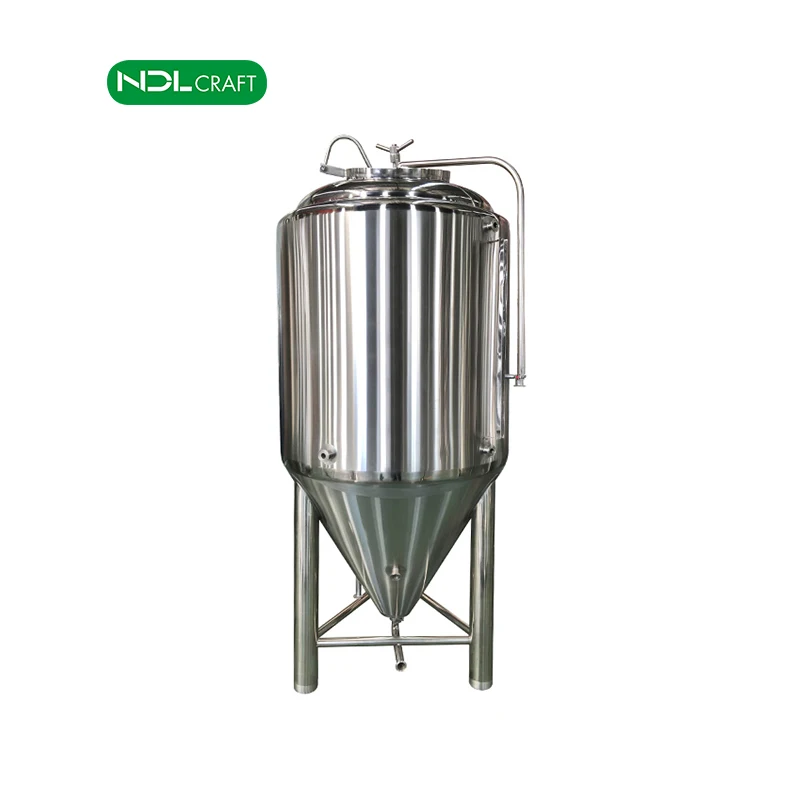

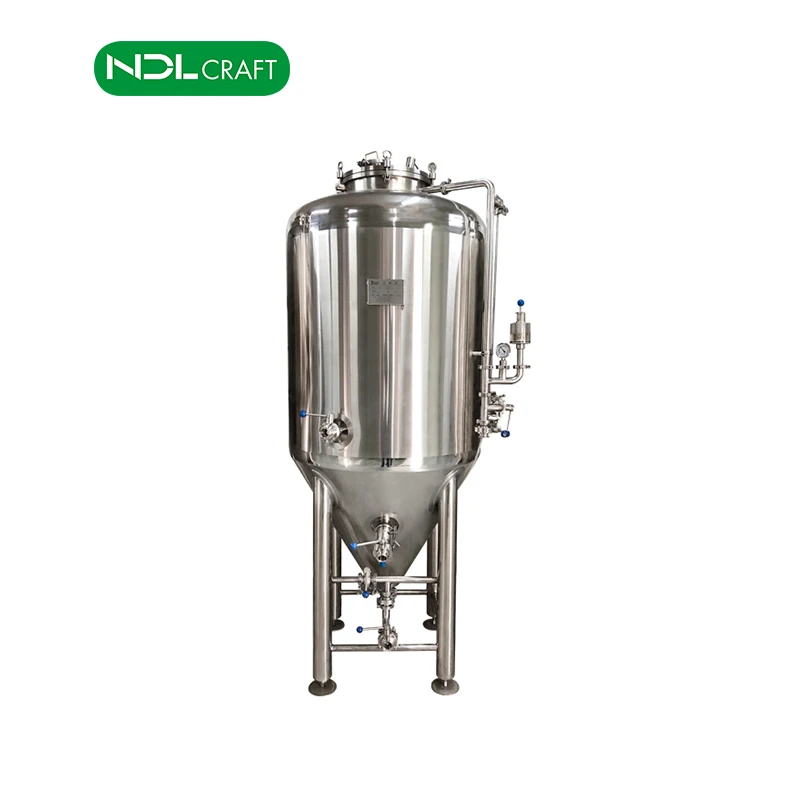

2). Details of 300L Fermentation Tanks:
Send Inquiry>>
Click to Contact Us Now!!!
4. Auxiliary Equipment
