Best quality 1.5 ton model log wheel loader
- Category: >>>
- Supplier: Qingzhou Century Haoxin Machinery Co. Ltd.
Share on (60783975006):
Product Overview
Description
Best quality 1.5 ton model log wheel loader
Product Description
* CE approved mini wheel loader,european design, beautiful appearance

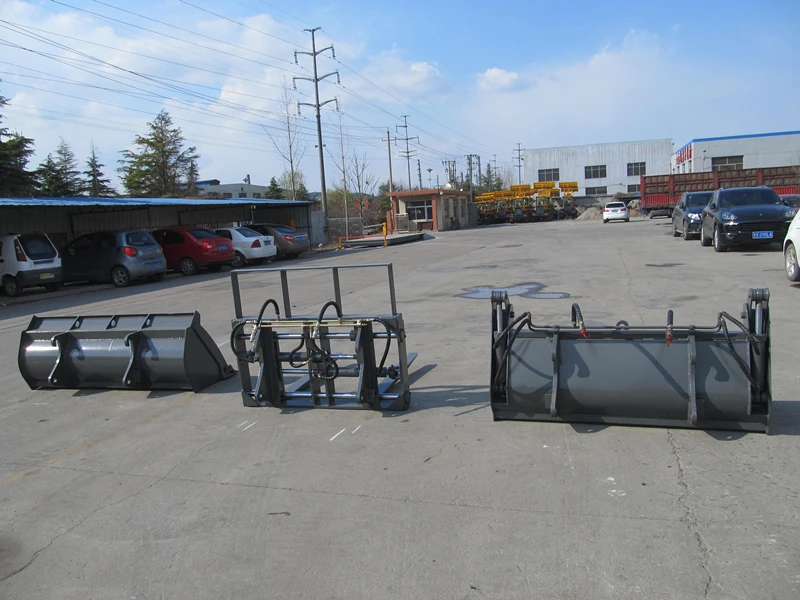

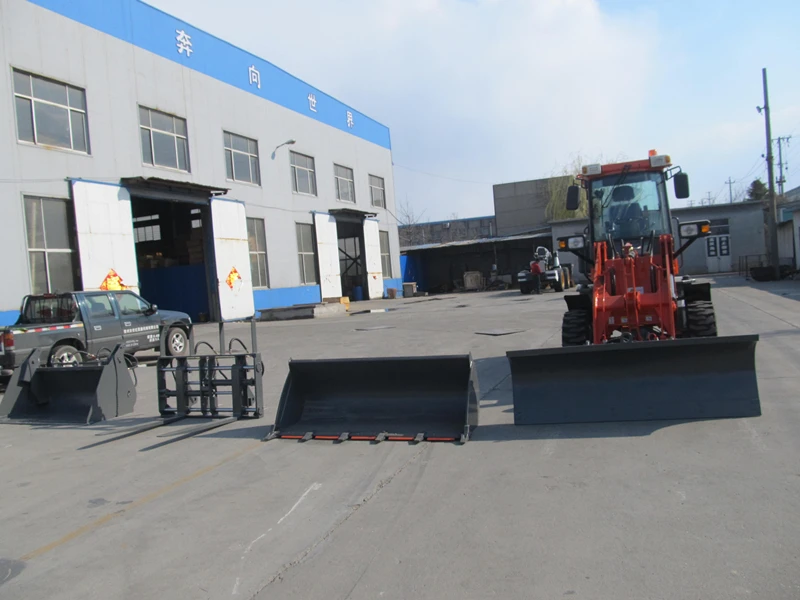

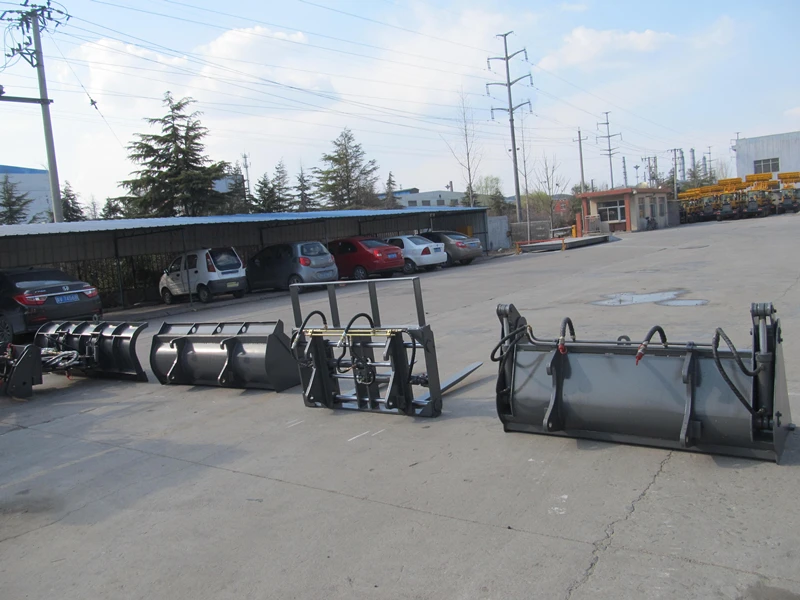

* Joystick & pilot control, quick release, various optional attachments
* Seal and heater cab, A/C, Reversing alarm
* Adjustable steering wheel, adjustable seat with safe belt
* Wide fram tyre
Specification:
Specification | overall weight(kg) | 3600 |
L×W×H(mm) | 4760×1680×2550 | |
rated bucket capacity(m3) | 0.7 | |
Rated load(kg) | 1500 | |
Maximum dump height (mm) | 2750 | |
Bucket indicator | Yes | |
Max. breakout force(KN) | 43 | |
Engine | Model | Changchai 4L68 |
Optional | Xinchai498(EURO III) | |
Type | In-line arrangement, Water cooling, four-stroke | |
Rated power(kw) | 37kw/36.8KW | |
Rated speed(r/min) | 2200 | |
Transmission system | Model of torque converter | YJ240 |
Type | single-phase single-stage radial-inward turbine triplex | |
Gearbox type | Fixed-spindle power shift | |
Gear shift | 2 gears ahead,2 gear astern | |
Hydraulic system | Distribution of work valve | ZL20B |
Working pump | CBG2050,CBGy1018 | |
Steering system | Type | Articulated hydraulic steering |
Max. turning angle | 30±1° | |
Min turning radius(mm) | 3000 | |
Brake system | Brake type | Oil brake(Vacuum booster) |
Tyres | Standard tyres | 12-16.5 |
Optional wide tyres | 14-17.5(vacuum) |

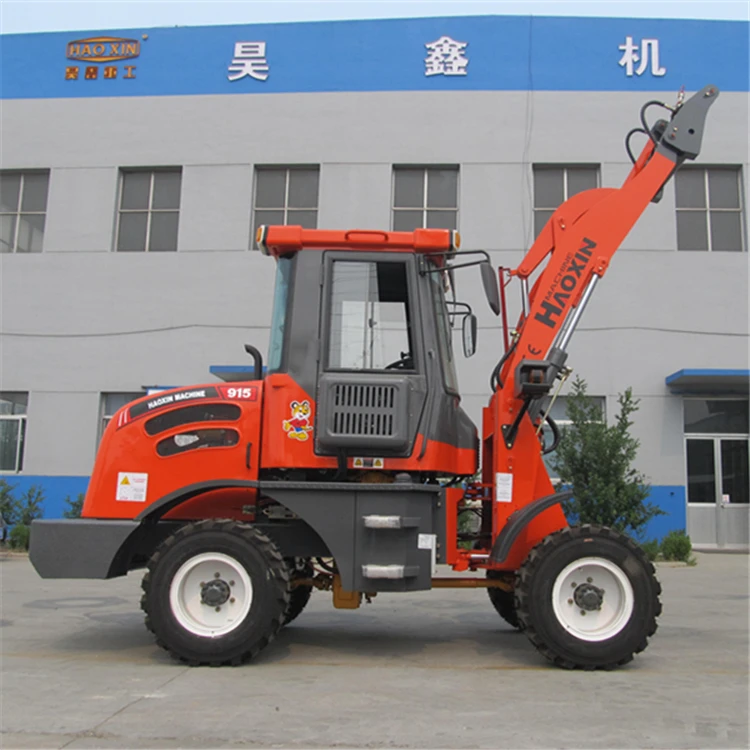

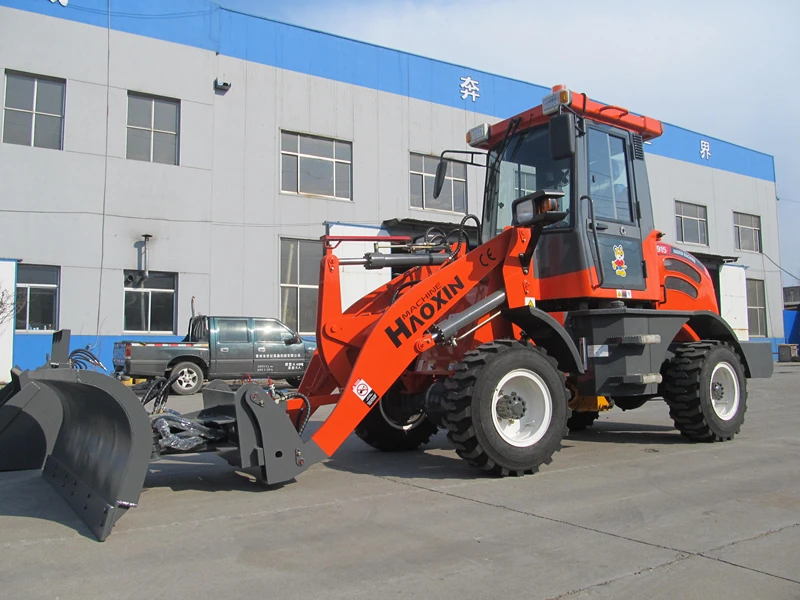

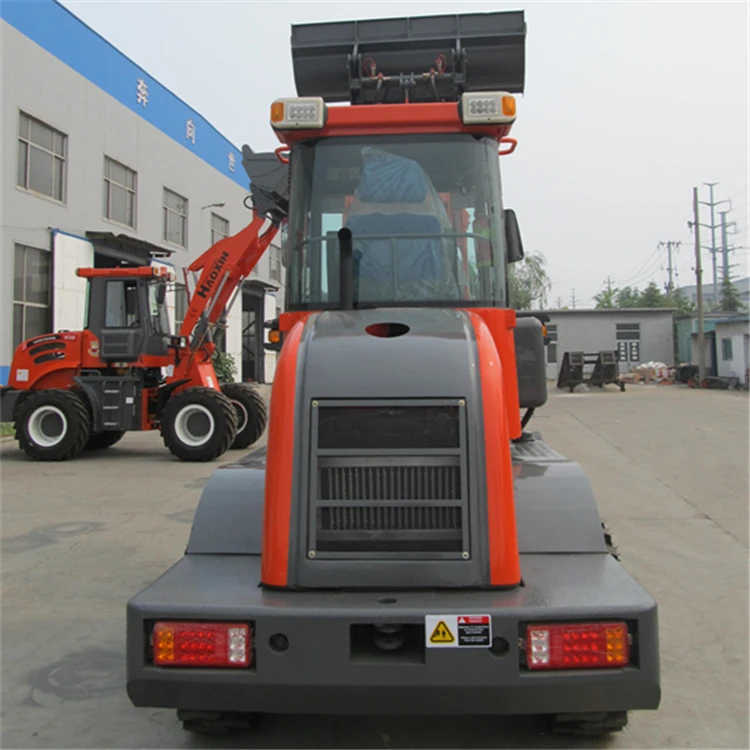

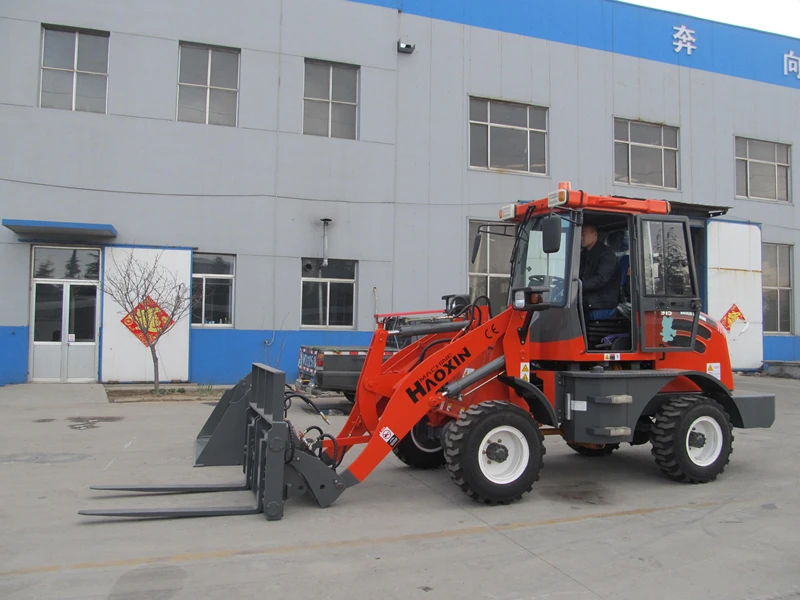

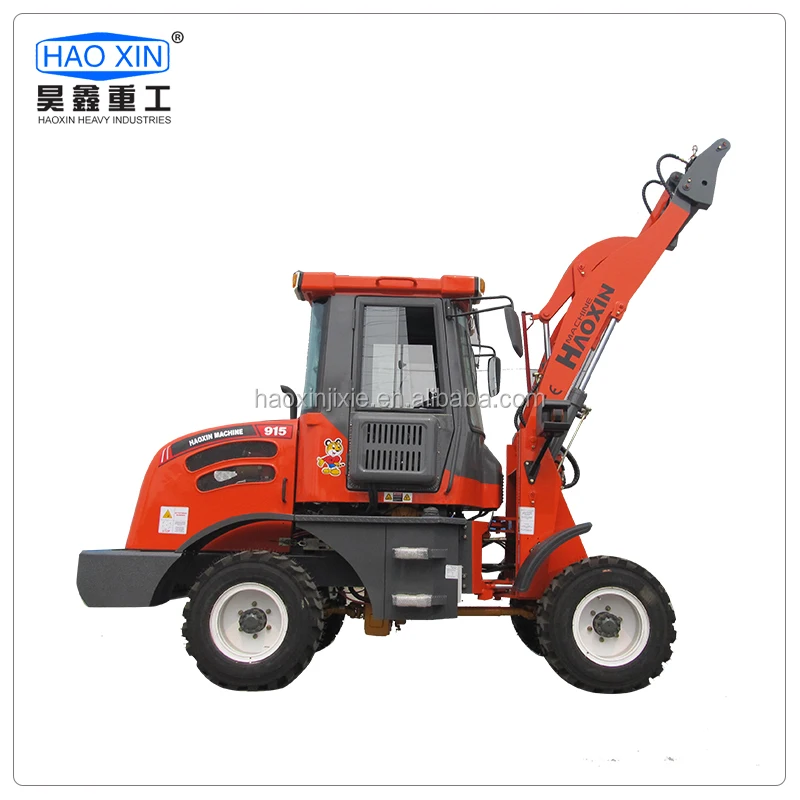

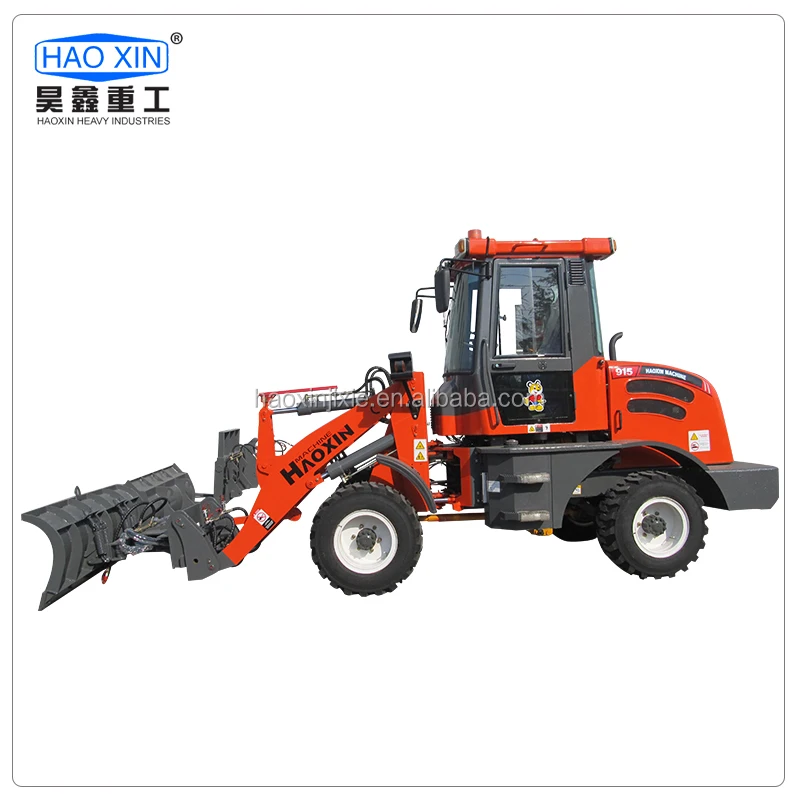

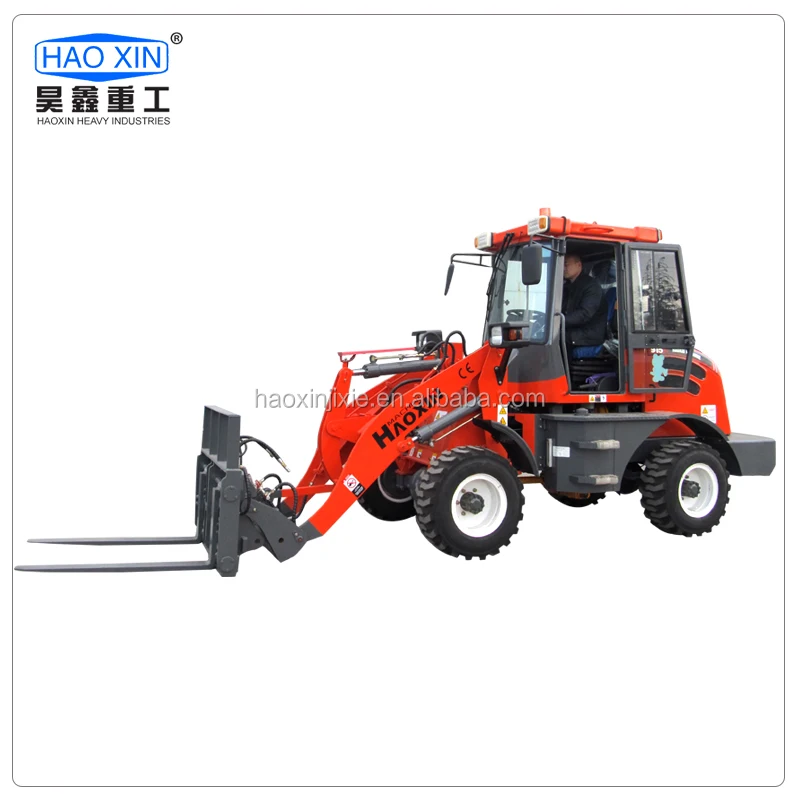

Pictures

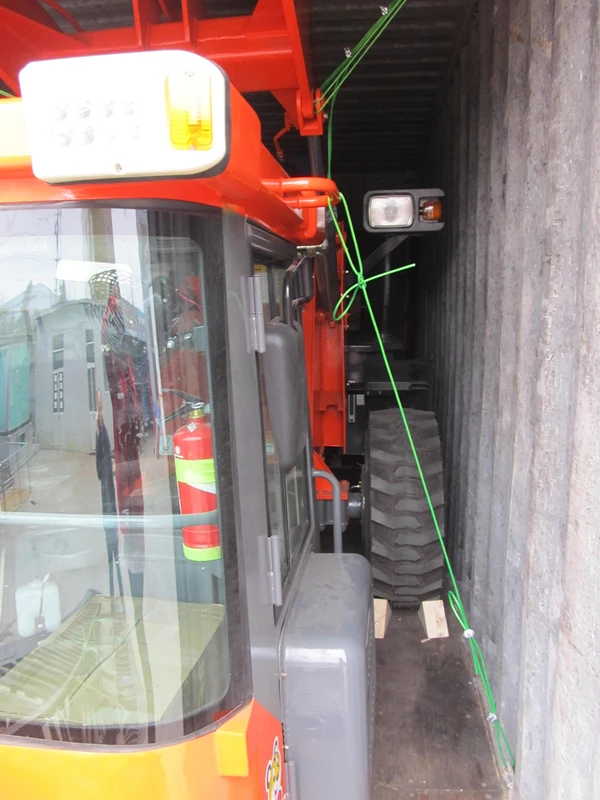

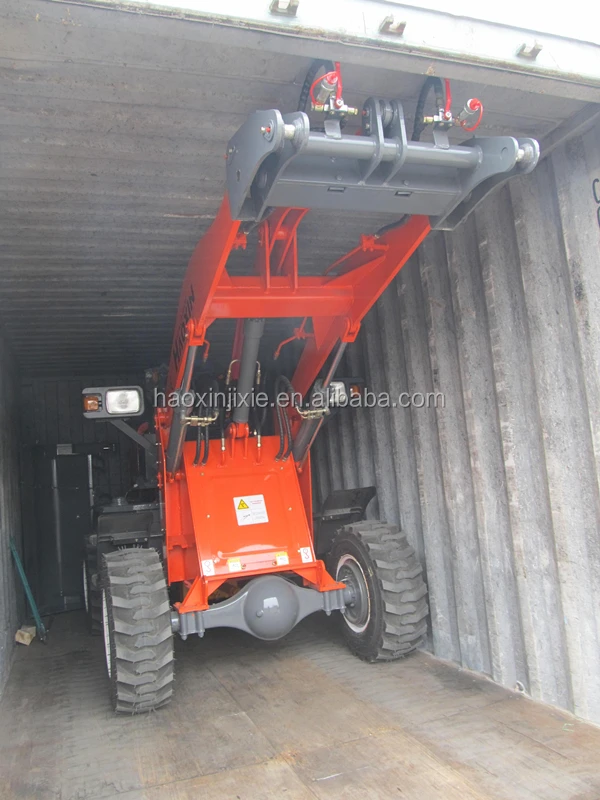

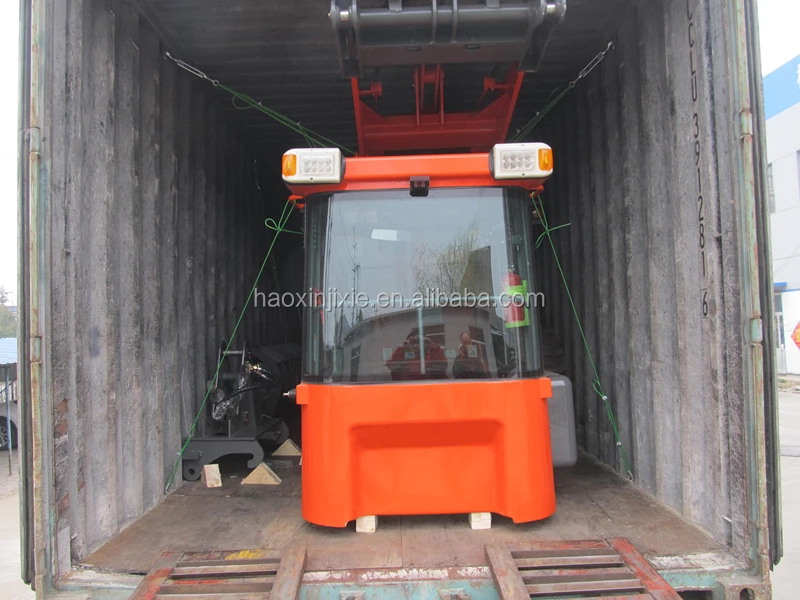

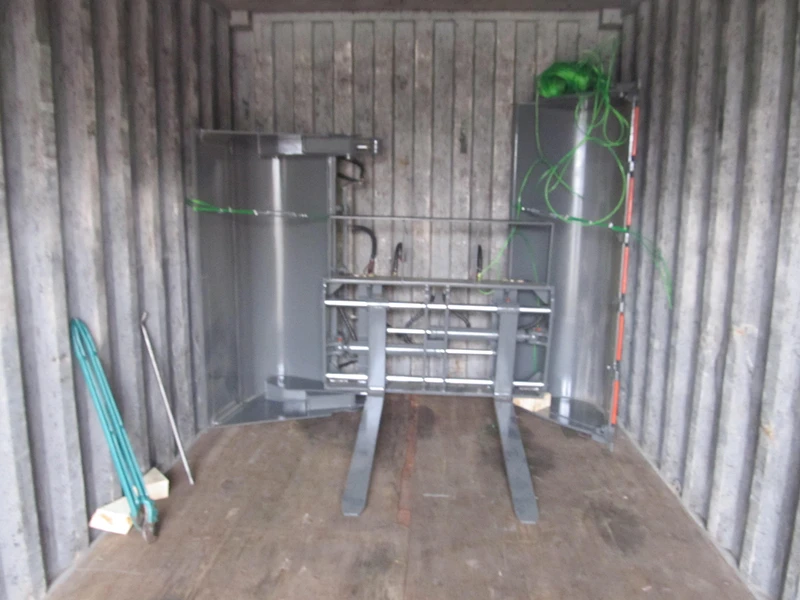

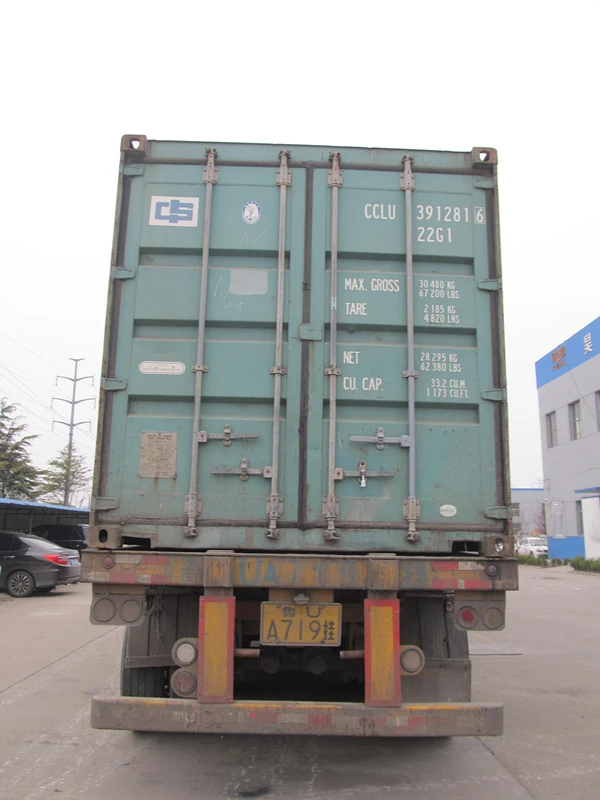

Packaging & Shipping
Company Information
FAQ
Our Services
1. Both our products are processed using best quality spare parts made, with the best quality;
2. Different model for different working condition needs and requirements;
3. With strong and safe package;
4. Delivery goods are fast;
5. Supplying all the technical support for every customer;
6. If the products have any problem, please do not worry about it. Telling us or showing us the problem pictures, we will solve the problem at first time;
7. Our warranty is 1 year, during the warranty period, if the wheel loader machines have any trouble, please do not worry about it, showing us the trouble pictures, if it is the quality problem, we will post the spare parts to you soon for free. But except the Human causes.
