  • Original laser head for Raytool, Precitec,WSX and Laser Mech Laser Head

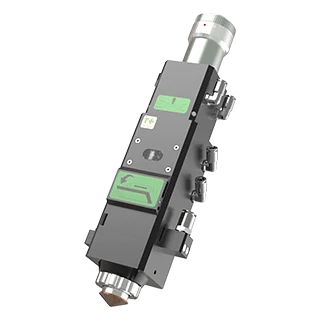

Original laser head for Raytool, Precitec,WSX and Laser Mech Laser Head
Original laser head for Raytool, Precitec,WSX and Laser Mech Laser Head
Original laser head for Raytool, Precitec,WSX and Laser Mech Laser Head
Original laser head for Raytool, Precitec,WSX and Laser Mech Laser Head
Original laser head for Raytool, Precitec,WSX and Laser Mech Laser Head
Original laser head for Raytool, Precitec,WSX and Laser Mech Laser Head
Original laser head for Raytool, Precitec,WSX and Laser Mech Laser Head

Original laser head for Raytool, Precitec,WSX and Laser Mech Laser Head

Share on (60784010874):


Price:

Quantity:


Product Overview

Description


Product Description

Specifications

The BT240S series Laser Cutting Heads are released based on the BT240 from Switzerland RAYTOOLS AG in 2017, which are suitable for medium and high power fiber lasers in industrial applications. Compared to the BT240 series, the upgraded version of BT240S series in dust-proof design and customer experience are made a comprehensive optimization. As we all know, collimation lens is very likely to be contaminated when inserting or removing optical fibers,so the BT240S series are avoided this risk by adding an top protective window to the collimation assembly. At the same time, the bottom protective window structure is also fully upgraded, we add a dust cover on it. Double protection design enhance the user experience in the replacement of protective window greatly, and the lens contamination risk is almost zero.

\t
Power Rating
\t
≤3.3KW
\t
Clear Aperture
\t
28mm
\t
Collimator Focal length
\t
100mm
\t
Focusing Focal length
\t
125mm/155mm/200mm
\t
   Cover glasses
\t
φ24.9mm*1.5mm(CM)
φ27.9mm*4.1mm(FM)
\t
Assist Gas Pressure
\t
≤25bar
\t
Weight
\t
~3.5kg
\t
Height Sensor(EtherCAT or ±10V optional)
\t
Distance Range(1mm Recommended)
\t
0.3-10mm
\t
Calibration
\t
Auto Calibrating/Manual Calibrating
\t
Response Time
\t
<1ms
\t
Temperature Stability
\t
In the range of 0 to 45℃, the temperature stability is in the range of ±5%
\t
Power Requirement
\t
24V
\t
Output (linear or optimization curve signal)
\t
0~10V/+-10V Analog

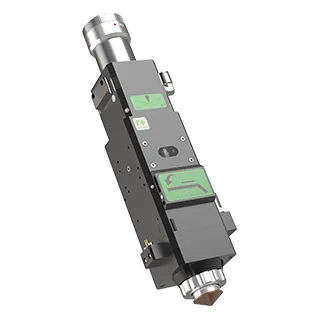

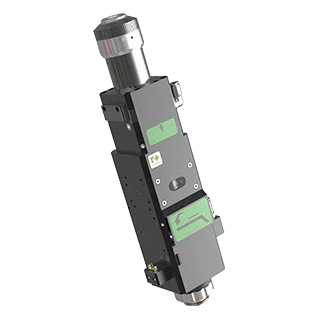

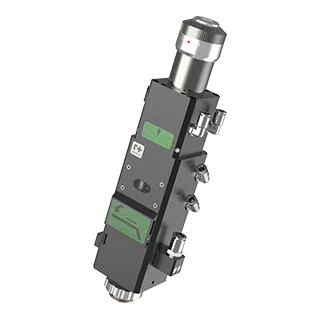

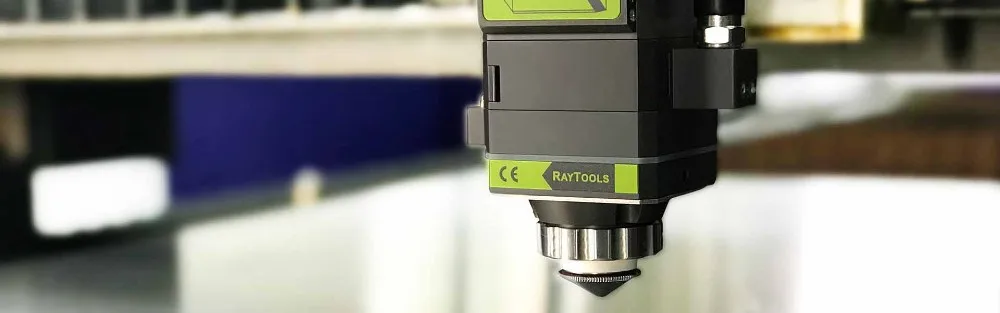

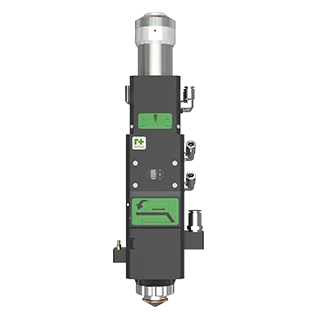

Detailed Images

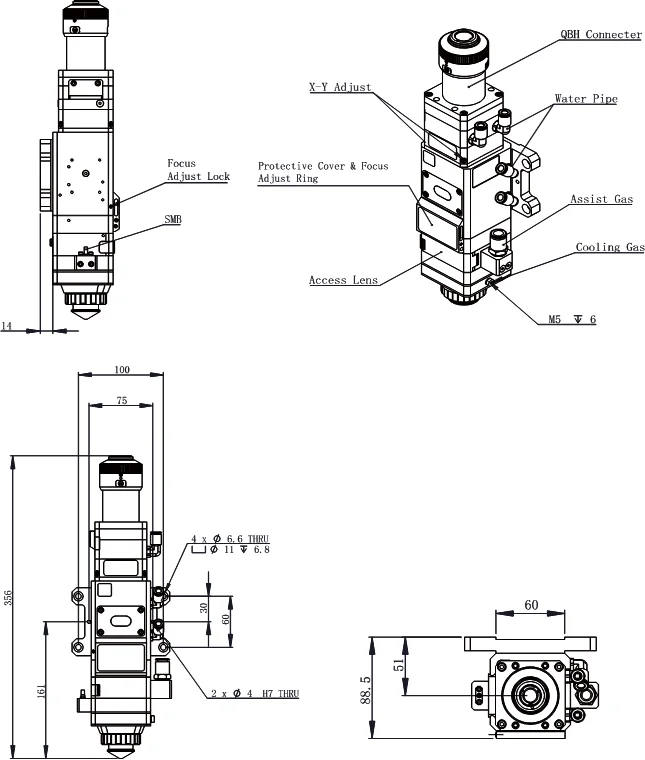

Drawing
ADVANTAGE


• Optimized optical configuration, smooth and efficient airflow design;

• Comprehensive upgrade of the dust-proof design, Double protection, the risk of contamination of the lens is almost zero;

• The laser head body is increased anti-collision function;

• Turntable focus adjustment and can be manually corrected, fine and flexible adjustment, adjustable range is 20mm,accuracy is 0.05mm;


• With a variety of optical interfaces, can be adapted with a variety of fiber lasers;

• Collimation lens, focusing lens and nozzle are all have cooling structures;

Packing & Delivery
Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
