Fully Automatic Laundry Bar Detergent Soap Making Machine Transparent Soap Production Line Hotels,manufacturing Plant Provided
- Category: Other Chemical Equipment >>>
- Supplier: Nantong Tongji Co. Ltd.
Share on (60784035886):
Product Overview
Description
Product Description
Fully Automatic Laundry Bar Detergent Transparent Soap Making Machine
A.We can provide transparent soap making machine finishing line from soap noodles :
Capacity : 300kg/h, 500kg/h,1000kg/h,2000kg/h,3000kg/h,4000kg/h,5000kg/h
B. We can also make soap noodles from oil (saponification process & vacuum drying process)
Before quoting , it's better to let us know first :
1. The product is toilet soap or laundry soap?
2. What is your capacity ? kg/h ?
3. The raw material : oil or soap noodles?
We could according to your capacity and soap quality requirements to offer you best solution .
Main Machines List
No | Machine | Optional | ||
Z1 | XZJ250 Mixer | XZJ50 XZJ100 XZJ450 NHJ50 NHJ100 NHJ250 NHJ450 NHJ750 | ||
Z2 | S405P Three Roll Mill | S150 S260 S405AP; Diagnal Roll Mill XS260 XS440A XS440 | ||
Z3 | S405P Three Roll Mill | S150 S260 S405AP; Diagnal Roll Mill XS260 XS440A XS440 | ||
Z4 | XCT1000 Duplex Plodder | XCT300, XCT500,XCT1000,XCT2000, XCT3000, XCT4000 | ||
Z5 | XQK/G300 Embossing & Cutting Machine | XQK/G300, XQK/SG300, XQK/SSG300 | ||
Conveyors | ||||
Platform and Utilities | ||||
F1 | Steel Operation Platform | |||
F2 | 1m3/m Air Compressor | |||
F3 | Plodder Vacuum Pump U4.40 | |||
F4 | S400-WLH High Temperature Chiller S400-WLH | |||
Moulds | ||||
M1 | Mould for Embossing Cutter | |||
Machine Description.

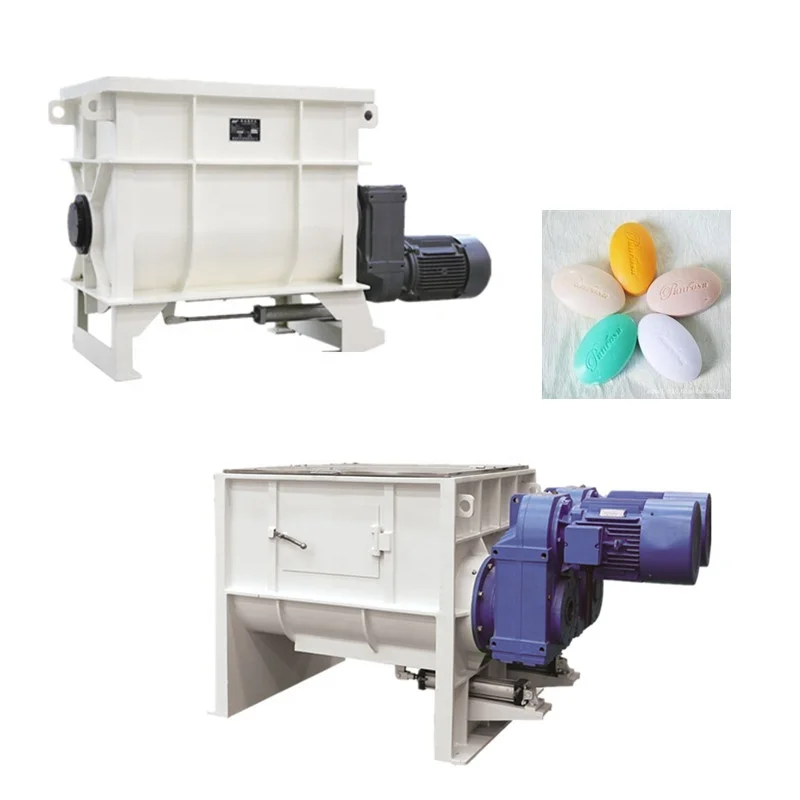

Z1: Mixer/ Amalgamator
Amalgamator/Mixer
TSingle shaft two blade type paddle,driven by the motor through the gear box and rotates continuously to mix soap noodles, flakes and liquid or solid addtives.
Two "Sigma" mixing blades are cpimter rotatomg and different speedsto help to fully mix the materials.

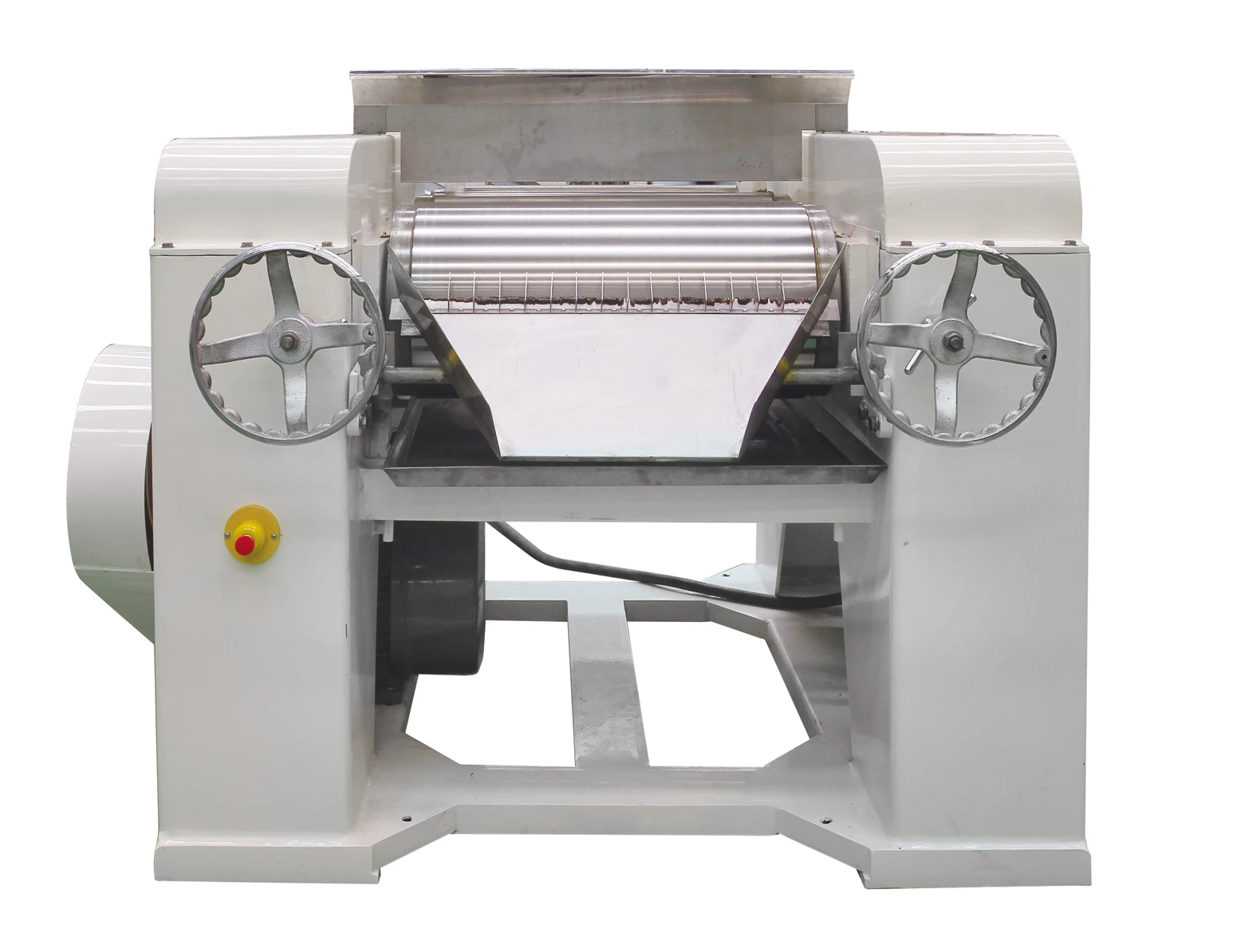

Z2 and Z3. Three Roll Mill
Horizontal 3 Roll Mill.
The 3 rolls are horizontally mounted, rotating at different speeds.
Diagnal 3 Roll Mill.
The 3 rolls are mounted diagnally, cooling effect is enhanced by more soap contact area with the rolls compared with horizontal type

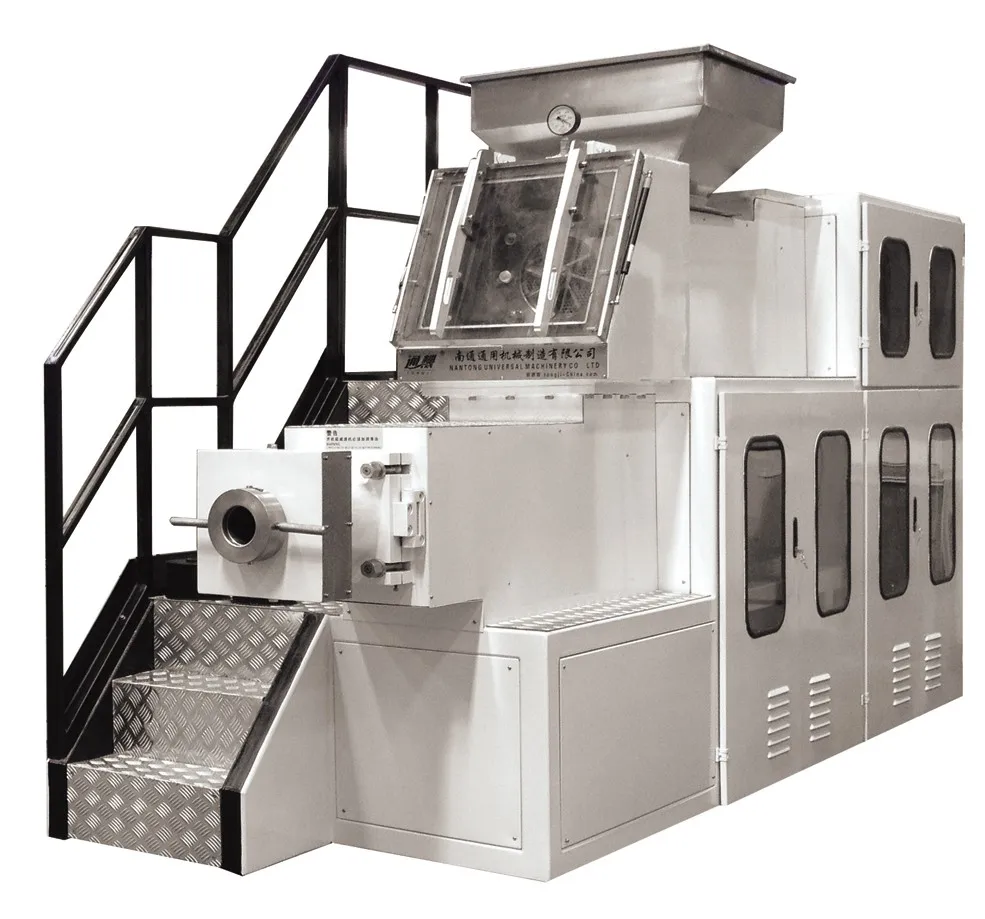

Z4. Duplex Plodder
Duplex Single Worm Vacuum plodder.
Duplex Twin Worm Vacuum Plodder.
2 stages and each stage has double screws which has large output capacity.

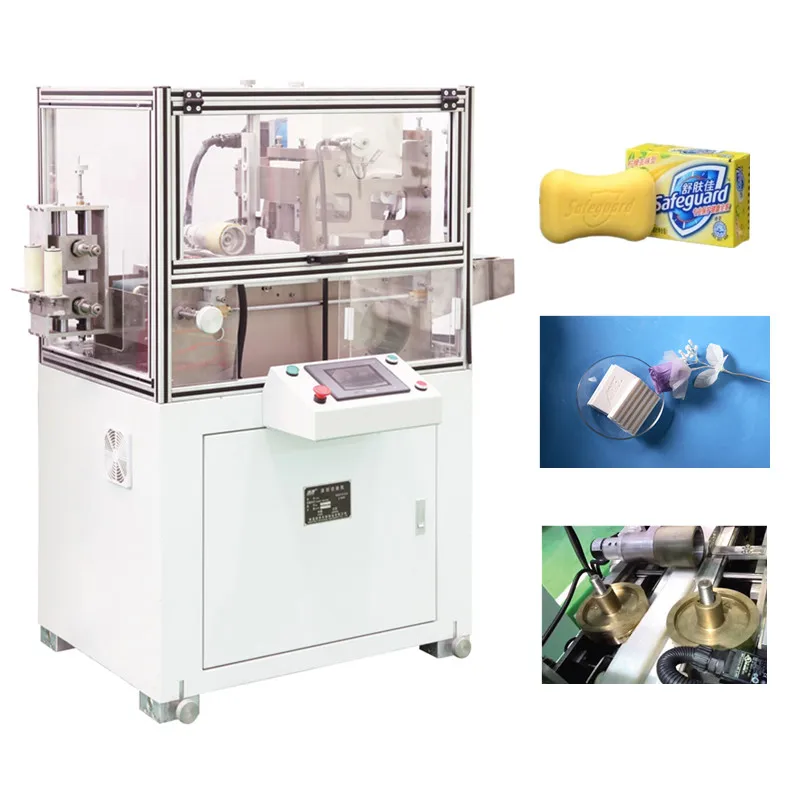

Z5. Embossing & Cutting Machine
2.3 Conveyors:
The frame is made of steel square tube with good stability. The upper side edges and the bottom cover are all made of high quality stainless steel. Brake wheels are installed on the supporting feet, for easy movement and fixing.
2.4 Platform and Utilities:
F1. Steel Operation Platform
F2. Air Compressor.
F3. Becker Plodder Vacuum Pump.
Our Company
Nantong Tongji Co.,Ltd is located in Nantong,Jiangsu Province,1.5 hours' drive away from Shanghai.
Established in 1997,Nantong Tongji Co. Ltd is the lagest supplier in China and Asian area,specializing in designing and
manufacturing the whole set of toilet soap and laundry soap machinery,from soap processing soap making,finishing,packaging and end of line,with a wide range of capacity from 50kg/h small laboratory line to 8000kg/h high-speed line.The share in Chinese domestic market reaches up to 80% and for several types of machines,we are the only manufacturer who can provide them in China,as well as in Asia.
We manufacture all kinds of packaging machinery and can meet different customer requirements,such as circular packaging,flow wrapping ,cartoner,soap wrapping machine,shrink wrapping machine,overwrapping machine and case packer,widely used in daily chemical,food,pharmaceutics,chemical industries.
Established in 1997,Nantong Tongji Co. Ltd is the lagest supplier in China and Asian area,specializing in designing and
manufacturing the whole set of toilet soap and laundry soap machinery,from soap processing soap making,finishing,packaging and end of line,with a wide range of capacity from 50kg/h small laboratory line to 8000kg/h high-speed line.The share in Chinese domestic market reaches up to 80% and for several types of machines,we are the only manufacturer who can provide them in China,as well as in Asia.
We manufacture all kinds of packaging machinery and can meet different customer requirements,such as circular packaging,flow wrapping ,cartoner,soap wrapping machine,shrink wrapping machine,overwrapping machine and case packer,widely used in daily chemical,food,pharmaceutics,chemical industries.
Certifications
Classified as best credit rating of AAA, certificated by ISO9001: 2008, got CE and UL with C3+ safety standards and some patents.
