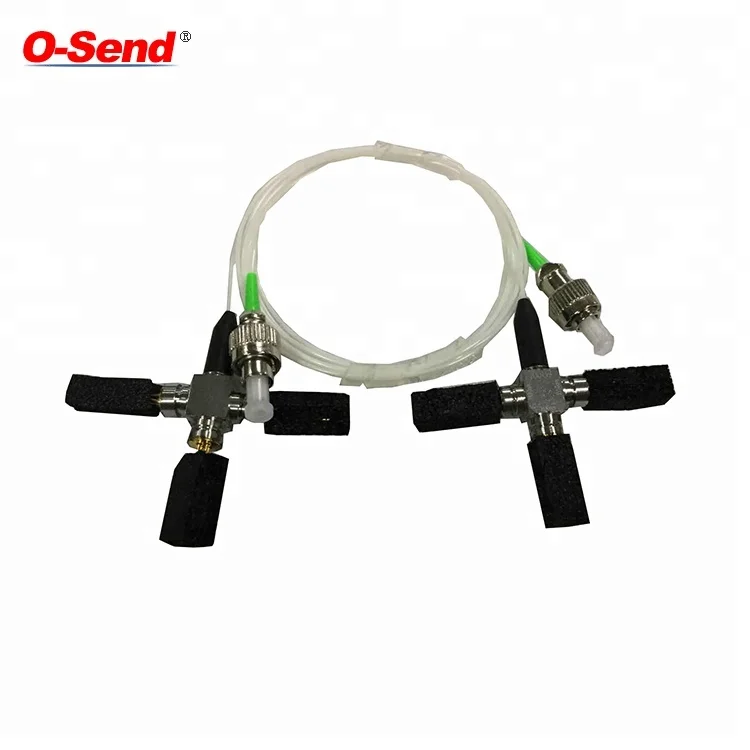

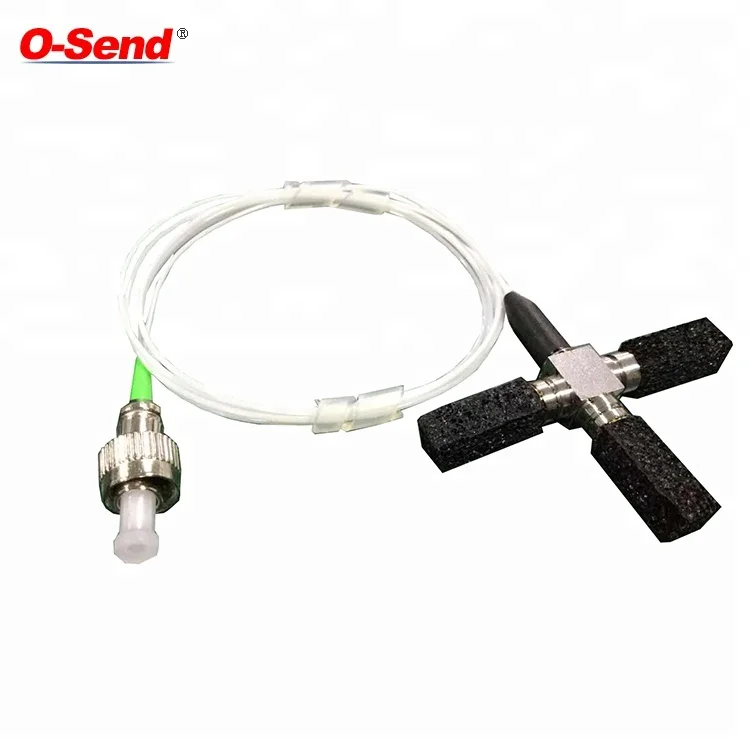

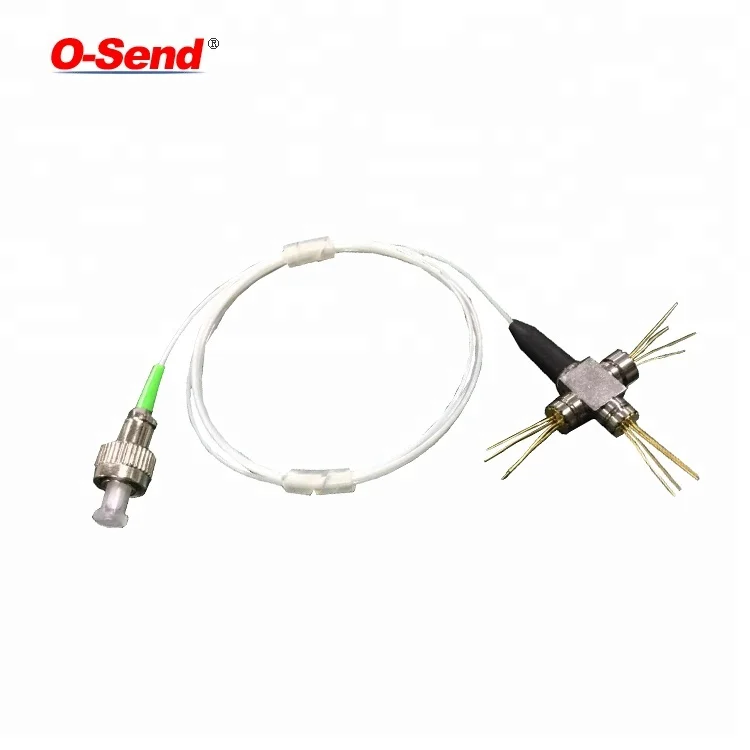

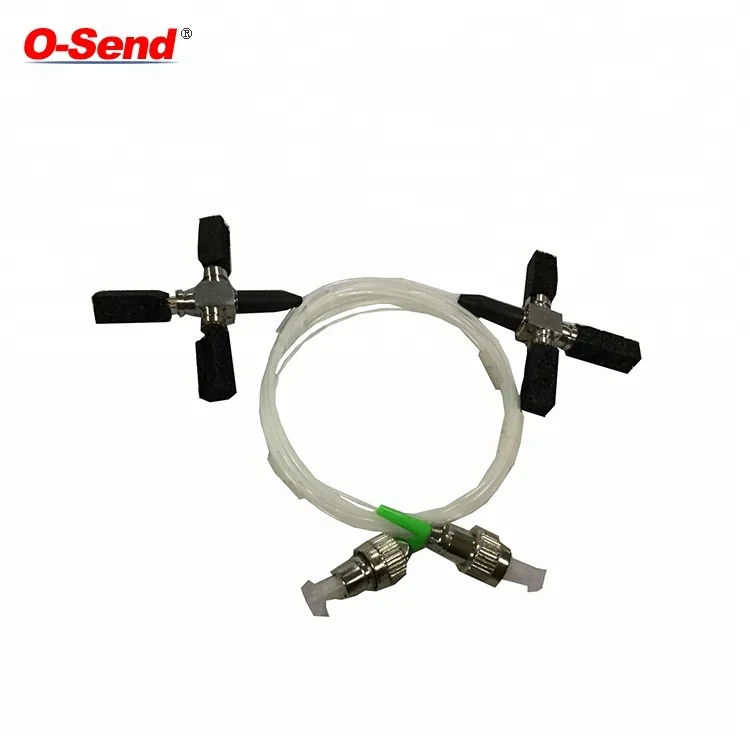

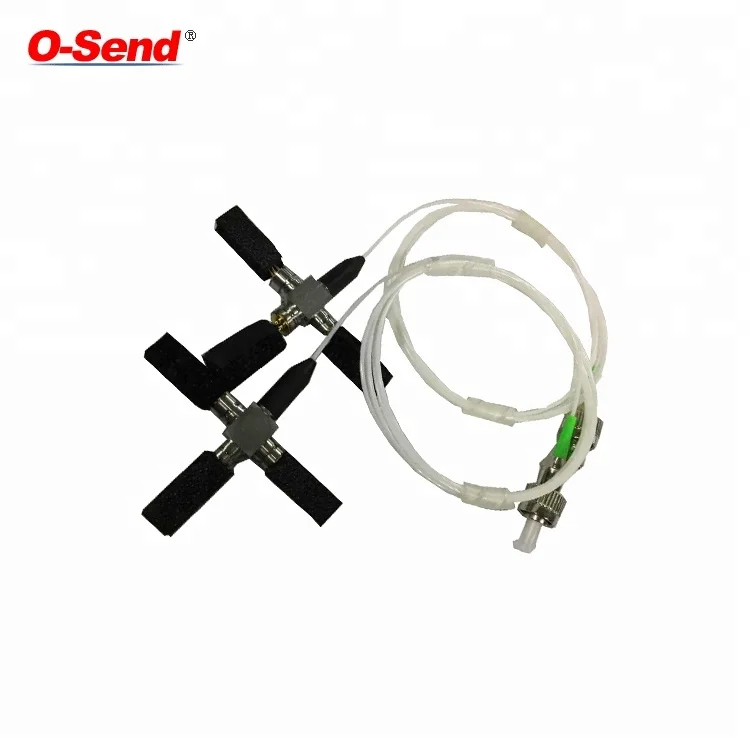

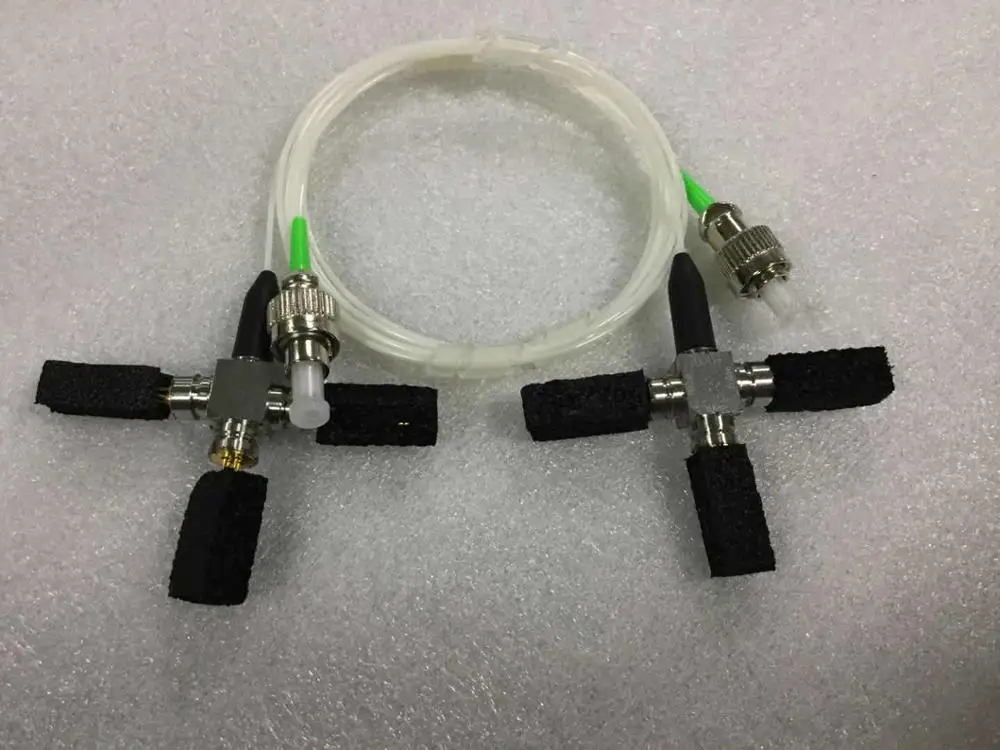

O Send 1m 0.5~1mW 1310/1490/1550nm DFB triplexer laser module forCATV Reverse Transmission
- Category: >>>
- Supplier: O-Send Opto-Electronics (Chongqing) Co. Ltd.
Share on (60784073568):
Product Overview
Description
Product Description
It offers a low cost solution for linear fiber optic links, which is packaged in a compact hermetic assembly for flexible integration into various transmitter configurations.
Applications
Light Source
CATV Reverse Transmission
Other Analog or Digtail Optical Transmission
Product Detail
Optical&electrical charateristics
1.25G Transmitter
| Parameter | Symbol | Min | Typ | Unit | Note |
| Threshold current | lth | 8 | nA | T=25℃ | |
| Average launch power | Po | 1 | mW | T=25℃(lth+20mA) | |
| Operating Wavelenth | λ | 1290 | 1310 | nm | FP,T=25℃ |
| Monitor Current | 1mon | 0.1 | mA | Vr=5V |
Optical&electrical characteristics
1.25G Transmitter
| Parameter | Symbol | Min | Typ | Unit | Note |
| Threshold current | lth | 8 | nA | T=25℃ | |
| Average launch power | Po | 1 | mW | T=25℃(lth+20mA) | |
| Operating Wavelenth | λ | 1490 | nm | FP,T=25℃ | |
| Monitor Current | 1mon
| 0.1 | nA | Vr=5V |
Optical&electrical characteristics
1.25G Transmitter
| Parameter | Symbol | Min | Typ | Unit | Note |
| Threshold | lth | 8 | nA | T=25℃ | |
| Average launch power | Po | 1 | mW | T=25℃(lth+20mA) | |
| Operating Wavelenth | λ | 1550 | nm | FP,T=25℃ | |
| Monitor Current | lmon | 0.1 | nA | Vr=5v |
