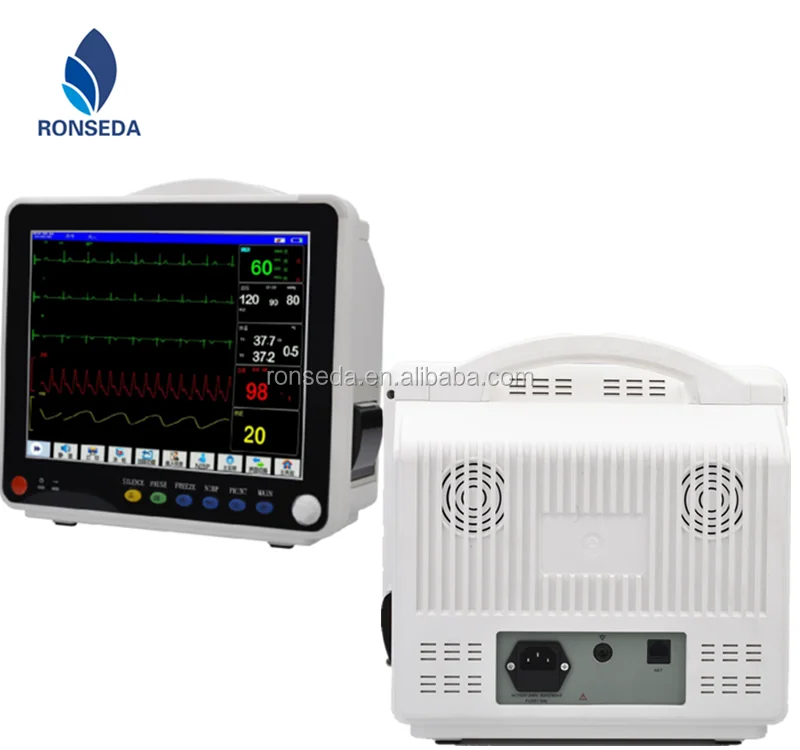

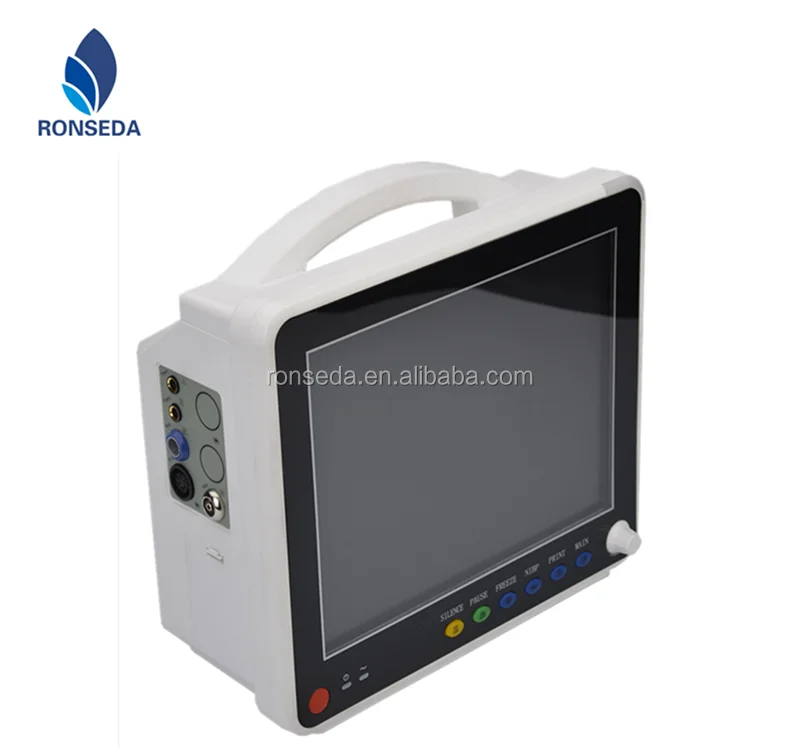

12.1 inch color TFT LED screen display multiple parameter patient monitor

Features:

u  12.1 inch High Brightness TFT Color LCD Screen Display

u  Resistance to shock resistance to the high frequency electricity knife

u  ECG Wavesforms of 7-lead displayed in one screen,5-minute ECG waveform review,

u  T segment automatic analysis

u  hour all-parameter trend data storage and dynamic waveform capture

u  Audible and visual alarm

u  Anti defibrillation protected,anti high-frequency interference and anti-electrosurgical interference

u  Can Connect to the central monitoring system

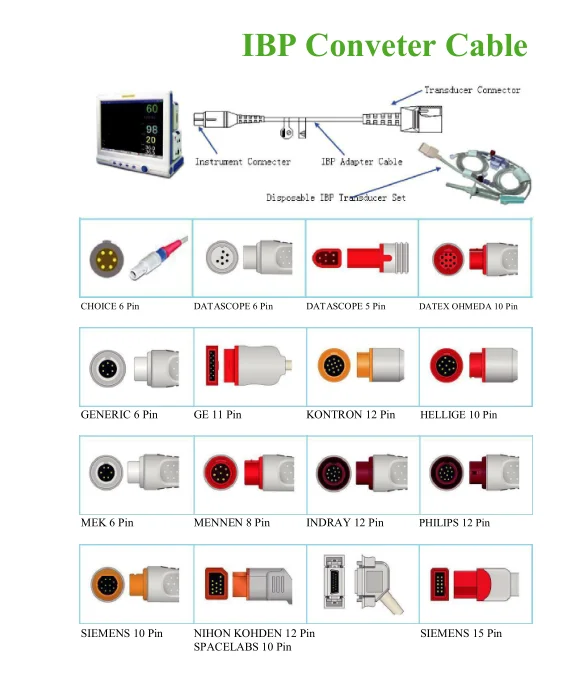

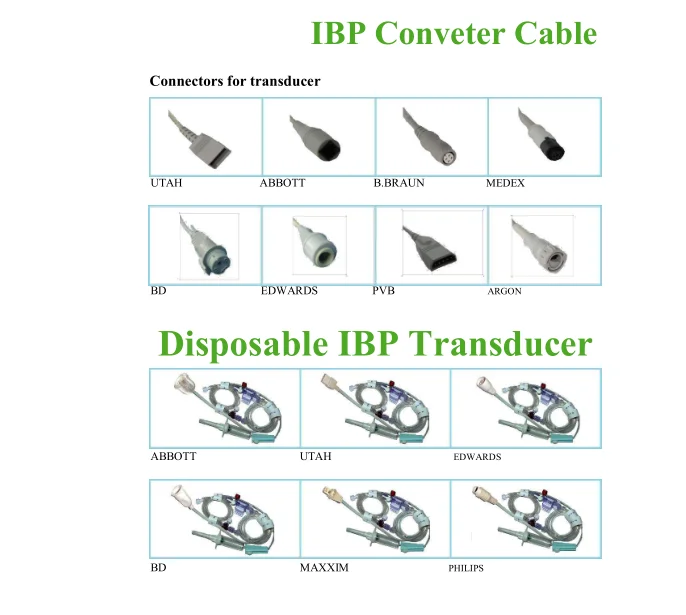

u  Optional:,built-in dual channel thermal array recorder,real-time waveform chart record and print,EtCo2,IBP,Touch Screen

u  Drug concentration calculation&Arrhythmia analysis

u  Widely used in medicine,surgery,operating room,obstetrics and gynecology, Pediatrics, Emergency center, ICU/CCU

u  Special design for accessories collection

ECG Measurement:

Leads Choice:     All,,Ⅰ,Ⅱ,Ⅲ,aVF,aVR,aVL,V1--6 chest leads showed

Gains options:     ×1   ,×2 ,×4,×0.5 four trenches

Frequency:

Diagnosis:            0.05~130Hz

Monitoring:      0.5~40Hz

Operation:           1~20Hz

Common-mode signal inhibition:

Diagnosis:            > 90 dB

Monitoring:      > 100 dB

Operation:           > 100 dB

Scan Rate: 12.5 mm / S,  25 mm / S ,50 mm / S  standard three stalls

HR Range:

Adult:              15 ~ 300 bpm

Infants/Children:    15 ~350 bpm

HR Accuracy:             ±1bpm

Precision calibration signal:: 1mV (peak,±5% accuracy)

STDetection:              Measurement range(-2.0mV~+2.0mV)

Baseline recovery time:     < 3 seconds after defibrillation

Alam:               Sound and Light

Preset heart rate range:(Over preset alarms)

Upper limit                 40 ~ 255bpm adjustable

Lower limit                  20 ~ 160 bpm adjustable

Resp Breath:

Breathing frequency range:

Adult:     7~120BrPM

Infants/Children:        7~150 BrPM

Accuracy: ±2 BrPM

Resolution: 1 BrPM

Gains optioons:   ×0.5,×1,×2,×4 four trenches

Alarm:       Sound and Light

Alarm Range:(Over preset alarms)

Upper limit:   10 ~ 100 times /min  adjustable

Lower limit:     0 ~99 times /min  adjustable

NIBP:

Technology: Oscillography (pulse wave oscillation method)

Mode: Manual/Automatic

Measurement units:    mmHg / Kpa

Overvoltage Protection: Double safety protection

Adult Pattern:  300 mmHg

Children Pattern:  240 mmHg

Newborn Pattern: 150 mmHg

Blood pressure measurement range and accuracy :

Range:

Adult        Systolic blood pressure                  40~270mmHg

                 Diastolic blood pressure            10~215mmHg

                 Pressure on the average          20~235mmHg

Children    Systolic blood pressure                  40~200mmHg

                 Diastolic blood pressure            10~150mmHg

                 Pressure on the average             20~165mmHg

Newborn      Systolic blood pressure            40~135mmHg

                     Diastolic blood pressure           10~100mmHg

                     Pressure on the average           20~110mmHg

Static pressure range:      0~300mmHg

Static pressure accuracy:     ±3mmHg

Accuracy of blood pressure:

Maximum average error amp   ±5mmHg;

Maximum standard deviation   8mmHg

Alarm:  Sound and Light

Alarm Range:(Over preset alarms)

Systolic blood pressure

upper limit    40~250mmHg adjustable;

Lower limit 10~220mmHg  adjustable

Diastolic blood pressure

Upper Limit:  20~250mmHg  adjustable;

Lower limit 10~220mmHg  adjustable

SPO2 Measurement:

Range: 70~100%:±2 DIGIT       :    0%~69%:defined

Resolution: 1%

Pulse Frequency:  20 ~ 300times /min

Alarm:  Sound and Light

Alarm Range:(Over preset alarms)

Upper limit:  20%~100%;

Lower limit:   10%~99%;

TEMP  Measurement:

Technology:          thermostat temperature probe

Measuring range:            0℃ ~ 45℃

Temperature Resolution:      0.1℃

Accuracy:                ±0.1°C(without containing probes errors)

Alarm:                Sound and Light

Alarm Range:(Over preset alarms)

Upper limit: 20.1℃ ~ 45℃ adjustable

Lower limit: 20℃ ~ 44.9℃ adjustable

Trend Graph:

Types:  Graphical/Tabular

Memory Storage:  384 hours(not restart preservation)

Data interval:  60 seconds

Graphic form:  one graph per channel

Tabular Form:  graphics are the parameter swith 9 per trip(and time parameters).One page 25 firms exterenal

Power:

Ac Power supply:  AC 220V,50Hz,1A Maximum current

Temperature:  5-40 ℃

Storage temperature:  -20 ℃-40℃

Working humidity:   ≤85% relative humidity,non-condensing

Humidity storage:  ≤95% relative humidity,non-condensing

Altitude:  86-4106kpa feet(working condition)

Whole Power:  not more than 70VA

1.Standard Configuration:

u  ECG Cable 5 leads 1pc

u  ECG Electrodes 1pack(25pcs)

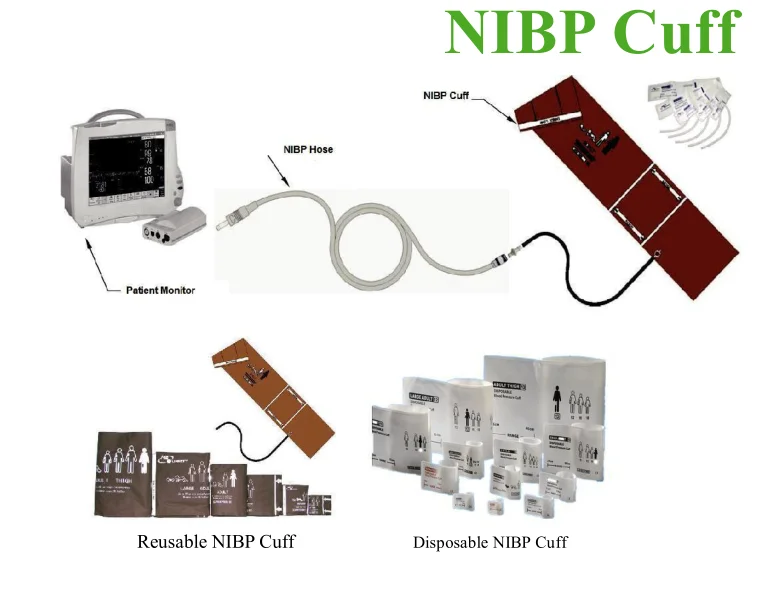

u  Adult NIBP Cuff 1pc

u  NIBP Extension Tube 1pc

u  Adult Fingerclip Spo2 Sensor 1pc

u  Ground line  1pc

u  Power Cable 1pc

u  Adult Temperature Probe 1pc

u  Item Manual 1pc

2. Packing Details:

Item Size:  300mm×280mm×160mm

Item N.W:4 KG
