Product Overview

Description

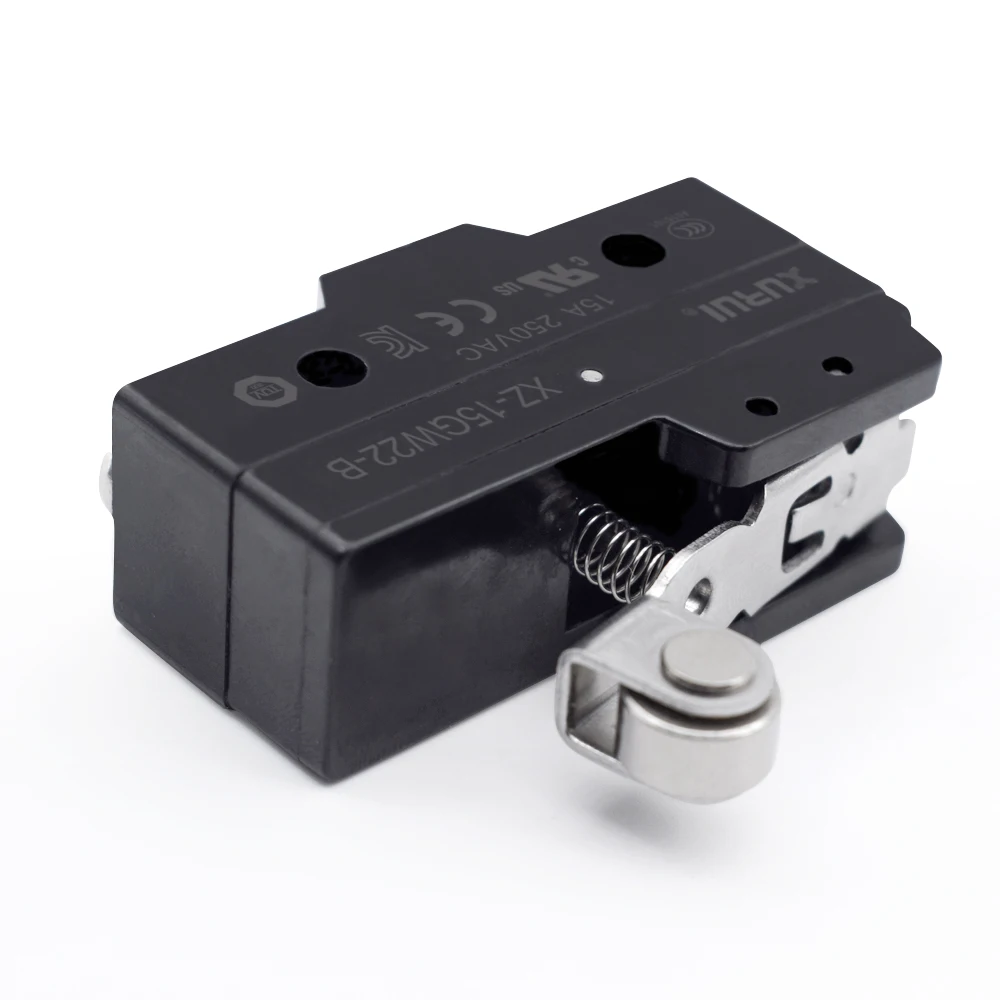

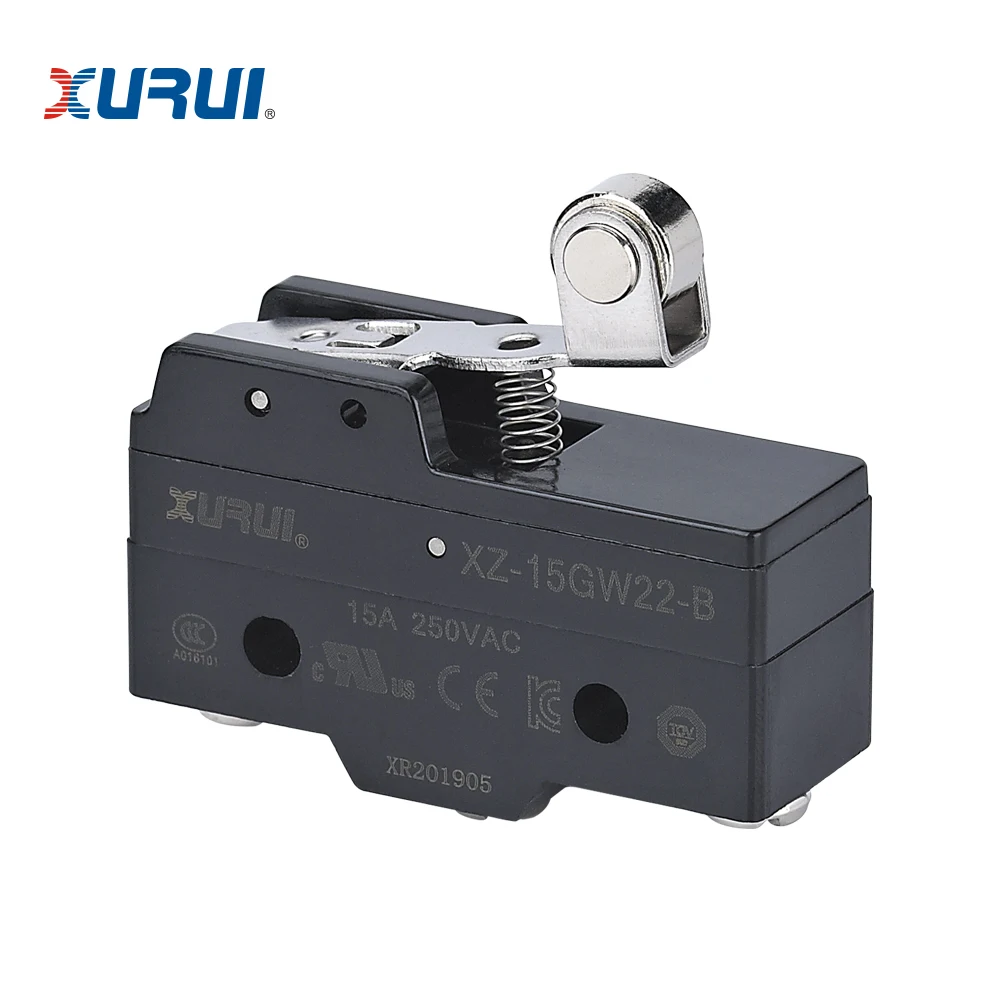

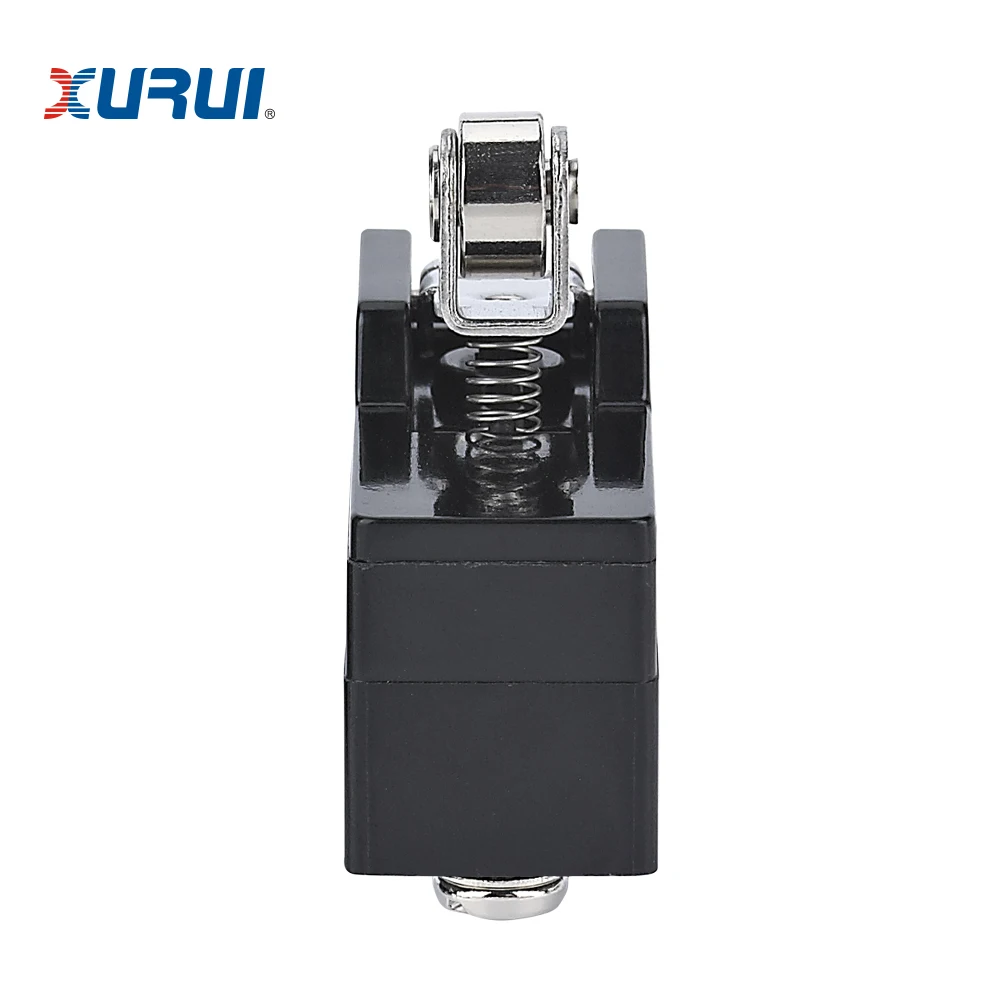

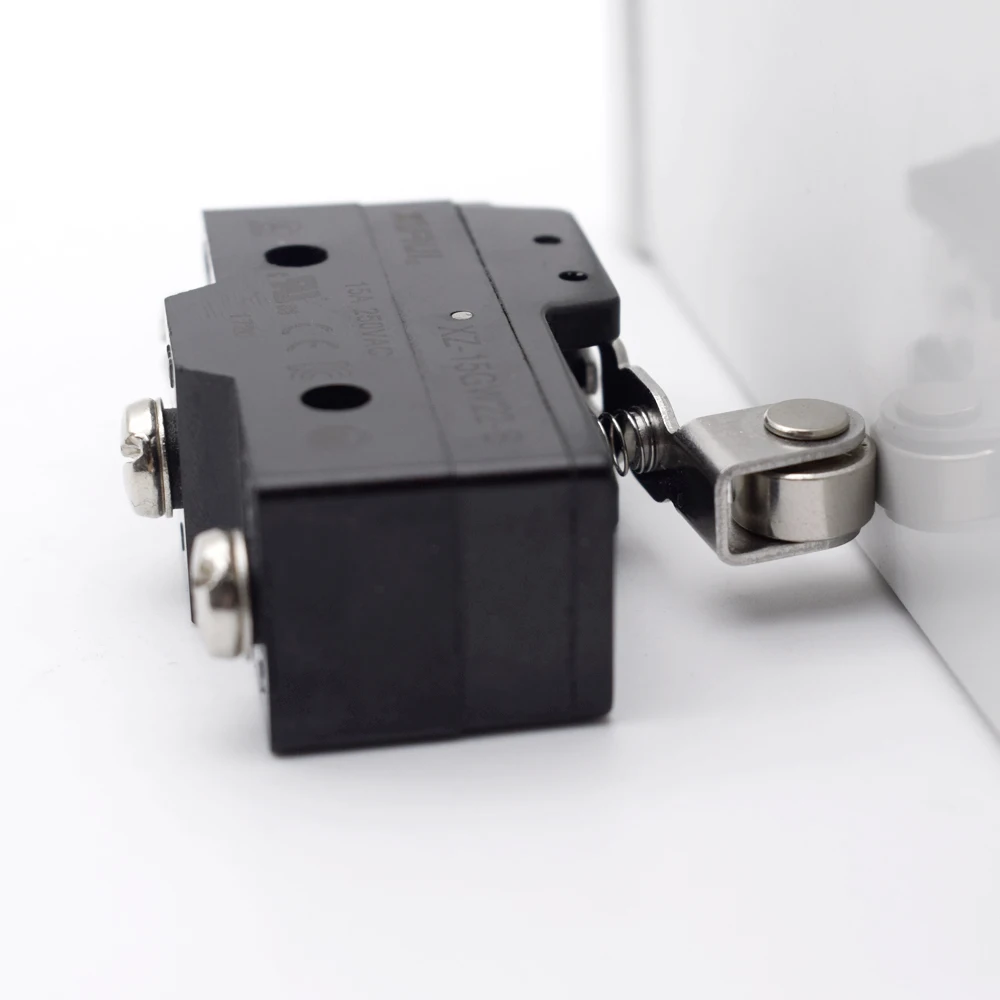

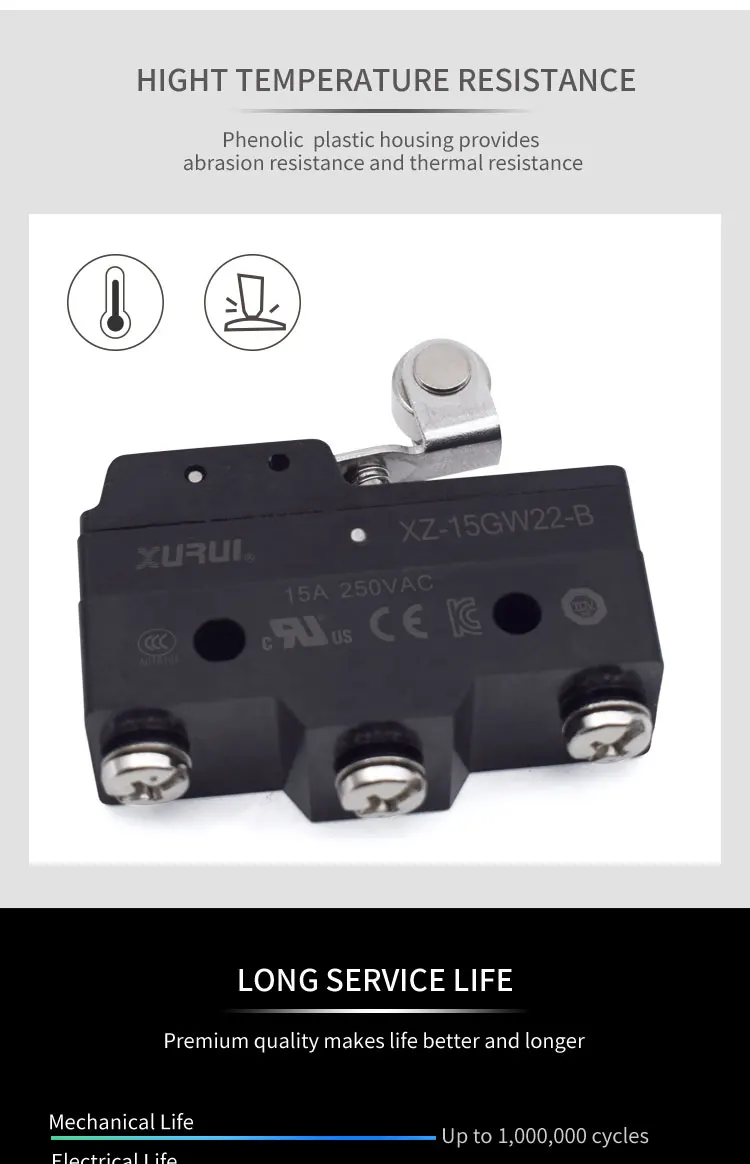

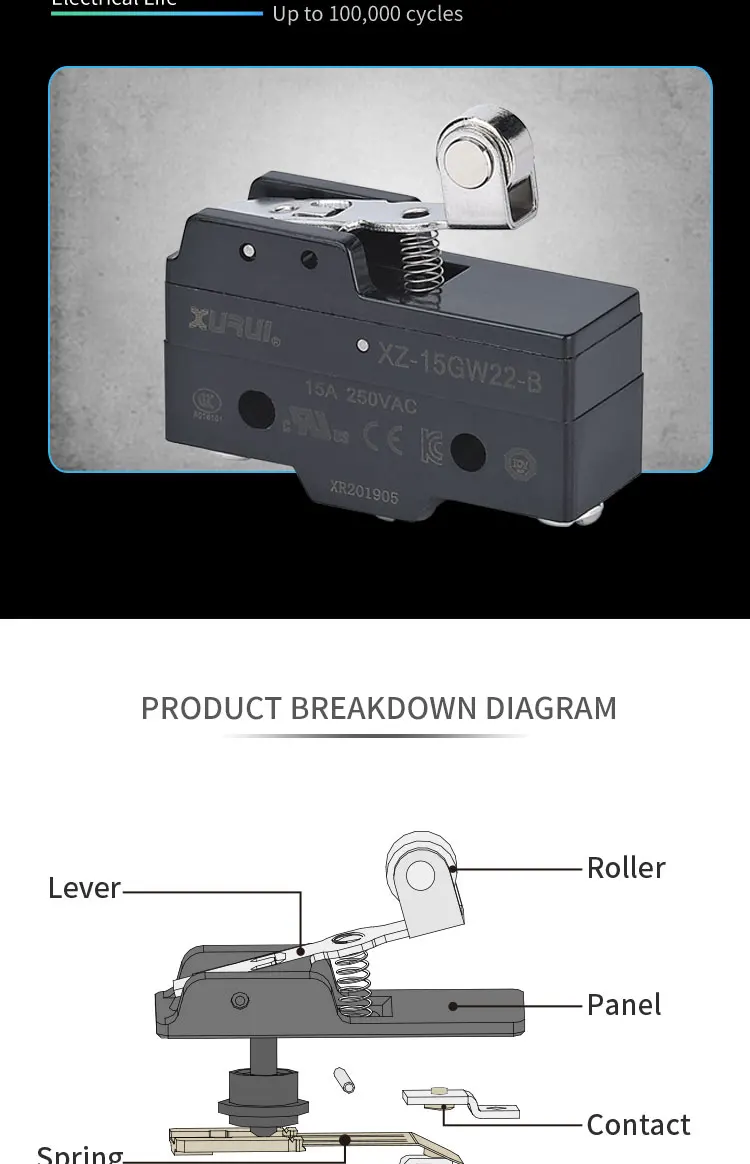

XURUI 15a 220v electric Micro Switch for elevator

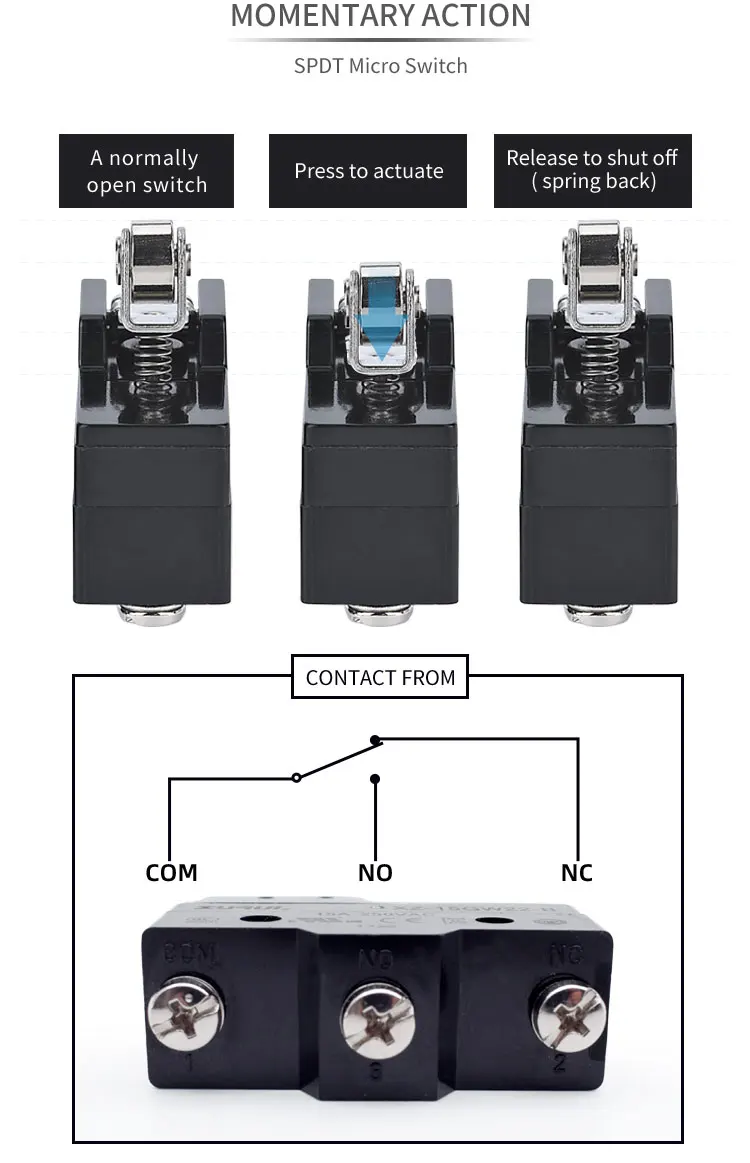

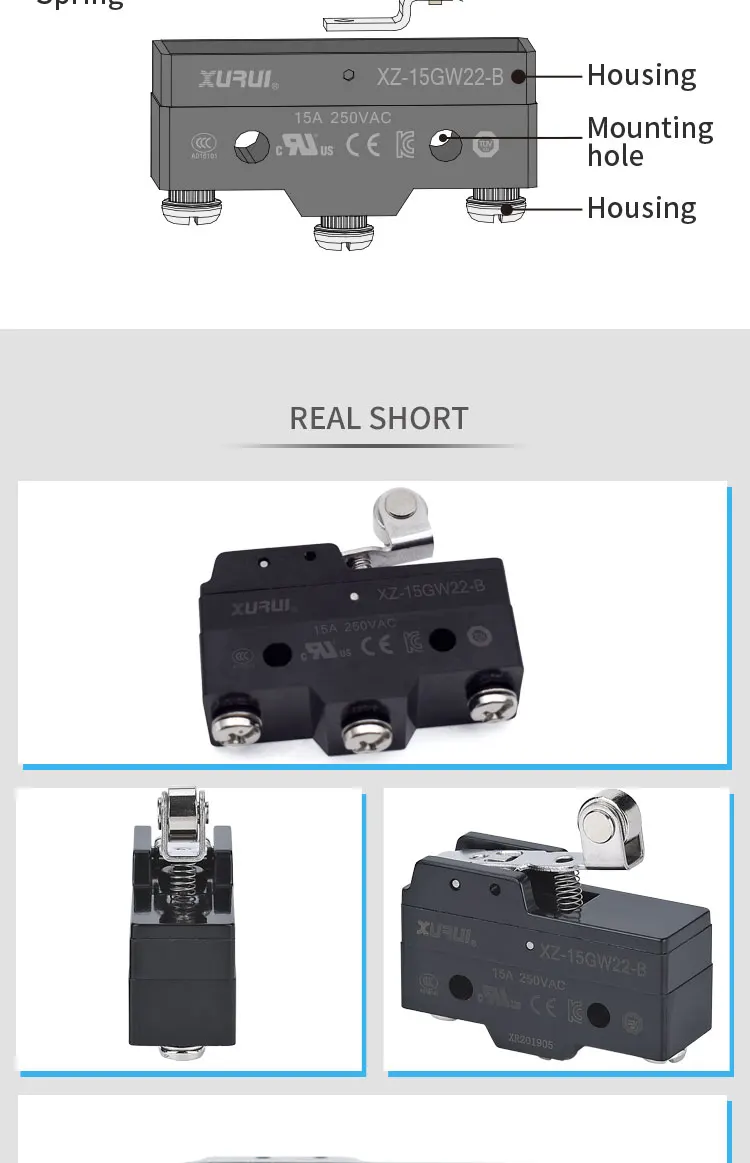

1-15GW22-B2-15GW22-B3-15GW22-B4-15GW22-B5-15GW22-B6-15GW22-B



Specification











































































Item



Data



Operating speed



1mm-1m/s



Operating frequency



Mechanical



240 times/min



Electrical



20 times/min



Insulation resistance



100 MΩ above DC500V



Contact resistance



25 mΩ initial value



Withstand voltage



Non-connection wire



1000 VAC



Every terminal



1500 VAC



Vibration



Misoperation



10-55 Hz Amplitude 1.5 mm



Impact



Durable



1000 m/s²



Misoperation



300 m/s²



Life



Electrical



100,000 times above



Mechanical



1,000,000 times above



Protection degree



IP40



Operating temperature



-25~+80℃



Operating humidity



<85%





Rating






























Ue(V)Ie(A)Ith(A)
AC-2501520
AC-1501520
DC-2500.30.45
DC-1250.60.75

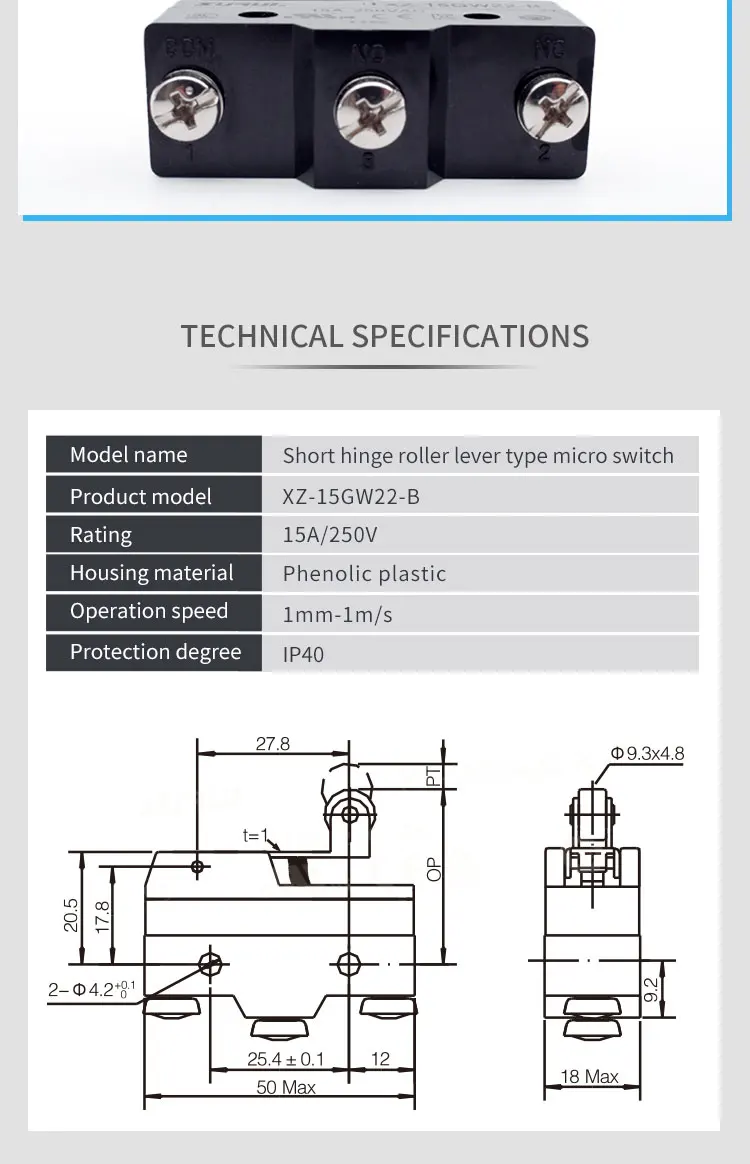

ModelsXZ-15GQ22-B
OF max.350-450g(3.43-4.41N)
RF min.114g(1.12N)
PT max.0.5mm
OT min.4mm
MD max.0.1mm
OP32.1±1.2mm


Rated Products

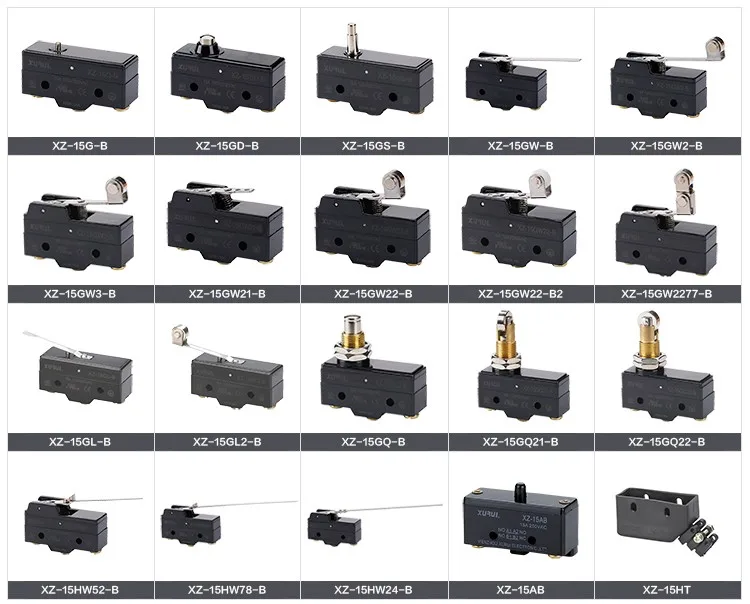

XZ-15(1)
