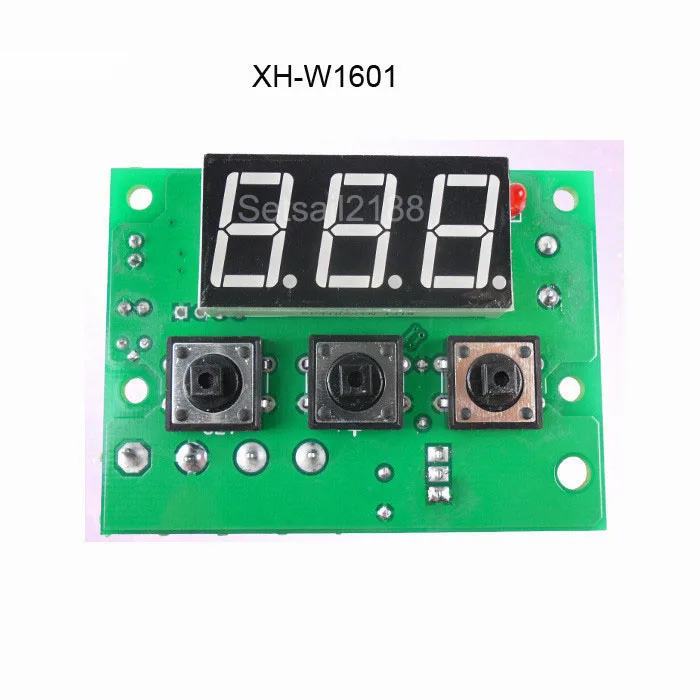

XH W1601 digital thermostat temperature controller control semiconductor cooling heating board 0 to 110c
- Category: >>>
- Supplier: Shenzhen Setsail Business Co. Ltd.
Share on (60784227244):
Product Overview
Description
XH-W1601 digital thermostat temperature controller control semiconductor cooling heating board 0 to +110°c
Note:
1.we have all kinds of Digital Temperature Meter -50 to +300 Celsius, -58 to +572 Fahrenheit
2.we also have all kinds of Temperature controller:-50 to +300 Celsius,-58 to +572 Fahrenheit
3.we can accept Customized and samples.
this temperature controller has cooling and Heating function.
Specification:
Temperature control range: 0-110C
Resolution: 0.1
Temperature measurement accuracy: 0.1
Control precision: 0.1
Control mode: PID
Refresh rate: 0.5s
Input power: DC12V
Output voltage: DC12V
Measurement input: NTC (10K0.5%) waterproof type sensor
Output: 1 way MAX=120W SSR
Environmental requirements: -10~60 C humidity 20%-85%
Specification: 78*51Mm(mounting hole M3. diagonal 75Mm)
1 product information
The company's temperature control method industry unprecedented, intelligent technology far ahead!
The product is usedmostAdvancedPIDtinyComputer temperature controlTechnology,In the temperature control industry to break the traditional on-Off mode control, the perfect solution for small power slow heating, large power, large inertia temperature, chip built dozens of control parameters, the program has been upgraded several times completely intelligent judgmentPIDparameter,100%Non overshoot,For the mold heating, water heating, heating box, has been very mature, while the controller can also be used for semiconductor refrigeration control, precision constant temperature at the desired temperature.
2 technical parameters
Temperature control range:0~110C
branch Resolution The rate of:0.1C
Temperature measurement accuracy:Zero point oneC
Control precision:Zero point oneC
Control mode:PID
Refresh rate:0.5 S
Input power:DC12V
Measurement input:NTC(10K 0.5%Waterproof type sensor
Output:1roadMAX=120W SSR
Environmental requirements:-10~60Temperature humidity20%-85%
Specification size:78*51mm Mounting holeM3.Diagonal75mm)
3,Usage method
Connected to the power supply and equipment, you can supply power for the controller, which is shown as measuring temperature,Press onceSETKey, display temperature flashing, according to set the desired temperature (+ - + - hold fast lifting) setting is completed according to theSETConfirm return, this time the controller is automatically executed according to the setting.PIDtemperature control.
Package
1* digital intelligent temperature control controller
