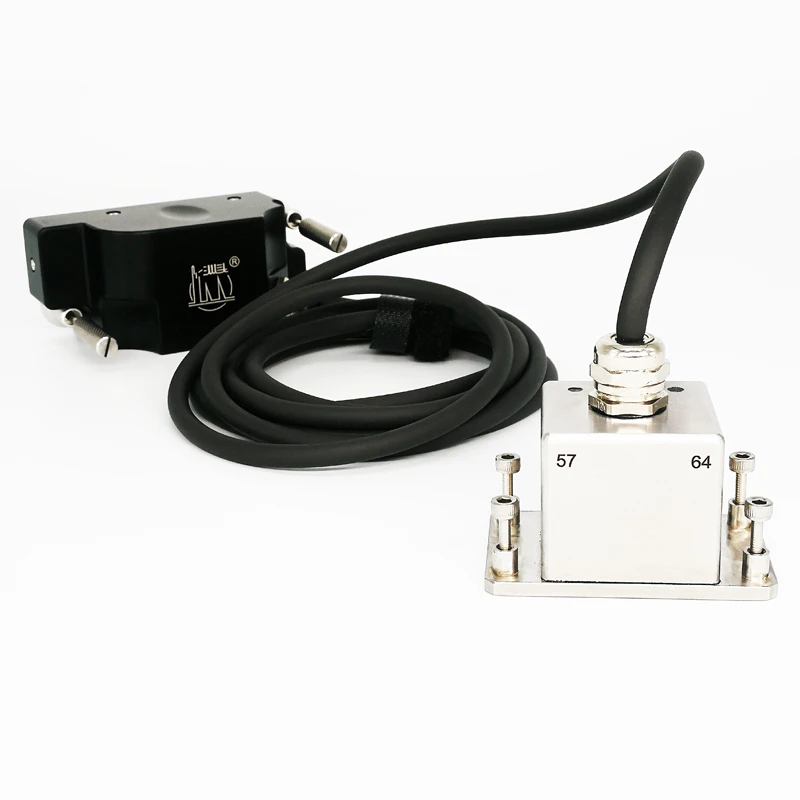

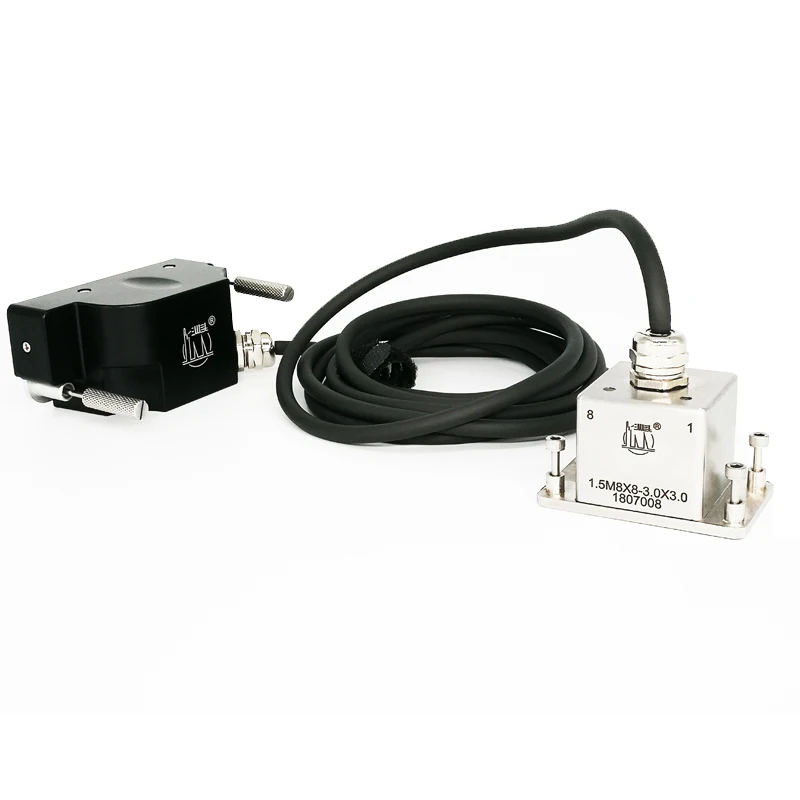

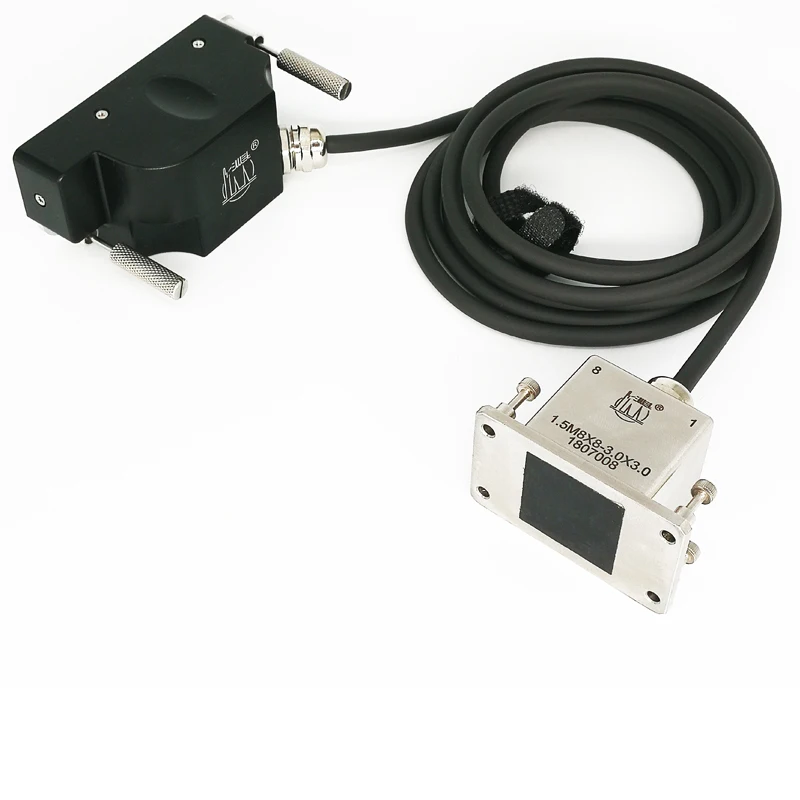

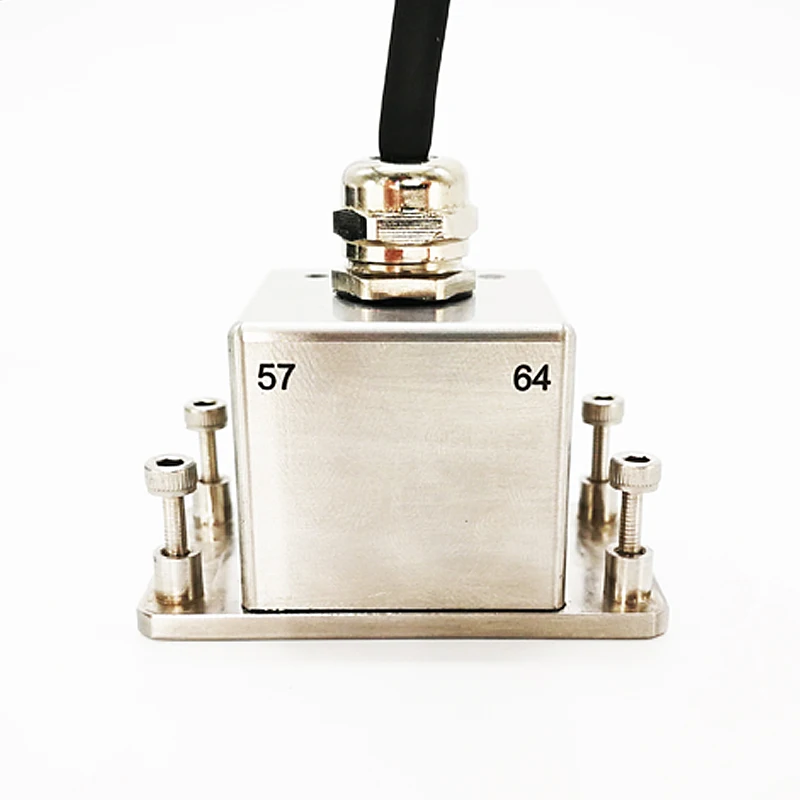

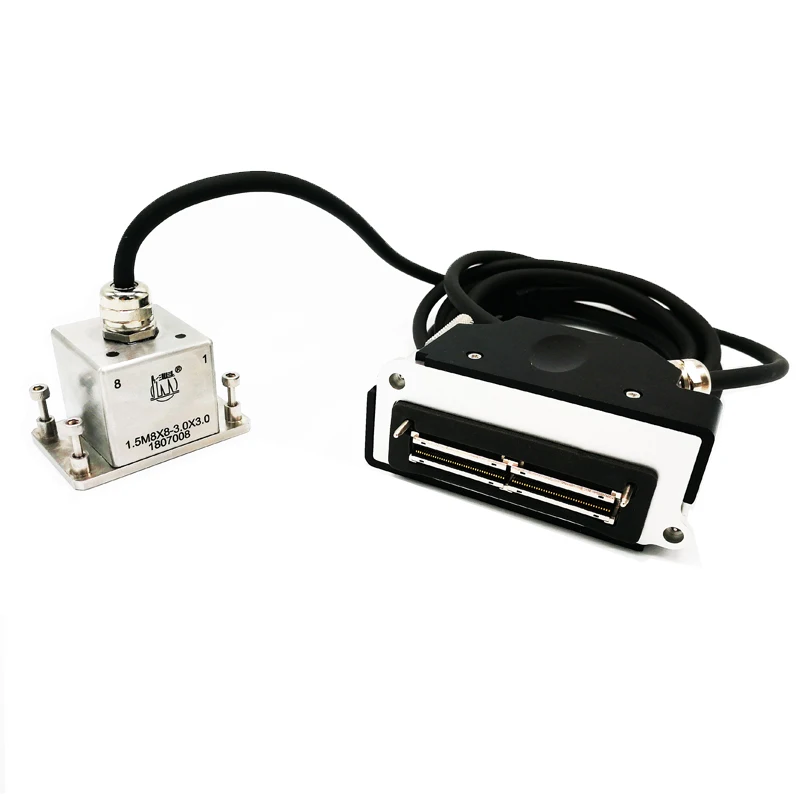

Matrix 1.5D/2D Series Phased Array NDT Immersion Probes ultrasonic transducer ultrasound sensor
- Category: >>>
- Supplier: Guangdong Shantou Goworld Electronic Co. Ltd.
Share on (60784328680):
Product Overview
Description
Product Description
Each element of phased array probes can be independently controlled by the electric signals. In connection with the PA equipment, it can transmit ultrasonic beams from different angles for dynamic focusing and real-time scanning.
Feature:
Frequency:1-10MHz; Element: 15,16, 64, 256 etc
Main Features:
- Small size for easy measurement
- Replaceable wedges
- Can be tested by water immersion
- Measuring the curved surface area with the wedge
- Can be used as a water immersion probe
- Ability to control sound velocity angle, focus and scan steps
Models:
| Probe series | Model | Freq. (MHz) | E-Nos | Pitch (mm) | A.APTR (mm) | Elev. (mm) |

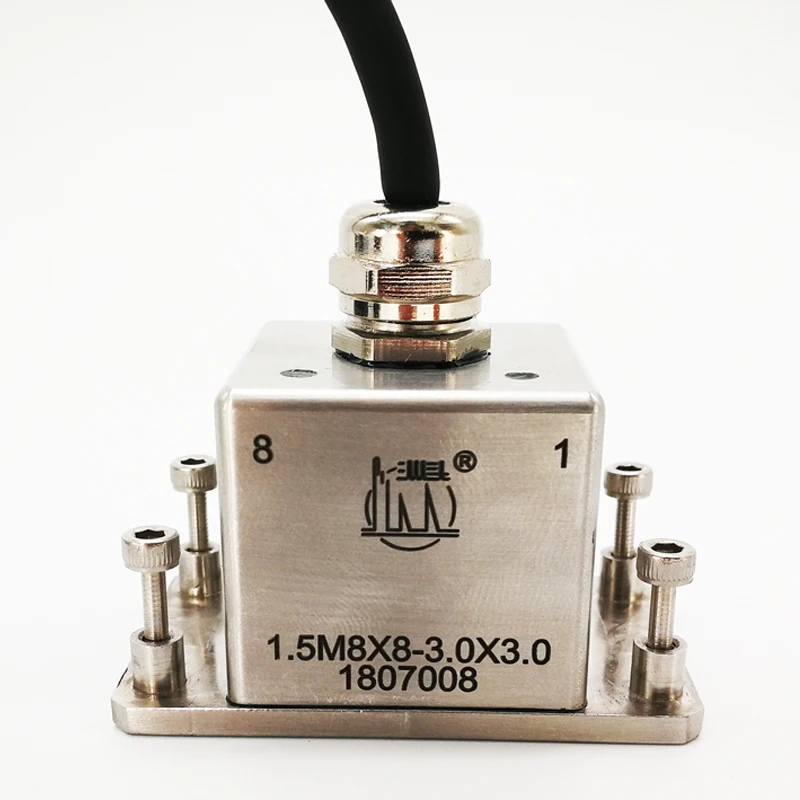

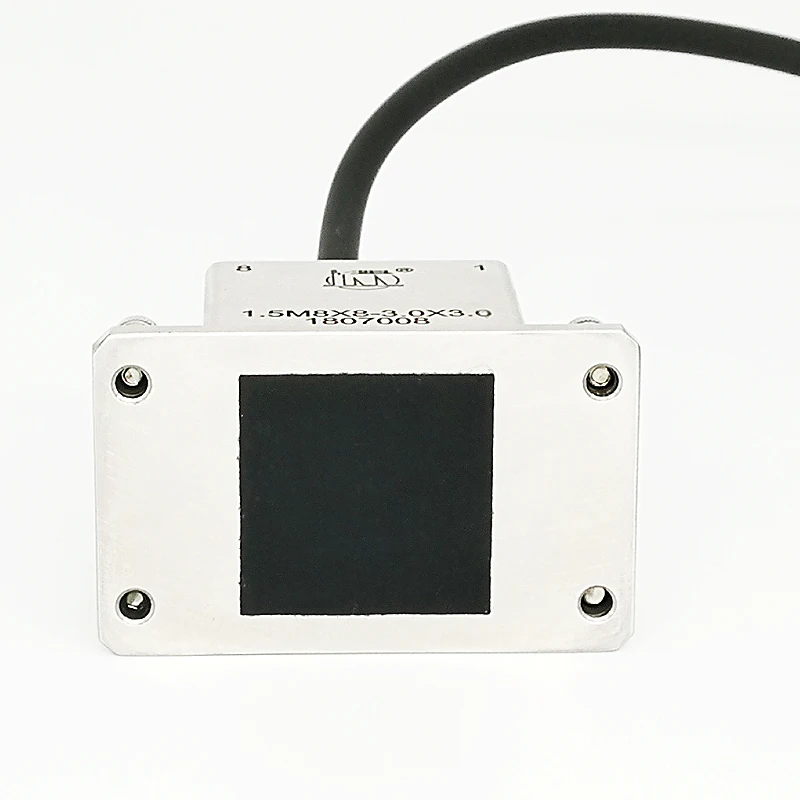

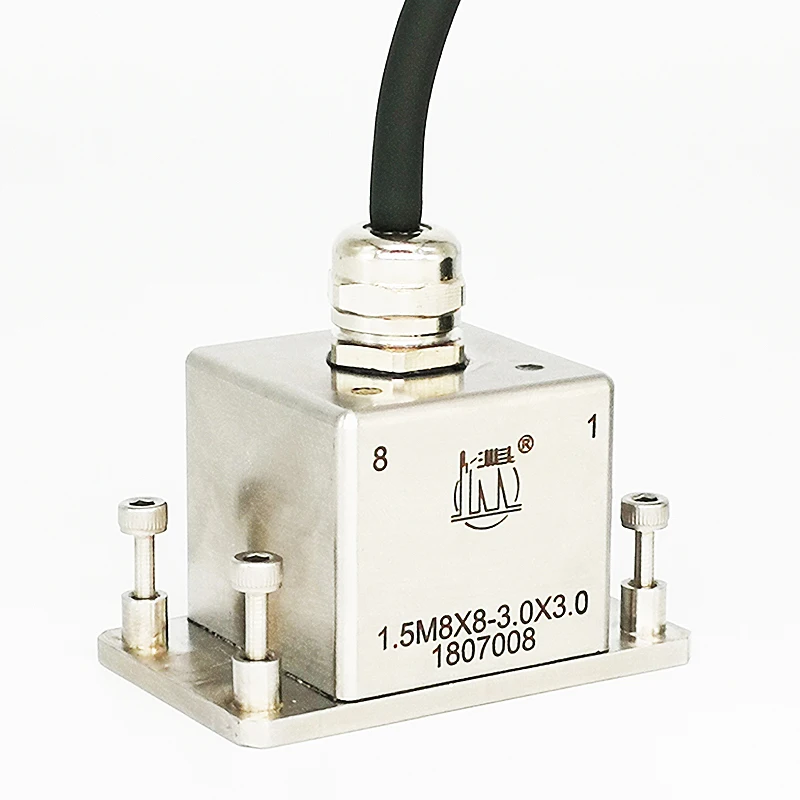

| Matrix 1.5D/2D series | 1.5M8X8-3.0*3.0 | 1.5 | 64 | 3 | 8 | 8 |
| 2M8X8-4.0*4.0 | 2 | 64 | 4 | 8 | 8 | |
| 5M4X4-1.0*1.0 | 5 | 16 | 1 | 4 | 4 | |
| 5M8X4-1.0*1.0 | 32 | 1 | 8 | 4 | ||
| 5M8X8-1.5*1.5 | 64 | 4.5 | 8 | 8 | ||
| 10M4X4-1.0*1.0 | 10 | 16 | 1 | 4 | 4 | |
| 10M8X4-1.0*1.0 | 32 | 1 | 8 | 4 |
Packaging & Shipping
Items will be packed with original box and shipped via airline with express shipment such as EMS or DHL.
