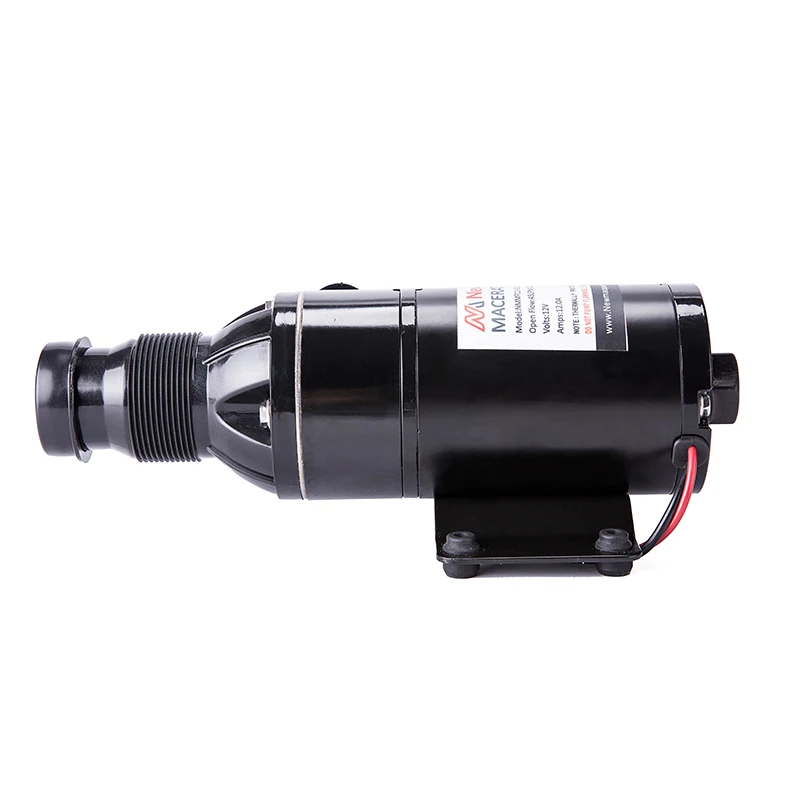

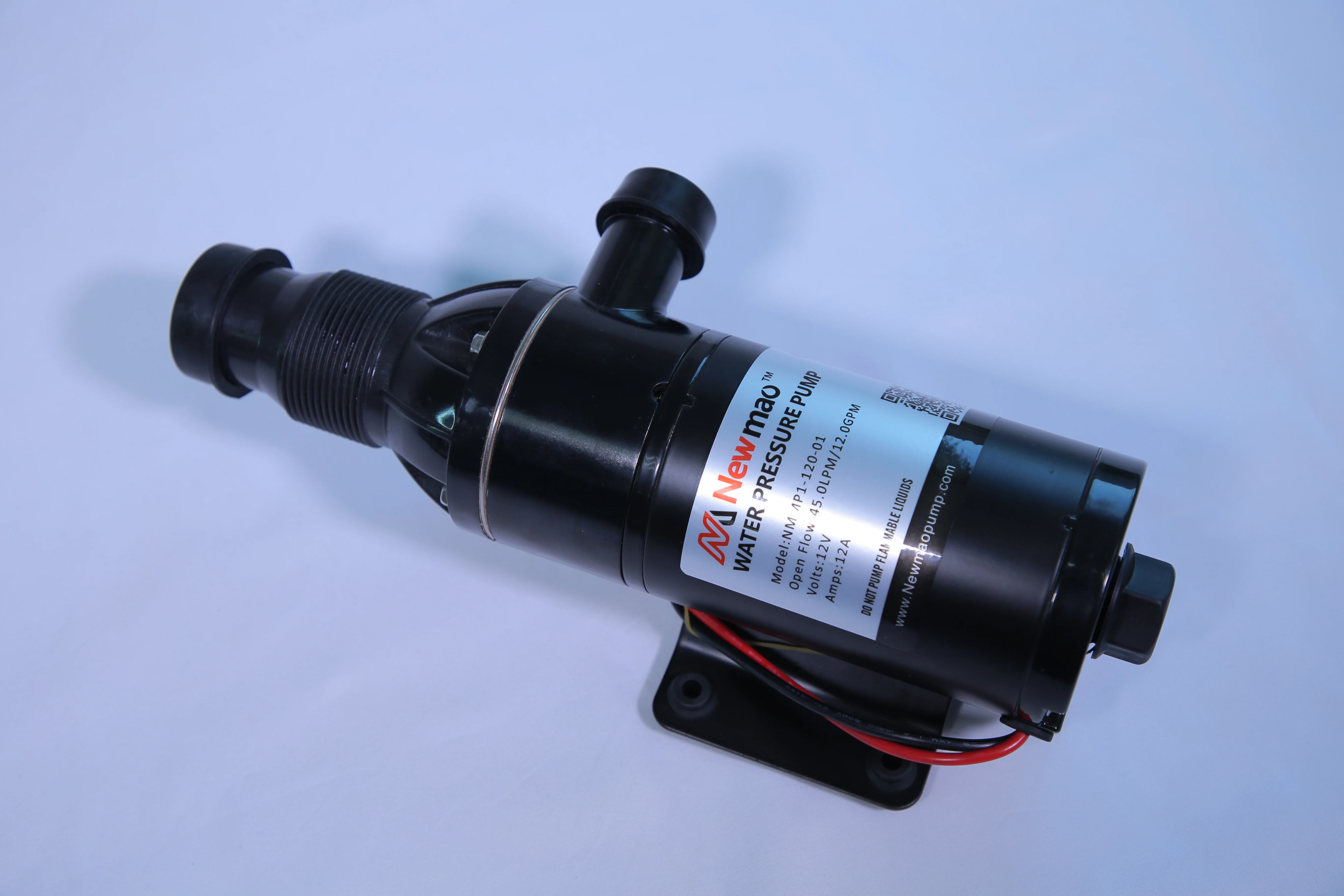

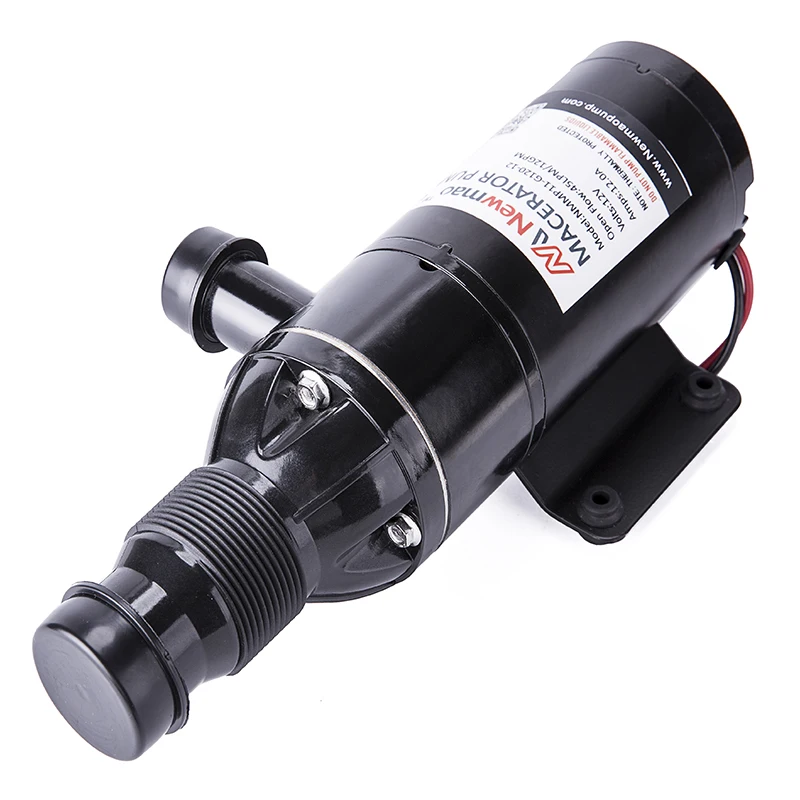

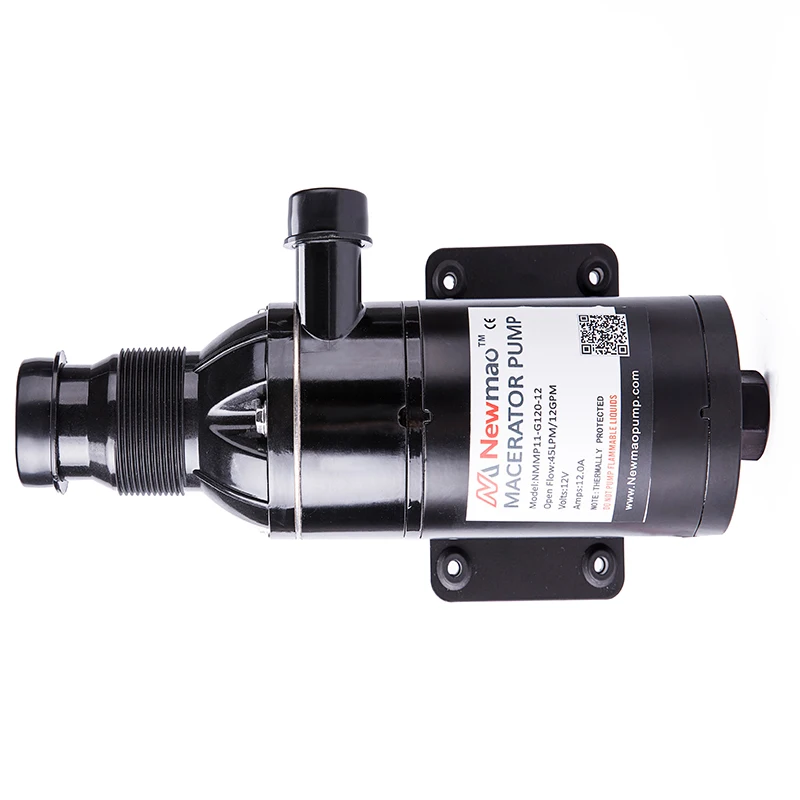

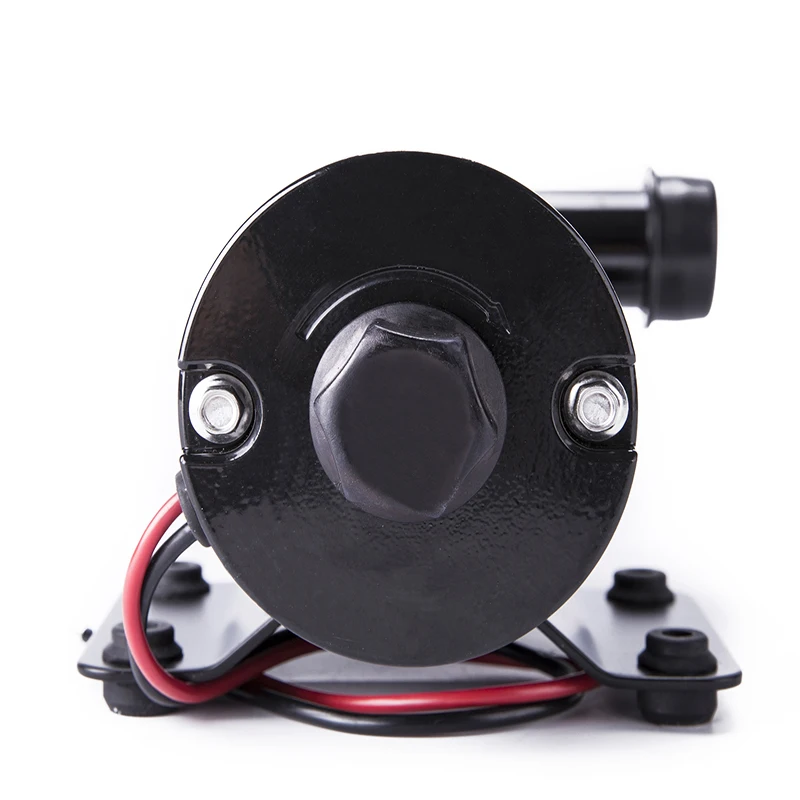

Newmao 01 series Portable RV Waste Pump with Garden Hose Discharge Port rv 12V 12GPM
Newmao 01 series Portable RV Waste Pump with Garden Hose Discharge Port rv 12V 12GPM
Newmao 01 series Portable RV Waste Pump with Garden Hose Discharge Port rv 12V 12GPM
Newmao 01 series Portable RV Waste Pump with Garden Hose Discharge Port rv 12V 12GPM
Newmao 01 series Portable RV Waste Pump with Garden Hose Discharge Port rv 12V 12GPM
Newmao 01 series Portable RV Waste Pump with Garden Hose Discharge Port rv 12V 12GPM
Newmao 01 series Portable RV Waste Pump with Garden Hose Discharge Port rv 12V 12GPM

Newmao 01 series Portable RV Waste Pump with Garden Hose Discharge Port rv 12V 12GPM

Share on (60784329273):


Price:$39.00 - $51.00

Quantity:


Product Overview

Description

















Product Name
Newmao 01 series macerator pump  DC 12V/24V
Pump Type
Centrifugal Pump (Flex-Impeller)
Ports
IN: 1-1/2" Hose Barb & 1-1/2” MNPT
OUT: 1" Hose Barb
Liquid:
130°F (54°C)
Dry-Prime:
4 Feet (1.2m)
Run Dry:
20 Seconds Max
Motor:
Permanent Magnet, Intermittent Duty
Protection:
Thermal Overload Protection Start on 302°F(150°C), Automatic Restart
Voltage:
12/24 Volts DC
Leads:
14 AWG, Wire Leads
Fuse:
23 Amp Recommend
Current:
15 Amps Max
Housings:
Phenolic - Nylon
Impeller:
Rubber & Copper
Hardware:
Stainless Steel


Model
Voltage
Open Flow
(GPM/LPM)

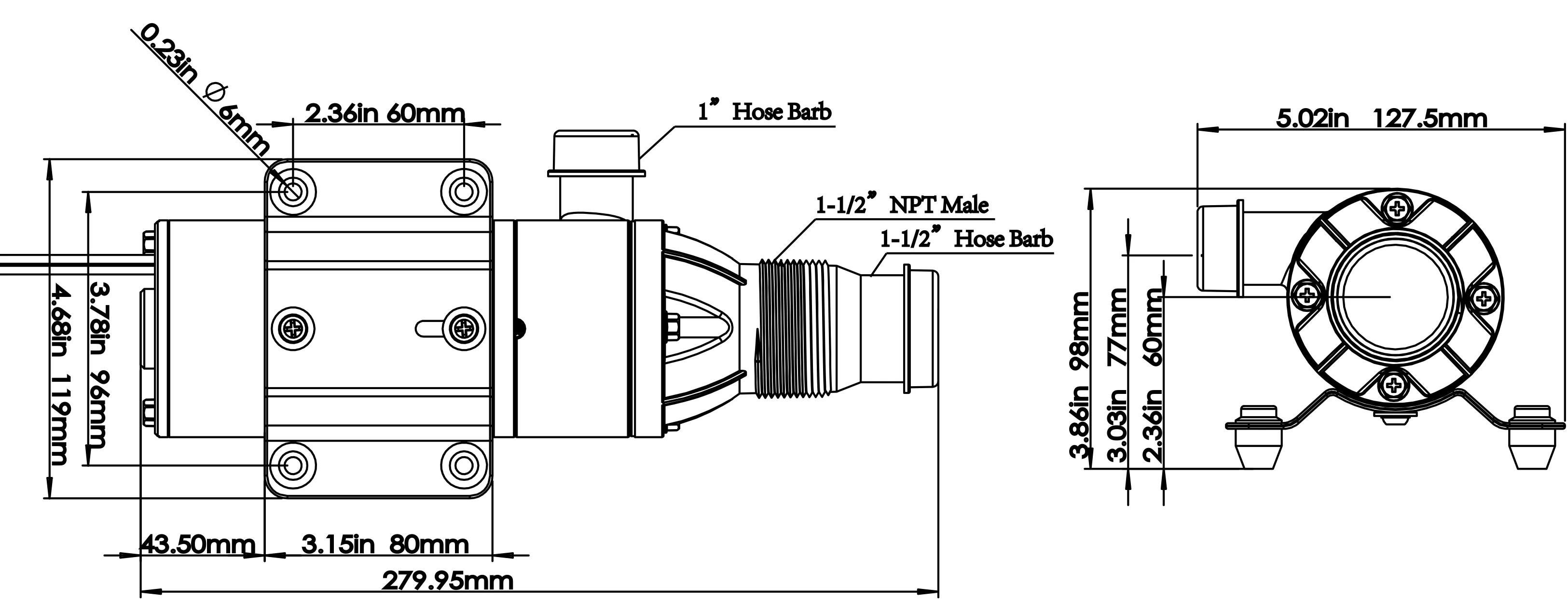

Dimensions
Impeller
Ports
Max Draw(A)
NMMP11-G120-12
12V
12.0/45.0
11"x4.68"x3.85"
280x119x98mm
Rubber & Copper
1-1/2” MNPT
1" Hose Barb
12.0 A
NMMP11-G120-24
24V
12.0/45.0
11"x4.68"x3.85"
280x119x98mm
Rubber & Copper
1-1/2” MNPT
1" Hose Barb
6.0 A












Packing&Delivery


Unit N.W
2.1 KG
Unit Size
(L x W x H)
31 cm x 15 cm x 11 cm
Unit G.W
2.6 KG
Master Carton Qty
9 pcs / carton
Master Carton Size (L x W x H)
49 cmx 33 cmx 35 cm
Master Carton Weight
24 KG
