12V/24V/36V/48VDC heavy duty electric linear actuator with position control for solar tracking system
12V/24V/36V/48VDC heavy duty electric linear actuator with position control for solar tracking system
12V/24V/36V/48VDC heavy duty electric linear actuator with position control for solar tracking system
12V/24V/36V/48VDC heavy duty electric linear actuator with position control for solar tracking system
12V/24V/36V/48VDC heavy duty electric linear actuator with position control for solar tracking system
12V/24V/36V/48VDC heavy duty electric linear actuator with position control for solar tracking system
12V/24V/36V/48VDC heavy duty electric linear actuator with position control for solar tracking system

12V/24V/36V/48VDC heavy duty electric linear actuator with position control for solar tracking system

Share on (60784329818):


Price:RUB 17,095.24

Quantity:


Product Overview

Description

Product Description

Product Application

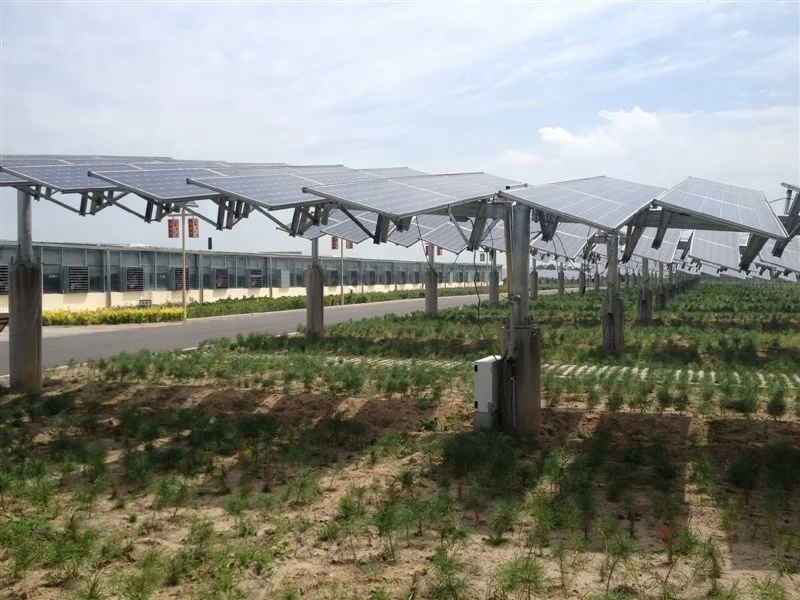

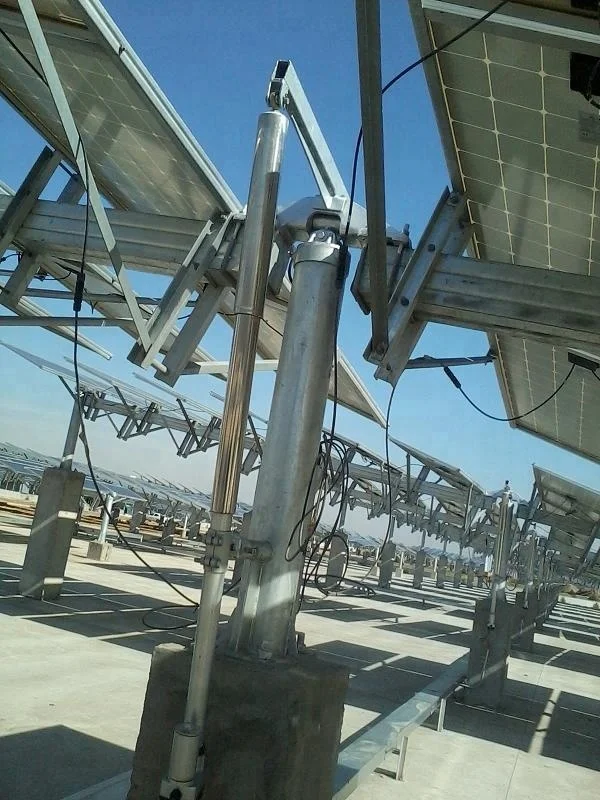

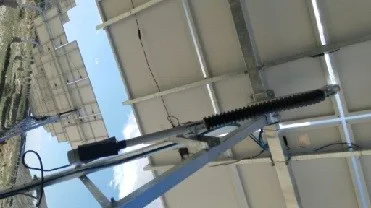

G-motor's GJ5000 series is the linear actuator for solar tracker,specially designed to be heavy duty for solar tracking system.This solar tracking actuator can also be used for antenna system.

SPECIFICATIONS FOR GJ5000 SOLAR TRACKING ACTUATOR
Name
Solar tracking linear actuator
Duty Cycle
20%
Model
GJ5000
Temperature
-26˚C~65 ˚C(-15˚F~150˚F)
Input Voltage
36VDC (/24VDC /12VDC)
Limit Switch
Adjustable
Load Capacity
10000N
Sensor
Reed Switch Sensor/POT
Static Load
20000N
Dynamic load
more than 12000N
Strock Length
31.5~33.5"
Gear Wheel
3 Metal Gear Wheel
Load current)
less than 6A
Drive
BALL
Full Load Speed
3.5mm/s

Main Features

1)Easy in installation and maintation.

2) Heavy duty.

3) Sensor can be option.

4) Several strokes length are available.

5) Factory load test.

Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Instructions for use

* One year warranty.

Packing & Delivery
Packaging
Size
900 (L) * 200(W) * 180 (D)(mm)
Weight
9.3KG



Packaging Details
The normal package for sample is carton box(Size: L*W*H).Inside the carton box,there will fill with foam to protect the linear actuator from damage.There are four pcs in one carton box.We will also provide the drawing and test report inside the carton box.
Packaging
Size
various
Weight
various



Packaging Details
Batch order package is carton box and wooden pallet(Size: L*W*H),which is usually shipped by sea.The wooden pallet will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
