30W Rack mount COFDM Tactical Wireless Ethernet MIMO Radio Mesh
- Category: >>>
- Supplier: Shenzhen Safe Guard Co. Ltd.
Share on (60784409247):
Product Overview
Description
MIMO Radios

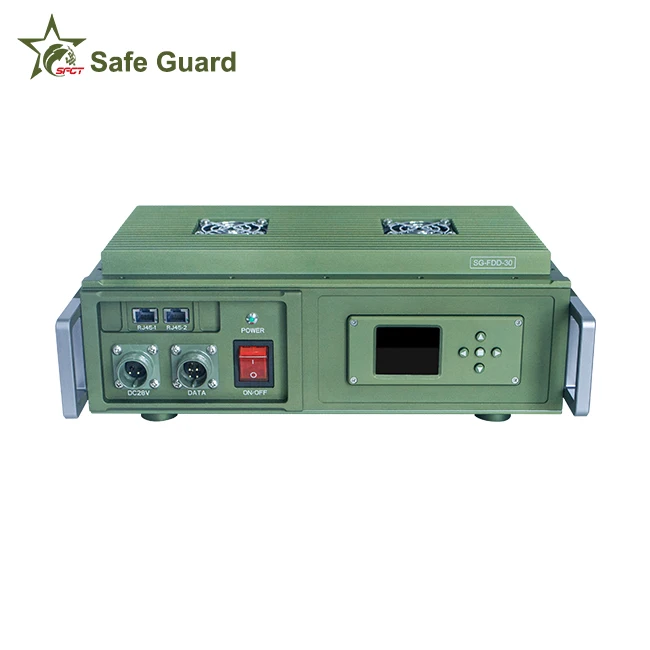

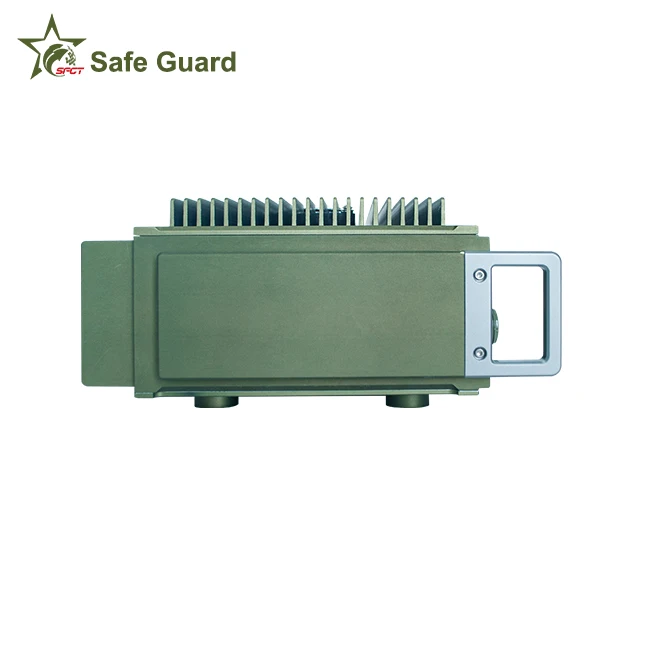

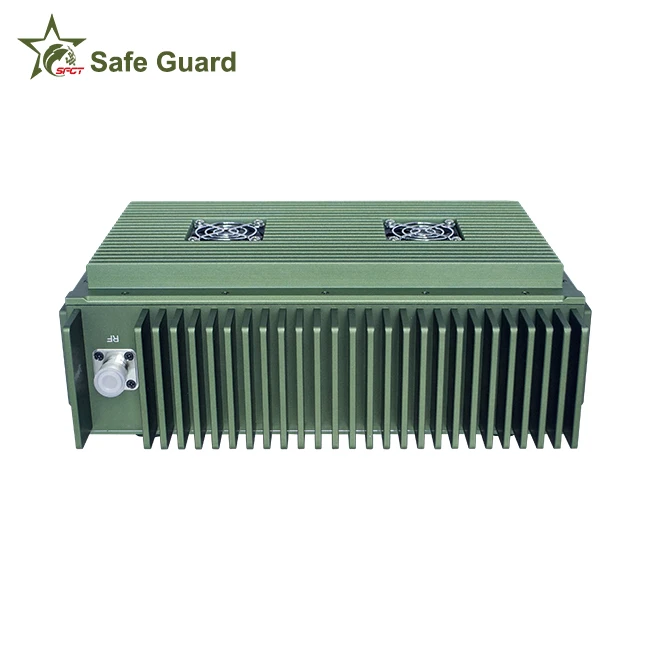

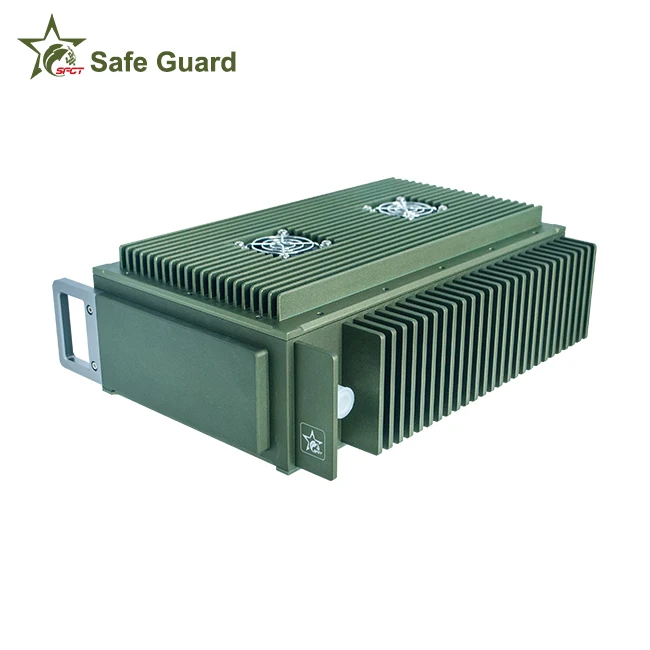

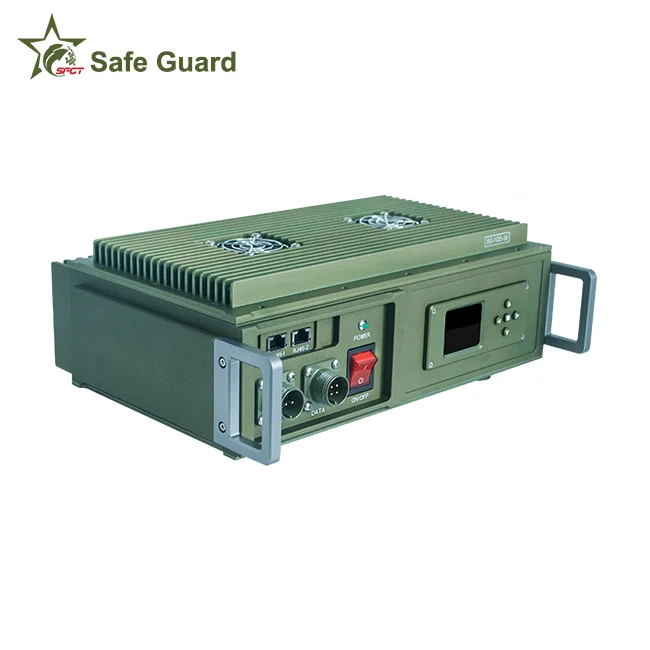

30W Rack-mount Tactical Ethernet military MIMO Radio
FDD is a new type of full duplx communication technology used in mobile communication systems,uses two separate channels for uplink and downlink transmission.SG-FDD30W model is a high power COFDM modulation Network IP radios with 30W rf power output.As its lightweight and small size that meets various vehicle /Vessel purpose required for robust long range video and data control over IP camcorder or Computer connection.
30W Rack-mount Tactical Ethernet military MIMO Radio design conforms to the military vehicle and is suitable for point-to-point long-distance mobile transmission.So the product is suitable for military, large unmanned aerial vehicles, UGV and other fields requiring long-distance network mobile communication.
Features
COFDM modulation,FDD (Frequency-division duplexing)technology
Narrowband but great data send from end to end.
Great transfer rate for uplink and downlink
Point to point mobile wireless communication
Transparent IP Ethernet and serial data sync telecommunication
MIMO aerial working mode
Dynamic AES encryption 128bits
Narrowband 1M/2M/4M/8MHz available
Work well in NLOS fast moving condition
Small in size,lightweight and low consumption
Simple operation,easy deployment
Narrowband but great data send from end to end.
Great transfer rate for uplink and downlink
Point to point mobile wireless communication
Transparent IP Ethernet and serial data sync telecommunication
MIMO aerial working mode
Dynamic AES encryption 128bits
Narrowband 1M/2M/4M/8MHz available
Work well in NLOS fast moving condition
Small in size,lightweight and low consumption
Simple operation,easy deployment
Specifications
Modulation | COFDM 2K |
TX output frequency | 675MHz (from 300 to 3300MHz is acceptable), step in 1MH |
Working current | DC28V/6.8A |
RX output frequency | 715MHz ,step in 1MHz (from 300 to 3300MHz is acceptable) |
RF bandwidth | 1/2/4/8MHz |
UATR port | RS232 transparent full duplex data transmission |
Interface input output | Standard RJ45 port *2 |
Transfer rate | RJ-45 Ethernet@30Mbits/s RS232@115200bps |
Encryption | 128-bit dynamic AES |
FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
Guard Interval | 1/32, 1/16, 1/8, 1/4 |
RF connector | N type *2 |
Video Compression | H.264 |
Modulation Technology | COFDM, QPSK, QAM16, QAM64 |
Parameter control method | Through the LCD control keypads to preset the related parameters |
Dimension | 320*210*110mm |
Weight | 8.7KG |
Transmit distance | 10-20 km NLOS / 20-40km LOS on ground level |

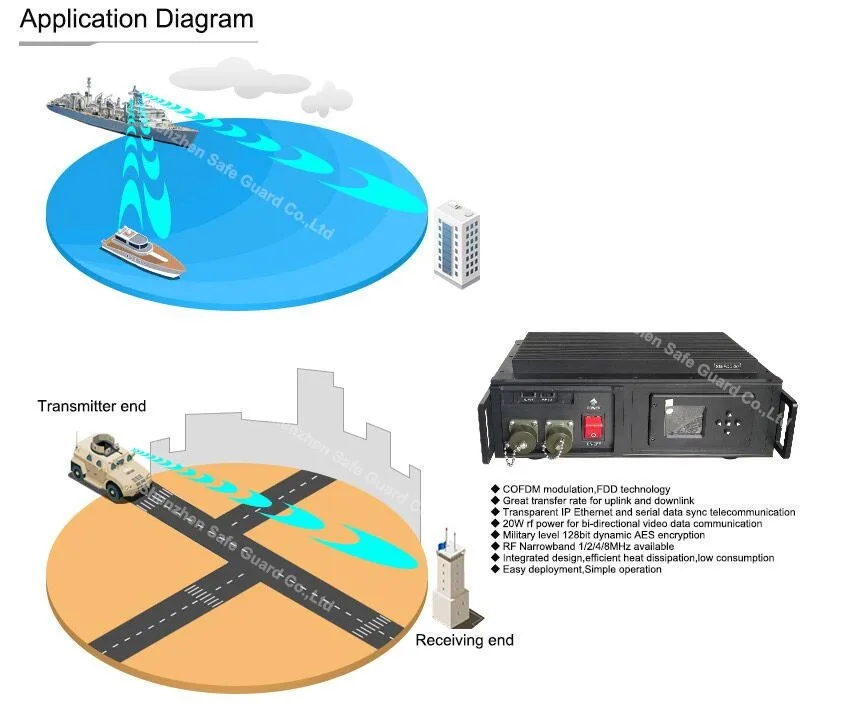

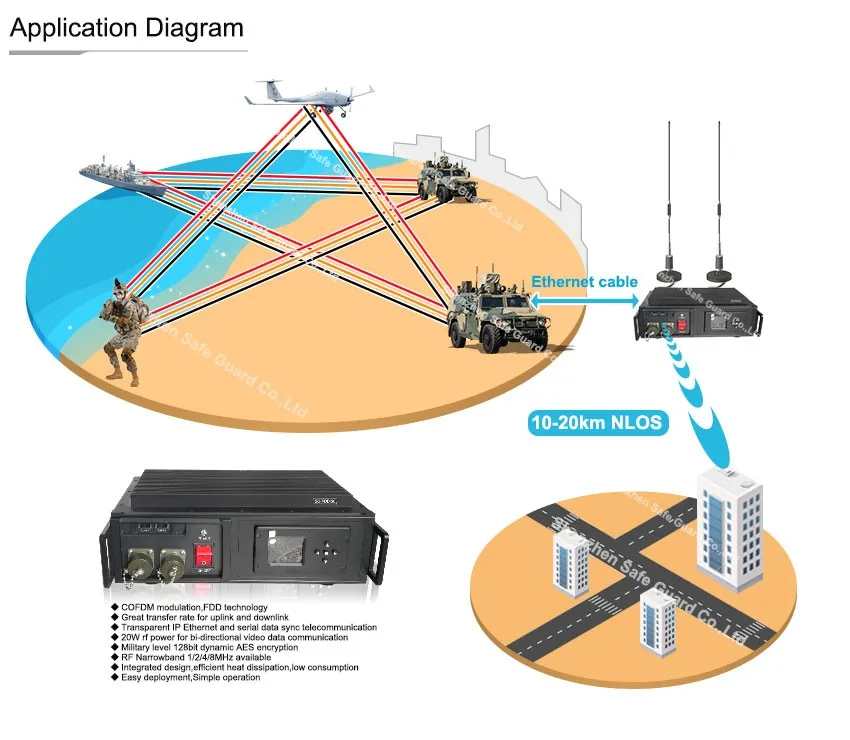

Typical application
SFGT-FD020VM is an ideal Ethernet COFDM Radio for mobile long range video audio data wireless communication,and as its MIMO capacity is able to manage two IP cameras that perfectly solves the need to transmit two channel videos with PTZ control simultaneously and long-distance transmission as well.
Tactical Vehicle
Robotics /UGV
Vessel
Border security
Robotics /UGV
Vessel
Border security
Our Company
Safe Guard was founded in 1999, which is a leading global technology manufacturer specializing in wireless microwave video and data communication system for government, law enforcement, military, defense, UAV/UGV and broadcast markets, etc..
We have strong production and R&D groups. Our backbone in researching and production is from the previous state-run 806 plants and 54 Institute. Over the 19 years, SAFE GUARD has been devoting itself to designing and developing digital video audio wireless systems in mobile. Nowadays, SAFE GUARD has built up a mature COFDM product line, mainly including standard COFDM wireless transmitter & receiver, TDD-COFDM full duplex Ethernet transceiver, COFDM IP MESH, and the latest technology FDD-COFDM wireless Dual frequencies Network Transceiver. Moreover, we offer customized solutions and services for clients to any kinds of wireless transmissions they need--simplex, duplex, or mesh network.
Eurosatory 2018
Packing & Delivery
