Price:$2.90 - $3.50

Quantity:


Product Overview

Description

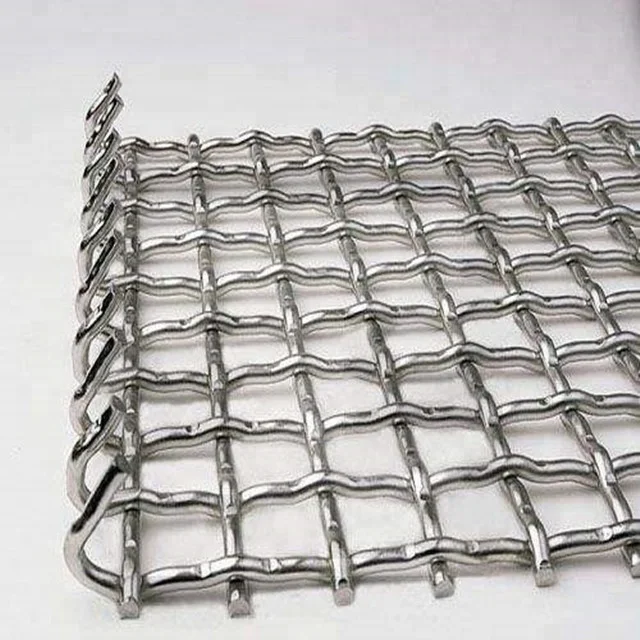

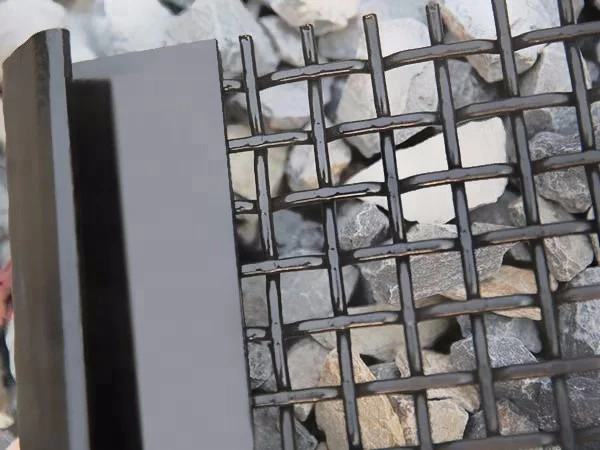

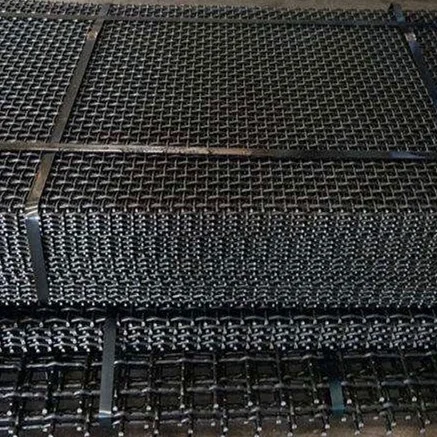

Specification of Crimped Screen Mesh
Product Name
Crimped wire mesh, also known as crimped screen mesh, vibrating screen mesh, quarry screen mesh, mining screen wire mesh
Materials
Mild steel/Low carbon steel, carbon iron wire, 65Mn steel wire, galvanized steel wire or stainless steel wire.
Weaving
Pre-crimping before weaving
Wire diameter
0.8mm-12.7mm
Mesh hole
2mm to 100mm or as your requested
Width
0.5-1.5m
Length
1-30m or as your requestd
Certification
SGS standard,ISO9001:2008

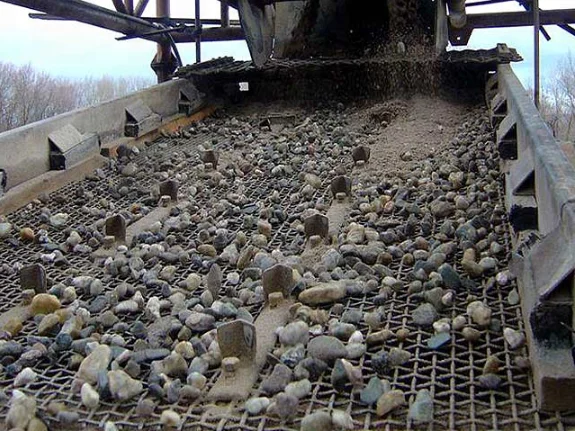

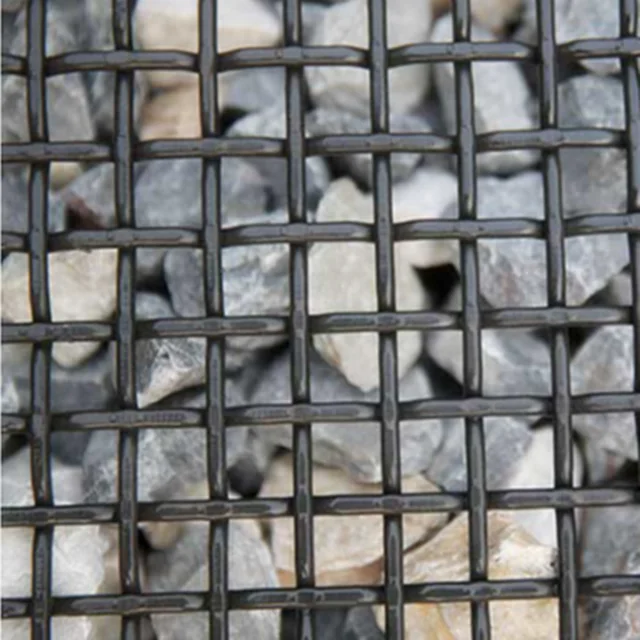

Crimped woven wire mesh offers great dimensional strength and stability, great resistance to abrasion, uniform openings and excellent anti-corrosion. It is usually used as quarry screen in mine, quarry and other industrial fields as sieving, grading and separating screening materials.
1. Angle: 30 degrees, 45 degrees,60 degrees
2. Crimped Wire Mesh Shape: v-shaped, u-shaped
3. Hook Type: C or U hook for 30°-180°
4. Weaving Type: Double crimped, intermediate crimped, flat top crimped, lock crimped.
5. Mesh Type: Square, rectangular slot, long slot.
6. Surface Treatment: Anti rust oil painted.

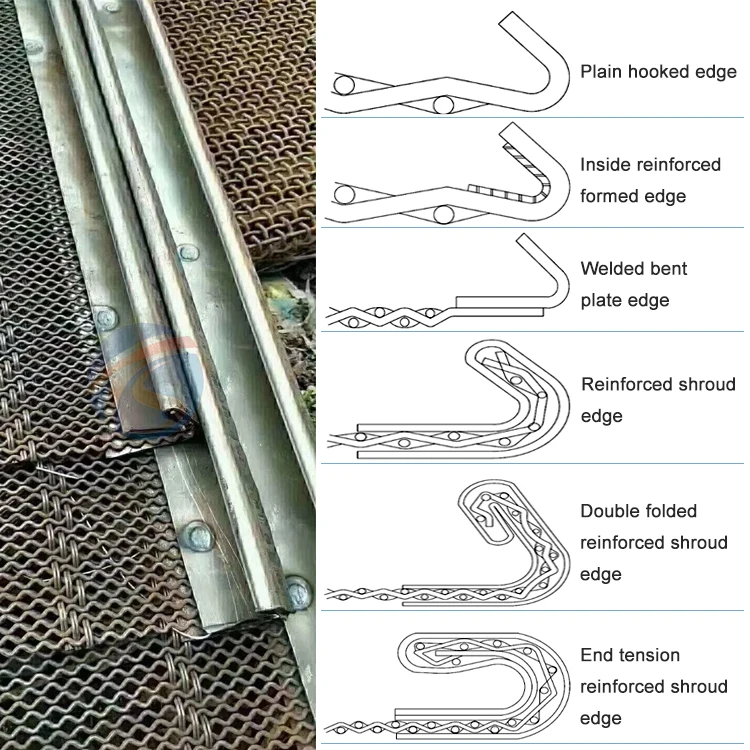

7. Edge Preparation: Plain, bent, reinforced shroud, welded shroud, bolt shroud.




Double Crimp Wire Mesh
Double crimp wire mesh is manufactured with pre-crimped wires to obtain precise screening apertures and achieve maximum rigidity.
Generally, it works well in conditions where materials are not sticky or materials with a small tendency to peg or wedge.
Flat Top Wire Mesh
Flat top wire mesh is manufactured with wires crimped on one side only to create a flat surface, thus enhancing its durability and allowing bigger apertures with high precision. It is generally used for coarse mineral screening.
Lock Crimp Wire Mesh

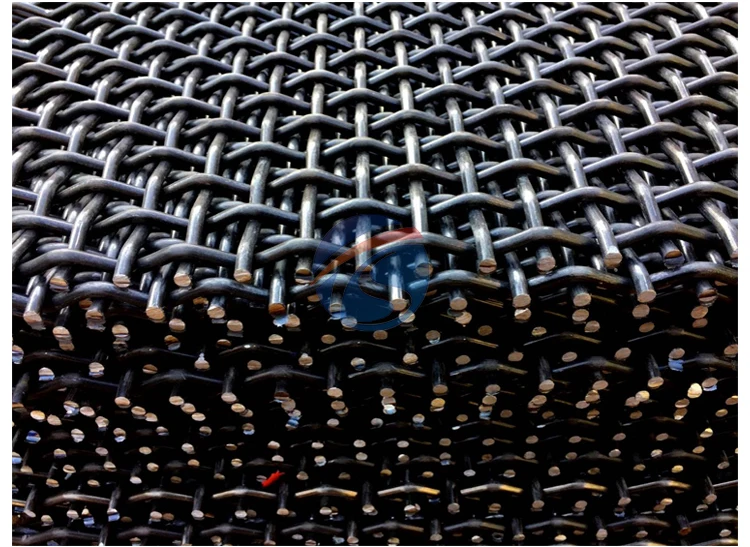

Before weaving, both warp and weft wires are pre-crimped. Lock Crimp Wire Mesh is characterized by the formation of bumps or joints on each group of intersecting wires. These joints lock the mesh in place and create an extremely rigid product.






Material Details of Crimped Wire Mesh

No.

Grade
Chemical Composition (%)
C
Si
Mn
ST-Screen 1
45
0.42–0.50




0.17-0.37




0.50–0.80
ST-Screen 2
50
0.47–0.55
ST-Screen 3
55
0.52–0.60
ST-Screen 4
60
0.57–0.65
ST-Screen 5
65
0.62–0.70
ST-Screen 6
70
0.67–0.75
ST-Screen 7
65Mn
0.62–0.70
0.90–1.20
ST-Screen 8
72A
0.70–0.75
0.15–0.35
0.30–0.60

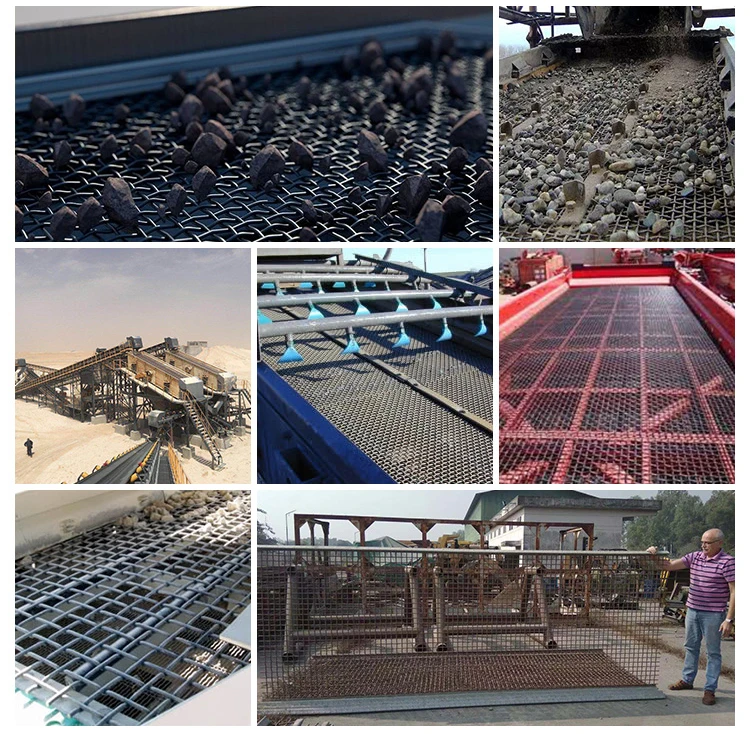

Crimped wire mesh is mainly used for mining industry, quarrying industry, coal industry, stone crushing industry, iron ore and steel industry, construction, cement industry, petrochemical industry, construction machinery, power plants, paper and pulp industry, etc.
Crimped wire mesh features: long using life, corrosion resistance, anti-acid and alkali, anti-high temperture, good filter performance, eliminates blinding and plugging.












Anping Shitai Wire Mesh Produce Co.,Ltd. is a professional wire mesh enterprise intergrating production and sales. It is located in the Anping Country of Hebei Province. Shitai factory was built in 2008 and has been engaged in the production of gabion, noise barrier, defensive barrier, vibrating screen mesh products. On April 24, 2013, the company (Anping Shitai Wire Mesh Produce Co.,Ltd.) was formally established and start to develop domestic and abroad markets. The registered capital is 10.8 million RMB and covers an area of more than 15,000 square meters.
