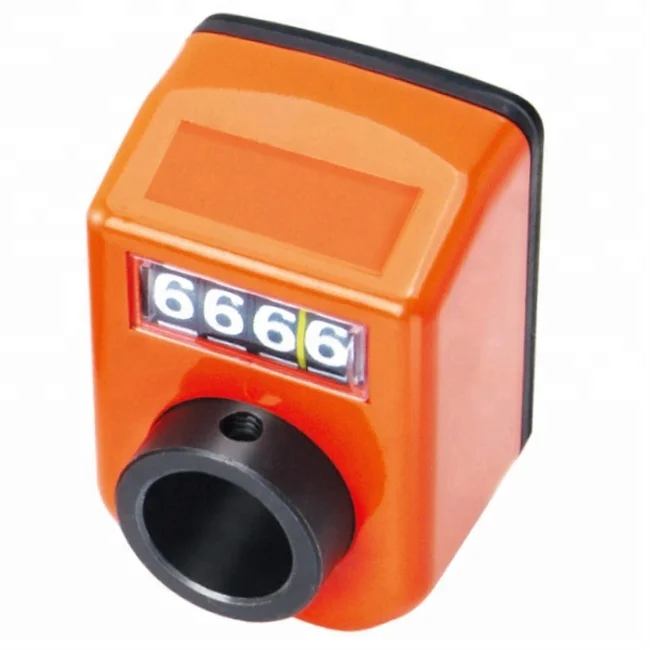

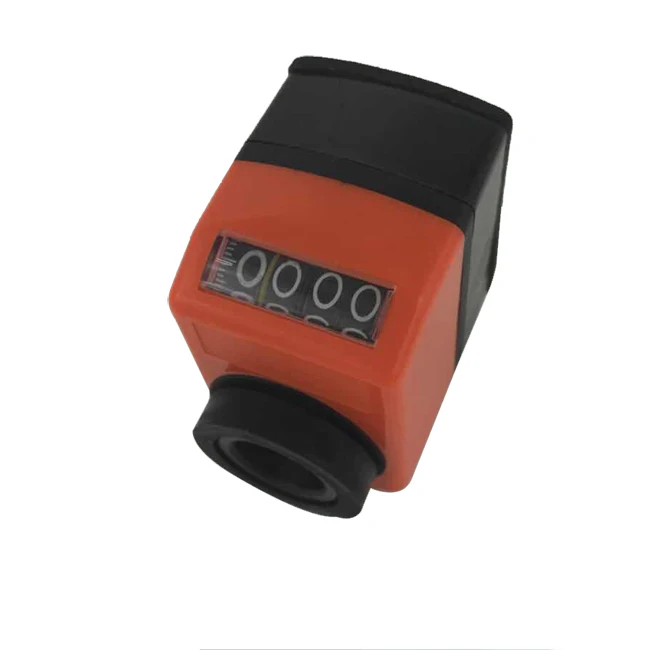

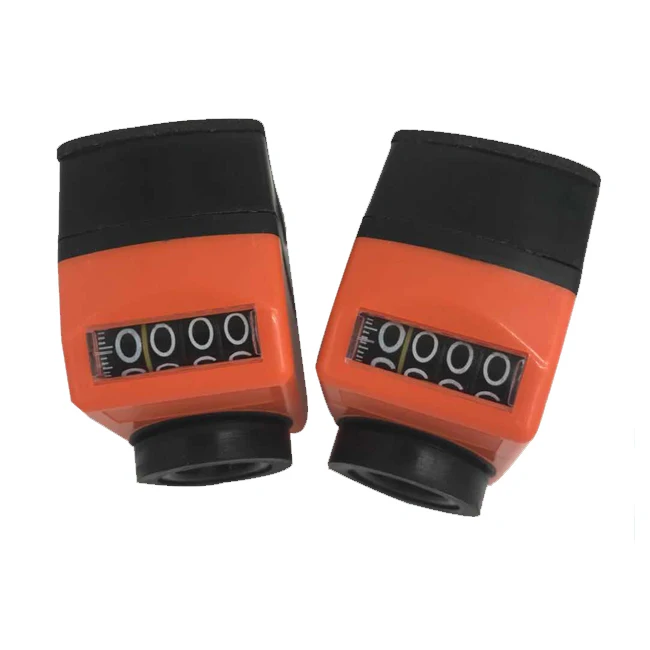

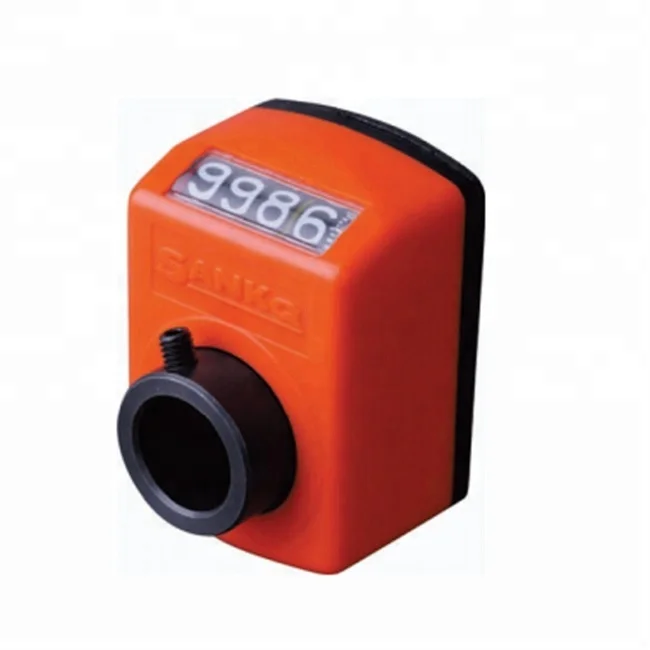

Germany SIKO 04 Series Mechanical Digital Position Indicator 14mm Hollow Shaft
- Category: >>>
- Supplier: Hengshui HK Machinery Elements Trading Co. Ltd.
Share on (60784514905):
Product Overview
Description

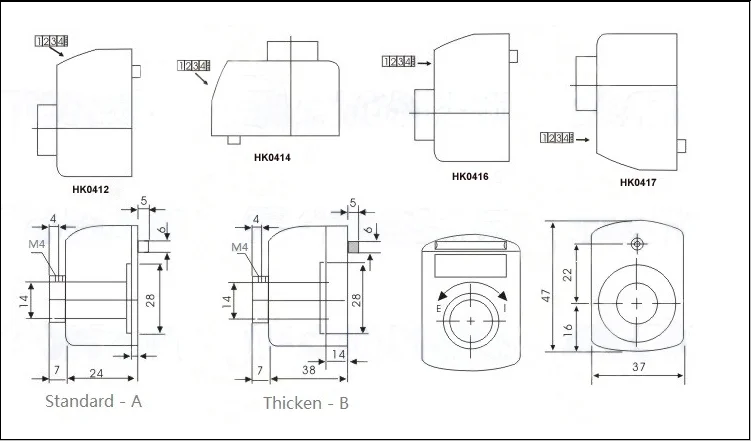

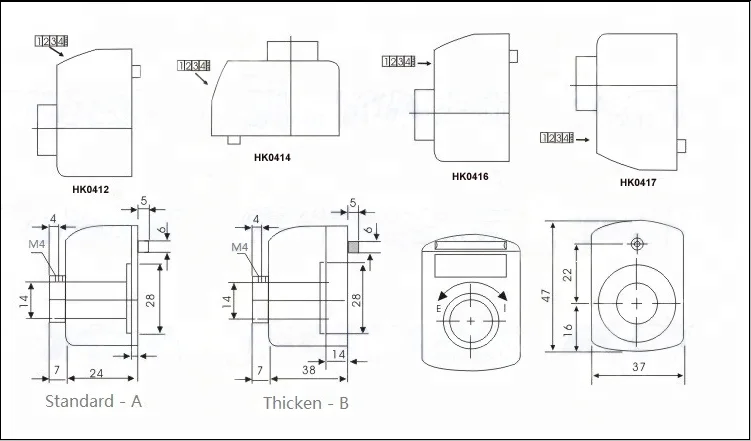

Pictures and Drawing
Specs List
Features
1. Germany 04 Series Digital Position Indicator
2. Hollow Shaft Diameter 14mm
3. Mounting Position : 12, 14, 16, 17

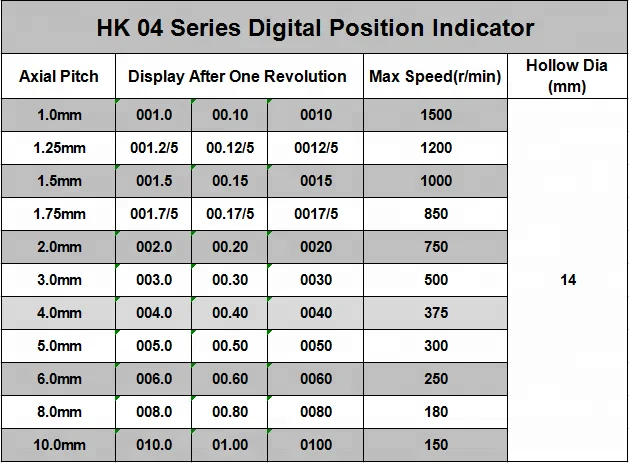

4. Axial Pitch : 1.0mm, 1.25mm, 1.5mm, 1.75mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm, 8.0mm and 10.0mm
5. Display 4 Decades
6. Counting Direction : clockwiese and counter-clockwise
7. Color : Orange and Black
Ordering Information
Ordering Information
HK04- 12 - 1.0 - E - 14 - O - A
1 2 3 4 5 6 7
1. Series
Series : HK 04
2. Mounting Position
12, 14, 16, 17
3. Axial Pitch
1.0mm, 1.25mm, 1.5mm, 1.75mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm, 8.0mm and 10.0mm
4. Counting Direction
I : Clockwise to increase
E : Counter-Clockwise to increase
5. Hollow Shaft Diamter
14mm
6. Color
O : Orange
S : Black
7. Type
A : Standard Tpye
B : Thicken Type
Application
Widely used in Woodworking Machines, Packing Machines, Printing Machines and other machine tools equipments.
Packaging & Shipping
Packing Details : 1 pc in polybag, 2 pcs in small carton box and then in standard export carton, also do the customized packages.
Shipping Details : Receiving payment then ship out at once.
