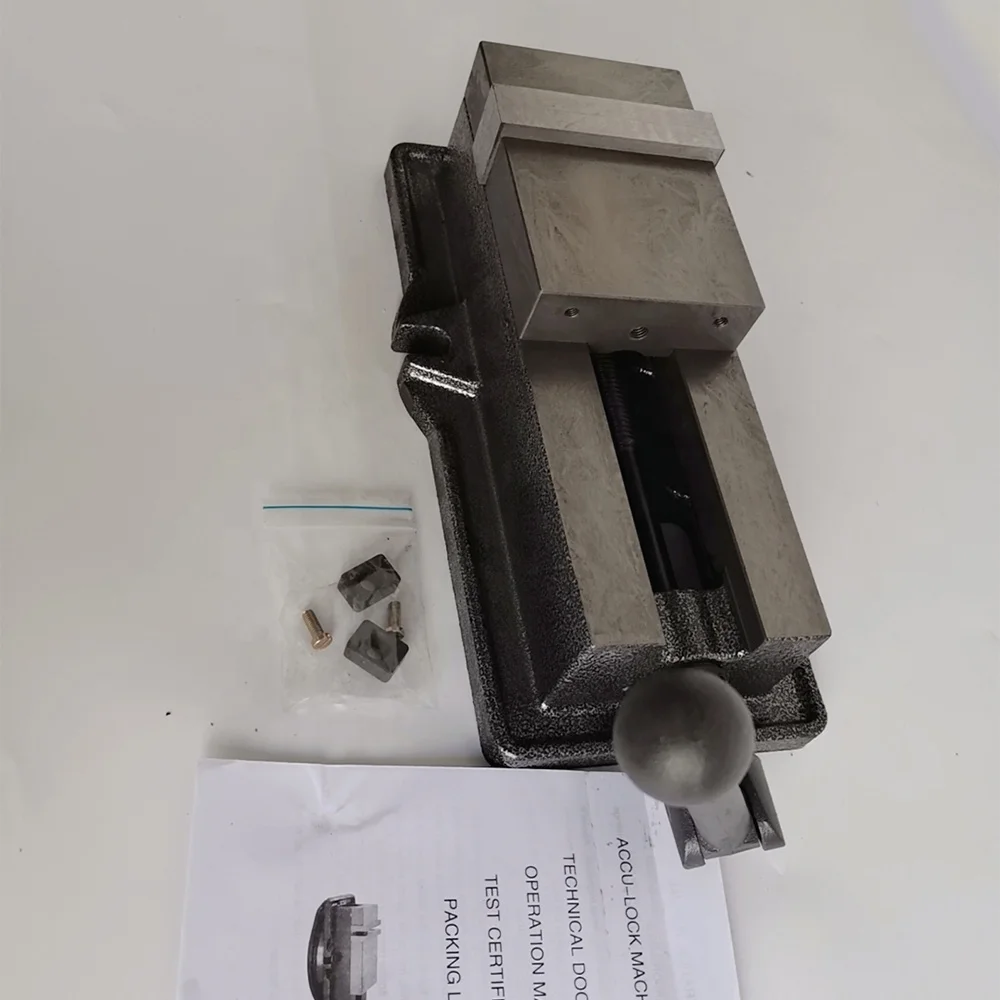

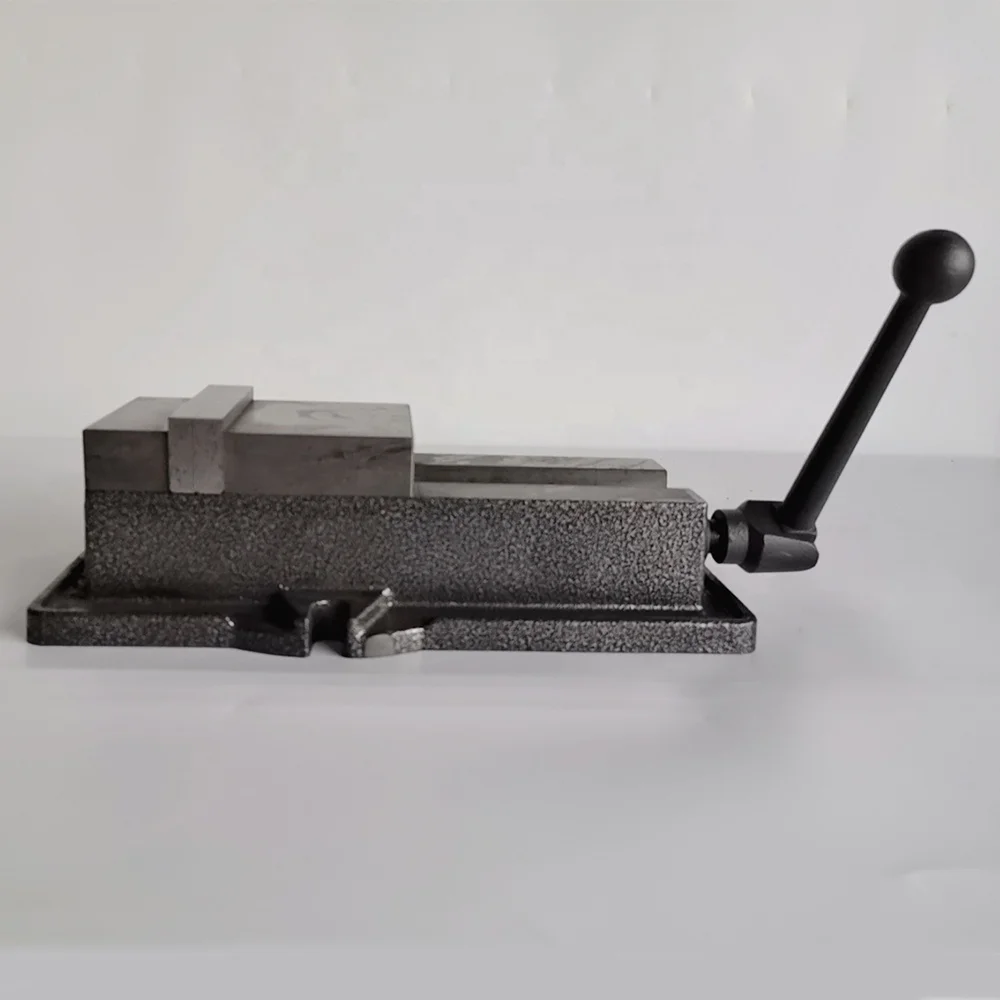

Shenzhen верстачные тиски 4 дюйма, фрезерный станок QM16100 для фрезерования и шлифовальной машины, аксессуары для станков

Product Overview

Description

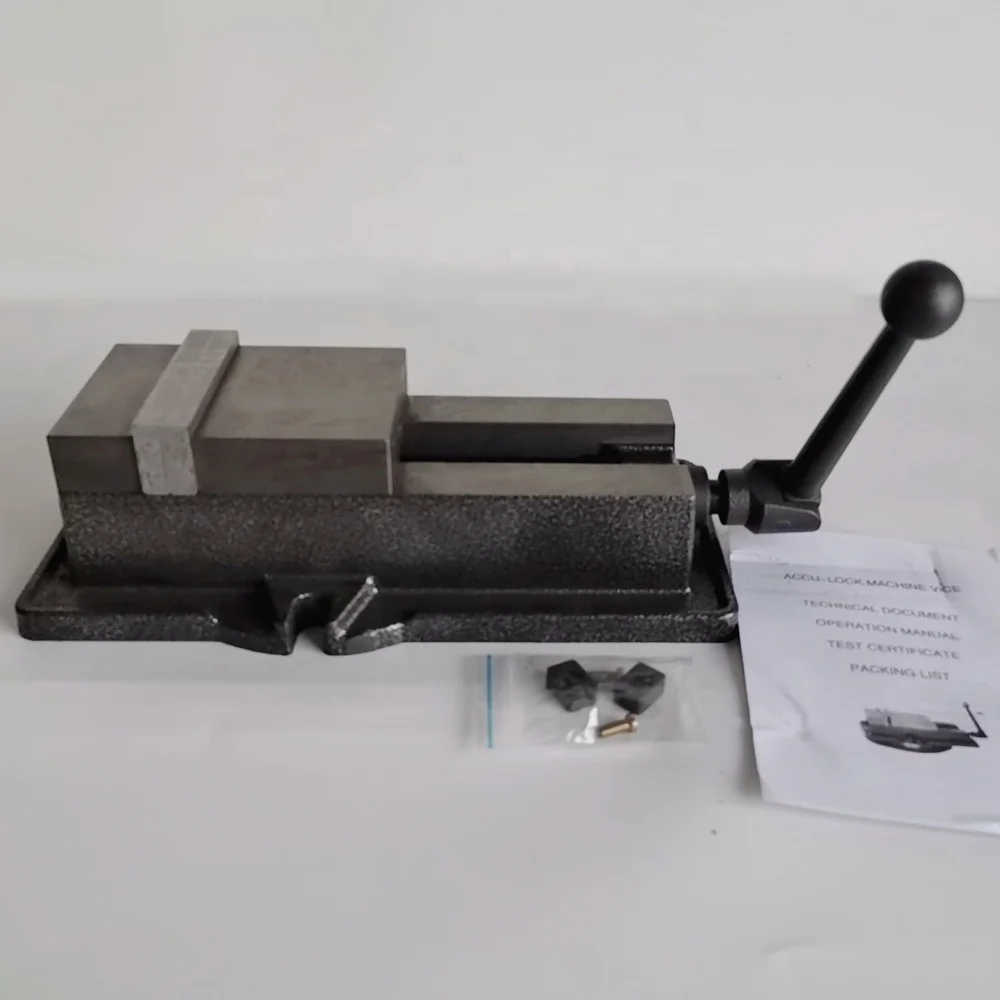

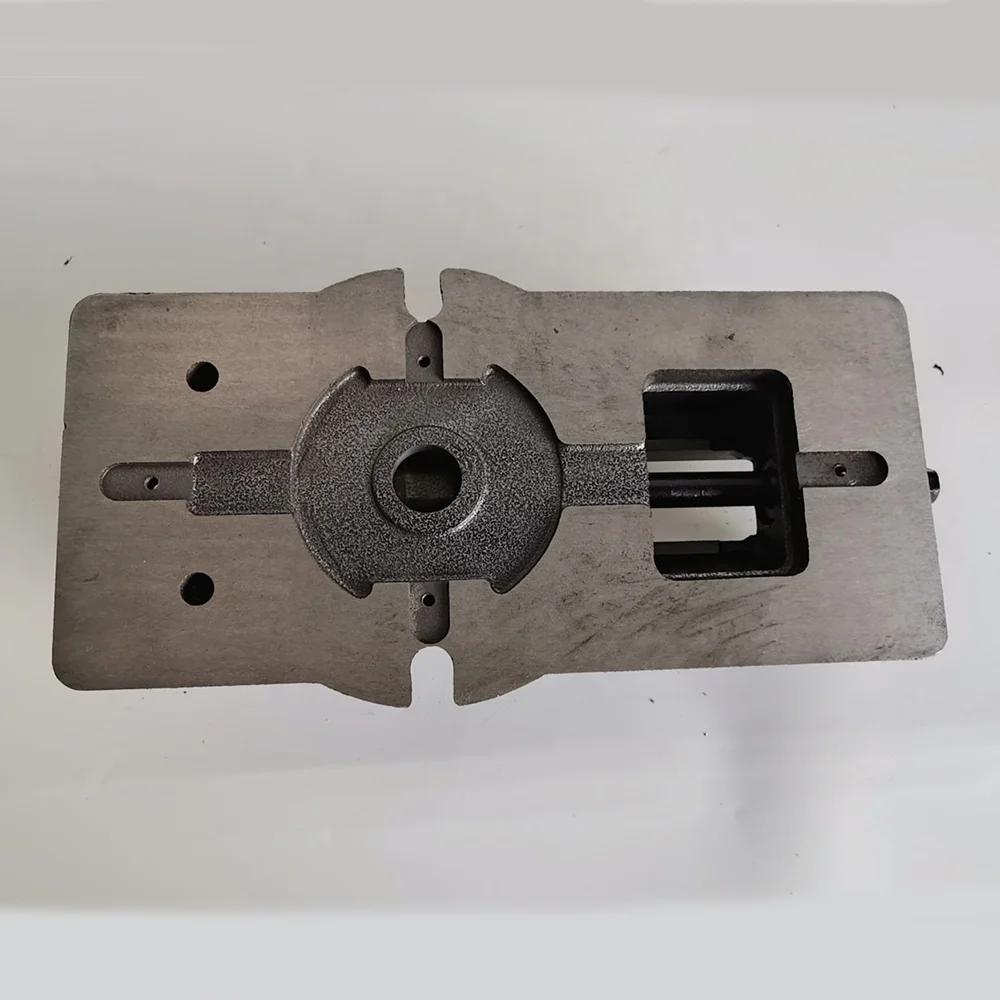

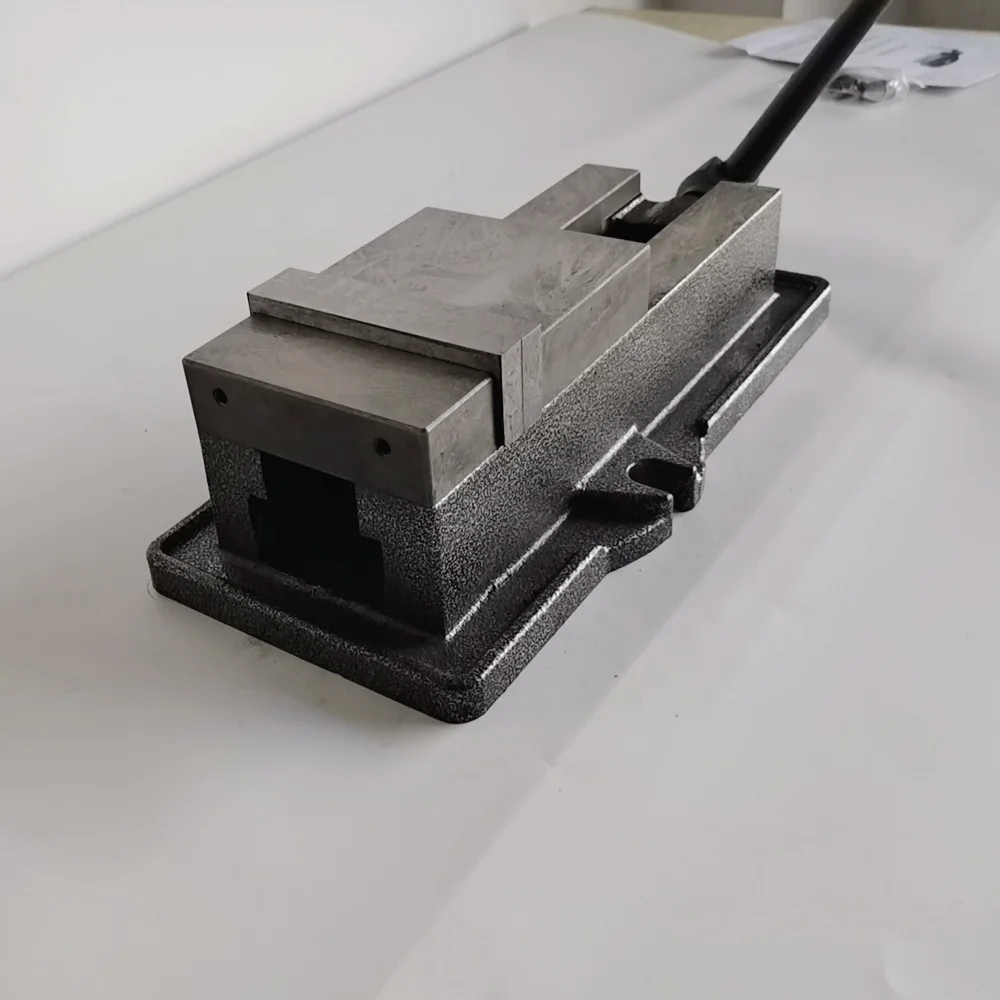

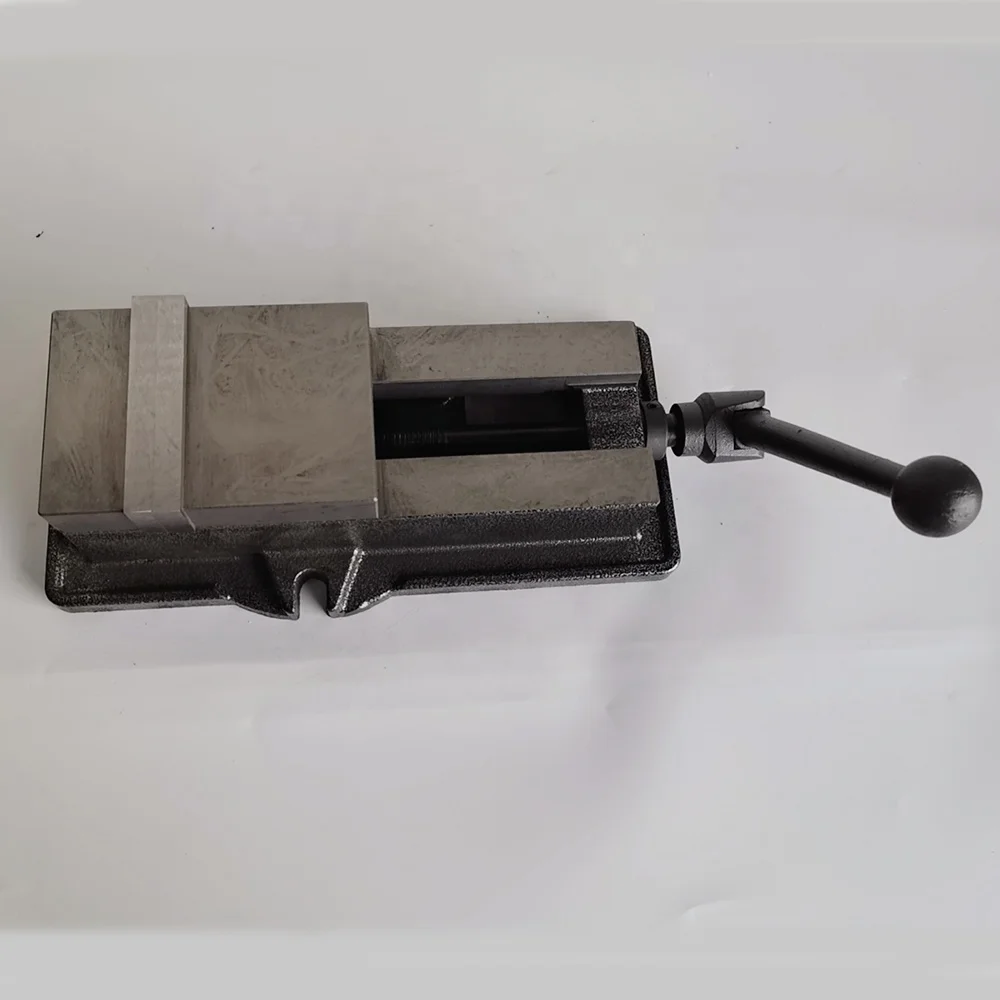

Universal vise for milling machine QM16100 Fix

 Accurate lock bench mahcine vice

It is one of main attachments for milling, drilling machine, it is particularly suitable for the finishing of precision parts.

The accuracy of vice (parallelism and squareness) is 0.025mm/mm.

The special segment in the movable jaw forces the vertical pressure downward when the horrizontal pressure works, so that this jaw does not lift the workpiece.

Four positions allow extra capacity to change open of jaw .



Fixed type parameter
MODEL	WIDTH  OF JAW	HEIGHT  OF JAW	TOTAL  HEIGHT	MAX.  OPENING	G./N.WEIGHT	Q'TY	PACKING SIZE
QM16100	100	32	95	100	14/13	1	360*250*130
QM16125	125	40	105	125	18/17	1	410*270*130
QM16160	160	45	125	160	26/25	1	450*320*140
QM16160L	160	45	120	200	28/27	1	480*320*140
QM16200	200	50	135	220	41/40	1	560*360*160
