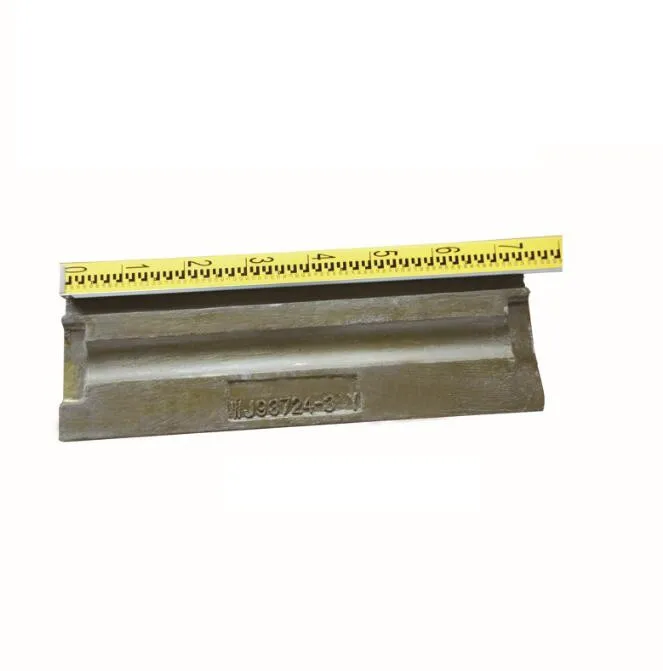

High Quality Steel Spare Part Frame for Cone Crusher

Product name

Frame for Cone Crusher

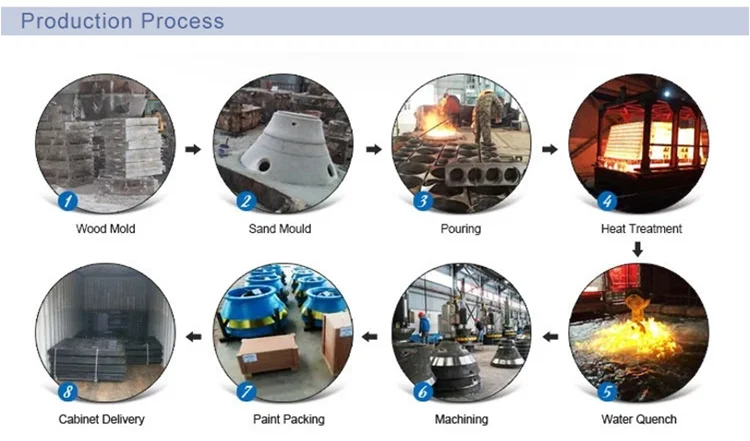

Machining Process

Molding , pouring , machining ,shot blasting,anti-rust treatment

Heat treat

Quenching & Tempering

Certification

ISO9001, ISO14001, OHSAS18001, GB/T2331

Features

high wear resistance and longer life

Simple structure in linear type , easy in installation andmaintenance

Applications

mining industry, metallurgical industry, construction industry, road building industry, chemical industry and silicate industry for crushing hard and medium hard ore and rock, such as iron ore, limestone, copper ore, quartz, granite, sandstone.

 Chemical Specification

Material Code

C

GX120Mn12-14 EX

0.95~1.20

12.0~13.0

0.8~1.3

/

/

0.30~0.50

≤0.070

≤0.040

GX120Mn12-14 P

0.95~1.25

12.0~14.0

1.20~1.50

/

/

0.30~0.65

≤0.070

≤0.030

1.05~1.35

11.0~14.0

1.50~2.50

/

/

0.30~0.90

≤0.060

≤0.045

GBT 5680-1998 ZGMn13-4

0.90~1.30

11.0~14.0

1.50~2.50

/

/

0.30~0.80

≤0.070

≤0.040

GX120Mn12Mo61

0.95~1.05

12.5~13.5

1.20~1.50

0.08~0.12

0.5~0.6

0.6~0.8

≤0.036

≤0.015

GX120Mn12Mo61~CN

0.95~1.05

12.5~13.5

1.20~1.50

0.08~0.12

0.58~0.68

0.6~0.8

≤0.04

Mechanical Properties & Applications

Material Code

Mechanical Properties

Application

σb(Mp)

σS(Mp)

Hardness

extensibility

GX120Mn12-14 EX

≥600

≥295

170 ~ 210

≥35%

GRATES

GX120Mn12-14 P

≥785

≥295

175 ~ 240

≥25%

LINERS,ANVILS,Hammers,Pin protectors

EN 10349:2009 GX120MnCr13~2

200~250

Jaw plates,Bowlliners,Mantles

GBT 5680-1998 ZGMn13-4

GX120Mn12Mo61

GX120Mn12Mo61~CN
