Китай, древесина, вертикальный точный алтендорф, скользящий стол, панельная пила для деревообрабатывающего станка

Product Overview

Description

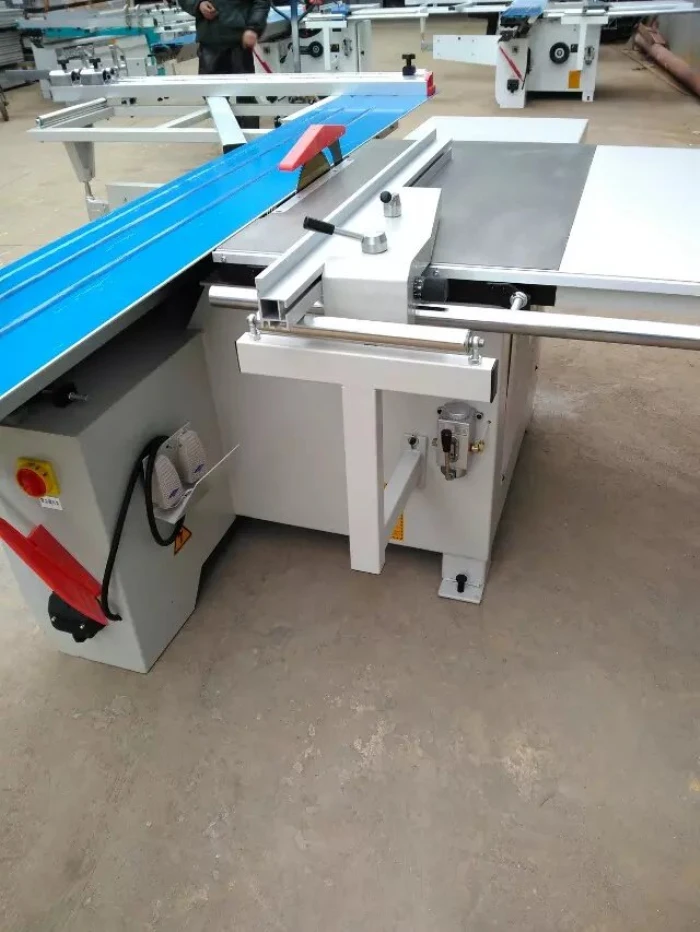

china wood vertical precise altendorf sliding table panel saw for woodworking cutting machine

specification :

Working table size	3200x375mm
Max cutting length	3200mm
Max cutting width	1250mm
Saw blade diameter	300mm
Max cutting thickness	90mm
Main spindle diameter	30mm
Main spindle speed	4500/6000rpm
Main motor power	5.5kw
Grooving saw diameter	120mm
Grooving saw speed	8000rpm
Grooving saw power	0.75kw
Tilting saw blade	45°
Weight	1000kg
Size	3300x3150x900

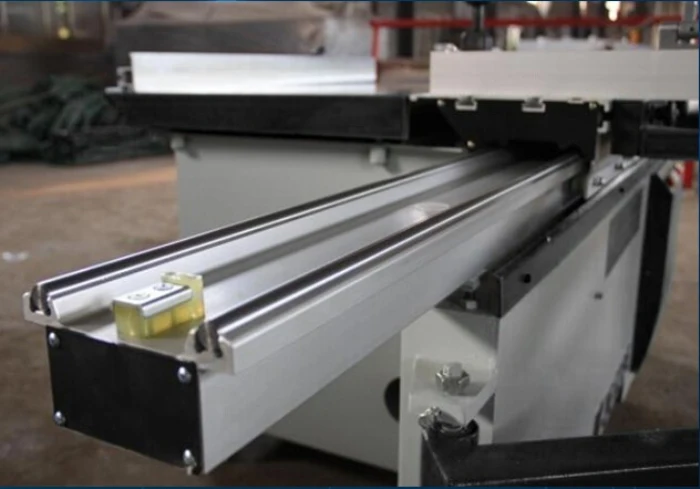

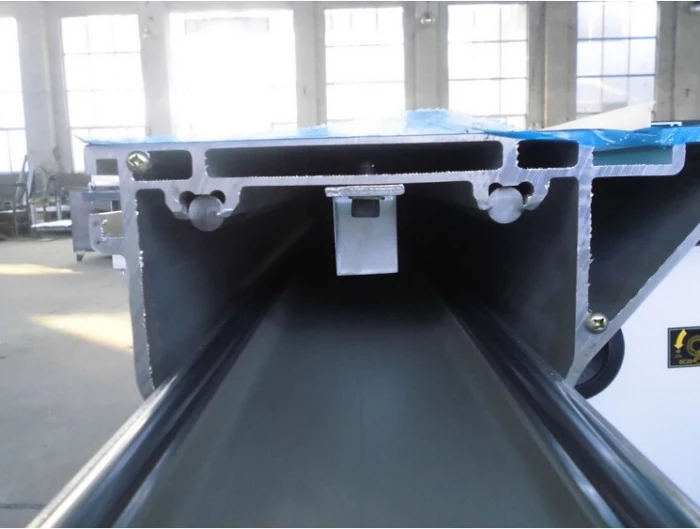

1 the working table use high strength aluminium alloy.it is durable.The guide use the chrome plated round bar . it is precision ,and no rust.

2 the machine use the high quality aluminum alloy loose core. It can keeps the machine working smooth and precision

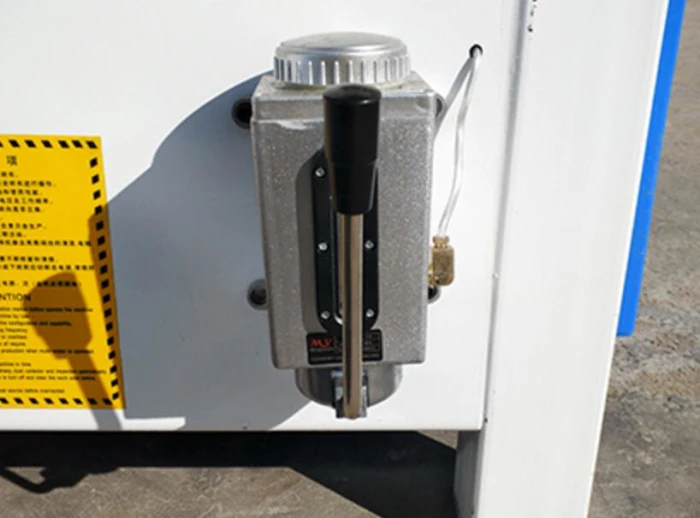

3 the 45 saw blade angle model with the lubricator

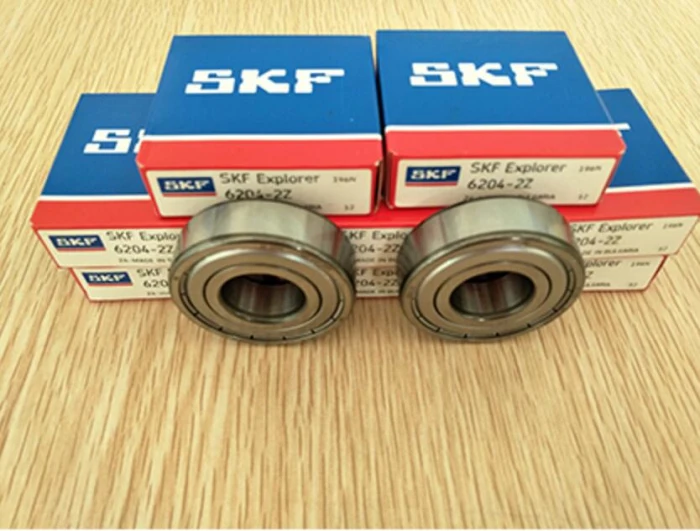

4 the machine use the high quality  bearing

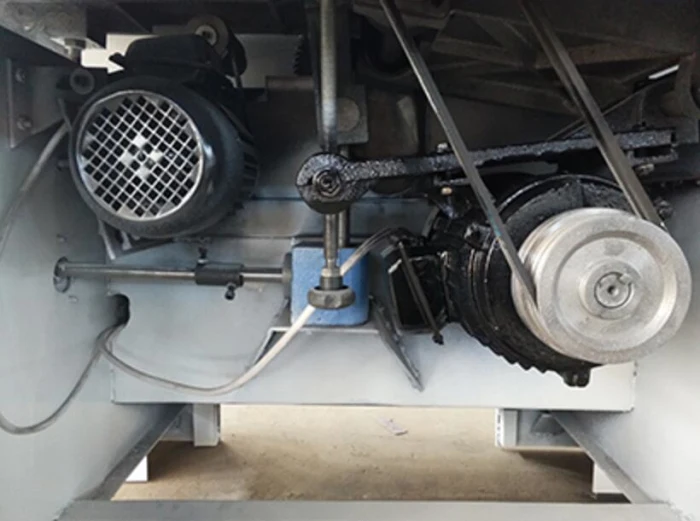

5 the working speed can be adjusted by the belt .
