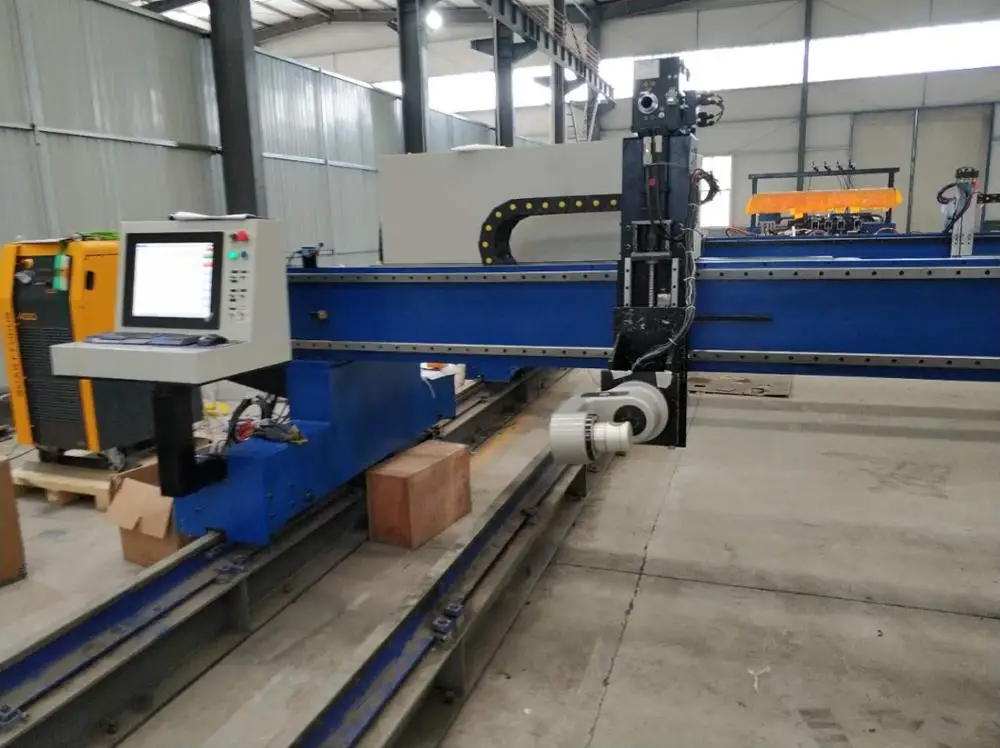

Gantry Type Cnc 5Axis Plasma Cutting and Beveling Machine with 2 Axis Cnc Plasma Torch

Structure

1.\tThe beam adopts Germany Messer technology; gantry type frame, eliminate the structural torsional moment better, beam is box type structure, not rectangular tube steel, after welding, use annealing treatment to eliminate internal stress, the deformation does not occur in the years of use
2.\tCutting torch lifting rack for torch automatic lifting.
3.\tThe mechanical transmission system is through precision rolling bearings and the meshing of class 7 precision gears and racks.
4.\tThe drive system adopts planetary reducer, the input /output error is only 16 minute of arc, at the same time, in the transverse/ longitudinal gear transmission structure, increases the device of automatic compensation gap, so that the transmission structure can accurately perform the directives issued by the Cnc system.
5.\tDrive end beam: longitudinal rail clamping device adopts automatic guiding structure, not the eccentric wheel clamping structure, by the spring force of the automatic guide structure, making it steady running on two tracks, no clamping wheel tight, partial loose phenomenon, its leverage ratio is 1:3.
6.\tAll equipment spare parts are of black, electroplating and other surface treatment.
7.\tMachine is sand blasting and primer spray, face paint using orange peel paint, color is blue or yellow.

Main Parameters

1. Transverse guide rail distance            4000mm;  according to customer
2. Effective cutting width 2500mm
3. Longitudinal guide rail length (guide surface roughness Ra≤0.8um)    10000mm; according to customer
4. Effective cutting length                                                                                7500mm;
5. Plasma power supply                                                                      Kjellberg or according to the needs of customers
6. Plasma cutting torch                                                                 Kjellberg or according to the needs of customers
7. Torch lifting stroke                                                                   ≤170mm
8. Cutting speed                                                                   0-6000mm/min
9. Manual return speed                                                                     0-8000mm/min
10. Cutting surface roughness                                                                         Ra≤12.5µm

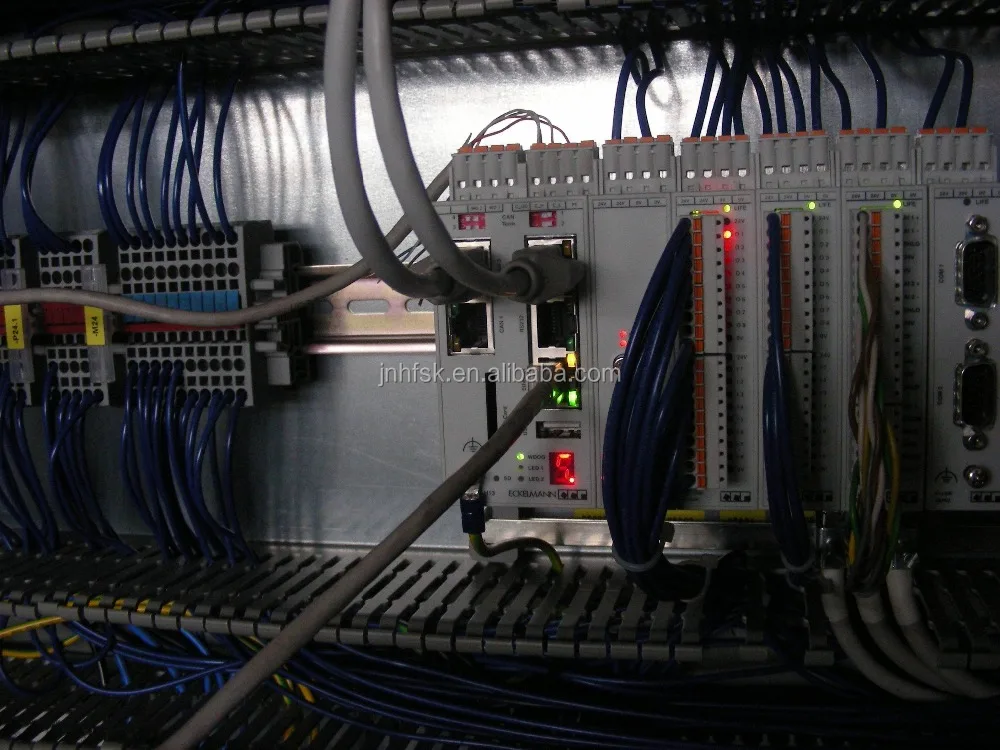

11. Driving system                                                                    servo motor A,B,X,Y,Z

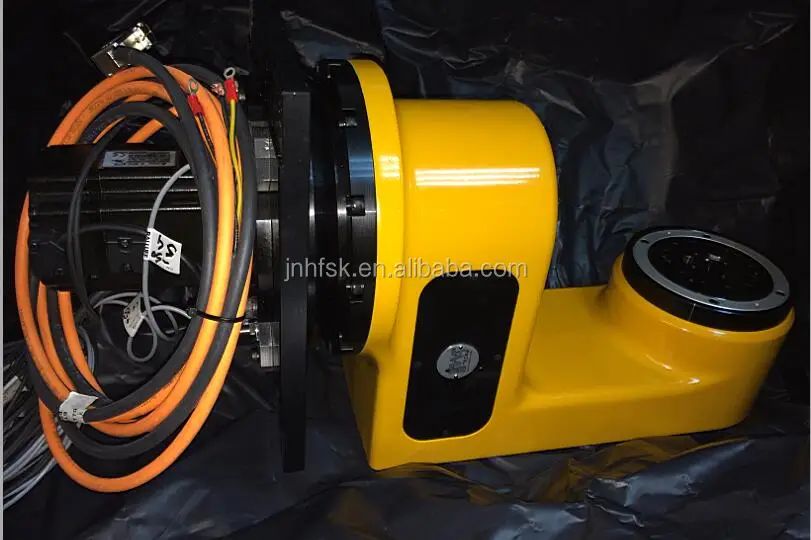

12. Bevel angle                                                                        ≤45º
