Chinese manufacture coconut powder full automatic process machine spray dryer

Product Overview

Description

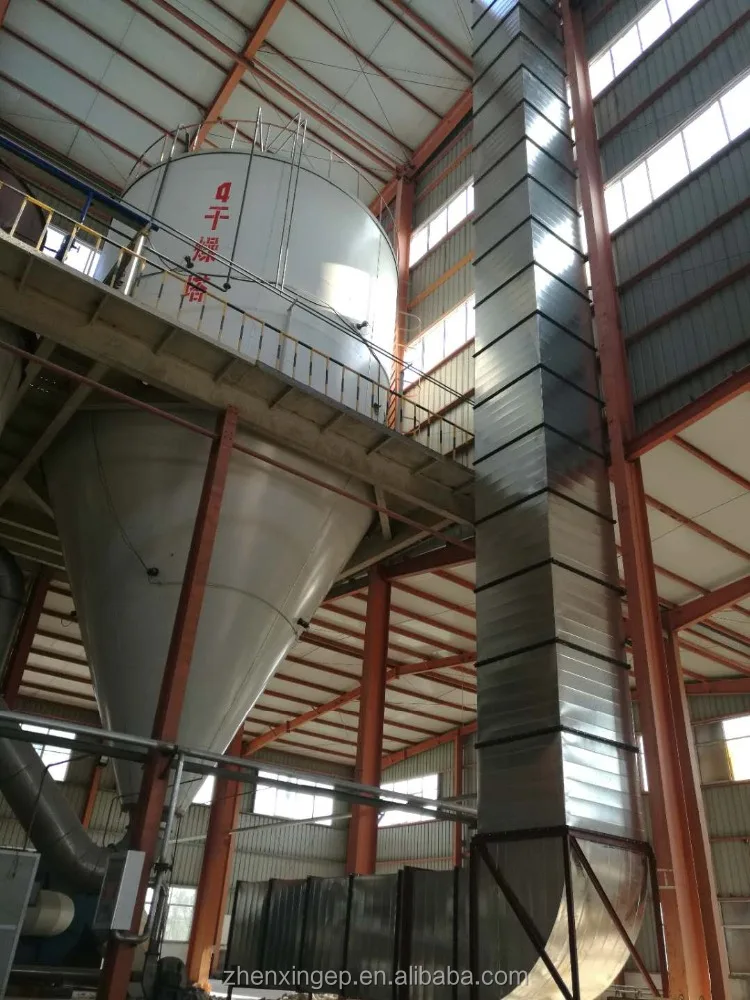

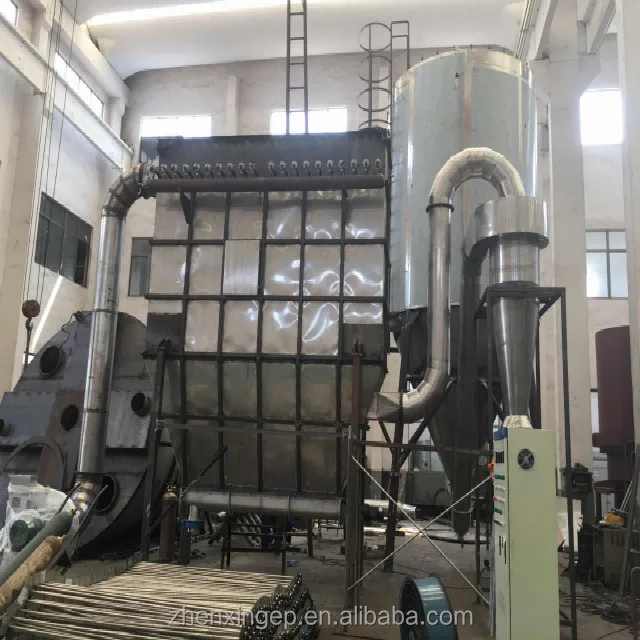

The Dryer Machines are installed at the plant.





DO YOU HAVE ANY QUESTIONS IN DRYING PROCESS?

IN CHEMICAL FIELD, IN FOOD FIELD, IN SLUDGE FIELD…..



ARE YOU ALSO HAVING ANY INTEREST IN DRYING PRODUCTION LINE?



ARE YOU LOOKING FOR A PROFESSIONAL DRYER MACHINE?



HOW ABOUT A PERSON TO SOLVE ALL QUESTIONS YOU CONCERNED?





Find me :   +86-13651500952

Hi, I am Joanna, and now working for Changzhou ZHENXING Environment Technology Engineering Co., Ltd

I know you are looking for good quality dryer equipment, like this:







Contact me to get full technical support.

So our company can be a good choice, WHY?





TOP 500 WHO CHOOSE US, WE SPECIALIZE IN DRYING FIELD SINCE 1993,



Certificates such as SGS, CE, ISO can also be a proof of our quality



"our machinery has improved production capacity more than 50% in the regular process, not only in capacity but also in fine powder quality."





Product Description:

The spray dryer is widely used in the liquid shaping technology and in the drying industry. Particularly it is suitable for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid.

The working of spray dryer is as follows: Fresh air after filtering and heating, enters into the air distributor at the top of the dryer.Then the hot air enters into the drying chamber. The liquid of raw material is pumped in through diaphragm pump, be atomized into tiny droplets. Through the very short time of contacting the hot air, the materials can be dried into the finished products.The wasted air and fine powder will be collected through collector at the bottom of the cyclone.The lower body also equipped with observation door, sight glass, lamp-house and so on.

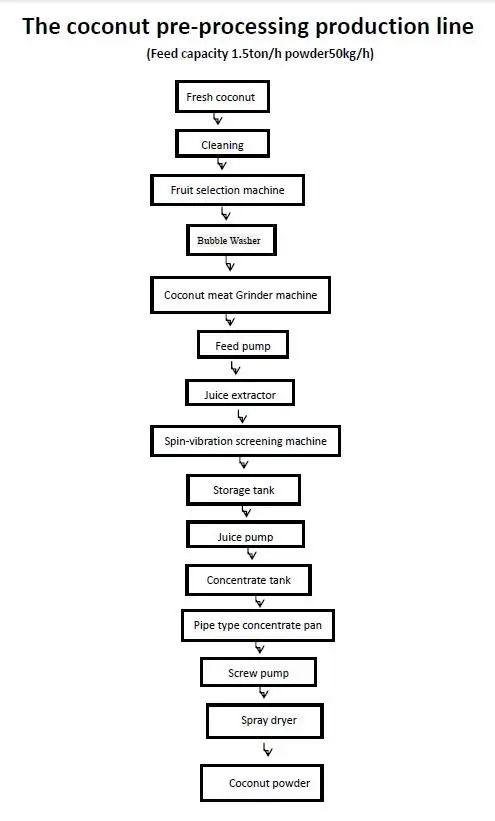

coconut milk powder process  :



Materials

a)name: PAC

b)solid content:50%

c)powder water content:  2%

d)inlet temperature: 50-60℃

e)output capacity: 50Kg/h (300T/30day)

f)  evaporate capacity:  450kg/h

Thermal energy consumption

a),install power: 45kw

b),oil consumption:60-65kg/h (heat value:10000Kcal/Kg)

Technological conditions

a),heating method: Oil

b),drying method: high-speed centrifugal spray dryer

c),inlet temperature: T1=300-350℃

d),outlet temperature: T2=100~115℃

e),powder temperature: Tm2=45℃

f),discharge method: drying chamber + cyclone separator +  scrubber

g),tail gas treatment:Empty after the scrubber

h),power condition:380V,50HZ,three-Phase, four wire 380V,50HZ

i),installation: indoors

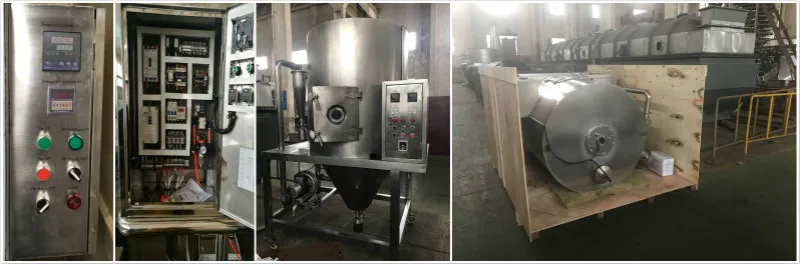

Packing and Delivery:





Company Information

Changzhou ZHENXING Environmental Technology Engineering Co., Ltd., this is Drying Equipment manufacture. We are specialized in development, manufacturing, and installation of dryers, mixers, granulators, grinders, conveyors, sieve and etc.

We follow a strict quality control procedure and we provide high-quality products with prompt after sales services and technical support.

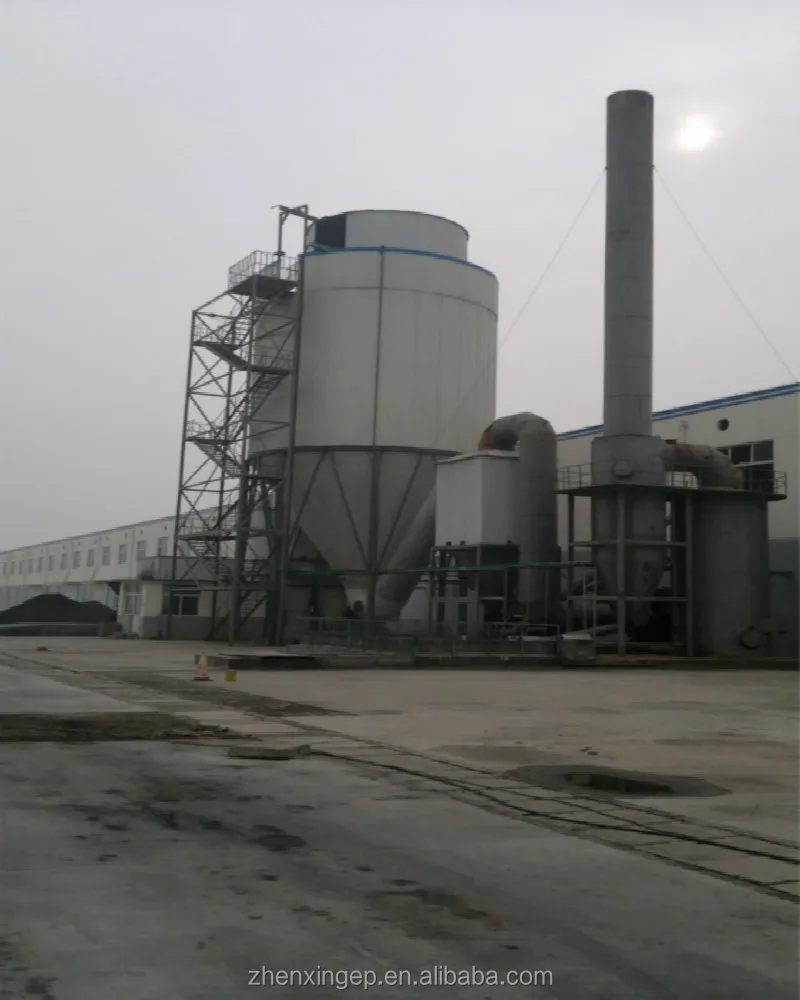

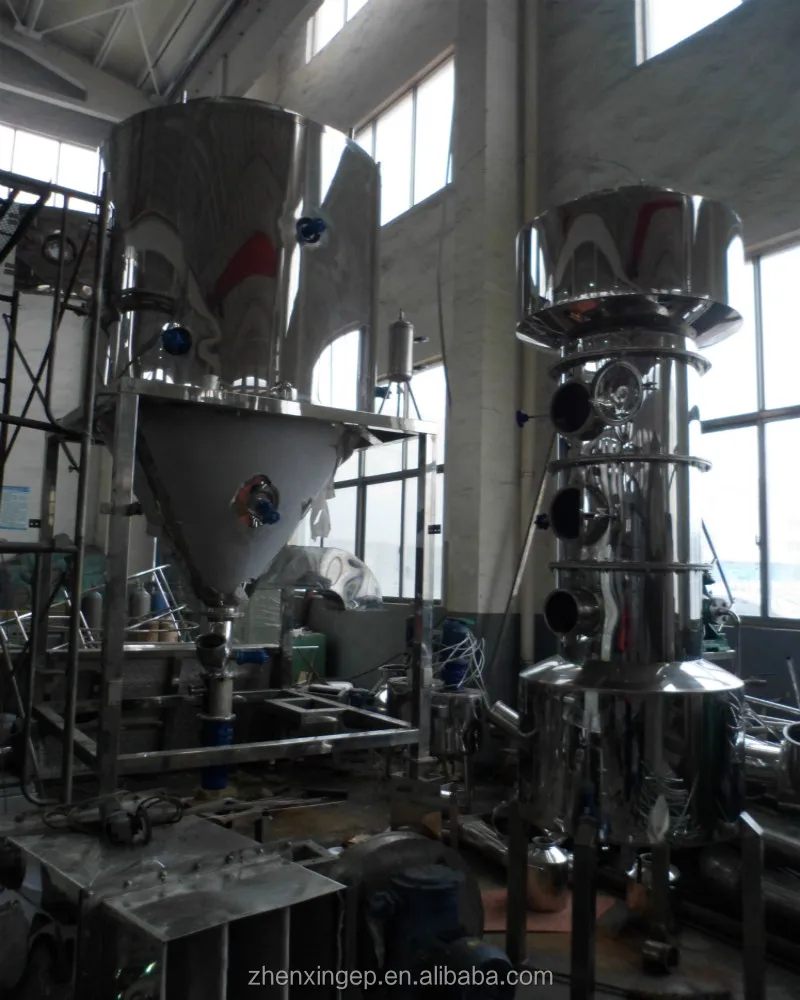

Project Case



During the installation, we can send our engineer to help you instruct if you need.

If you have any other questions, please feel free to contact me if you need.
