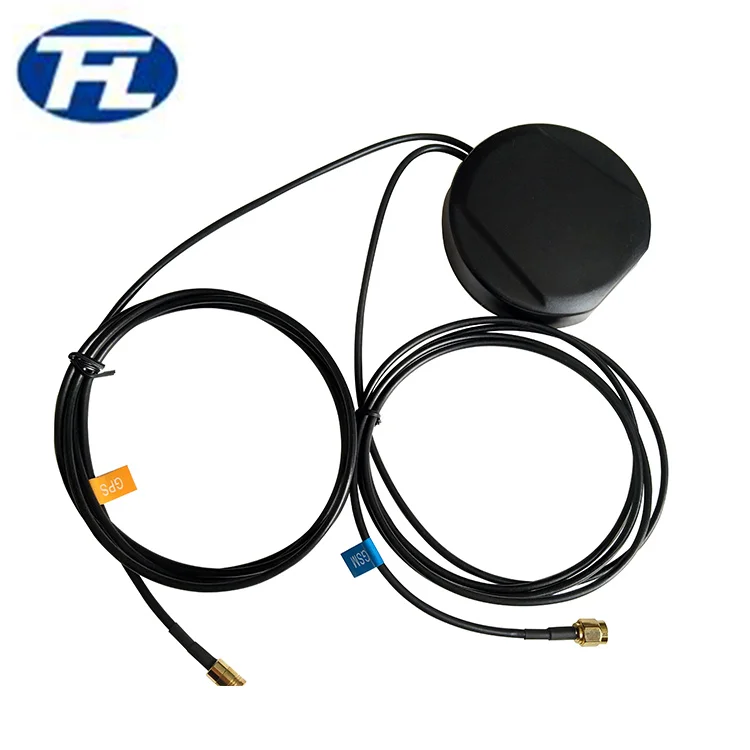

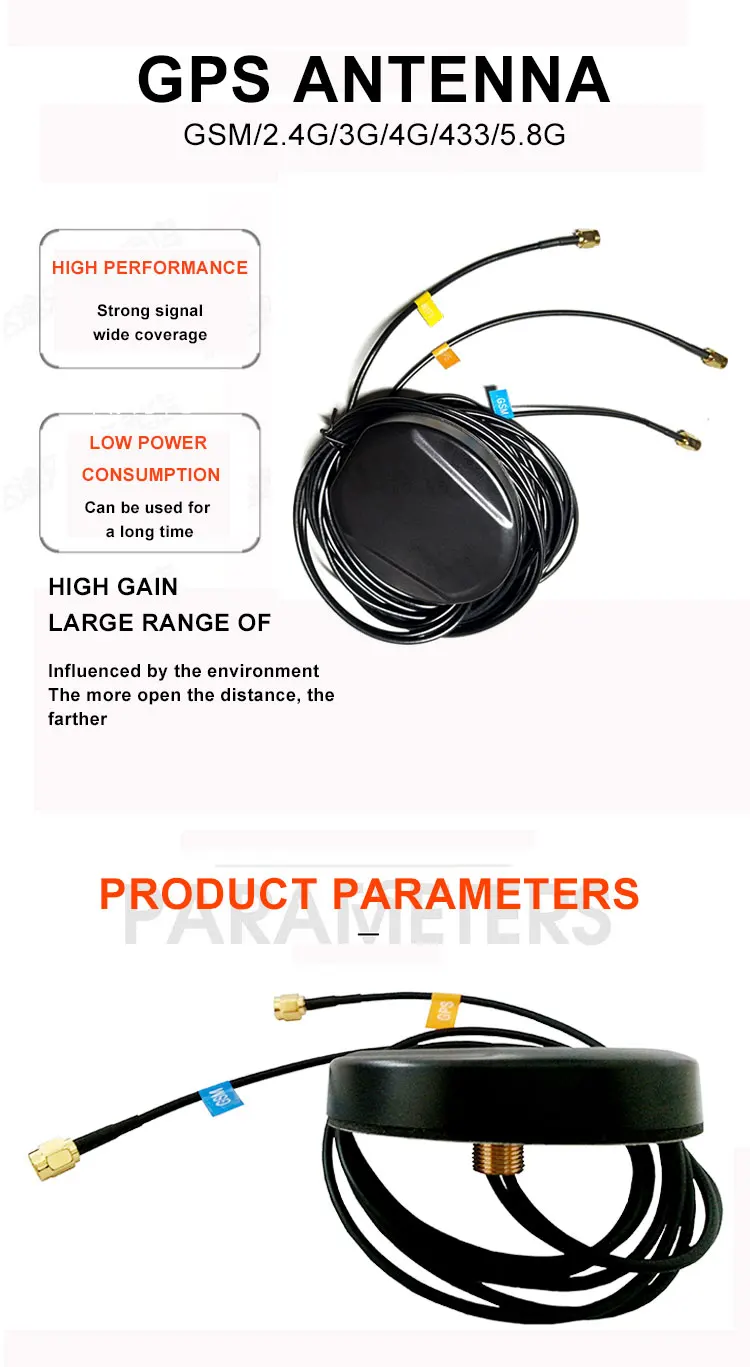

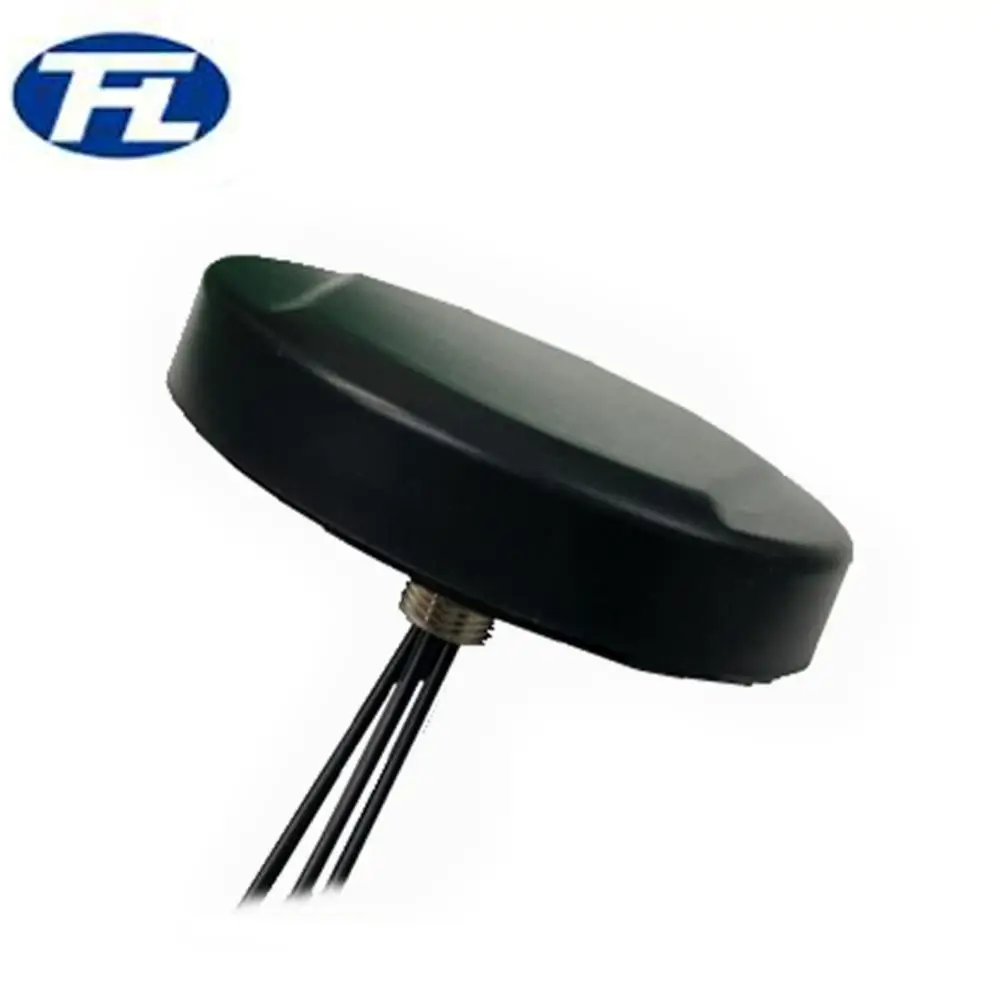

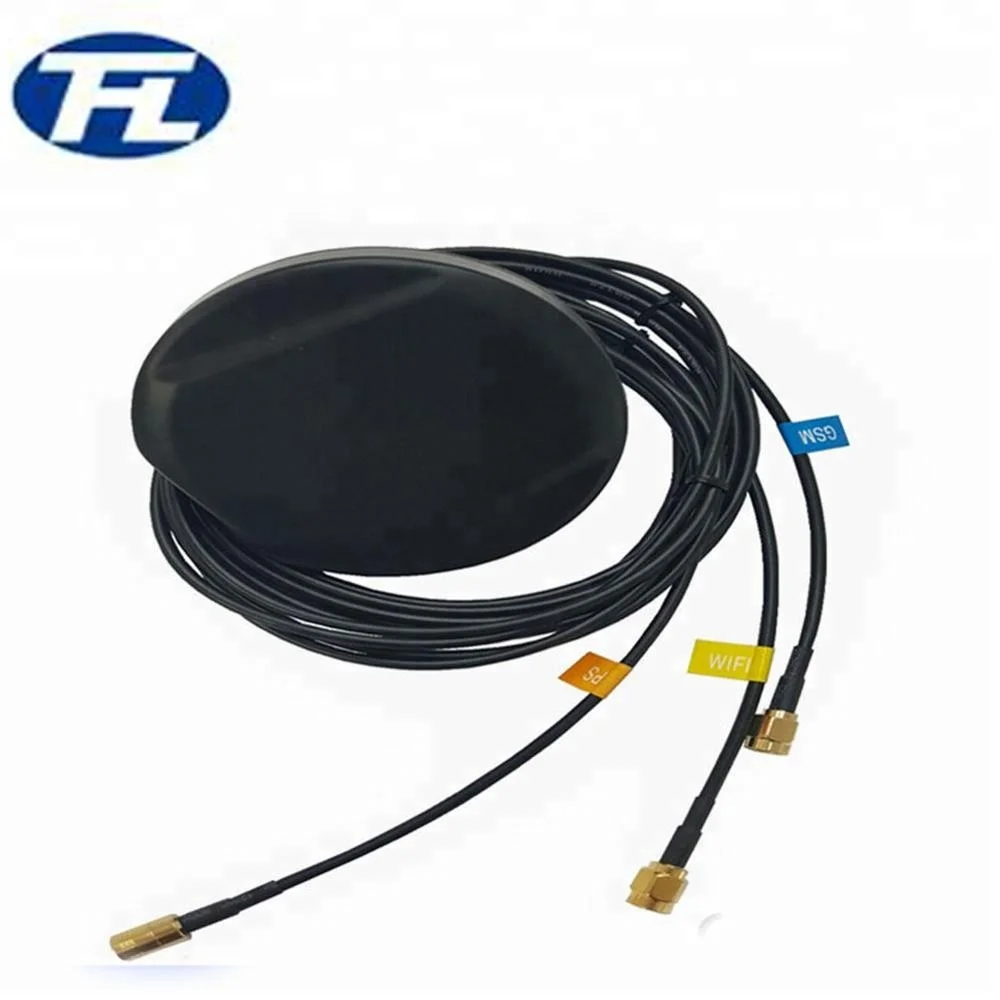

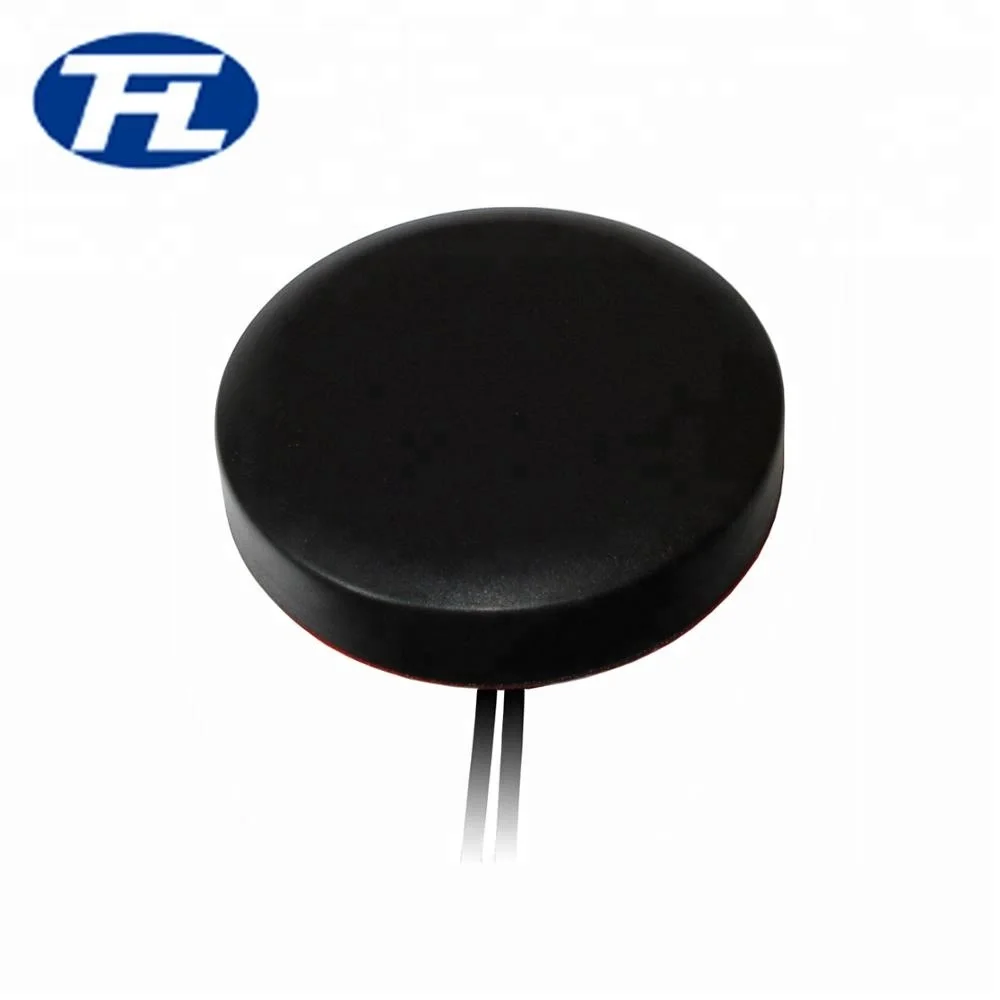

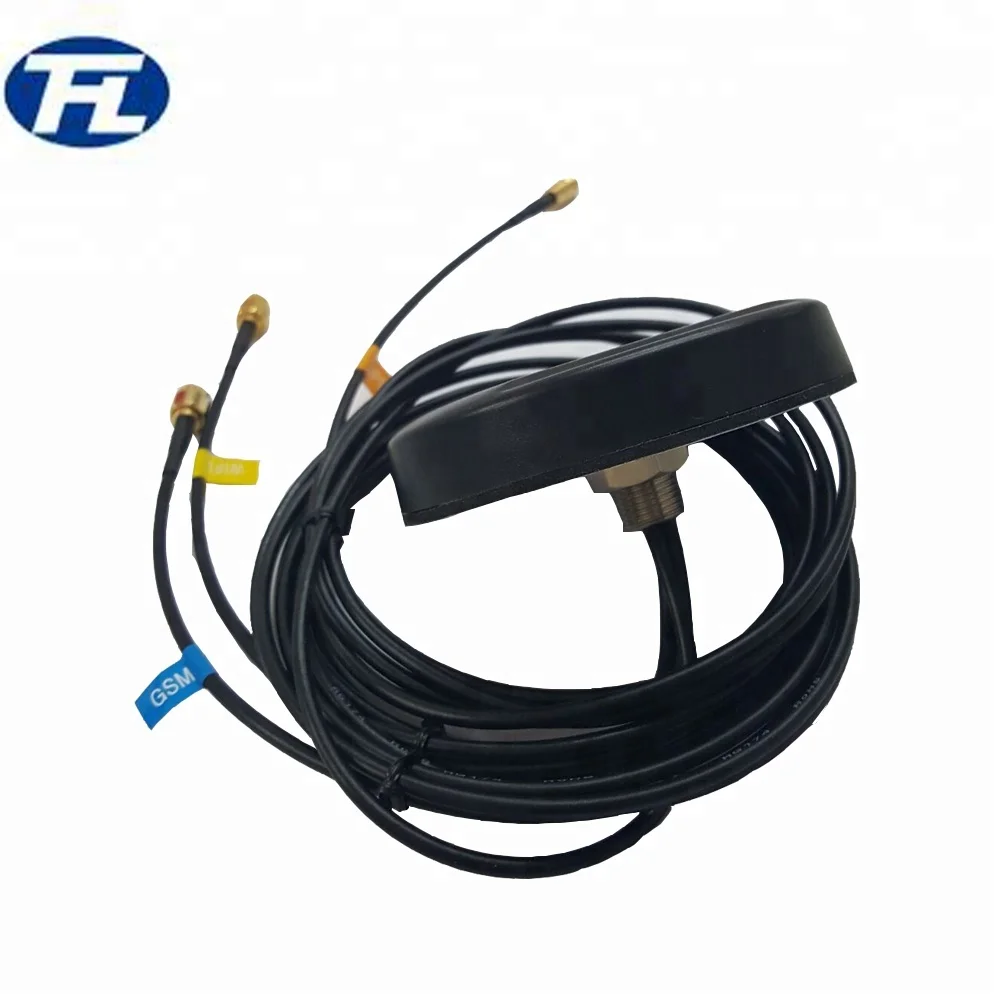

(manufacturer) high gain external gps gsm wifi 3 in 1combo antenna

Product Overview

Description



1) Dielectric Antenna
frequency	1575.42MHz±5 MHz 1610MHZ±8MHZ
V.S.W.R	1.5:1
Band Width	10 MHz for GPS 20MHZ for glonass
Impedance	50 ohm
Polarization	R.H.C.P
LNA Gain(w/o cable)	4.5dBic  Based on 7×7cm ground plane
2) LNA/Filter
Frequency Range	1595MHz±25 MHz
DC Voltage	3-5V
Gain(Typical)	29dB (Without cable +25℃±10℃)
Output VSWR(Typical)	2.0
Noise Figure(Typical)	1.6(+25℃±10℃)
DC current(Typical)	12mA(At3.0V)
3) LTE Antenna
Frequency Range(MHz)	698-960/1575.42/1710-2700
V.S.W.R	≤2
Impedance(ohm)	50 ohm
Radiation	omni-directional
Polarization Type	Vertical
Maximun power lnput-watts	50W
4) Mechanical

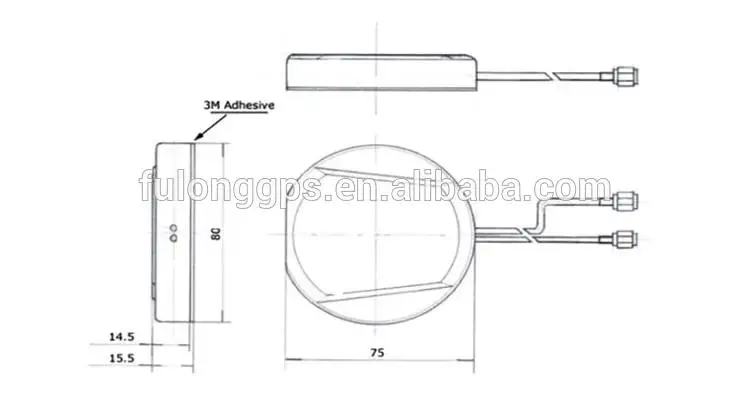

Size	D78*15mm

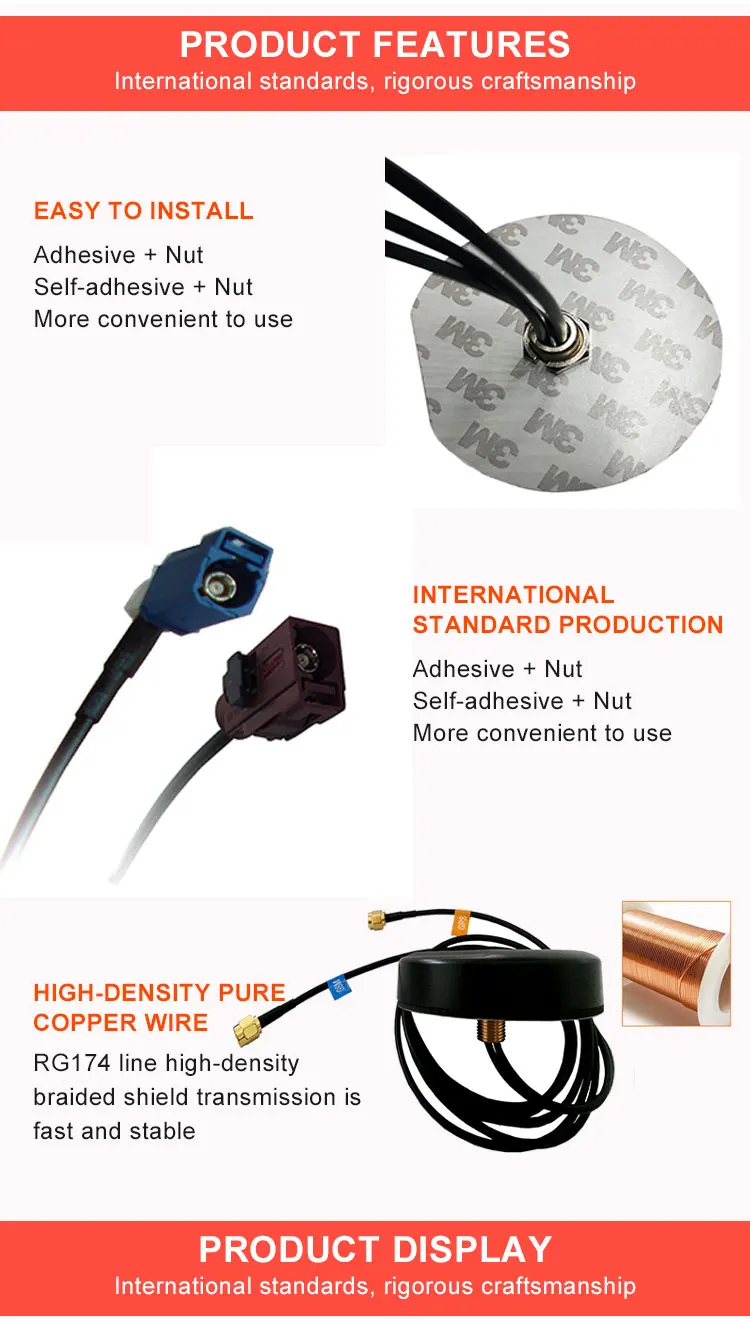

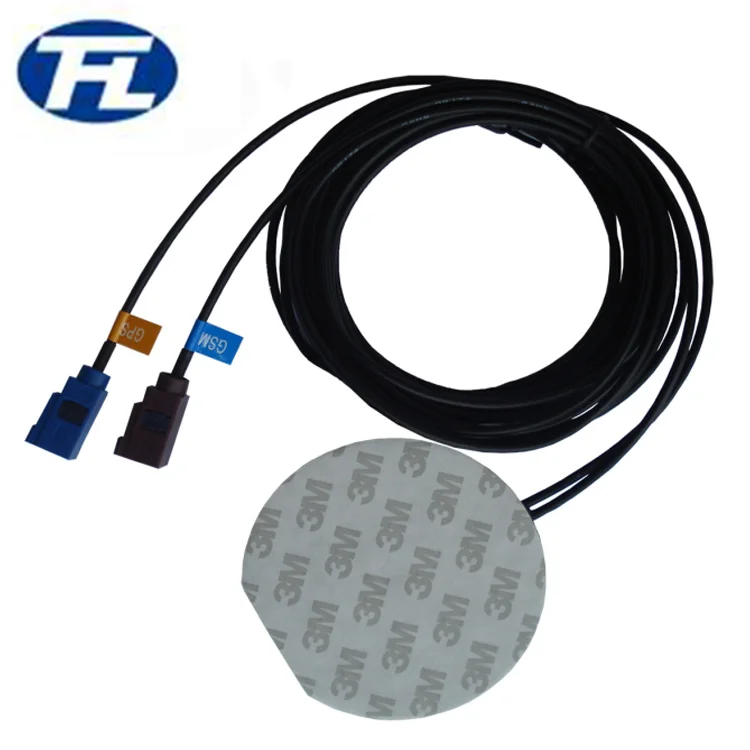

Mounting	Adhesive
Housing	Black
Package	120*95*30mm
Cable	RG174/RG58, 10m or others

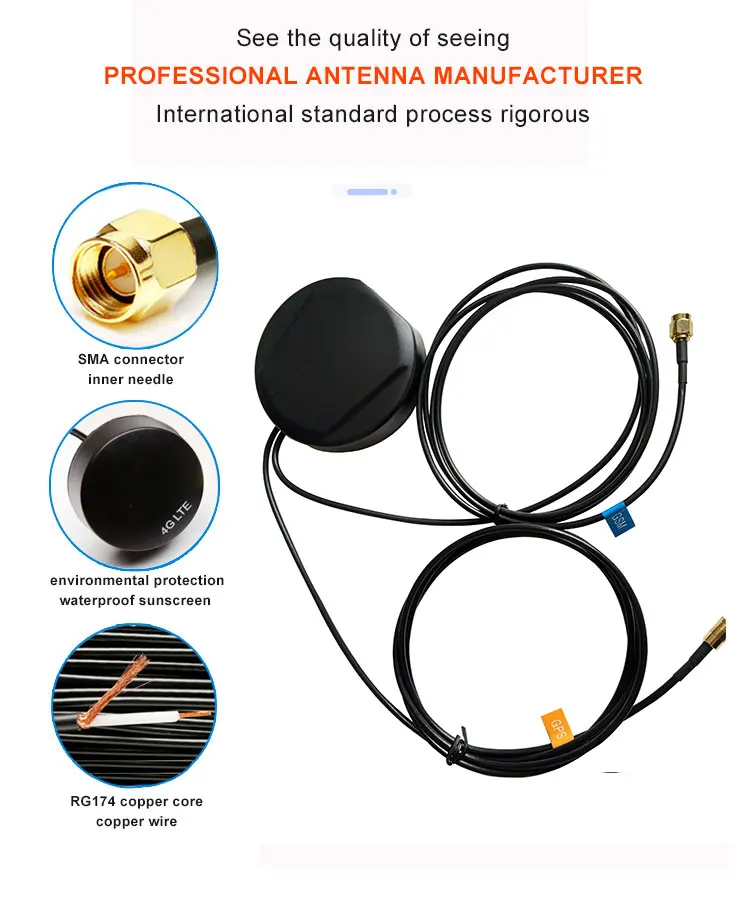

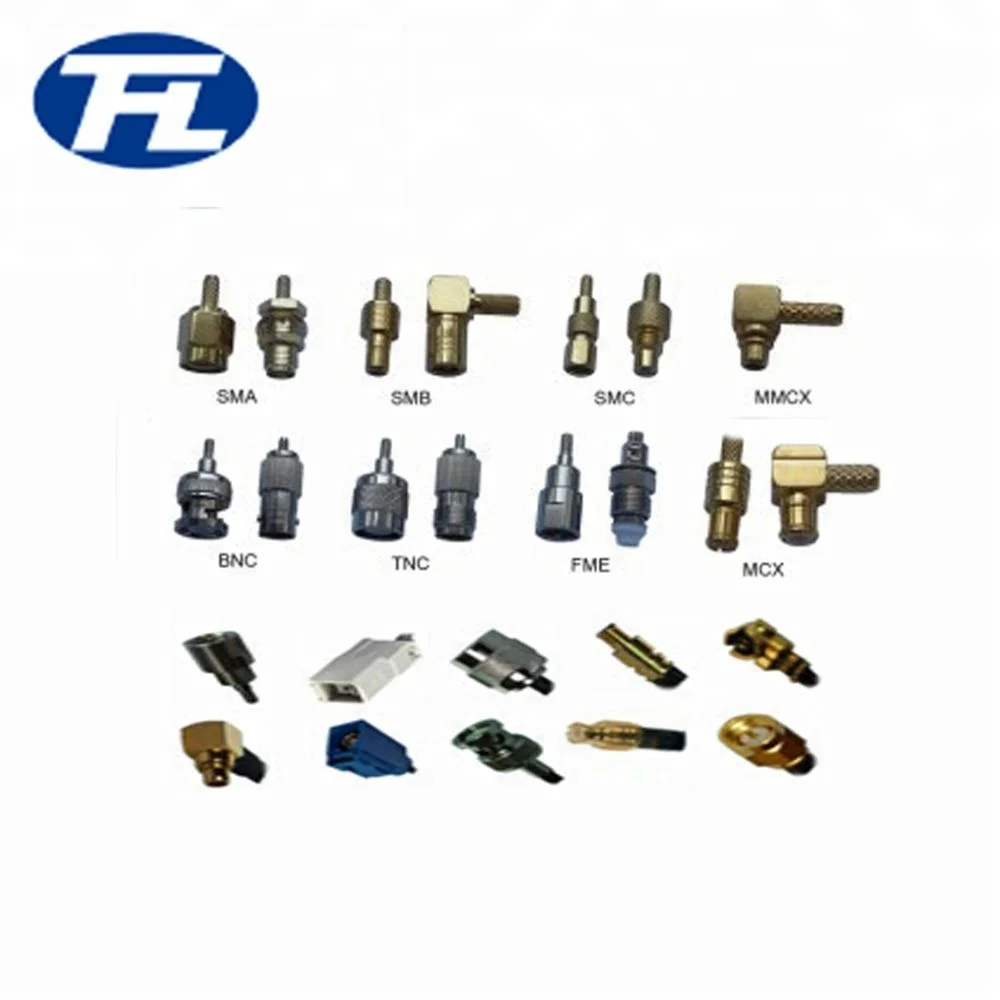

Connector	SMA male connectors with 90 degree bend
5) Environmental
Working Temp	-40℃~+85℃
Storage Temp	-45℃~+100℃
Vibration	Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity	Humidity95%~100%RH
Weatherproof	IP67~IP68







Q: Can I get one sample?

A: Yes, sample is for free.

Q:Payment term:
A:T/T(50% deposit as place order, 50% before shipment), Western Union, MoneyGram, Paypal

Q: What's the delivery time?
A: 1-2 working days for the sample, 7-10 working days for quantity below 5K, 15-30 working days for the quantity below 20K.

Q: Have antenna 100% assembles well in stock?
A: No, all antenna will be newly assembled according to your orders including the samples.

Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.

Q:How can you guarantee the product quality?
A: All of our items are manufactured unter RoHS directive and CE certified. Before shipment, we'll 100% inspect the commodity.

Q: What should customers do when you get the bad quality products?
A: If there are any damaged items, please kindly contact us for after-sale service. Generally, we'll pay for it in customer's next orders.
