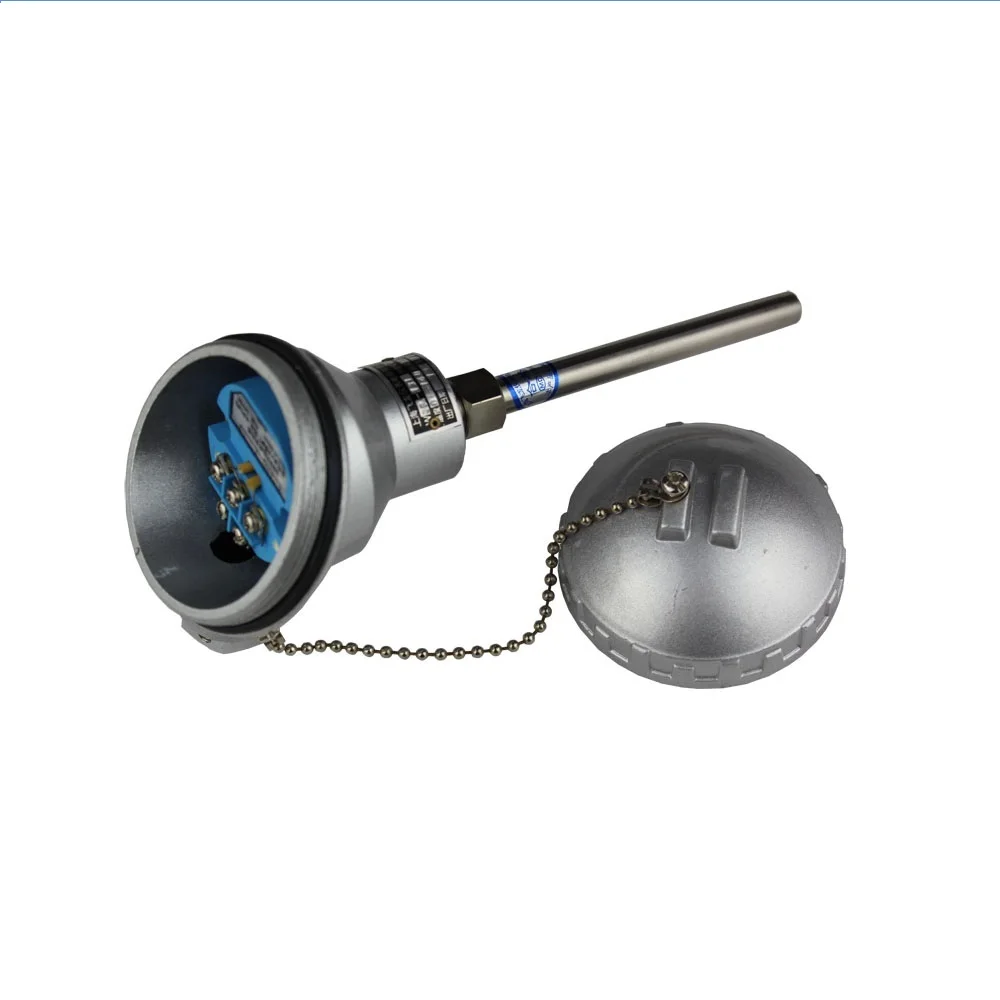

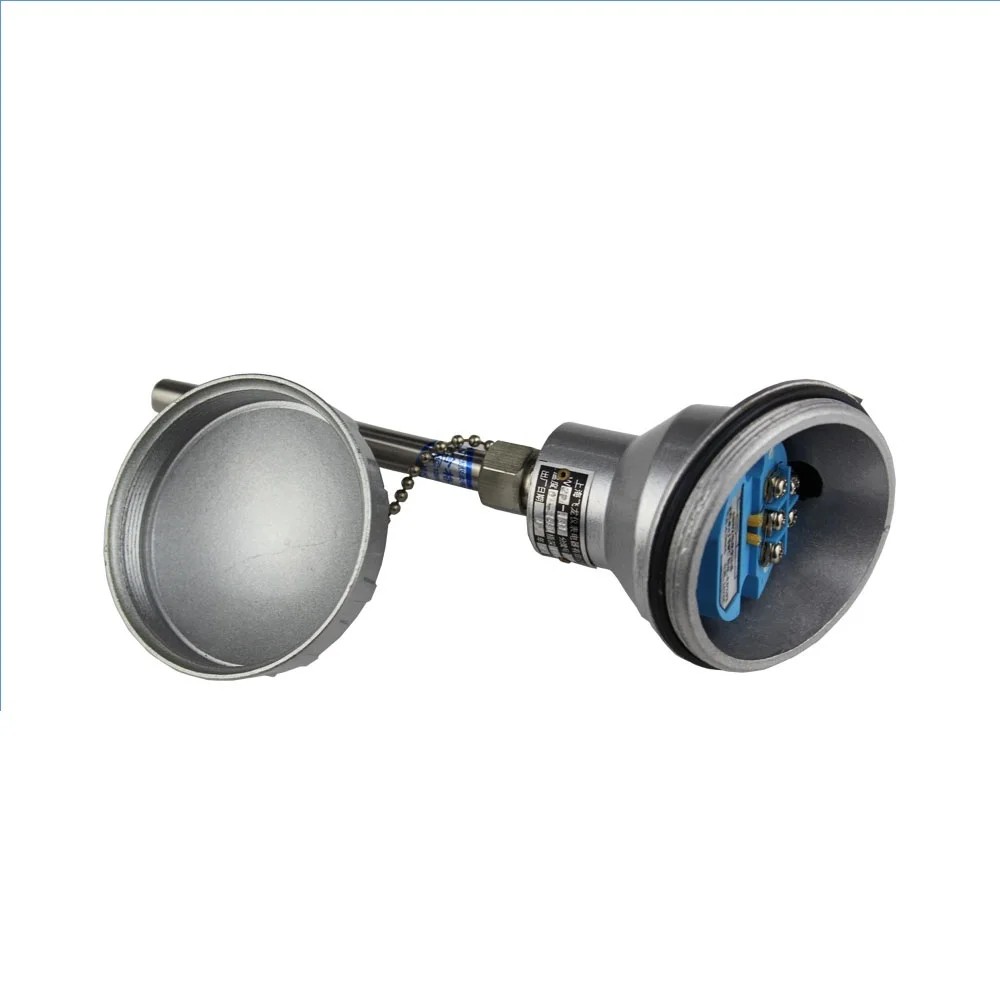

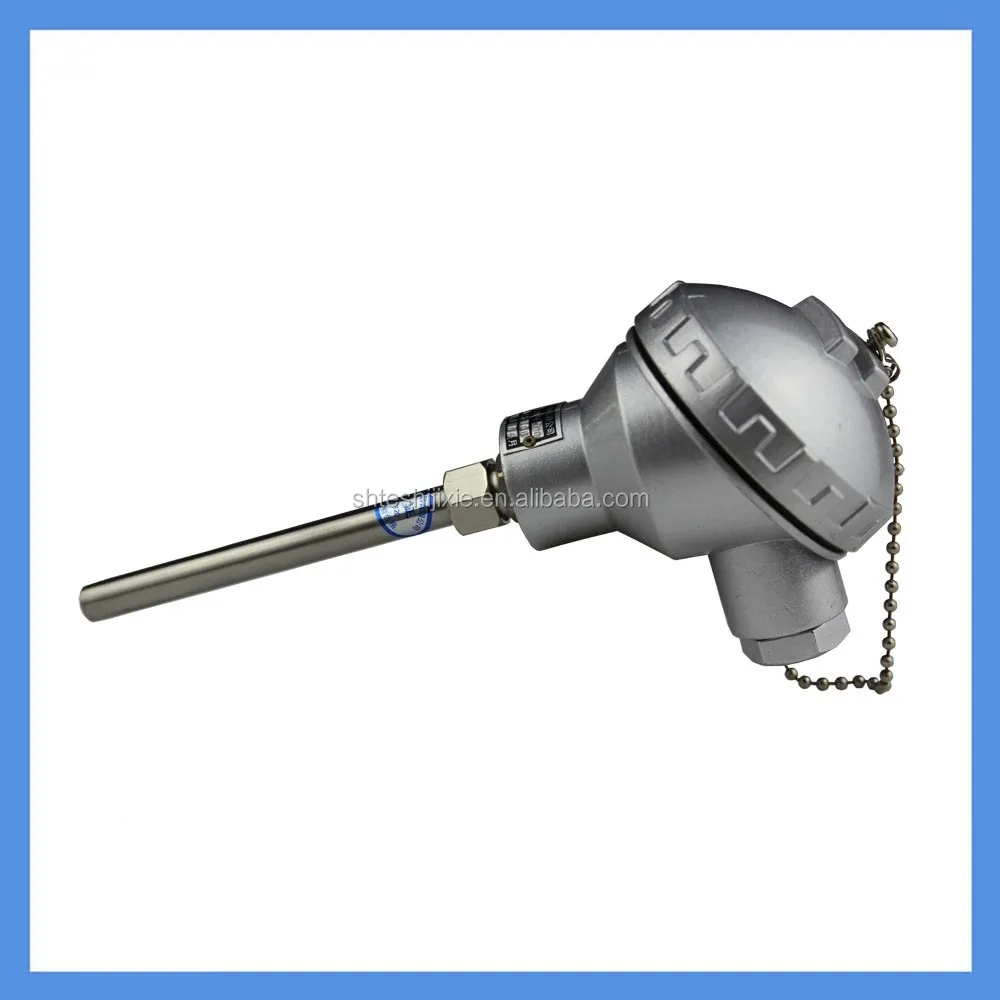

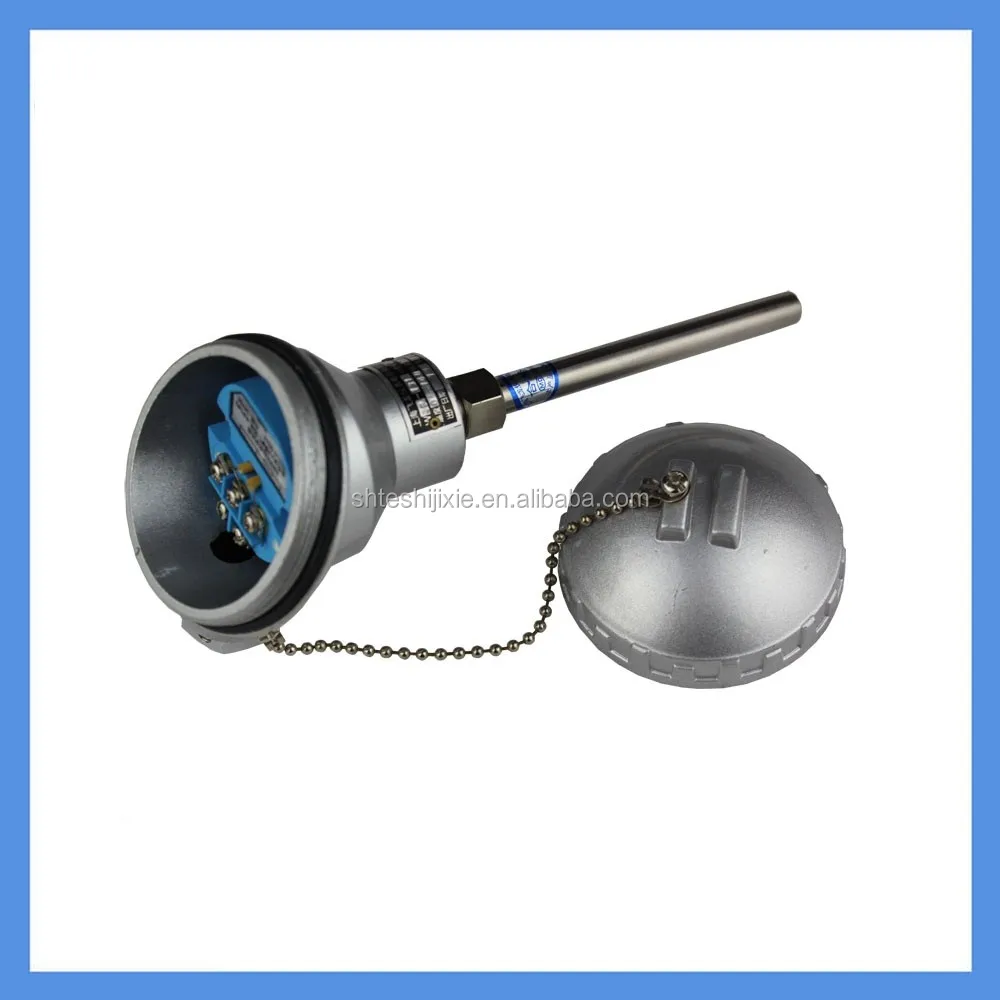

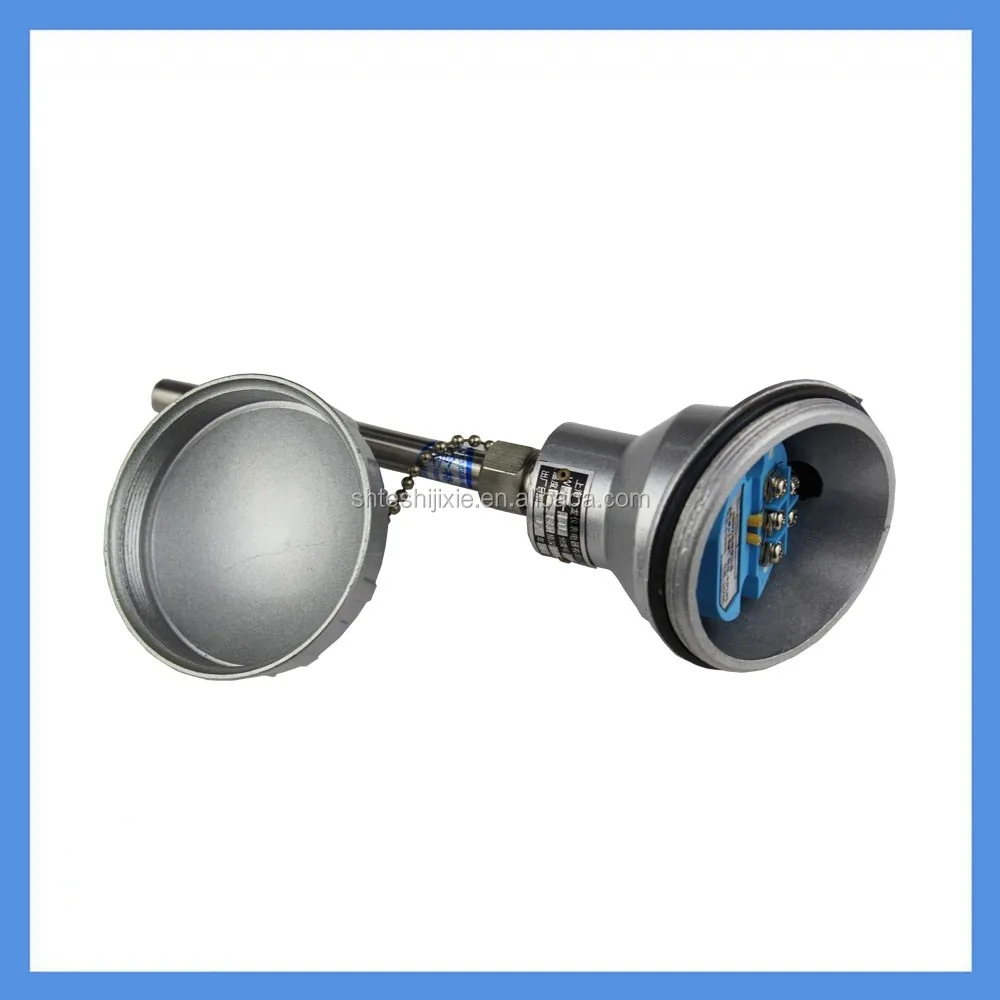

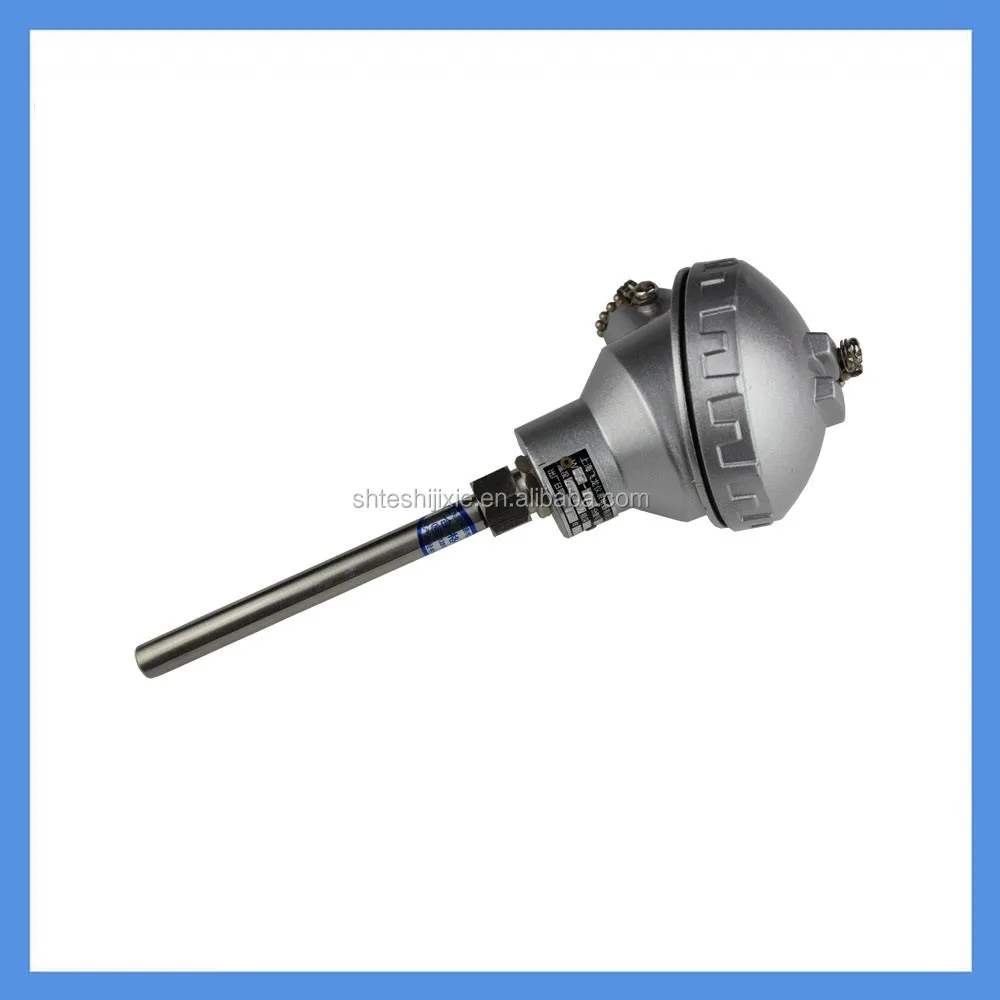

K-type armored thermocouple sensor armored thermal resistance PT100
Since armored thermocouple could be bend and possesses high pressure resistance, fast thermal response, robust and other advantages, it was frequently used together with display, recording instruments and electronic regulators as industrial assembly thermocouples. The product could detect and measure temperature of liquid, steam, gas and surface of solid ranging 0~800℃ during industrial manufacture process.
Specifications
K-type armored thermocouple sensor armored thermal resistance PT100
Temperature range and admissible error
Type | Admissible error class | |||
I | II | |||
Admissible error | Temp. range | Admissible error | Temp. range | |
K | ±1.5℃ or ±0.4%|t| | -40~1200℃ | ±2.5℃ or ±0.75%|t| | -40~1200℃ |
E | -40~800℃ | -40~900℃ | ||
J | -40~750℃ | -40~750℃ | ||
T | ±0.5℃ or ±0.4%|t| | -40~350℃ | ±1℃ or ±0.75%|t| | -40~350℃ |
S | ±1℃ or 1+(t-1100)×0.003℃ | 0~1100℃ | ±1.5℃ or ±0.25%|t| | 0~1300℃ |
B | Class II ±1.5℃ or ±0.25%|t| | 600~1700℃ | Class III ±4℃ or ±0.5%|t| | 600~1700℃ |
Structure
K-type armored thermocouple sensor armored thermal resistance PT100
Code | Type | Structure | Features | Probe external diameter | |
Single core | Double core | ||||
2 | Probe contact type |
| 1. Fast response 2. Not suitable for conditions with interference | φ0.25~φ8.0 | φ3.0~φ8.0 |
3 | Isolation type | | 1. Response time not as fast as probe contact type 2. Long operation life 3. Anti interference | φ0.5~φ8.0 | φ3.0~φ8.0 |
Parts for installation
K-type armored thermocouple sensor armored thermal resistance PT100K-type armored thermocouple sensor armored thermal resistance PT100
There are four type of parts for installation: fixed clamp, moveable clamp, fix flange and loose flange.
Probe material, external diameter and recommend temperature
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Data for this project

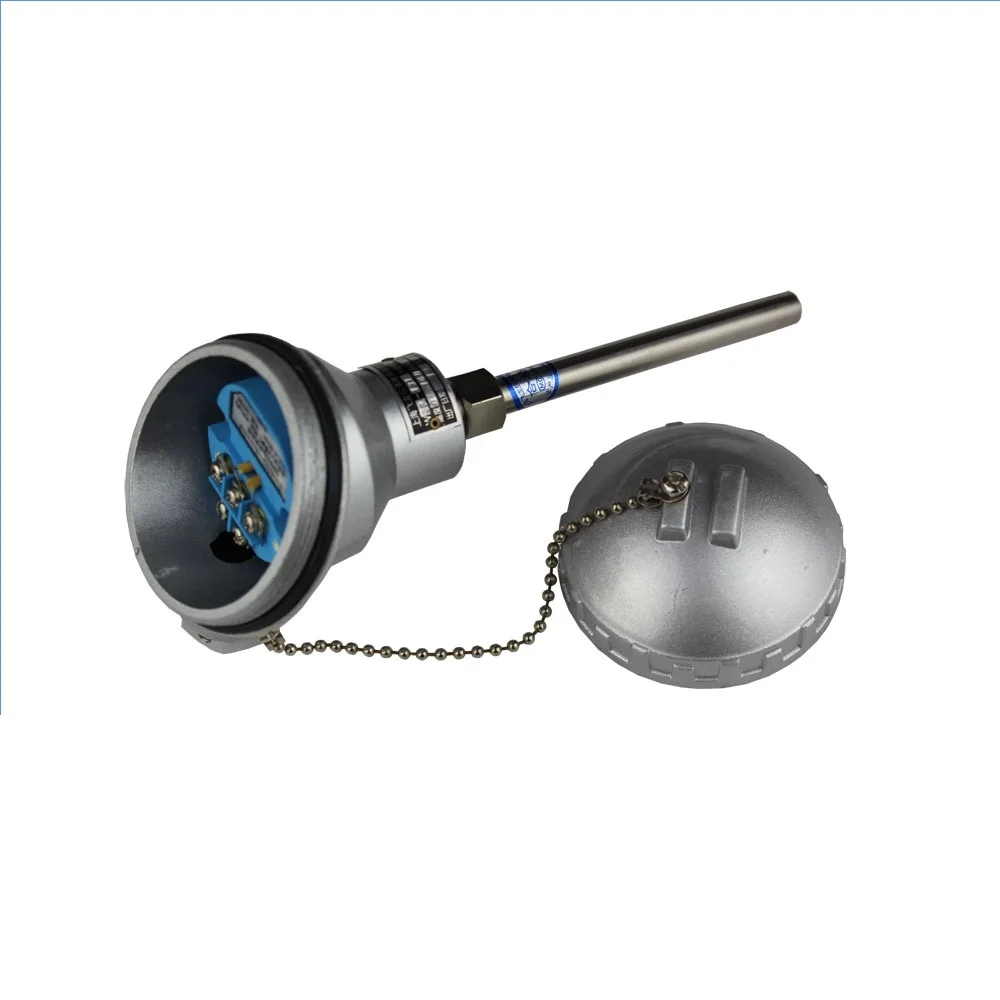

K-type armored thermocouple sensor armored thermal resistance PT100
1.type: k
2. Diameter: 16mm
3. Probe Length: 300mm
4. Temperature range: -20-1100C
5. Enter: k
6. Enter: 4-20mA / 0-10V

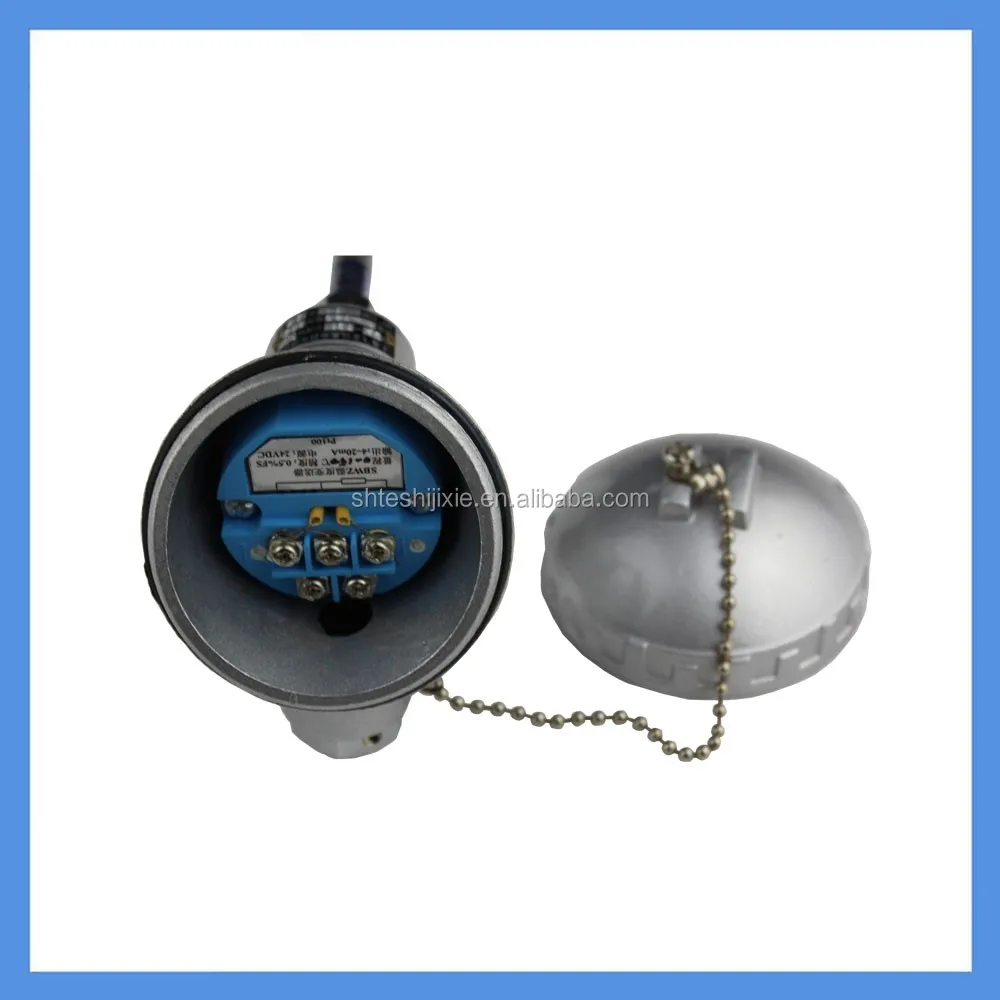

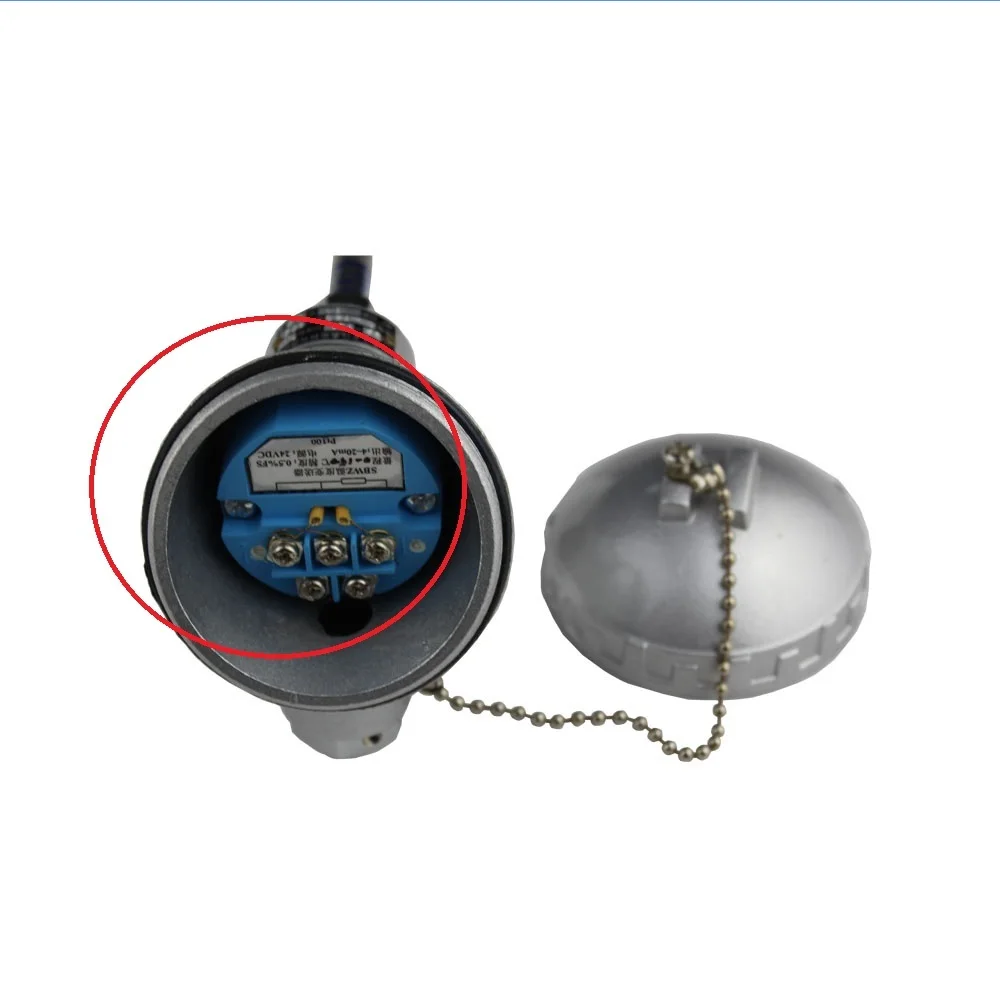

7. module: transmission temperature
8. Wire: If necessary, please contact customer service
Support customization and to order samples, Delivery time: 1-2 days.
Payment: Paypal, Western Union, TT, Ali payment, etc.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
