- 4 arms carousel rotating machines

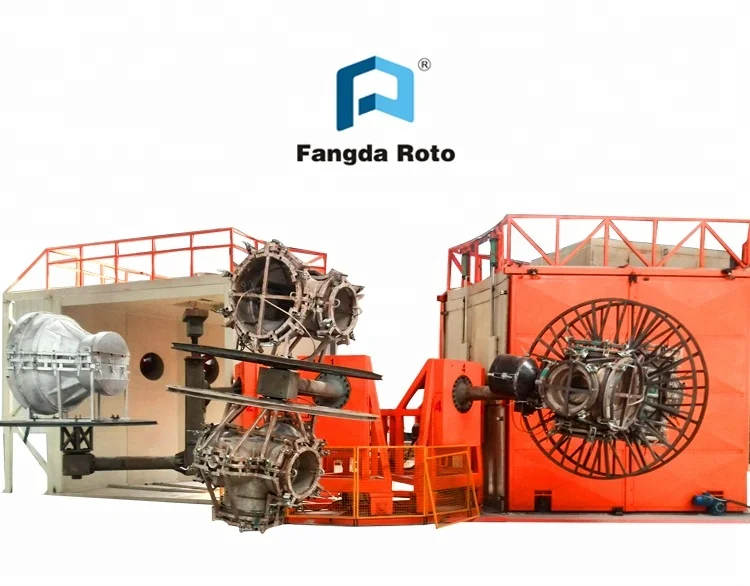

4 arms carousel rotating machines
- Category: >>>
- Supplier: Yantai Fangda Rotational Molding Co. Ltd.
Share on (60784665505):
Product Overview
Description
Product Description

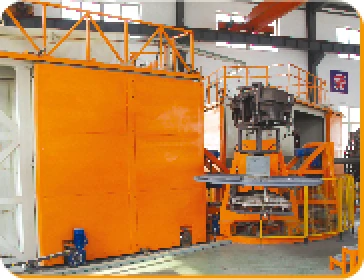

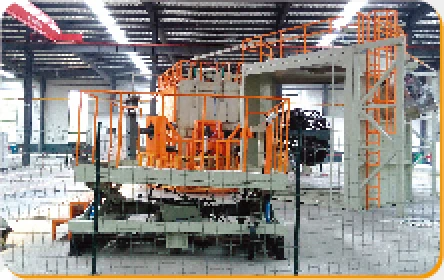

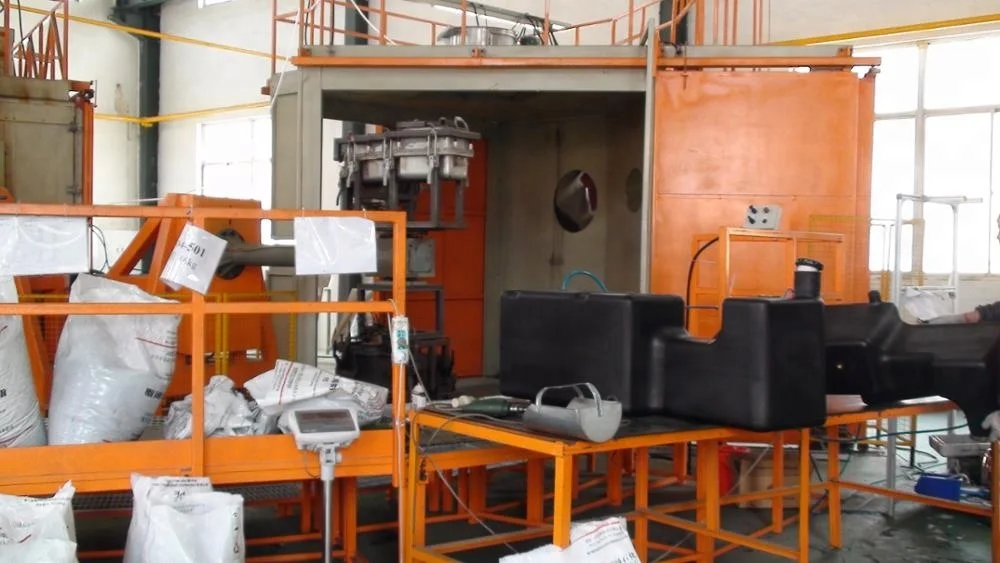

4 arms carousel rotating machines
| Model No. | Machine Dimension (m) | Oven Inner Dimension (m) | Working arm Parameter | |||
| L (m) | W (m) | H (m) | ||||
| FD3-2600 | FD4-2600 | 12.7 | 11.1 | 4.0 | 2.6*2.6*2.6 | The arm parameters of Straight Arm, L offset Arm and C Arm please check the following pictures |
| FD3-3100 | FD4-3100 | 14.8 | 13.1 | 4.5 | 3.1*3.1*3.1 | |
| FD3-3600 | FD4-3600 | 16.3 | 14.0 | 5.0 | 3.6*3.6*3.6 | |
| FD3-4100 | FD4-4100 | 18.7 | 16.5 | 5.6 | 4.1*4.1*4.1 | |
| FD3-4600 | FD4-4600 | 20.7 | 17.6 | 6.1 | 4.6*4.6*4.6 | |
| FD3-5100 | FD4-5100 | 21.7 | 18.6 | 6.6 | 5.1*5.1*5.1 | |

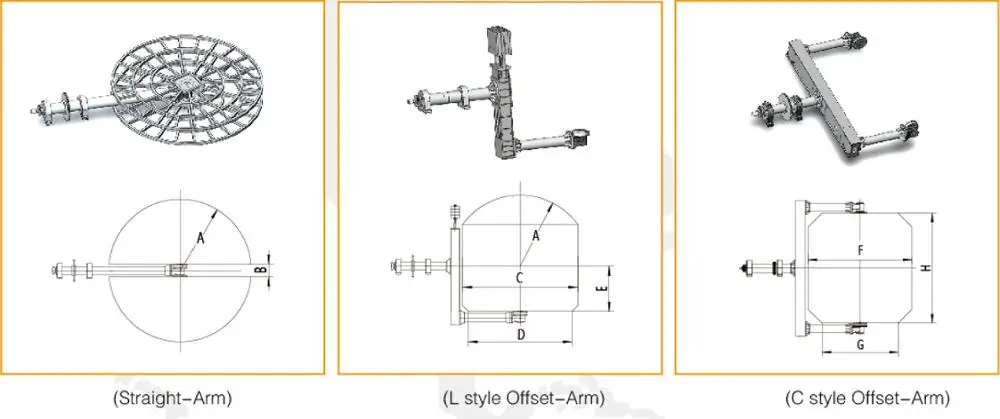

| Model No | A | B | C | D | E | Straight Arm | L Offset Arm | C Offset Arm |
| FD4-2600 | R1200 | 350 | 1900 | 1800 | 600 | 900 | 700 | / |
| FD4-3100 | R1400 | 360 | 2300 | 2100 | 800 | 1300 | 900 | / |
| FD4-3600 | R1700 | 360 | 2800 | 2600 | 910 | 1500 | 1000 | / |
| FD4-4100 | R1900 | 400 | 3160 | 3000 | 1100 | 2000 | 1200 | / |
| FD4-4600 | R2150 | 420 | 3500 | 3200 | 1300 | 2500 | / | 1600 |
| FD4-5100 | R2400 | 420 | 3900 | 3500 | 1530 | 3000 | / | 2000 |

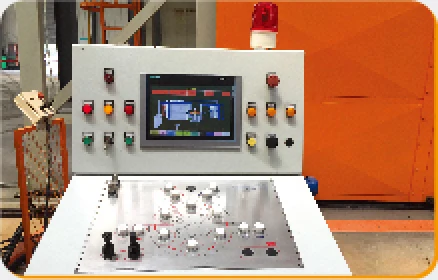

Control System

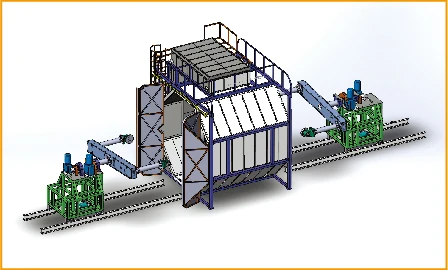

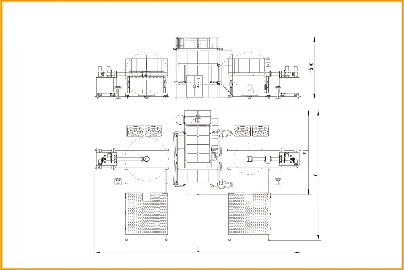

Shuttle Rotomolding Machine Machine Dimension Drawing
| 1,The system can be dual controlled by automatic and manual operation. When a station or multi-station to take manual control, the other stations continue to run automatically. | |||
| 2,Arm movement and the oven door movement and the oven front wind shield movement system interlock to prevent the arm to hit the oven wall. | |||
| 3,Every driving machine program interlock to prevent collisions. | |||
| 4,The arm turn starting position after finished cooling, easy for loading and unloading the mould. |
Related Products
Rotomolding products

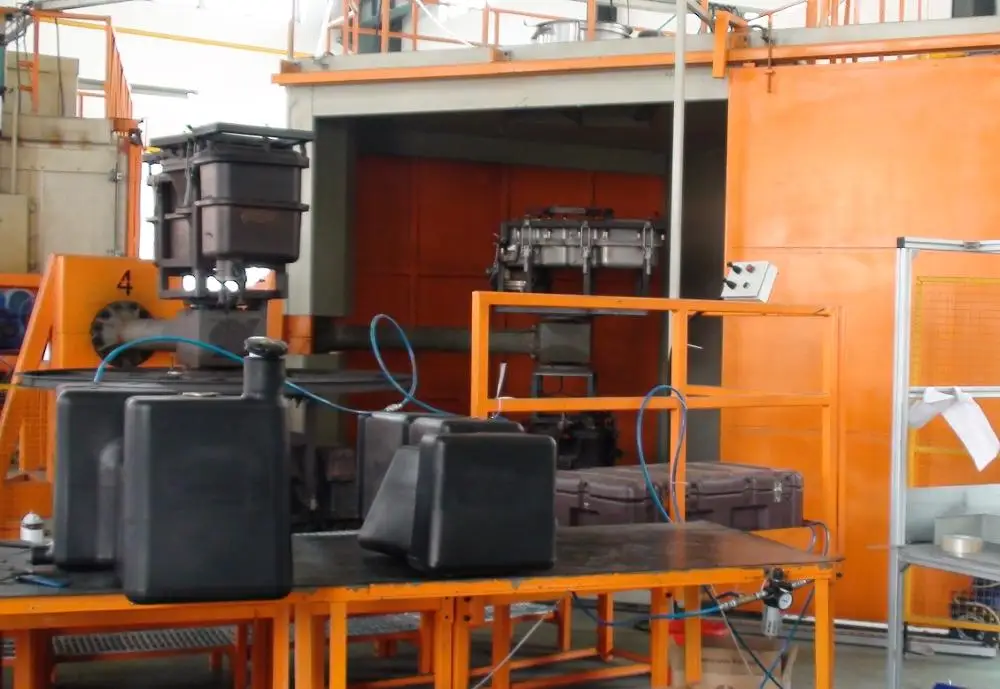

Products that can be manufactured using rotational molding include storage tanks, furniture, road signs and oollards, agricultural machine and car accessories, toys, bins and reluse containers, call-barn, military box, road cones, kayak, canoes, rowing boats and playground slides.

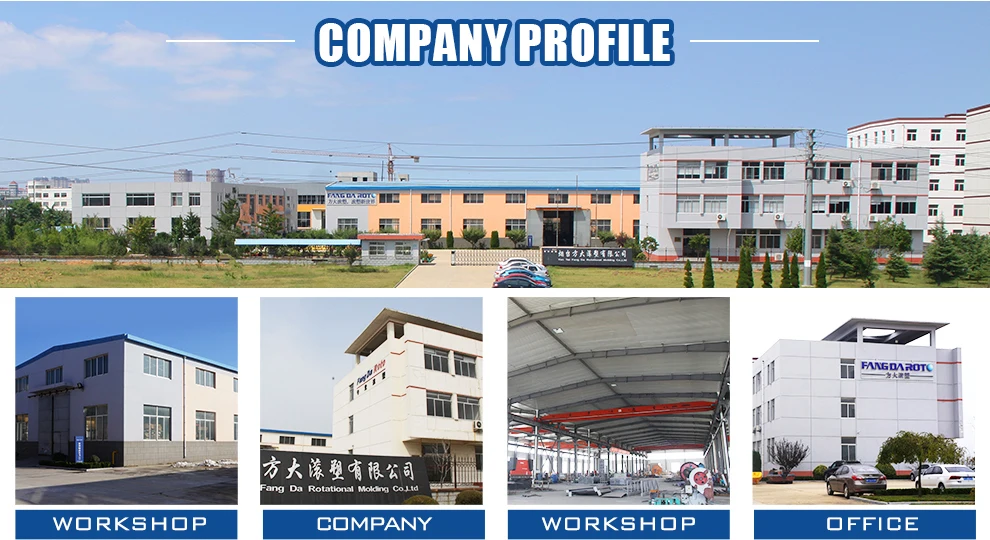

Our Company
Yantai Fangda Rotational Molding Co., Ltd., established in 2002, occupying an area of 30,000 square meters, is the key Hi-Tech Enterprise of Shandong Province, and is certified by ISO 9001. Now, our company has been the largest R&D Center and Production Base of Rotational Molding Equipments in China.
Certifications
Exbitition
Yantai Fangda Rotational Molding Co., Ltd., owns a very professional rotomolding machine team, which is composed of more than 10 sales people and 5 technicians, the team is committed to the research and development of rotational molding machines and mold.
