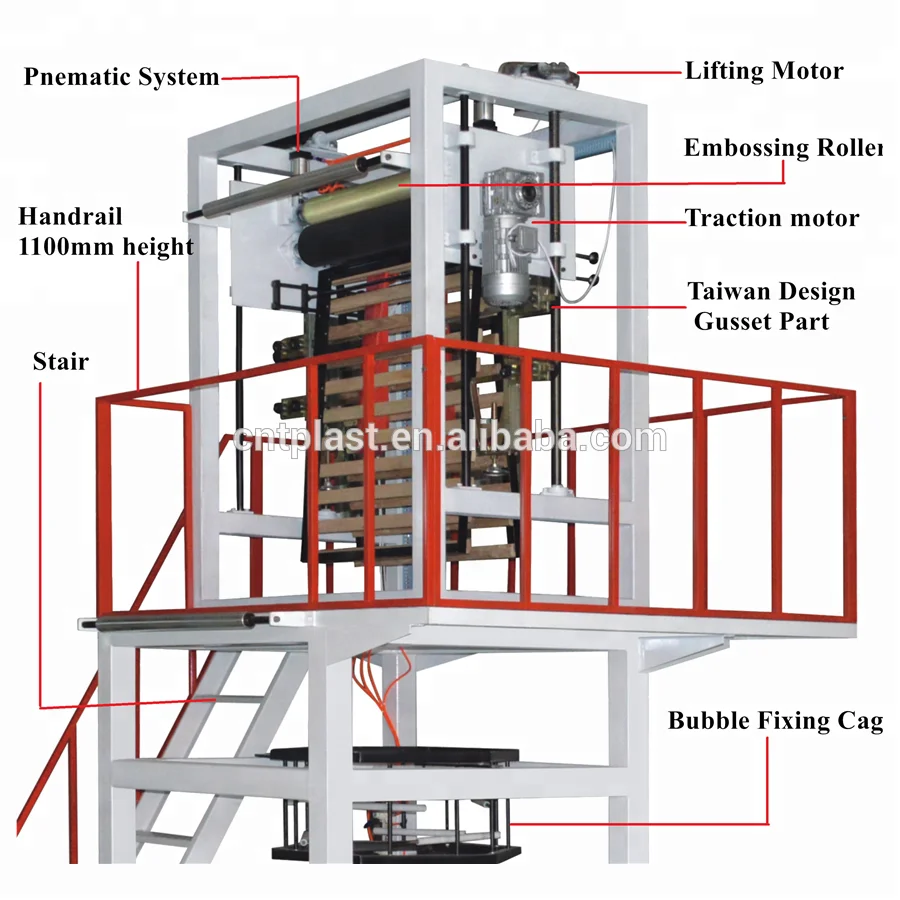

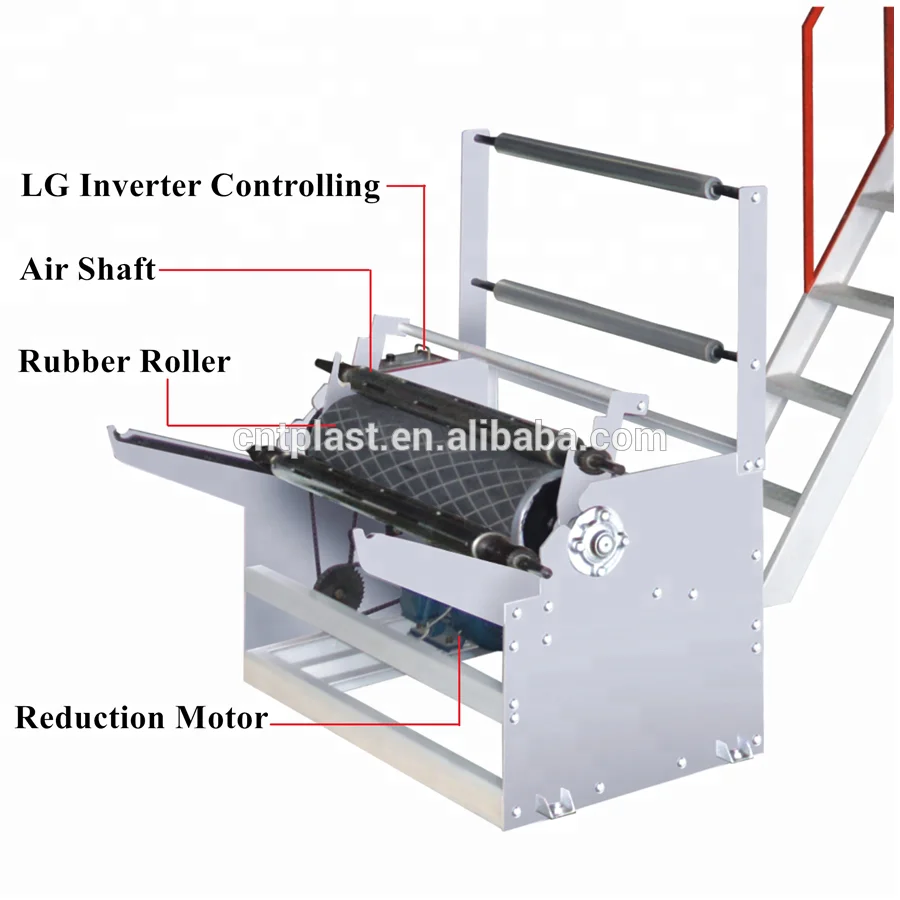

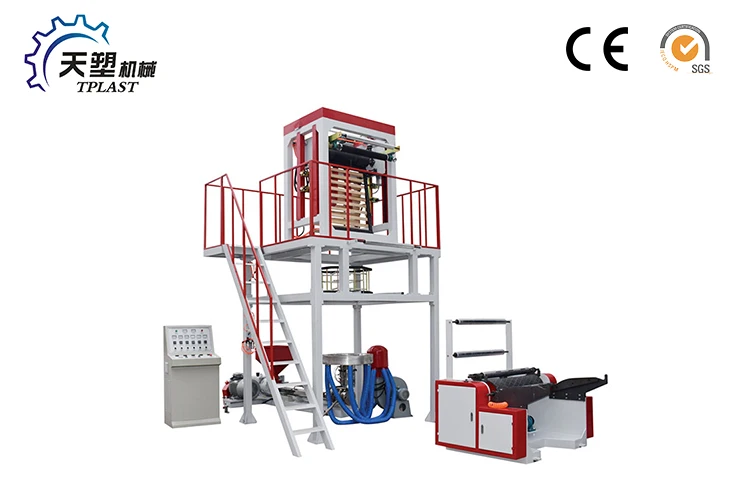

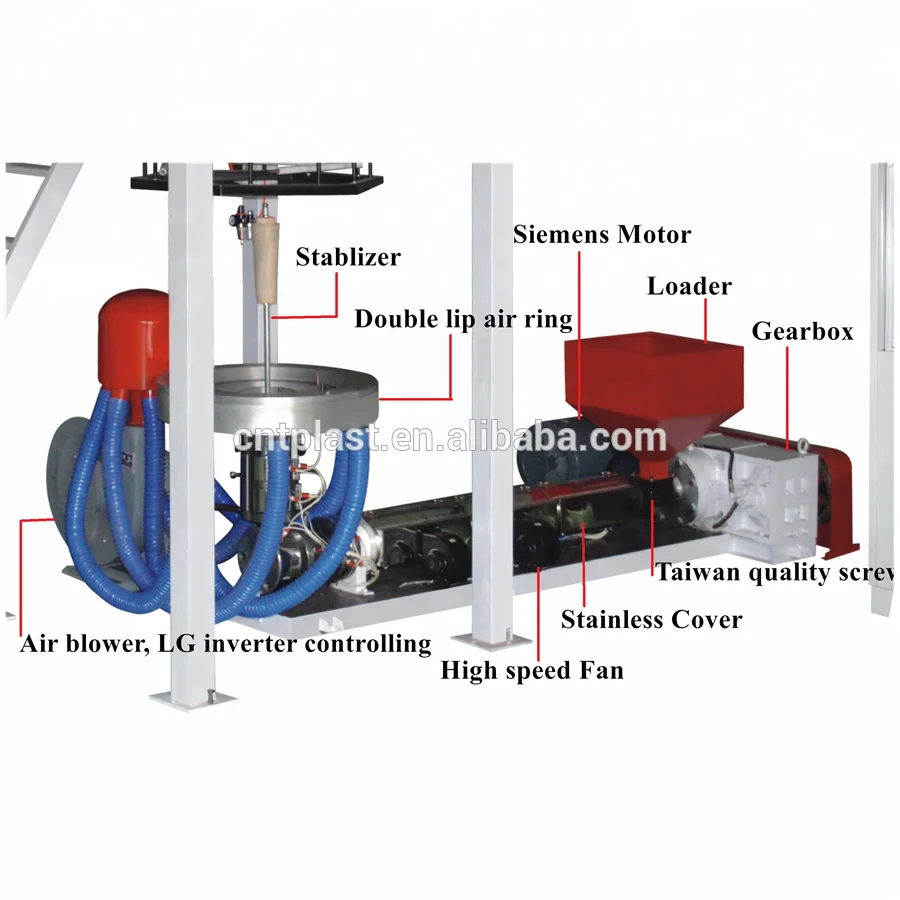

New Type High Speed HDPE LDPE biodegradable Film Blowing Machine

Product Overview

Description







Model	SJ-50/HMB600	SJ-55/HMB800	SJ-60/HMB1000	SJ-65/HMB1200
Screw Diameter (mm)	Φ50	Φ55	Φ60	Φ65
Screw Length (L/D)	30:1	30:1	30:1	30:1
Film Width(mm)	200-600	300-800	400-1000	600-1200
Film Thickness(mm)	0.006-0.10	0.006-0.10	0.006-0.10	0.006-0.10
Max.Extrusion Output (kg/h)	60	70	80	90
Die Size(mm)	Φ60/100	Φ80/150	Φ100/200	Φ120/250
Blower	3kw	3kw	3.7kw	4kw
Cylinder Cooling (Kw)	0.13*2	0.13X2	0.13X3	0.13X3
Driving Motor(kw)	15	18.5	22	30
Total power(kw)	28	36	40	45
Cover Dimension L*W*H(m)	5.0*2.1*4.2	5.0*2.3*4.5	5.0*2.3*4.8	5.0*2.3*5
Weight of Machine(kg)	2500	2800	3000	3200





1,Q: Your factory is trading company or factory?

A: We are factory. We have more 2100 square meter workshop and 23 workers containing the 2 installment engineer and 1 electric engineer.

We are Factory, so we have cost advantage than others



2, Q: How do your company control the machine quality?

A: First we control the raw materials quality.

Second, we control the quality of machine when we are processing.

Third, Our installment engineer will test machine.



3, Q: How about payment term, payment safety and delivery time?

A: We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight.

Delivery time is 20 to 30 days. It is according to order quantity.



4,Q: What is your company after sale service?

A: Our installment engineers are available. Normally it will take about 7 to 10 days for all.

Our guarantee is one year. If there is any spare parts is broken, we can send them freely to you.
