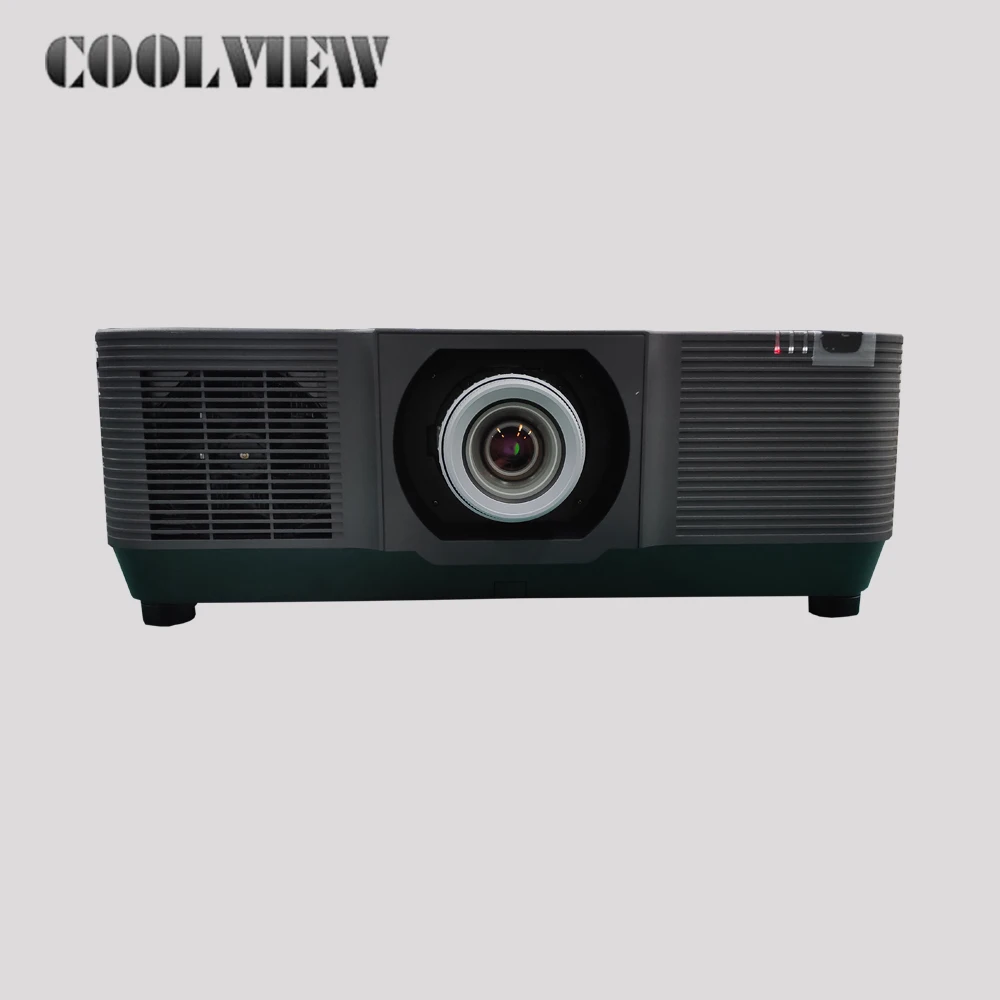

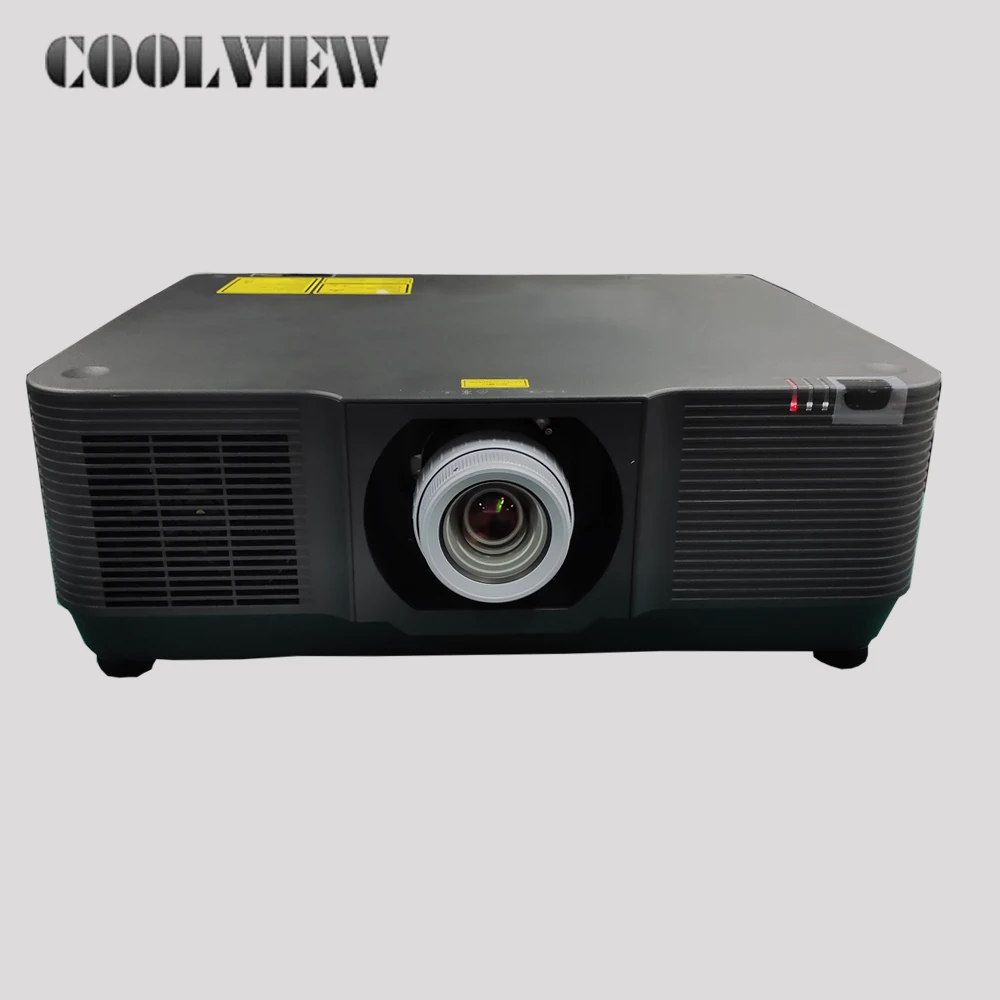

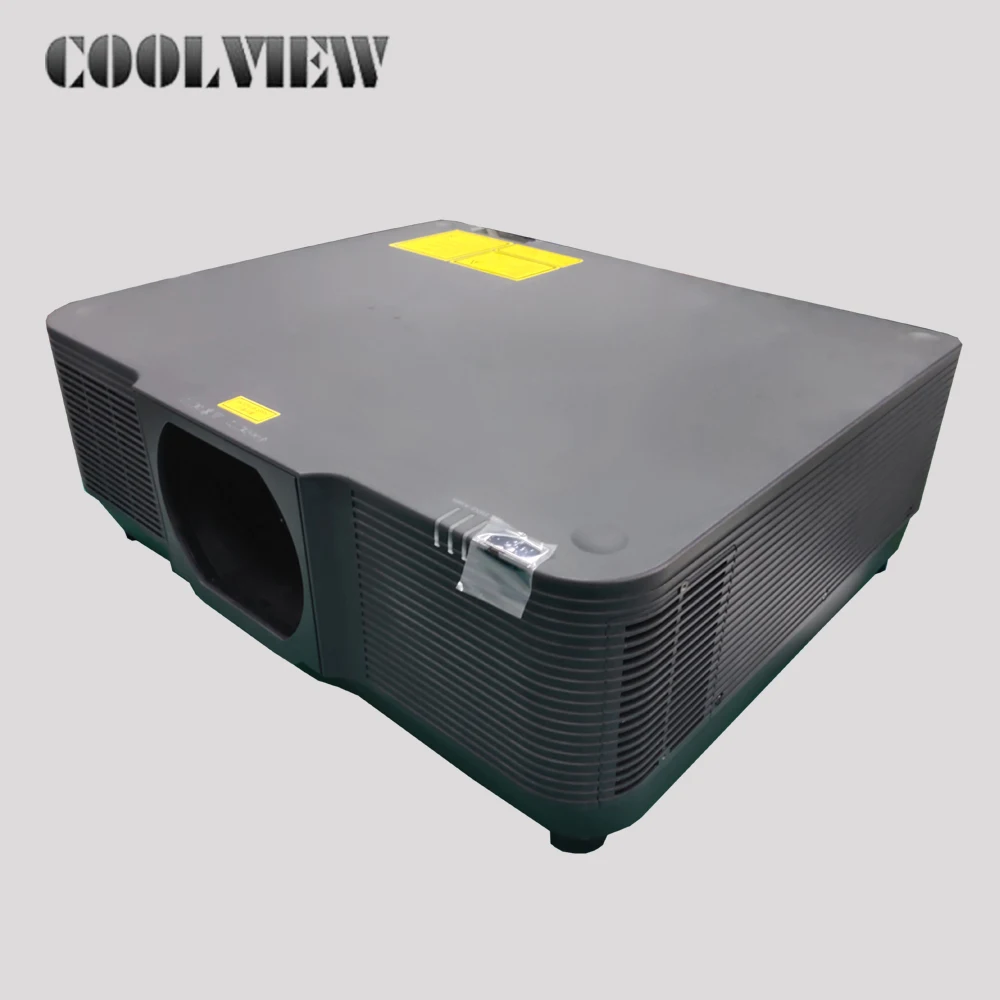

laser 3D 13000 lumens 5 years laser 3D DLP ready active laser projector

Share on (60784682973):


Price:$8,000.00 - $9,500.00

Quantity:


Product Overview

Description

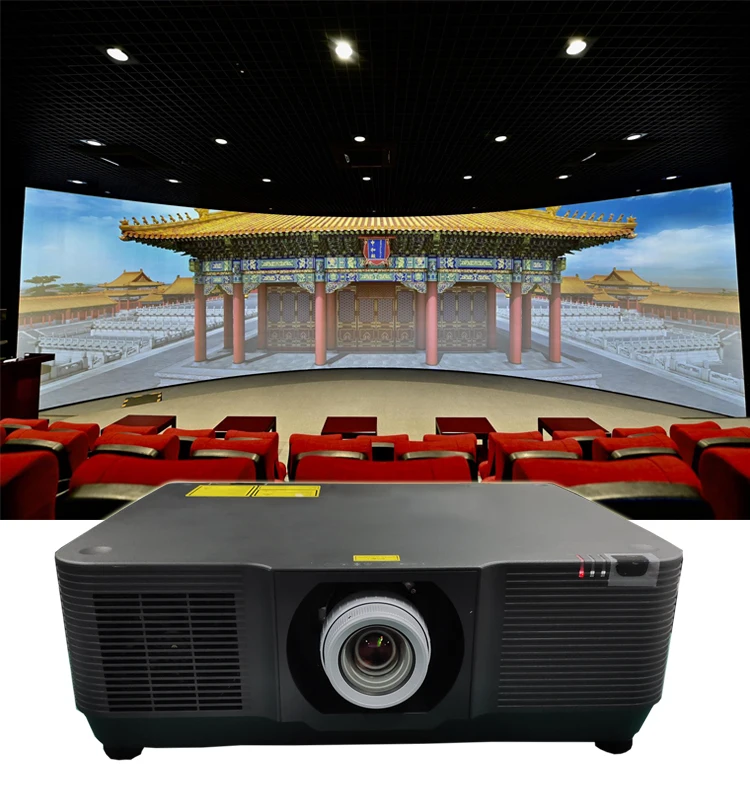

 3d mapping 1000 2.jpg



Product Description


1.Scope of application for DL13U ,Large Venue Laser Projector





1.outdoor advertising display,3d mapping projection


2.7*24 hrs no-stop working .


3.large cinema/theatre


4.Bars, KTV night clubs, concerts and churches


5.Daytime education (big multimedia classroom)


6.daytime company or business multi-media presentation(conference)


7.Training course, Houtdoor show projector


8.other situation need huge projection size enough brightness high lumens project projector

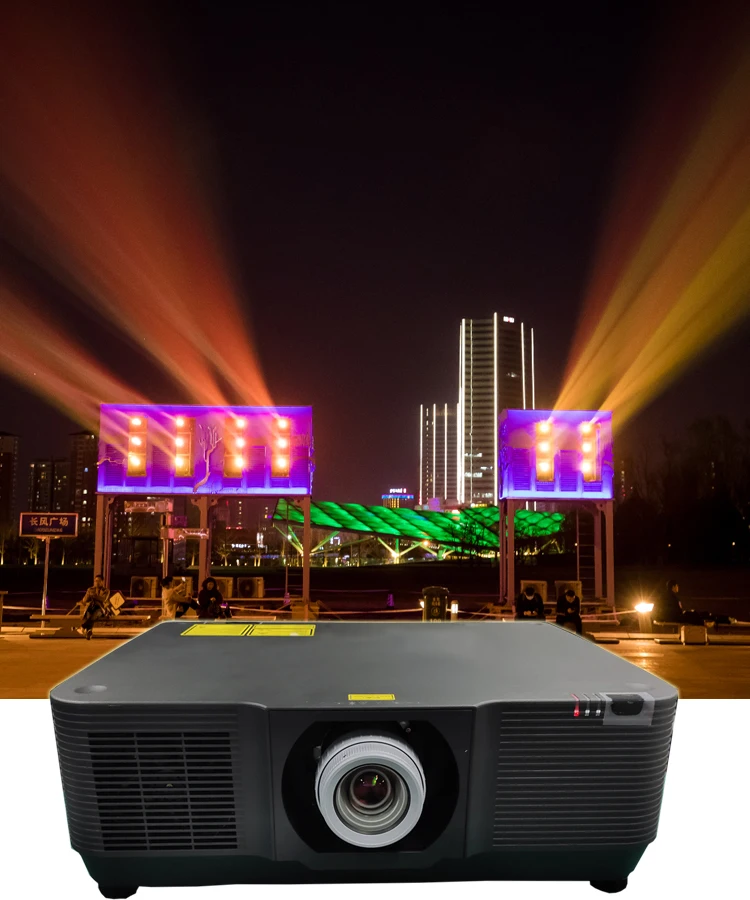

 3d mapping 1000.jpg





2.Technical parameters for DL13U Large Venue projector






































































































































Basic Parameters:CVDL13U                                                   CVDL15U
Display Technology3LCD
Native ResolutionWUXGA 1920* 1200
Max. Video Input4K
Brightness 13000 ansi Lumens 15000 ansi lumens
Contrast100000:1 Contrast Ratio
Fan NoiseAs low as 27 dBa
Aspect Ratio16:10 Native,16:9 Compatible
Projection MethodFront, Rear,Ceiling,Table Top;Projection Image support horizontal and vertical flip
Weight30 kg

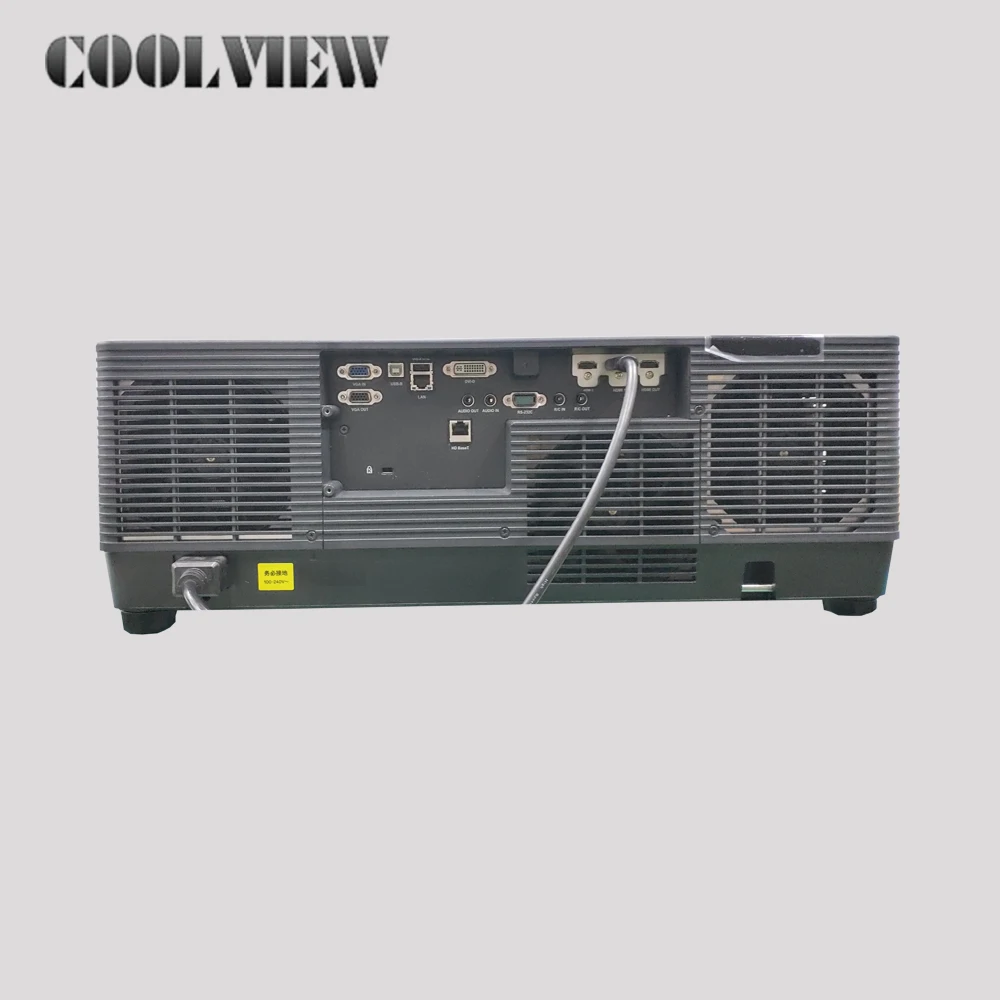

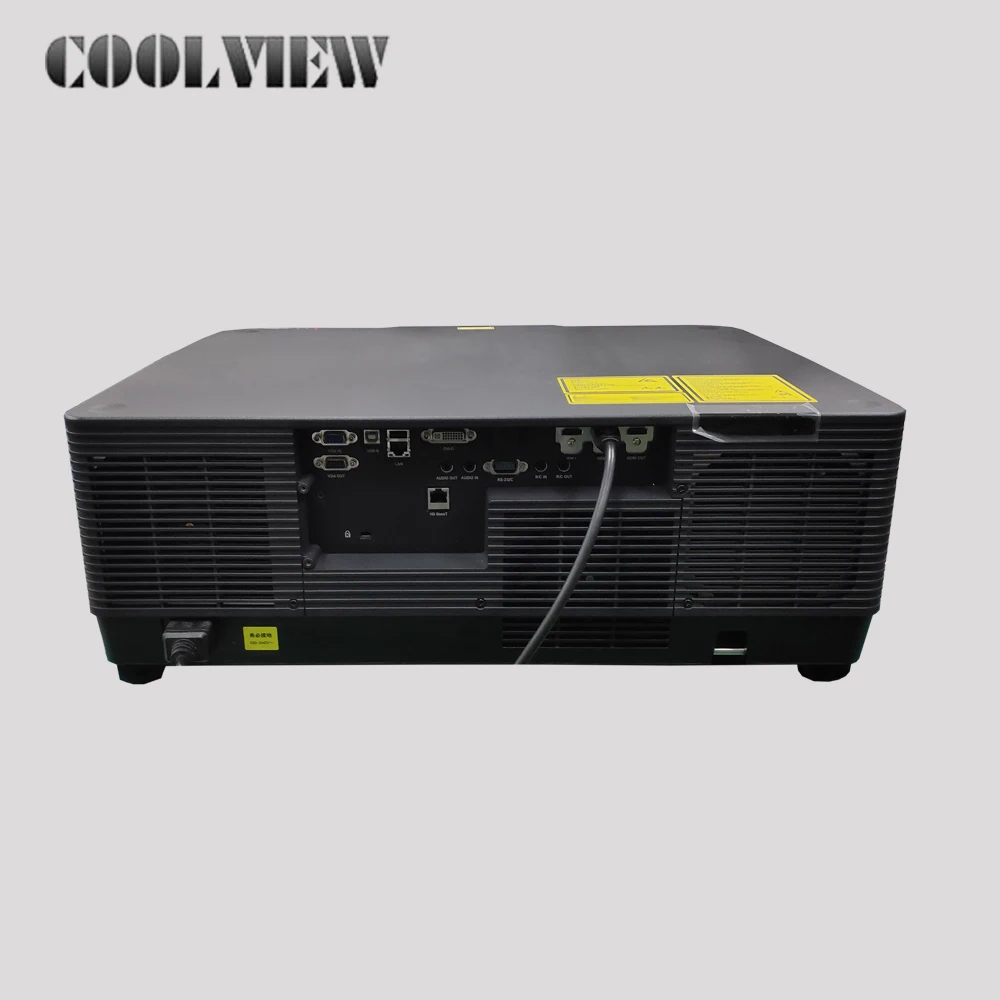

I/O ConnectorsInputs:VGAx1; Y, Pb/Cb, Pr/Crx1; S-Videox1; HDMIx2; DVIx1; CVBSx1; HDBaseTx1; IRx1; RS232x1; RJ45x1
Maximum Resolution4K via HDMI Terminal
Computer CompatibilityStandard 1080P(1920x1080),WSXGA+,WXGA+,WXGA(1280x800/1280x768),UXGA, SXGA, XGA, SVGA, VGA, Mac…
Video CompatibilityPAL (B, D, G, H, I, M, N, 576i/p), NTSC (M, 4.43/3.58 MHz, 480i/p), SECAM (B, D, G, K, K1, L) HD (1080P, 720p)
Displayable Colours1.07 Billion
 Power Lens Shift:U/D -40%to 120%; L/R 20%
Lens Optional:Short throw lens,Long throw lens,Ultra-short focal-lens,360-degree wide-angle lens,Spherical Fisheye lens
Throw Ratio1.46-2.95:1(STD)
Projection Screen Size100" at 2.94m
Projection Distance1.025-25.48m(Standard Power Lens )
Lamp Type/Lamp Life850W Roller type laser light source, 20000 hours life
Keystone Correction *± 40° Vertical  ± 30° Horizontal
Dimensions (W x D x H)560x558x295 mm
Remote ControlFull function remote with direct source selecting
Power Supply100-240V, 50-60Hz
Power Consumption1088W
Operating Conditions5°C - 40°C, Max. Humidity 85%, Max. Altitude 3000m
Uniformity90%
Standard AccessoriesAC Power Cord,VGA Cable, Remote Control,Quick Start Card,CD User Manual, Warranty Card
Optional AccessoriesCeiling Mount Kit, Additional Ultra long Cable
GuaranteeProjector 5 years

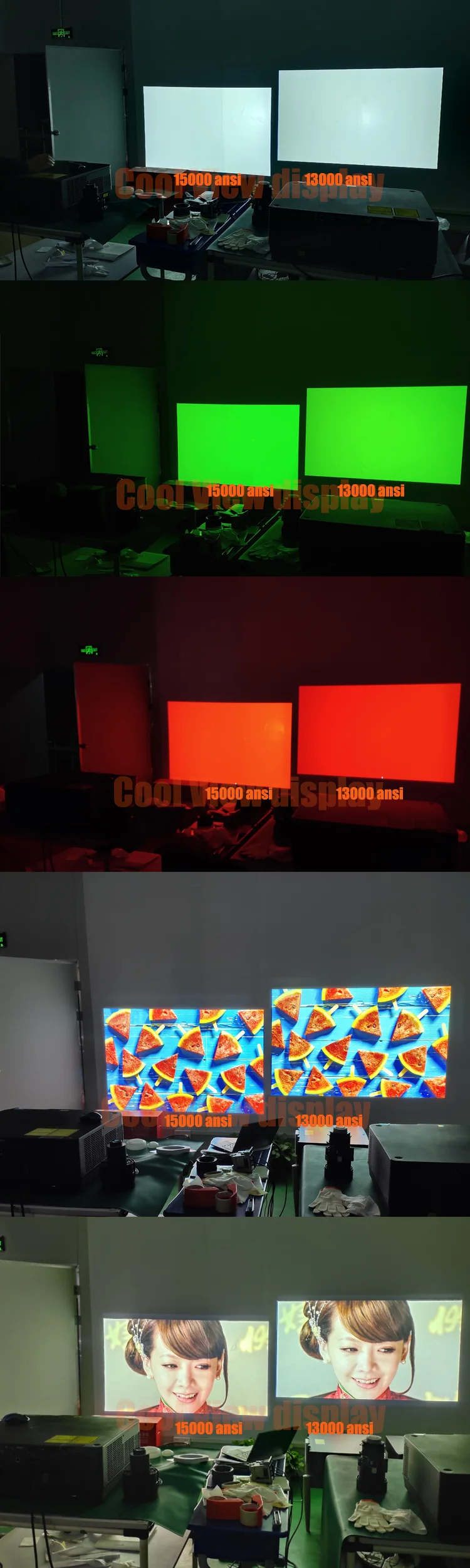

.png
3.Outstanding features for DL13U  projector






1, Perfect Image quality by 3LCD technology ,2 color wheels ,WUXGA 1920* 1200 native resolution.





2,Newly adopted Roller type laser light source 480W lamp brings super effects of high brightness and contrast ratio along with extended lamp life20000 hrs.





3,High adjustable contrast ratio 100000:1 brings super visual effects of sharpness and high definition.






5,7*24 hrs no-stop working



6,Mutiple lenses options for diferent venues
    Push the button, rotate the lens and it is goes off directly from the projector, easy and swift for lens


    replacing,More than 6 Optional wide-angle and telephoto lenses .



7,Fine and closely woven dust-proof filter
    Easy to change Hyprid filter protects the projectorfrom fog, dust and smoke .



8,360° projection for multi-media scenarios
     DP9100 is able to project 360° vertically which is applied to muti-media scenarios.



9,Prioritized LAN network control and Video
     Through the LAN management and control, the user can easily operate every one of or some of


projectors in the system formed by connecting two or more units together.






10,Motored vertical and horizontal lens shift
     Motored lens and focus functionalities are incorporated in DP9100 series. Vertical and horizontal


image shift can be easily


     carried out by motored lens instead of moving the projector manually.
     Zoom in and out of the image can be easily carried out by remote control even if the projector is


installed extemely high.
     Motored zoom and focus for fine tune and remote control: even installed way out of reach, the


projector is able to be operated


     for adjustments in distance.
     Lens shift: vetical(+/=50%)and horizontal (+/=10% max) shifts make operation directly visible for


installation on site.



11,Adjustable cooling time, this newly developed technology embedded realizes the setting of cooling


time arranging from 3 minutes to 1 minute according to the user’s demands.








12.Multiple connectivities


     BNC is suitable for long distance stable signal transmission, a perfect match with top survailance and


acoustic devices.
     Component terminals are designed for business occasions. Compatibility with YPbPr input and output


makes home cinema and entertainment easily available.


     Through the port, network operation and control is conveniently managed. A computer is able to control


all the projectors within the LAN, only if the user enters the corresponding IP in IE address bar.


     HDMI, the best choice for film display, can transimit audio and vedio signals without compression.


.png

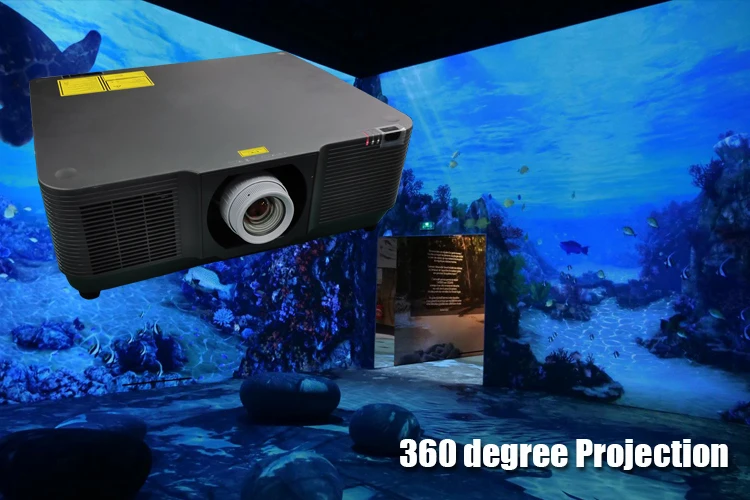

360 degree projection 1000.jpg

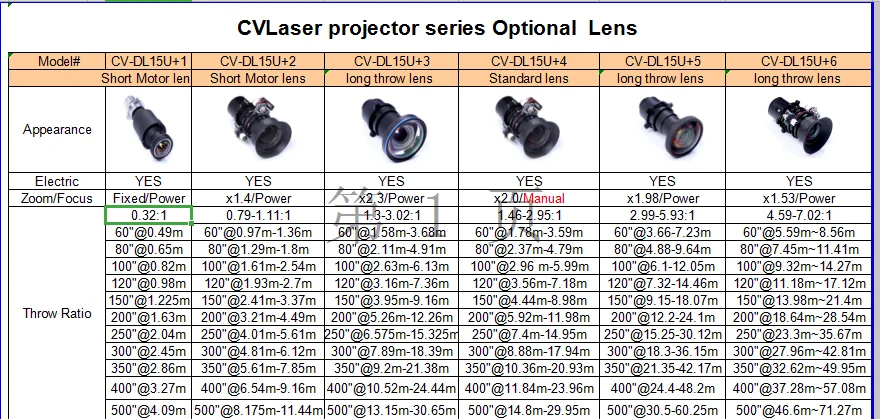

4.Coolview DL13U projector 3d series optional lens:















Packaging & Shipping


.jpg





1050+ banner.jpg




750 350 .png750 350





Our Services





5.Coolview DL13U projector after-sale service:





1. 5 years warranty and lifetime free maintenance and upgrade.


2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.


3. Customer satisfaction tracking report.


4. Free technician training.


5. Full set of documents free of charge, which including installation guidance, software operation manual,easy maintenance


manual and control system software CD and so on.


6. Special service for big project, such as stadium, exhibitions, squares and so on.











Company Information













FAQ





1. Why choose Coolview company?
because we have 3 years in alibaba since 2012.and we build long time business with clients all over the world ,all of them trust our quality and fulfill our products ,that's why we can stay here for long ,and do more and more better.

2.What is the after-sale service of  Coolview company?
During warranty with full spare partes and if after warranty, we also provide life long support, on time products service serey.

3.Why choose DLP technology projector?
DLP technology usually are 3D ready ,this is a hot sale point for selling.

4. High pressure mecury bulb good quality ?


High pressure mecury bulb now is the mainly light source for High Quality projector in this area , because it has the high brightness and stable quality,the projector with high pressure mecury bulb will be much brighter than the other type ,such as LED

5.How many years have you sold this products in the market?
3 years already since 2012

6.What payment you prefer ?
Bank transfer and Western Union.

7.Can i visit your factory ?
Welcome to visit ,you can find my contact information in this page .

8. If i broad the market ,can i be your agents ?
Yes,we want to build relationship with all local powerful distributer.Our service is good for support you do long time local service to win customer.
