Оборудование для дорожного строительства 80tph, машина для переработки асфальта
- Category: Asphalt Mixers >>>
- Supplier: Henan Cheng Jing Mechanical Electrical Equipment Co. Ltd.
Share on (60784753467):
Product Overview
Description
80TPH Road Construction Equipment Asphalt Recycling Machine Asphalt Recycling Machine
Key Specifications
Model | ZLB80 |
Rated Production Capacity | 80t/h |
Suitable Mixer Model | RD175/RD200/RD240 |
Overall Dimension | 37m×32m×18m |
Total Power | 134.2KW |
Operation | Manual, auto manual, auto |
Cold Aggregates Supply System | Aggregate variety:2 |
Cold aggregate hopper:2×10m³ | |
Aggregate belt width:650mm | |
Recycling Material Hoisting System | Elevator : 1×11KW |
Burning System | Oil Burner rated oil consumption:650kg/h |
Heavy oil converter and pipeline supply system | |
Aloft heavy oil balance tank volume: 0.56m3 | |
Drying Drum | Φ1.8m×8m |
Recycle System Tower | Integrated design with mixing tower to achieve seamless. |
Recycling Material Storage | Temporarily storage silo: 5m3 |
Recycling Material Weighing System | Weighing hopper: 1.2m3 |
High-Speed Feeding Conveyor | Transport capacity: 600t/h,1×7.5kW |
Anti-stick spray system | Antistick storage cubage: 1×210L |
Dust Collecting System | One set induced draught system. |
Electric Control System | Interaction with the main system online to achieve automatic coordination of the two systems. |
Can work independently and stand by at any time. | |
The PLC program controls the measurement of recycled materials and performs compensation automatically to ensure the weighing accuracy. |
Main Features
1. 80TPH Road Construction Machinary Asphalt Recycling Equipment to re-use the removed asphalt mixture from the old road,not only reduce the environmental pollution but also make use of the limited resources and reduce the cost.
2. Asphalt smoke will re-burn inside drying drum which occurs during heating old asphalt mixture to meet the enviromental protection requirments.
3. The heat-conducting oil heat insulation elevator,temporage bin and weighting hopper used to minimize the recycled materials adhesion.

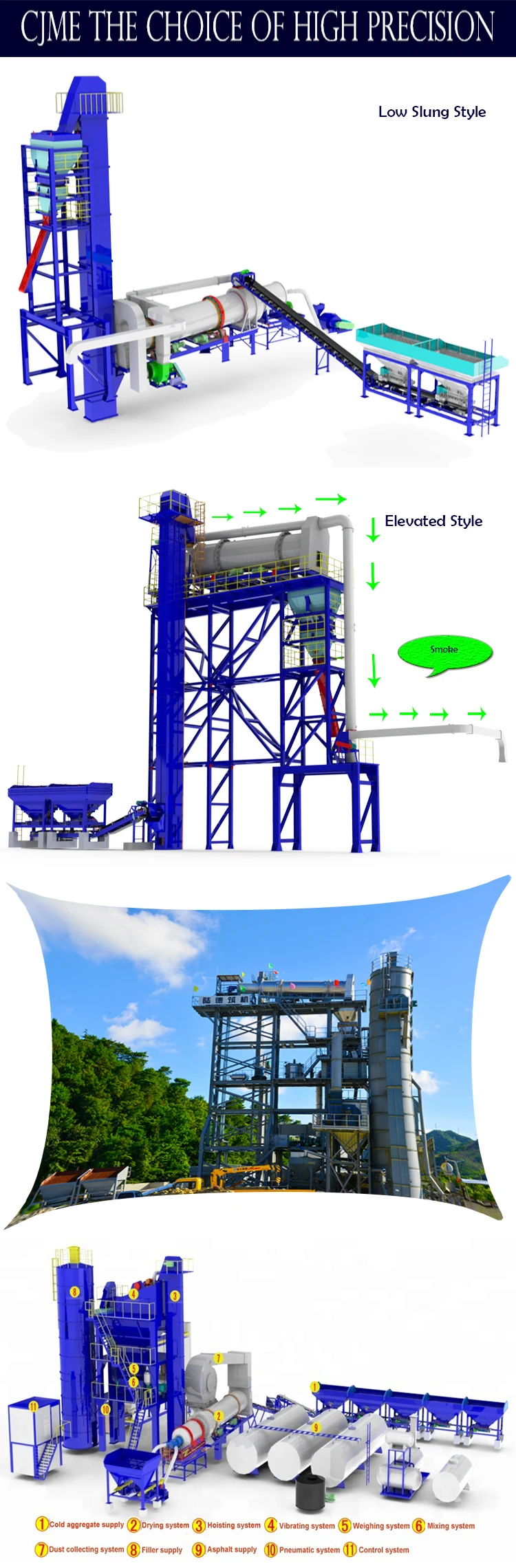

Detailed Images
80TPH Road Construction Machinary Asphalt Recycling Equipment
Packing &Delivery
80TPH Road Construction Machinary Asphalt Recycling Equipment
Packaging details: The spare and accessory parts are packaged by fuming wooden box,but the bulk cargo are packaged by nude packing,for example,the drying drum,bitumen tank,filler silo,control room and so on.
- Port: Shanghai,Qingdao,Tianjian,or other China port
- Lead Time :20-30days after payment
- 80TPH Road Construction Machinary Asphalt Recycling Equipment
Certifications
Exhibitions
FAQ
Q1. What is the warranty period?
A:12 months,we will provide the technical services for free within this period.
Q2. Can you install the asphalt mixing plant in my country?
A:Sure,we will send engineers to your country for guiding installation and training your works to operate the machine.
Q3.How many works needed for operate the machine?
A. Each one person of bench workers,electrician,welder and opertator.
