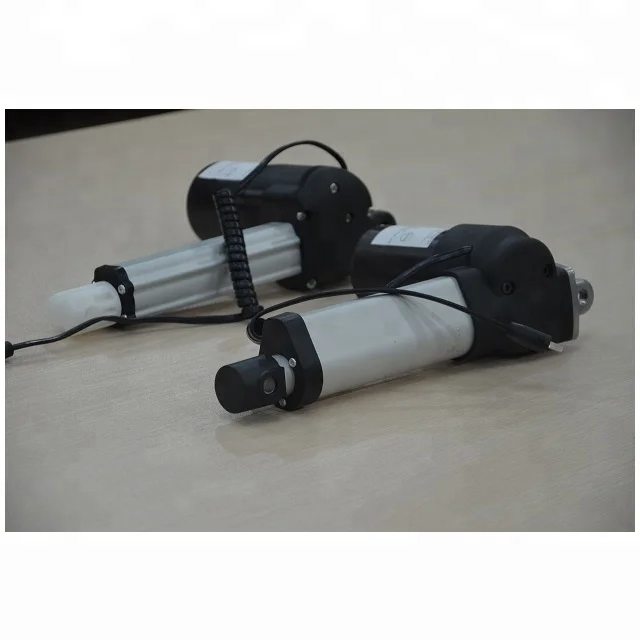

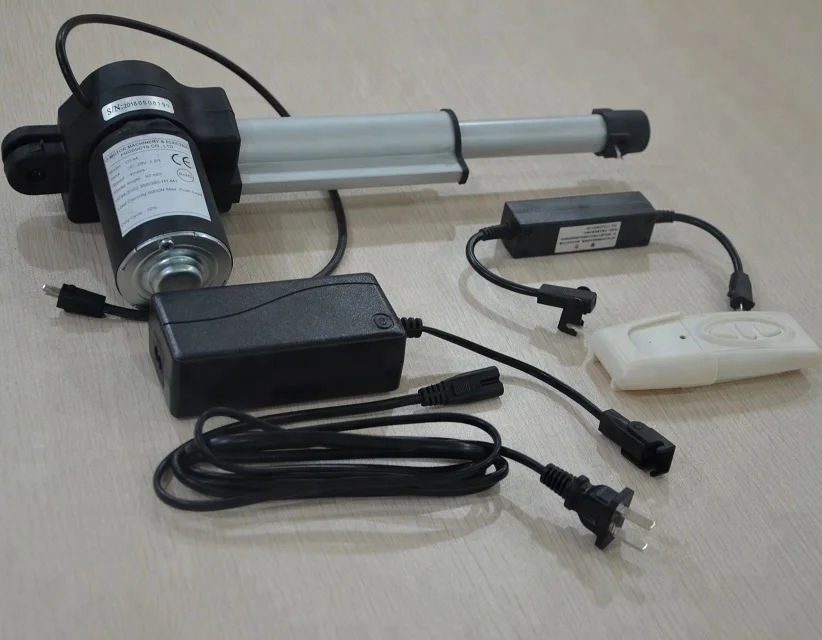

12V/24VDC spring loaded servo motor linear actuator 6000N

This linear actuator for recliner chair parts is widely applied for smart home,including adjustable bed,electric sofa, ergonomic furniture,geriatric chair and pedestals furniture.G-motor's 12 volt linear actuator GF44 can also be used for medical equipment,such as wheelchairs, patient-lifters, working table recliners , handicap equipment.

SPECIFICATIONS FOR 12V LINEAR ACTUATOR
Name	Linear actuator	Rated current	1.8A
Model	GF44	Protetion degree	IP54
Input Voltage	28V DC	Standard stroke	50-500mm(can be option)
Speed	4mm/s	Limit Switches	Inner
Stroke length	92mm	Noise	<50db (full load)
Max load	6000N(push)	Min Install Dimension	Stroke +288mm (Option)
Duty cycle	10%	Usage	electric recliner chair
Installation size	380mm
Certification	CE

Main Features

1) Easy in installation and maintation.

2) Competitive price.

3) Stroke and installation size can be customized accroding to your requirements.

4) Low noise.

5) Widely applications.

6)One year warranty.

Application Example

This 24V linear actuator can be used for electric bed.

This recliner linear actuator can be used for hospital bed.

This servo motor linear actuator can be applied for electric sofa.

Certifications

Detailed Images

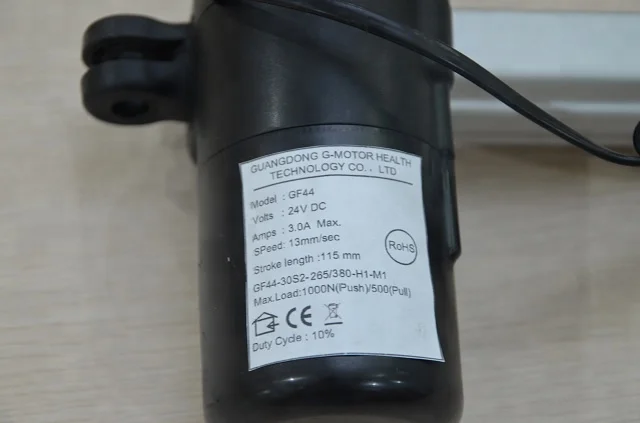

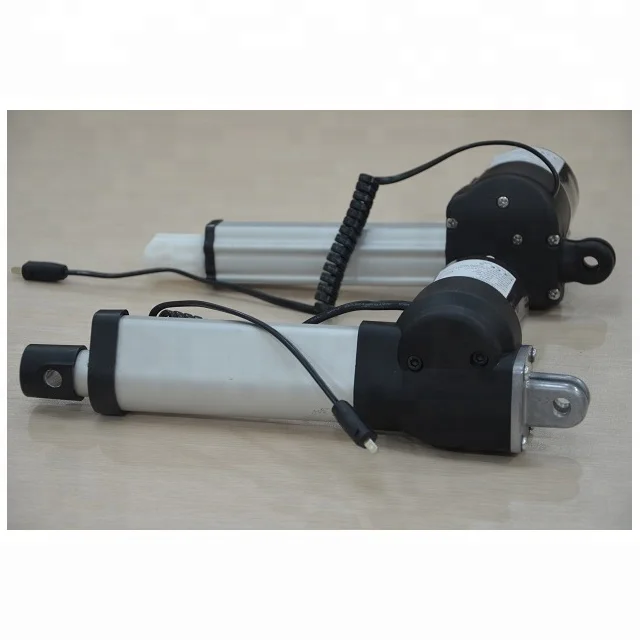

linear actuator for recliner chair parts

Model: GF44

Brand: G-motor

Original: China

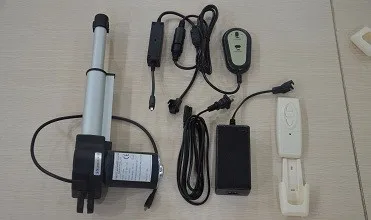

G-motor's linear actuator GF44 can be equipped with handset controller or remote control.The actuator adapter can be also available.If you want to use one controller to control serveral actuators at the same time,our technique department can also help you achieve it.

CONTROL SYSTEM

Name: Handset controller
Brand: G-motor
Original: China

Number of buttons:2 buttons

Function:control the linear actuator for up and down motion.

CONTROL SYSTEM

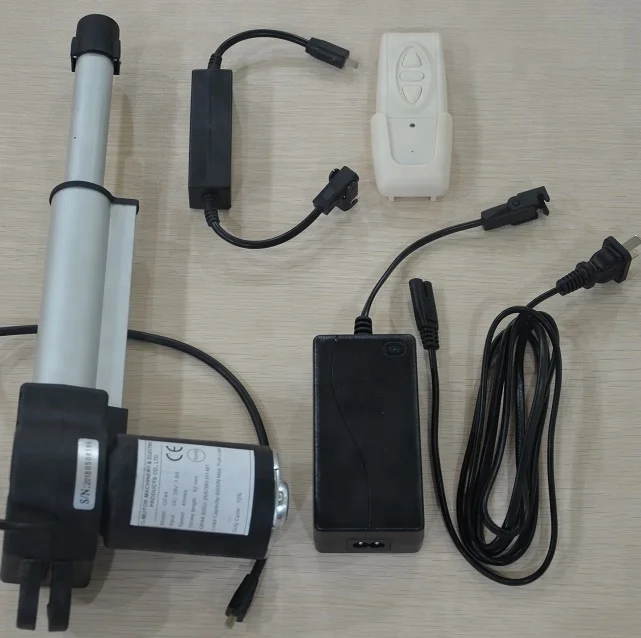

Name: Remote controller
Brand: G-motor
Original: China
Number of buttons:3 buttons
Functions of buttons:control the linear actuator for up and down motion.The middle button can be used as child lock,which means it is safe when our actuator is used for children bed.

LINEAR ACTUATOR CONTROL SYSTEM

Name: Oval wire controller
Brand: G-motor
Original: China
Features:Special designed appearance,can be equipped with USB connection,which is convinient for people to charge phones when using the electric bed or sofa.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Instruction Manual.

* One year warranty after products saled.

Packing & Delivery

Packaging
Size	770 (L) * 200 (W) * 110 (H)（mm）
Weight	4kg
Packaging Details	The normal package for sample is carton box(Size: L*W*H).Inside the carton  box,there will fill with foam to protect the linear actuator from damage.

Packaging
Size	size is different just according to your order.
Weight	weight is different just according to your order.
Packaging Details	Batch order package is carton box and wooden pallet(Size: L*W*H),which is usually shipped by sea.The wooden pallet will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
