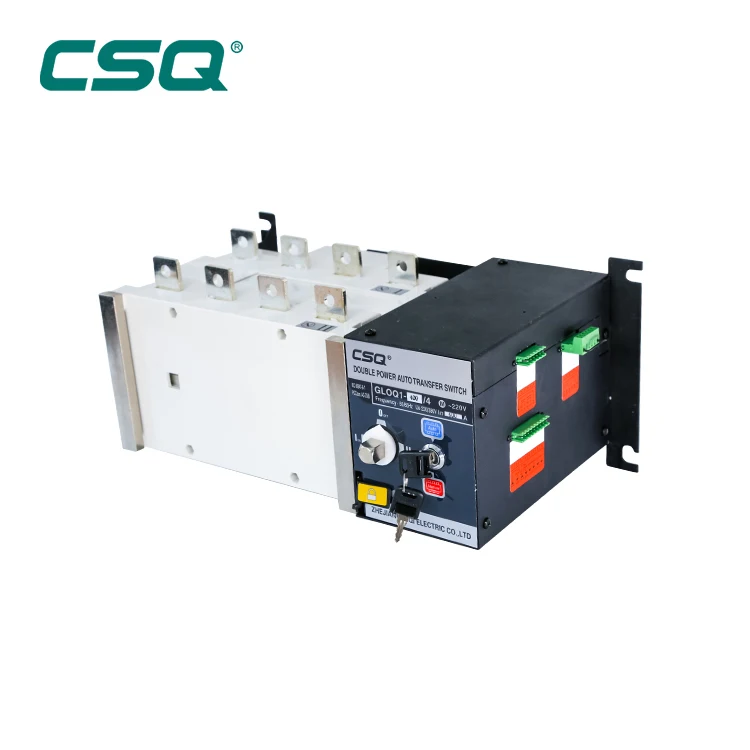

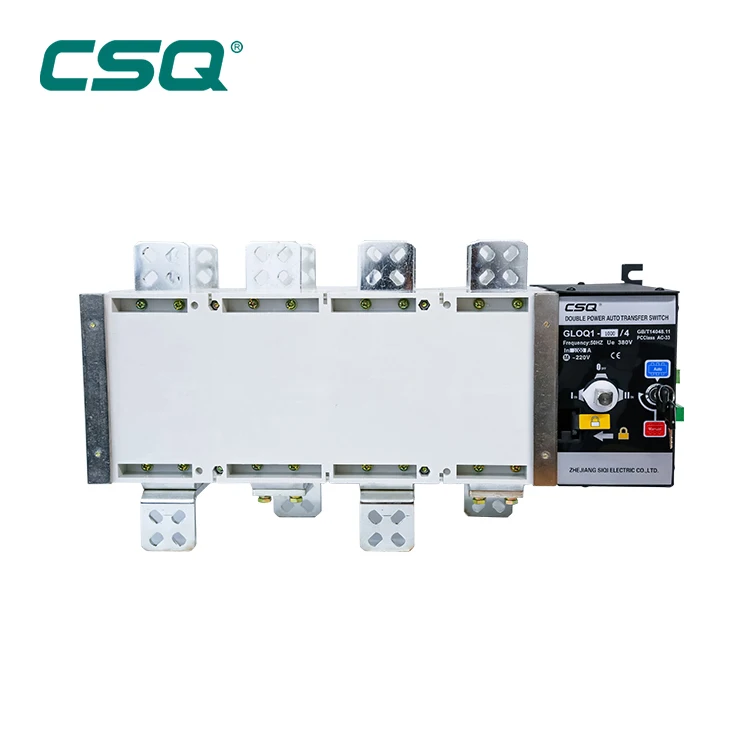

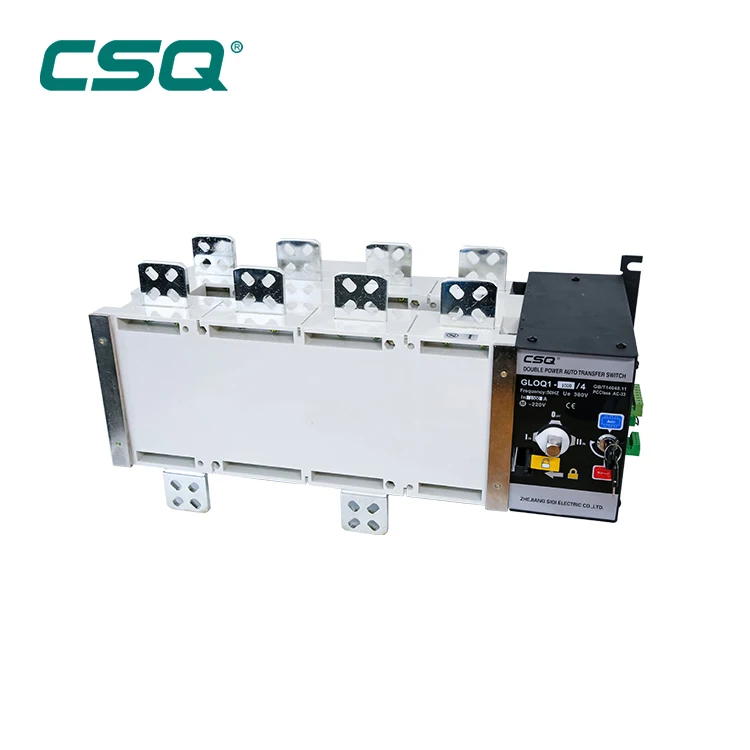

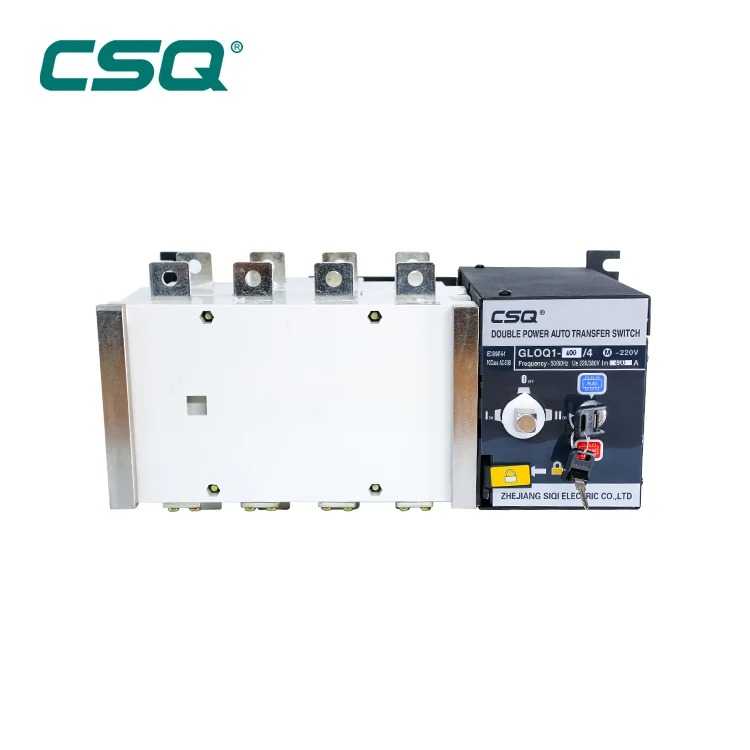

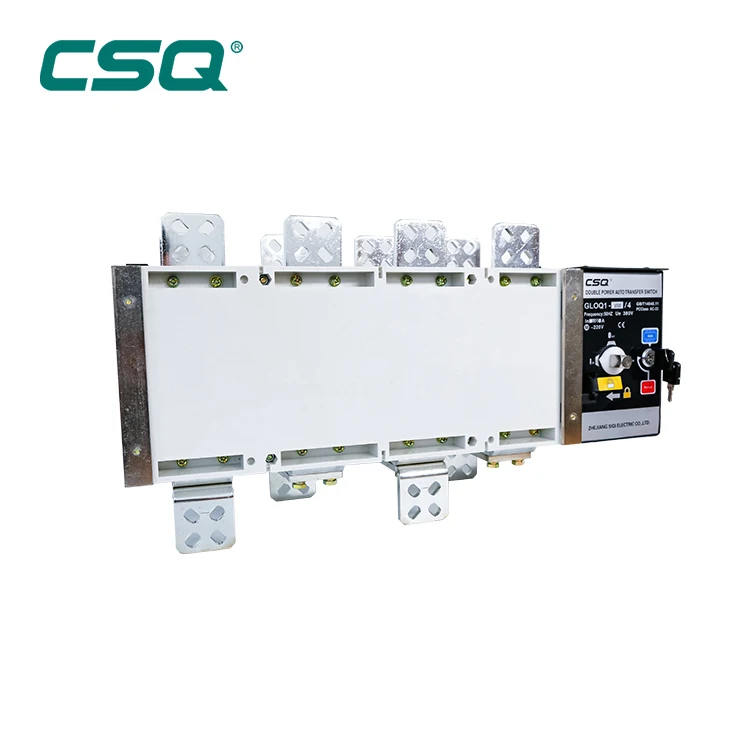

Double Power Automatic Transfer Switch GLOQ1-250(PC type)
Double Power Automatic Transfer Switch GLOQ1Series is a kind of new automatic transfer switch gathered switch and logic controller,achieve mechanic and electricity turn into a integral whole. It is suitable for using in the distribution equipment in industry and business with rated insulating voltage up to 690V, rated frequency 50Hz/60Hz, rated voltage 380V, conventional heating current up to 3200A ,supplying for switch automatically of Normal power and reserve power in power system or switch automatically and safety isolation of two sets load device etc. It can be used for hospital, shop, bank, high building, coal mine, telecommunication, iron mine, superhighway, airport, industrial flowing water line and military installation etc.important situation where disallow power supply failure. The switch can achieve full-automatic, compulsory “0”, remote control, urgent manual-operation;while have lack phase examination and protection, under/over voltage examination and protection, frequency examination and protection and delay regulation, electric mechanism interlock etc. function
Our GLOQ1 ATS is divided into two types: Basic type and Fire control type
Basic type has follow functions
***** Full-automatic: i.e. Auto-switch-in, auto-restoring. When Normal power is off, switch will transfer to reserve power automatically;when Normal power is normal, switch will transfer to Normal power. ***** Compulsory “0”: Under urgent situation or device examination,push compulsory “0” self-lock button,switch will transfer to position “0” to cut off both normal power and reserve power.
***** With generator: when normal power cut off, send out the starting signal of generator, to make generator starting automatically.When normal, the switch will transfer to generate electric automatically.When normal power comes normal, the switch will turn to normal power automatically.Meanwhile send out closing signal of generator, thus closed generator.
Fire control type has follow functions
***** Full-automatic: i.e. Auto-switch-in, auto-restoring. When Normal power is off, switch will transfer to reserve power automatically;when Normal power is normal, switch will transfer to Normal power.
***** Compulsory “0”: Under urgent situation or device examination,push compulsory “0” self-lock button,switch will transfer to position “0” to cut off both normal power and reserve power.
***** With generator: when normal power cut off, send out the starting signal of generator, to make generator starting automatically.When normal, the switch will transfer to generate electric automatically.When normal power comes normal, the switch will turn to normal power automatically.
***** Remote control: i.e. operation and control at long distance. Push button “Ⅰ”, normal power will work; push button “Ⅱ”, then reserve power will work.
***** Lack phase examination and protection: exam and protect breaking of any phase of normal power and reserve power.
Instruct piece: Has three state
Ⅰmeans switch Ⅰ is on. Ⅱmeans switch Ⅱ is on. “0” means switch Ⅰ,Ⅱ are all off.
AH3 - 3 Time relay

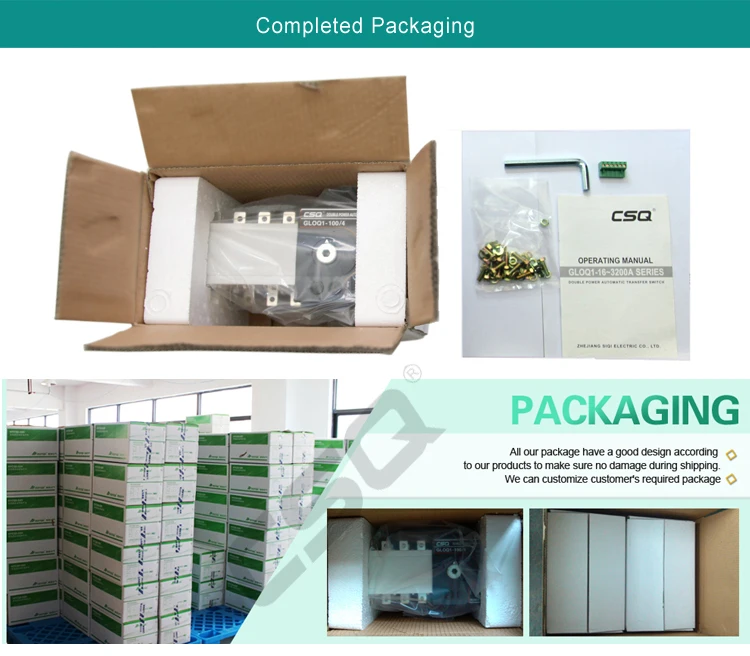

Packaging
What can you get if you buy one unit ATS?
ATS body
1 pcs
Screw
1 bag
Green Terminal
1 pcs
Handle
1 pcs
User Manual
1 pcs

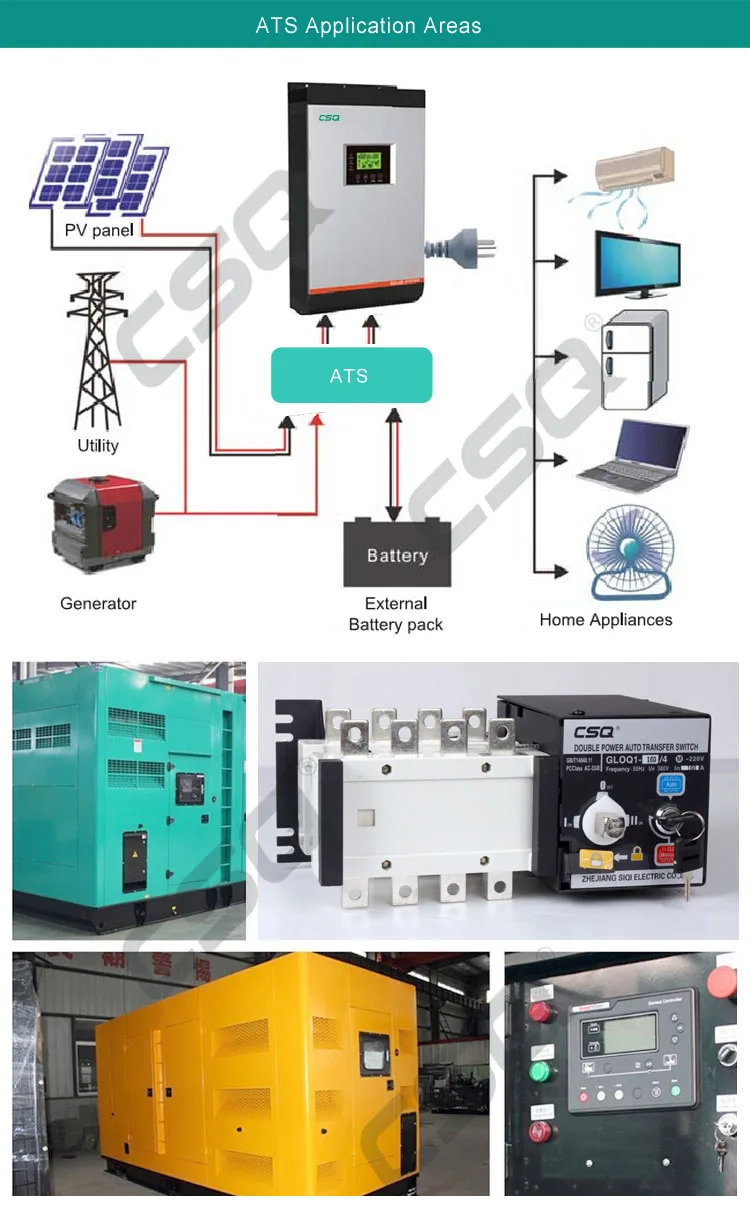

Application Areas
Why Choose us
No 1: The top 10 ATS manufacture in China - more than 350 Agents in local market and more than 100 foreign clients make OEM,ODM order from us,some of them are famous brand,such as HYUNDAI,EKF
No 2:We Promise that we will give you high quality product and we will give all customers 2 year warranty.
Certificates/Patents
Company Fairs
FAQ
Q: What is ATS? ATS(Automatic Transfer Switch Equipment) mainly is composed of switch body and intelligent transferring controller. It can transfer reliably between Normal power and Reserve power automatically when there is problem with any of them, meanwhile, it can monitor and protect the two power system by over voltage, under voltage, phase loss, short circuit, overload, the Reserve power can be Utility, Generator Power, UPS power, PV panel etc, and the main application can be hospital, shopping mall, bank, mechanical industry, metallurgy, high building, military facilities and fire control etc. places where the power should not be interrupted.
Q: Can I get some samples? A: Yes,sample order is available for quality check and market test.
Q: What’s the delivery time? A: It usually takes about 3-5 working days for small sample order and 10-25 days for big order.
Q: What's your payment terms? A: We usually accept all kinds of payment terms,such as T/T,L/C,D/P,D/A,D/D,PAYPAL,WESTERN UNION,CASH.
Q: What's your warranty terms? A: We offer two years warranty time.So you do not need to worry about quality.
Q: Do you have the products in stock? A: Depends,some products have goods in store,some products will be newly produced according to your order including samples.
Q: Can I mix different models in one container? A: Yes, different models can be mixed up in one full container.
