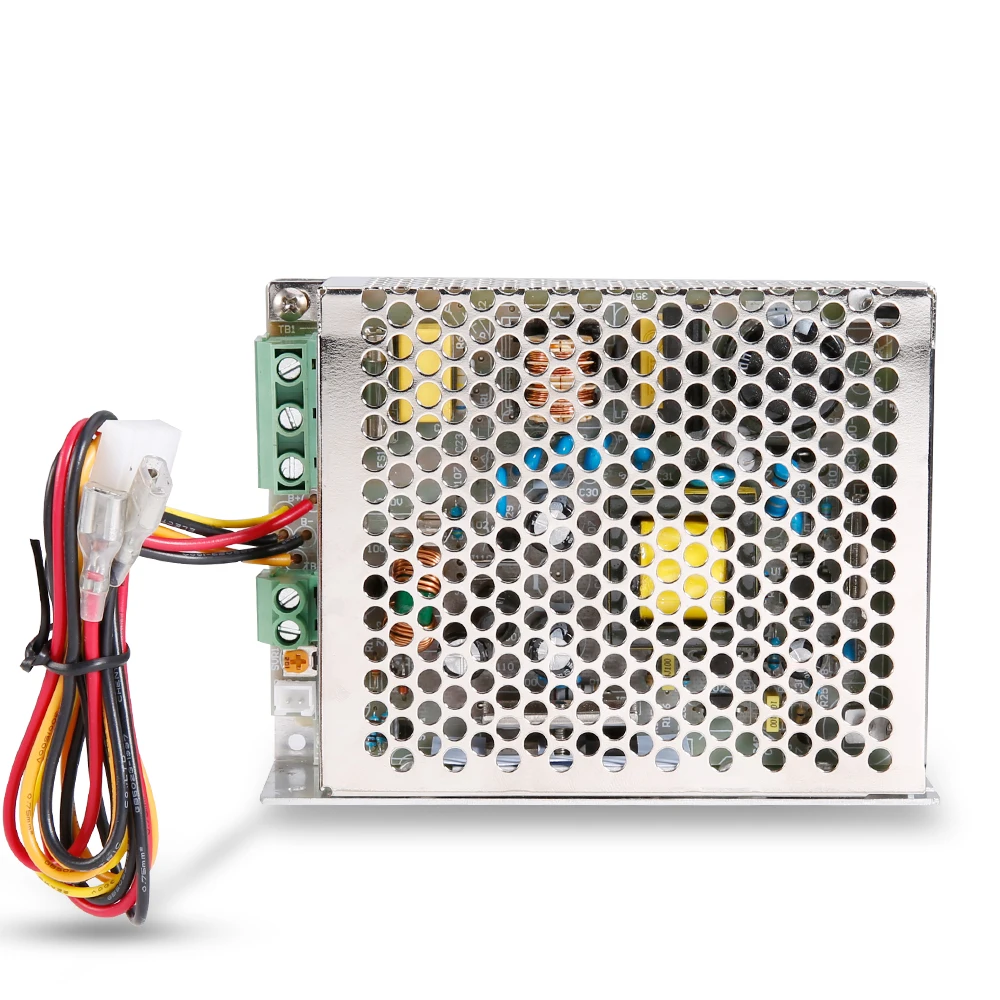

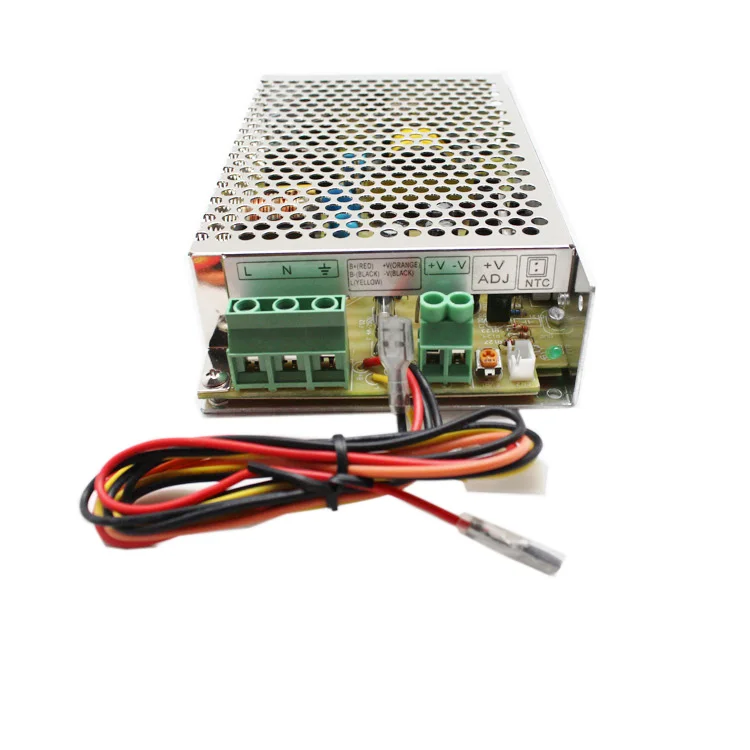

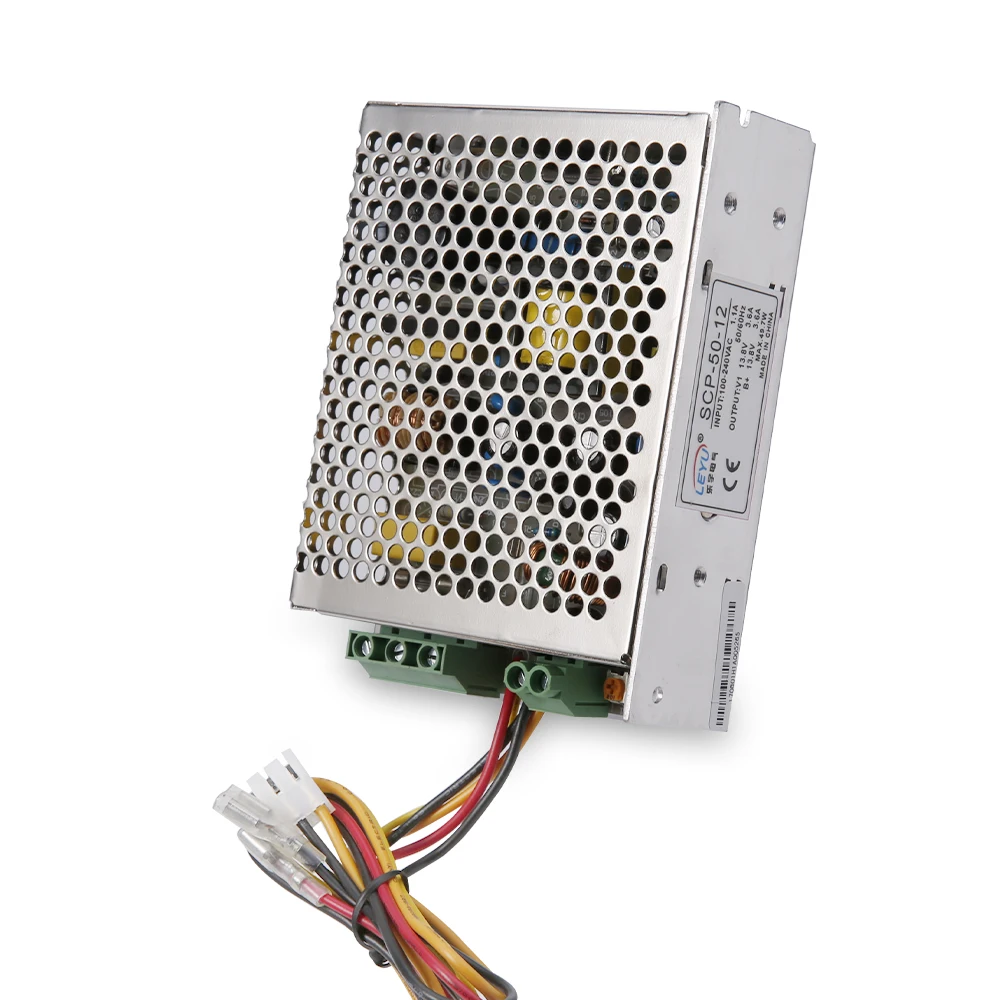

Original SCP 50 12 50w 12v 25khz Rainproof Switching Power Supply with ups function
- Category: >>>
- Supplier: Yueqing Okey trade Co Ltd
Share on (60784852258):
Product Overview
Description
Product Description
Specification
SPECIFICATION | |||
Model | SCP-50-12 | SCP-50-24 | |
DC Voltage | 13.8V | 27.6V | |
Rated Current | 3.6A | 1.8A | |
Current Range | 0-3.6A | 0-1.8A | |
Rated Power | 49.7W | 49.7W | |
Ripple & Noise | 120mVp-p | 200mVp-p | |
Voltage Adj. Range | +15,-5% | +15,-5% | |
Voltage Tolerance | ±2% | ±1% | |
Inlet Stability | ±1% | ±1% | |
Load Stability | ±2% | ±1% | |
Setup, Rise | 500ms,30ms/230VAC 1200ms,30ms/115VAC at full load | ||
Hold Up Time | 50ms/230VAC 16ms/115VAC at full load | ||
Voltage Range | 85~264VAC 120-370VDC | ||
Frequency Range | 47-63Hz | ||
AC Current | 1.1A/115VAC 0.65A/230VAC | ||
Efficiency | 81% | 85% | |
Inrush Current | Cold-start 45A | ||
Leakage Current | <2mA/240VAC | ||
Over Load | 4.3A~5.8A rated output power | 2.2A~2.9A rated output power | |
Protection type: hiccup mode,recovers automatically after fault condition is removed | |||
Over Voltage | 16.6~19.3V | 33.1~38.5V | |
Protection type: shut down o/p voltage, re-power on to recover | |||
Working Temp., Humidity | -20℃~+60℃(Refer to output derating curve),20%~90%RH | ||
Storage Temp., Humidity | -40℃~+85℃, 10%~95%RH | ||
Temp. Coefficient | ±0.03%/℃(0~45℃) | ||
Vibration | 10~500Hz,2G 10min,/1cycle,Period for 60min,Each along X.Y.Z axes | ||
Safety Standard | UL60950-1,CCC,CE | ||
EMC Standard | EN55022,CLASS B | ||
OTHERS | |||
Dimension | 129*98*38mm(L*W*H) | ||
Net Weight | 375.7g | ||
Packing | 450g/pc 30pcs/carton | ||
