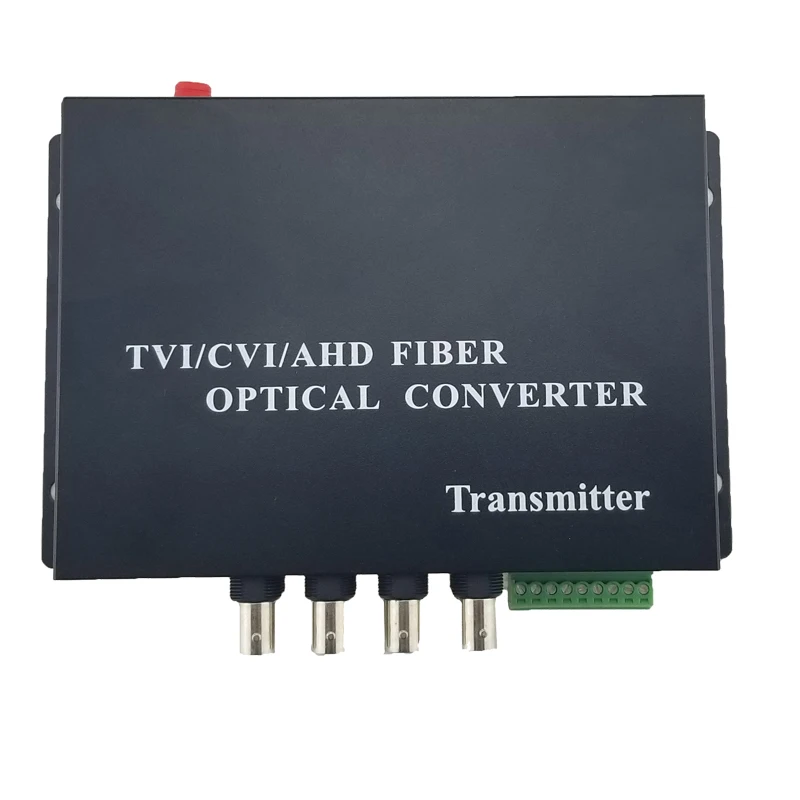

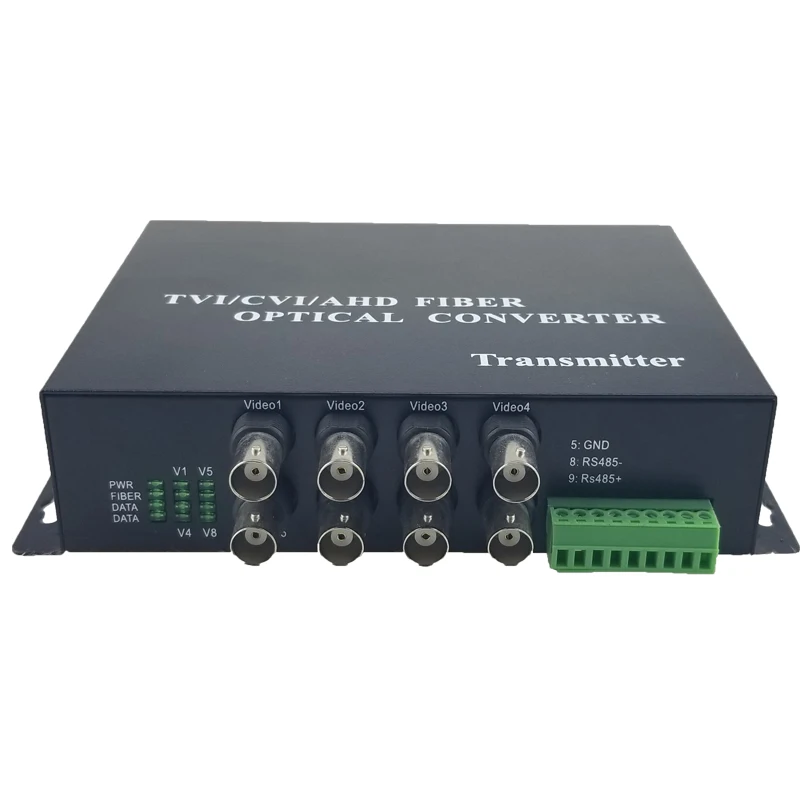

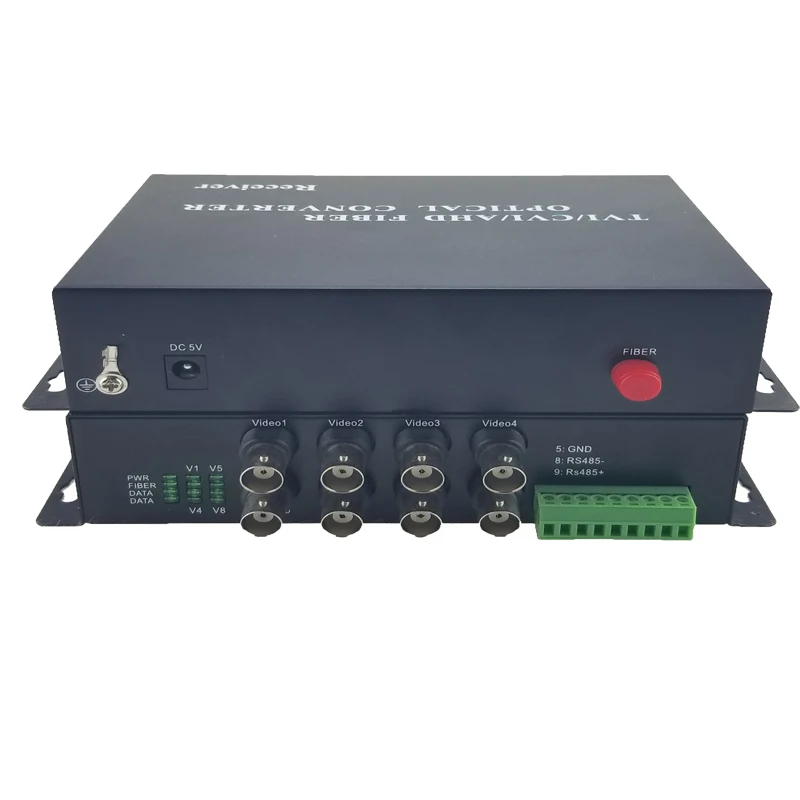

8chs Non compression RS485 1310nm/1550nm TVI/CVI/AHD/CVBS Video to Fiber Converter CCTV optic fiber converter
- Category: >>>
- Supplier: Wanying Kaifeng Electronic Co. Ltd.
Share on (60784867691):
Product Overview
Description
Product Description
8chs Non-compression RS485 CCTV 1310nm/1550nm TVI/CVI/AHD/CVBS Video to Fiber Converter
optic fiber converter
Automatically identify formats of input videos
Support transmission of 8channels TVI/CVI/AHD/CVBS signal and controlling data simultaneously though coaxial cable
DC 5V power supply
Support 720p/25,720p/30,720p/50,720p/60, 1080p/25, 1080p/30 videos etc
Through LED indicators to inform its functional mode
Industrial wide range of operational temperature
Plug and play, simple installation
Application
City traffic monitoring system
Public security, safe city monitoring system
Highway security protection, charging system
Building, campus monitoring net
Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
electric power, oilfield, television program transmission system
Gymnasium (live video, audio transmission)

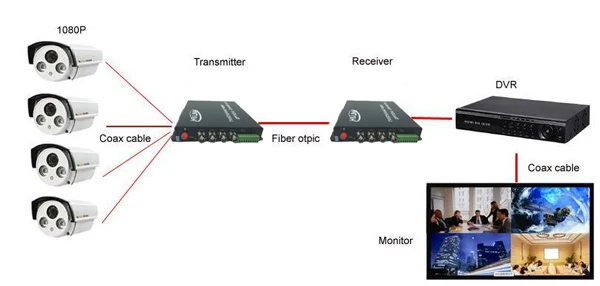

TVI/CVI/AHD/CVBS 720P/960P/1080P Series Connection Diagram
Technical Specification
Optics:
Wavelength | WDM:1310nm/1550nm |
Output Power | -8~3dBm |
Optic fiber | 50/125u multimode,62.5/125u multimode,9/125u single mode |
Rx sensitivity | -26dBm |
Optical connector | FC,ST,SC (optional) |
Distance | 0~550M (MM) / 0~80KM (SM) (Default distance is 20Km) |
Video:
Number of Channels | 8 |
Input/output impedance | 75 Ohm (unbalance) |
Standard video input/output voltage | 1.0Vp-p |
Video Bandwidth | 50MHz |
Sampling Bandwidth | 8bit |
Sampling Frequency | 108MHz |
Signal to noise ratio | >67dB |
Rise and Fall time | <0.8ns |
Optical Signal Intrinsic Jitter | <0.2 UI |
Differential Gain | < ±1.5% |
Differential Phase | < ±1° |
Connector | BNC |
Supporting video pixel | 1280(H)x720(V)@30Hz/1MPX 1280(H)x720(V)@50Hz/1MPX 1280(H)x960(V)@30Hz/1.3MPX 1920(H)x1080(V)@30Hz/2MPX |
Data:
Protocol | Default :RS485 (RS232/RS422 Optional) |
Number of channels | 1 |
Connector | 3pins Terminal Blocks |
Data Rate | 0-200Kbps |
Directions | Default :Simplex from Rx to Tx (BIDI duplex optional) |
Mechanical Structure & Environment
Power | DC5V 2A |
Power Consumption | ≤6W |
Working Temperature | -15ºC ~65ºC |
Storage Temperature | -40ºC ~85ºC |
Relative Humidity | 5%~95% ( no condensation) |
MTBF | ≥ 100000Hours |
Packaging & Shipping
Company Information
Wanwon Kaifeng Electronic Co.,Ltd is Branch of Coutstand which specializes in manufacturing,developing and selling HD products since 2005.With hard working and innovation these years,we have won a good reputation asa
high quality and good service supplier in HD field in china.We havevarious kinds of products which include:
1) HDBaseT splitter,HDBaseT Extender, HDBaseT Matrix;
2)3G SDI to HDMI converter , 3G HD SDI to Fibre converter
3)HDMI splitter ,HDMI switch,HDMI cable,HDMI adapter
4) VGA splitter, KVM series,USB 3.0 series and so on;
All of our product have approved by CE,ROHS,and some approved by
UL,TUV,above 90%for export,they are warmly welcomed in most European and
American countries.We have rich experience in developing HDMI products
according to our customers’ideas about what they want.
Our products widely applies in the HD products supporting, cinema, home theater, all areas of education systemOur superior Engineering team have decades of accumulated experience in the broadcast and fiber audio & video solutions fields:
(1) UltraHD 4K/6G/12G Solution.
(2) SDI Broadcast Solution.
(3) EFP with Data,Audio,Intercom,Tally,Ethernet,Telephone to Fiber Converter.
(4) HDMI/DVI/VGA/KVM Video to Fiber Converter.
(5) Balanced Audio to Fiber Converter.
(6) 10/100Mbps and 10/100/1000bps Multi-ports Ethernet.
(7) TVI/CVI/AHD/CVBS 4 in 1 Video to Fiber Converter.
The complete product portfolio applies the latest technologies in the areas of digital and analog signal processing. we widely use of programmable technology enables rapid product adaptations as the market demands without having to develop new hardware.
This new technology has resulted in a powerful, high quality solution. All products were customized and developed in close cooperation with European and America Broadcasters who helped refine and specify features and set performance levels. All modules have been extensively field-tested by broadcasters and are widely using all over the world.
FAQ
Q1:How could I get a sample and what is your payment method?
A: We have most of models in stock for samples requirement. After the sample charge is received, we will arrange the sample delivered to your door in 3-7 days.We accept most of the payment method such as Paypal, T/T etc.
Q2:How much the courier freight for the samples?
A:Freight depends on the sample quantity, weight ,packing size and your location.
Q3:How can I get your price list?
A:Price list will be provided upon receiving your enquiry. You can send your enquiry on alibaba or directly to our sales' email address.
Q4:Can we have our logo or company name to be printed on your products or the package?
A:Yes, you sure.
We accept OEM/ODM orders and provide services for logo printing, carton marks as well as packing designings.
You can send us the artwork by email in JPG, TIF, AI, EPS, TIFF or CorelDraw formats.
Logo printing may require MOQ which may vary from different models. Please contact us for details.
Q5:What's your usual payment term for orders?
A:We accept payment terms of T/T, L/C and Paypal etc. We can also accept Alibaba online ordering.
Our Services
•Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.
•Maximum transmission distance is also limited by fiber bandwidth.
•Power adapter for stand-alone units is manufactured by third party .Power adapter included US, European, UK or Australian power plug.
•Please feel free to contact factory for any special requirement and customization
