15 30kgs/h output small peanut butter sesame butter soybean milk making machine for sale

Product Overview

Description

Automatic continuous sesame cocoa hazelnut walnut butter making machine Industrial almond tahini milk peanut butter making machine



Product Description



This product adopts stainless steel manufacturing, the stainless steel has the most suitable hardness and the best material for making peanut/almond/sesame/cocoa/hazelnut/walnut butter mill, it has beautiful appearance and practical.

This product is a new type of equipment for the wet type super-micro processing, suitable for the homogenization, emulsification and comminuting of the emulsions.

This product has an advanced design, it can adjust rotate speed of millstones according to different demand of different materials, and users can exchange optionally the blast motor for different materials and working condition.

This product has ascendant efficacy(comminuting of the emulsions, spread around, emulsification, suitable for the homogenization, etc.), the granularity processed can reach to 2-60μm, the homogenization reaches to 95%.



Main Parameter



Model	Fineness emulsion (um)	Adjusting range (mm)	Output (kg/h)	Power (KW)	Voltage (v)	Speed (r/min)	Abrasive discdiameter (mm)	Size  (L*W*H) (mm)
MT-015PBM	2-60	1-0.01	15	1.1	220/380	2900	50	320*320*650
MT-045PBM	2-50	1-0.01	45	2.2	220/380	2900	80	700*300*650
MT-050PBM	2-50	1-0.01	50-80	2.2	380	2900	100	800*320*680
MS-150PBM	2-50	1-0.01	150-250	5.5/7.5	380	2900	150	950*420*850
MS-300PBM	2-50	1-0.01	400-600	11	380	2900	240	1050*450*1000
MS-600PBM	2-50	1-0.01	800-1000	22	380	1800-3200	480	1150*500*1500



Features of the machine

1. Main spare part use the best quality stainless steel, corrosion resistance and non-toxicity.

2. the main parts stator and rotor, Using special machining and heat treatment process, High precision, long service life.

3. the stator and rotor can select different materials, and match grinding and sharing structures and tooth type, the client can select according the usage.

4. the working gaps can be adjusted,  easy to control, can make sure the quality of the products.

5. the main seat, adjust ring match the Stopper and locking device, which can make sure the stability of the working  between the stator and rotor.

6. the machine has cooling system, which can keep the character of the materials.

7. the design of the machine has the usual feeding hopper, and pipe outlet which can make the material to be recycled in the machine, can satisfy the requirements of users.

8. The user can select the usual motor or Explosion-proof motor.

9. The whole design of the machine can according the requirements of the clients.

10. main axle and motor, the client can select the rotary speed of the motor and the axle.

11. The standard motor.

The machine is well designed, stability performance, simple operation, easy maintained.

Application

Food industry:aloe vera, Pollen, pineappie, sesame, fruit tea, ice cream,

           Moon cake stuffing, butter, jam, fruit juice, soybeans, soybean

           Paste, red bean, peanut milk, proteit milk, soy milk, dairy

           Products, wheat milk essence, flavor, variety of drinks, chicken

           Mud, pig and other animal hides.



Chemical industry: paints, pigments, dyes, paints, lubricants, grease,

           Diesel, petroleum catalyst,  emulsified  asphalt,  adhesives,

           Detergents,  plastics,  explosives,  glass,  steel,  leather,

           Emulsion explosives.



Daily Chemical: toothpaste, detergent, shampoo, shoe polish, cosmetics,

           Bath essence, soap, balsam etc..



pharmaceutical industry: all kinds of syrup, nutrition, medicinal paste

          Pharmaceutical, biological products, cod liver oil, pollen, royal

          Jelly, vaccines, various creams, a variety of  oral,  injection,

          Intravenous fluid,  pancreatic enzyme preparations,  emulsions,

          Etc..



Other industries:  plastic industry,  textile industry,  paper industry,

          Bio-chemical,  environmentally friendly energy,  coal flotation

          Agent, nano-materials, among major colleges scientific research

          Units.



Product Photos

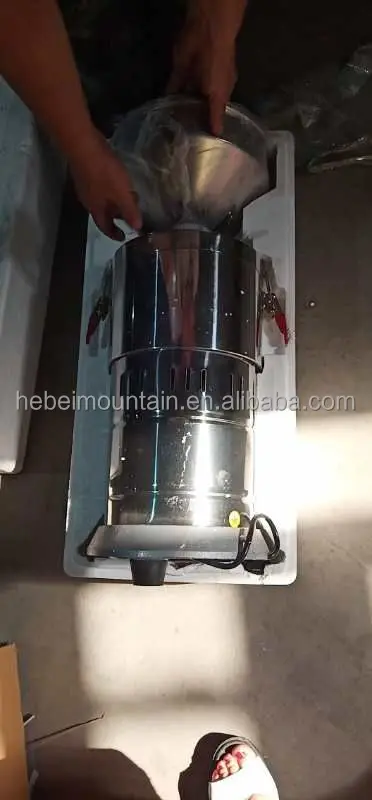

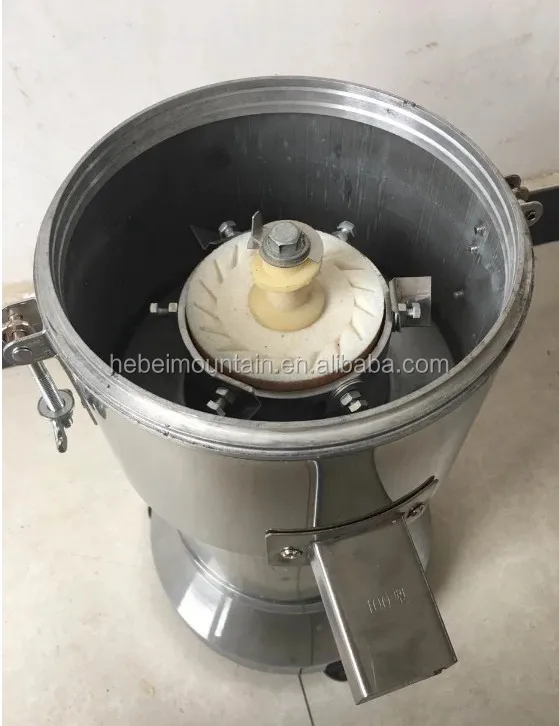

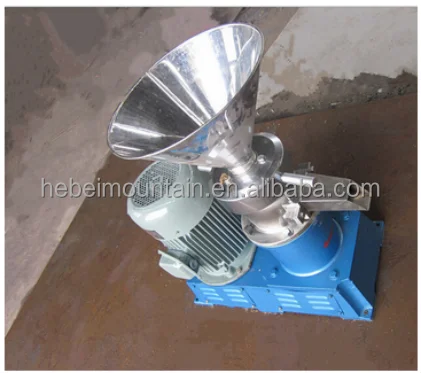

MT-015PBM\\MT-030PBM

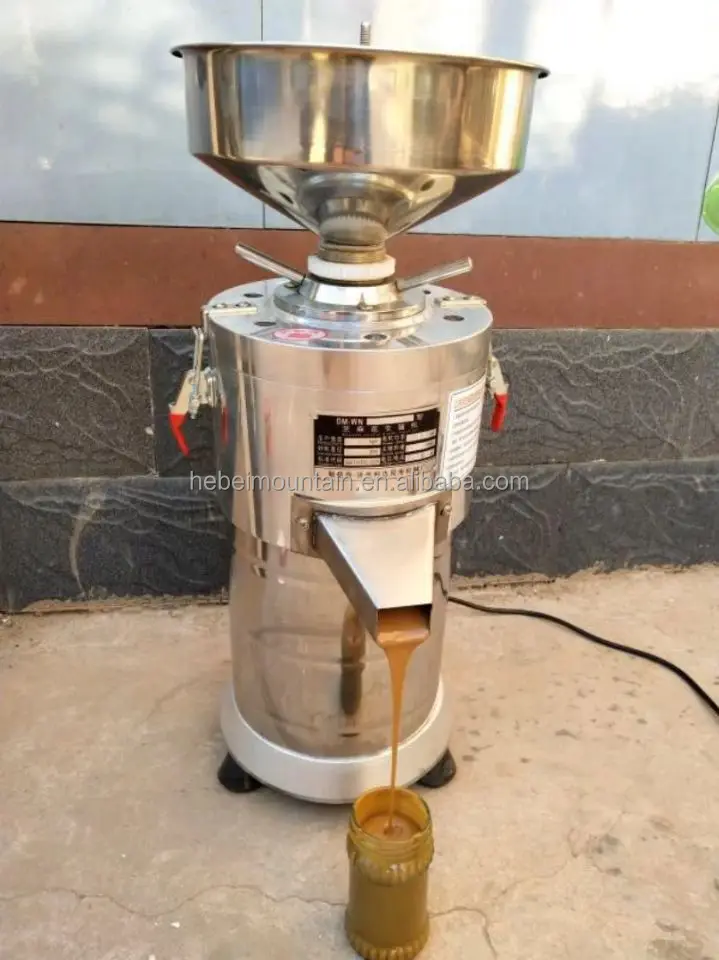

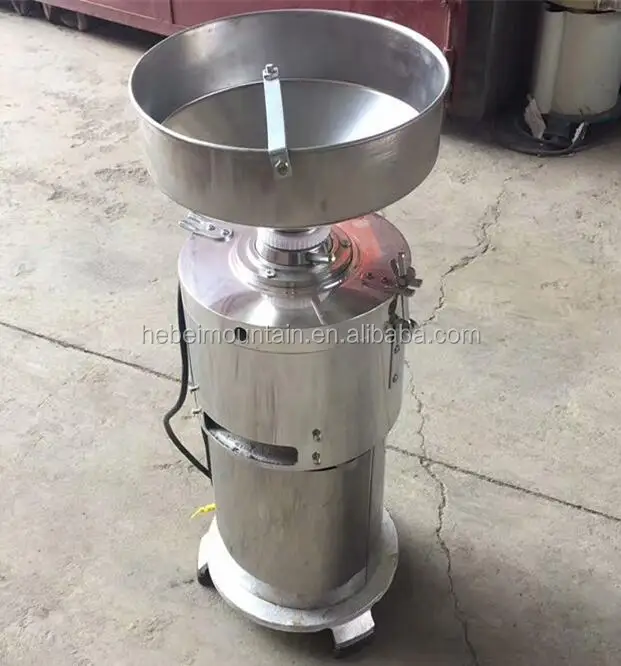

MT-045PBM

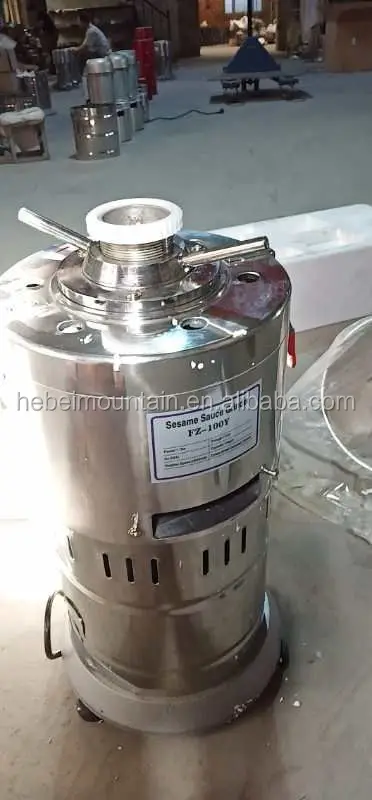

 MT-050PBM\\ MT-150PBM\\

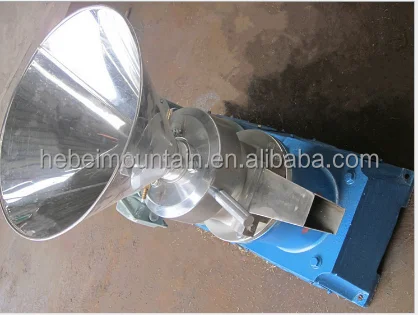

MT-300PBM\\MT-600PBM below:
