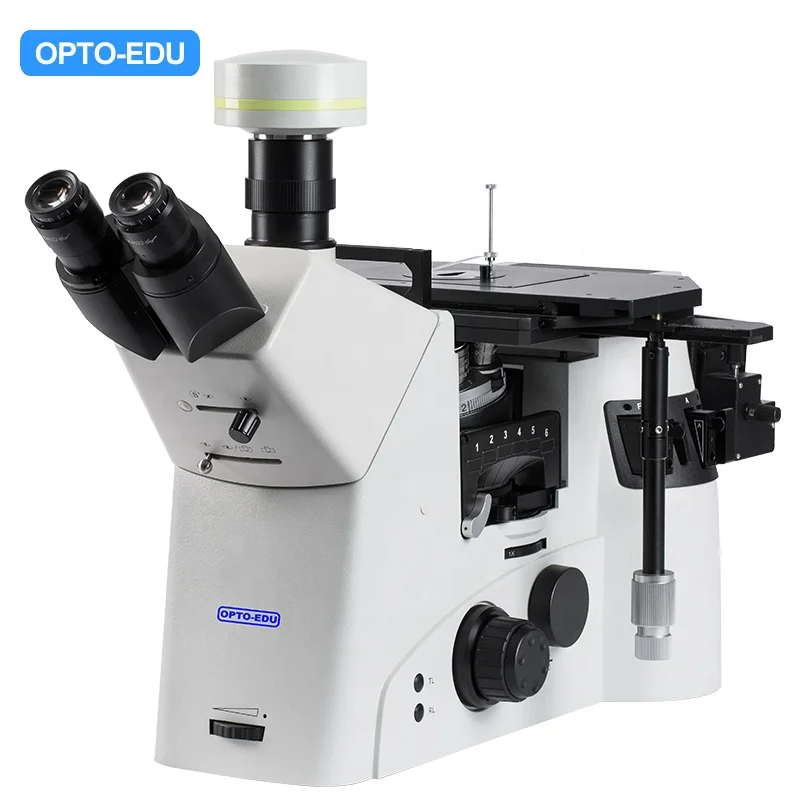

OPTO EDU A13.1096 Inverted Mrtallurgical Microscope
- Category: Optical Instruments >>>
- Supplier: Opto-Edu (Beijing) Co. Ltd.
Share on (60784989134):
Product Overview
Description
With the continuous deepening of material science research, a single observation mode can no longer meet the increasingly complex scientific research and inspection needs. A13.1090 can achieve a variety of observation needs, whether basic bright field, polarized light, or complex DIC and silver observation. , Can get clear, true and complete images
A13.1090 Research Level Inverted Fluorescent Microscope | A13.1090 | Cata.No. | ||||
Optical System | NIS60 Infinite Optical System | ● | ||||
Observation Method | Bright Field | ● | ||||
Dark Field | ○ | |||||
Polarizing | ○ | |||||
Flourescent | ○ | |||||
DIC | ○ | |||||

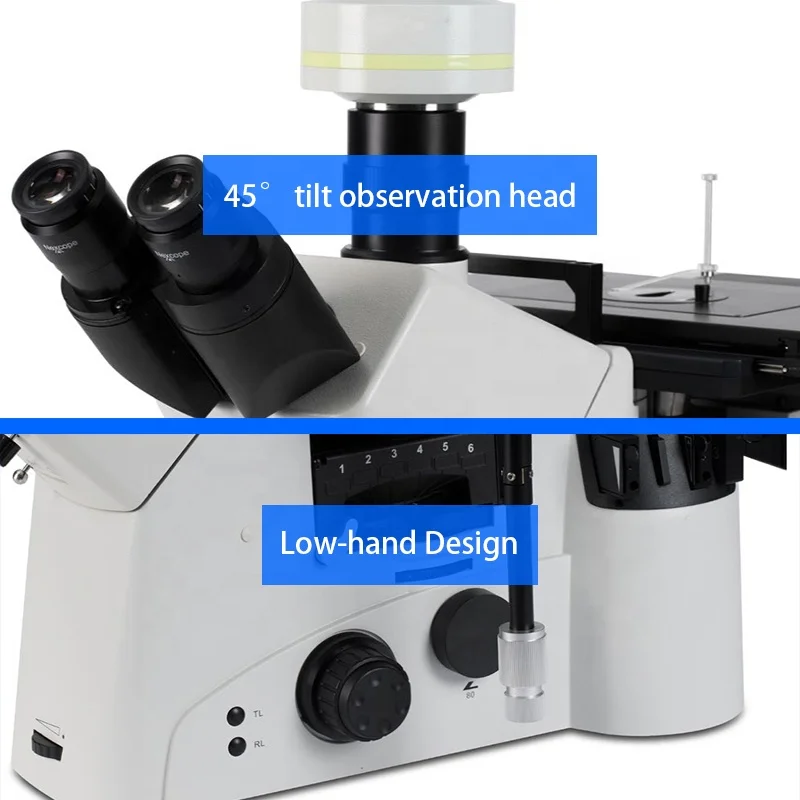

Head | Seidentopf Trinocular Head, Inclined 45°, Interpupillary Distance 47-78mm, Ligth Split Switch E100:P0/E20:P80/E0:P100, With Built-in Bertrand Lens Which Can Be Used As Centering Telescope | ● | ||||
Eyepiece | SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm | ○ | A51.1090-1025 | |||
SW10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm | ● | A51.1090-1022 | ||||
EW12.5x/17.5mm, High Eyepoint, Diopter Adjustable, Dia.30mm | ○ | A51.1090-12516 | ||||
WF15x/16mm, High Eyepoint, Diopter Adjustable, Dia.30mm | ○ | A51.1090-1516 | ||||
WF20x/12mm, High Eyepoint, Diopter Adjustable, Dia.30mm | ○ | A51.1090-2012 | ||||

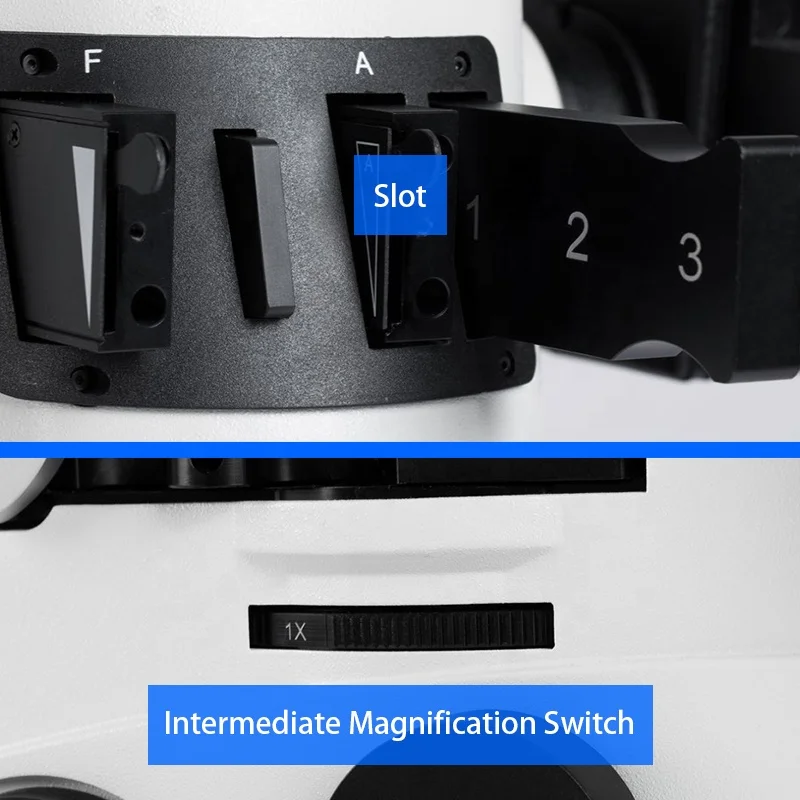

Media Lens | Built-in Media Lens Turret, Under Nosepiece, 1.0x, 1.5x Switchable | ● | ||||
Nosepiece | Manual Sextuple Nosepiece, With DIC Slot | ● | ||||
NIS45 N-MPFN Infinity Plan BF/DF Semi-APO/APO Metallurgical Objective | 5x/0.15, W.D.20mm, No Cover Glass, Semi-APO | ● | A5M.1091-5 | |||
10x/0.3, W.D.11mm, No Cover Glass, Semi-APO | ● | A5M.1091-10 | ||||
20x/0.45, W.D.3mm, No Cover Glass, Semi-APO | ● | A5M.1091-20 | ||||
50x/0.8, W.D.1mm, No Cover Glass, APO | ● | A5M.1092-50 | ||||
100x/0.9, W.D.1mm, No Cover Glass, APO | ● | A5M.1092-100 | ||||

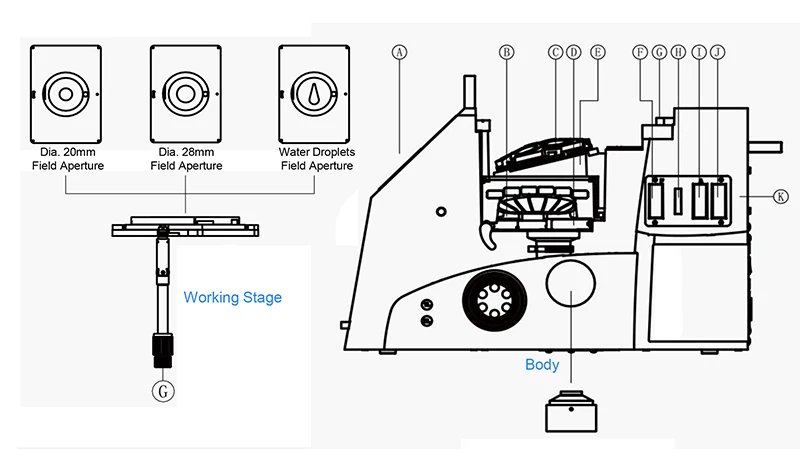

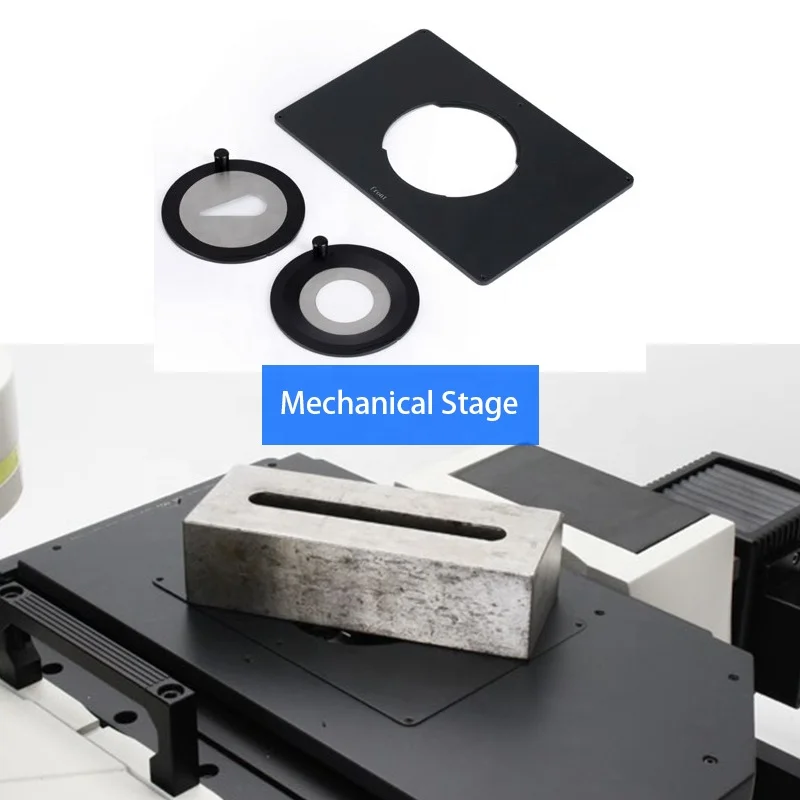

Working Stage | Three Layer Mechnical Stage, Size 340x230mm, Moving Range 130x85mm, Flexible Knob, Available For Different Size Small Stage Plate, Can Hold Max Weight 30Kgs | ● | A54.1098 | |||
Motorized X/Y Axies (Optical Grating Type) Mechnical Stage, Size 325x144mm, Moving Range 130x100mm, Max Speed 10mm/s, Resloution 0.1um, Repeat Accuracy +/-0.5um, Available For Different Size Small Stage Mounted on Top Layer, With Separate Communication/Main Control Box & Stick | ○ | A54.1098-M | ||||
Metal Plate Dia.20mm | ● | A54.1098-M20 | ||||
Metal Plate Dia.28mm | ● | A54.1098-M28 | ||||
Metal Plate Water Drop Shape | ● | A54.1098-MW | ||||
Focusing | Coaxial Coarse & Fine Focusing, Focusing Range 9mm (Up 2mm, Down 7mm), Coarse Stroke 2mm, Fine Stroke 0.2mm | ● | ||||
Motorized Z Axies (Optical Grating Type) Focusing System, Focusing Range 9mm (Up 7mm, Down 2mm), Focusing Resloution 0.02um With Optical Grating, Movement Repeat Positioning Accuracy +/-0.1um, Prevent Stage Fall Down Function | ○ | |||||

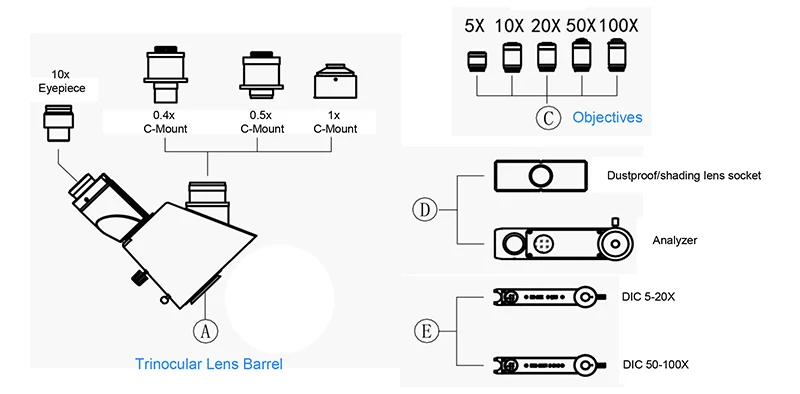

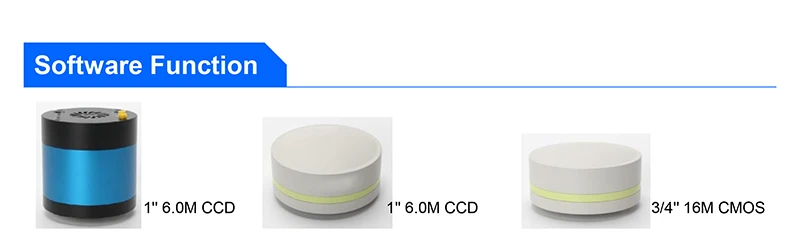

Adapter | 3 Camera Ports, On Both Side Of Main Body And Head, Turret Switch Between: --Trinocular Port Switch E100:P0/E20:P80/E0:P100 --Left Port C-Mount 1.0x E0:P100 --Right Port C-Mount 1.0x E20:P80 | ● | ||||
C-Mount 0.4x | ○ | A55.1095-04 | ||||
C-Mount 0.5x | ○ | A55.1095-05 | ||||
C-Mount 1.0x | ● | A55.1095-10 | ||||

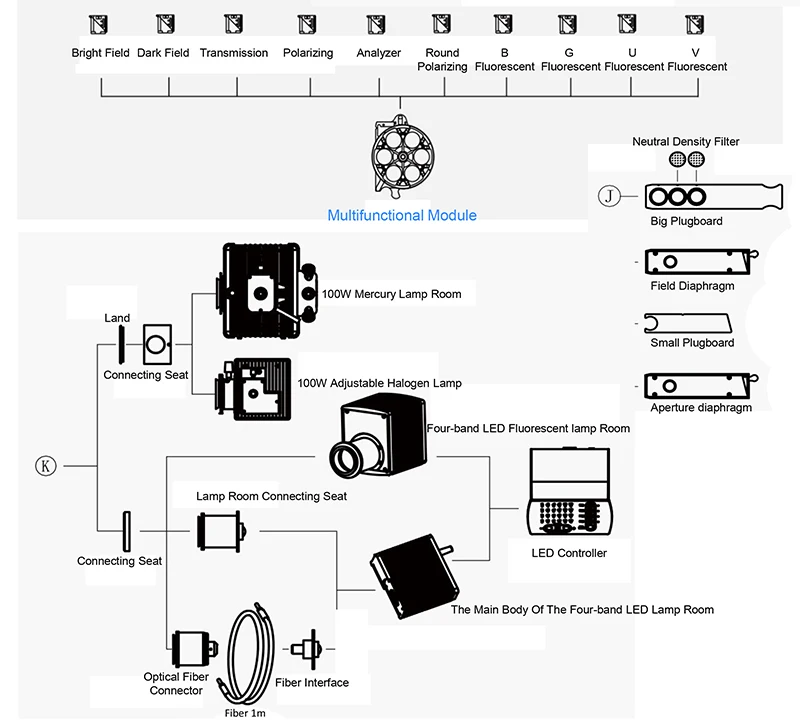

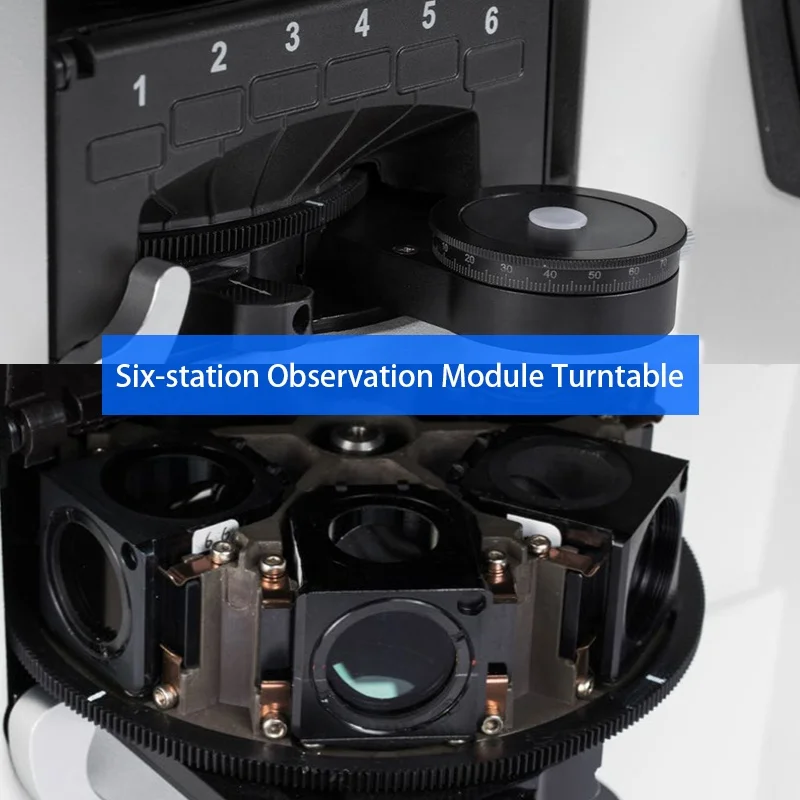

Multi Function Turret | Multi Function Turret Under Nosepice, With 6 Positions For Cubes Of Bright Field, Dark Field, Phase Contrast, Polarizing, Fluorescent View, Turning The Disc To Easily Switch Observation Methods | ● | ||||
Dark Field | Dark Field Block, Put In Multi Function Turret, For Reflect Light Source | ○ | A5D.1098 | |||
Polarizing | Polarizer Light Block, Put In Multi Function Turret | ○ | A5P.1098-PL | |||
Circularly Polarized Light Block, Put In Multi Function Turret | ○ | A5P.1098-CP | ||||
Analyzer Slide, Insert Into Slot On Nosepiece, 360° Rotatable | ○ | A5P.1098-A | ||||

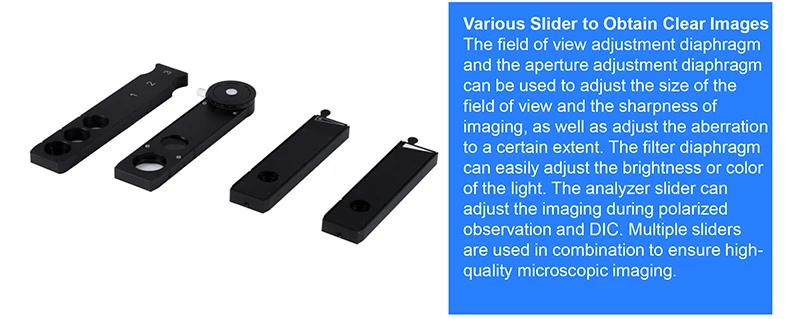

DIC | DIC Slider 5x-20x, Insert Into Slot On Nosepiece | ○ | A5C.1097-S520 | |||
DIC Slider 50x-100x, Insert Into Slot On Nosepiece | ○ | A5C.1097-S50100 | ||||
Reflect Light Soruce | 12V100W Halogen Kohler Illumination, Brightness Adjustable | ● | A56.1095-12V100W | |||
Large Filter Holder Slide With 3 Holes | ● | A56.1095-LS | ||||
Field Diaphram Slide, Center Adjustable, | ● | A56.1095-FS | ||||
Small Empty Slide | ● | A56.1095-ES | ||||
Aperture Diaphragm Slide | ● | A56.1095-AS | ||||
ND6 Filter | ● | A56.1095-ND6 | ||||
ND25 Filter | ● | A56.1095-ND25 | ||||
Reflect Fluorescent Light Soruce | 100W Mercury HBO Fluorescent Light House, Intelligent Power Supply Box Protect Barrier For UV Light | ○ | A5F.1095-100W | |||
10W S-LED Fluorescent Light, 4 Color Bands, Brightness Adjustable By Control Box | ○ | A5F.1095-10WLED | ||||
Fluorescent Filter B Block, Put In Multi Function Turret | ○ | A5F.1095-B | ||||
Fluorescent Filter G Block, Put In Multi Function Turret | ○ | A5F.1095-G | ||||
Fluorescent Filter U Block, Put In Multi Function Turret | ○ | A5F.1095-U | ||||
Fluorescent Filter V Block, Put In Multi Function Turret | ○ | A5F.1095-V | ||||

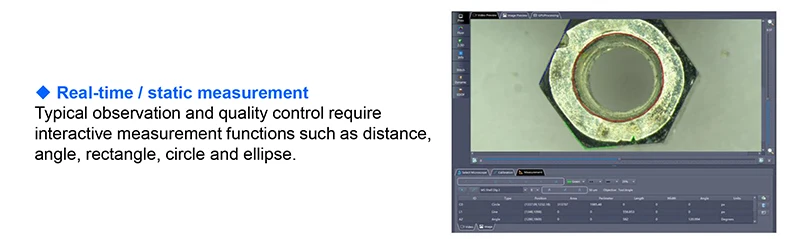

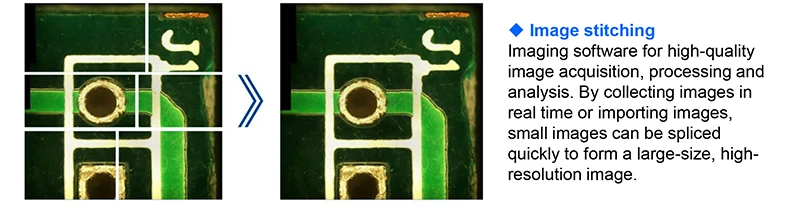

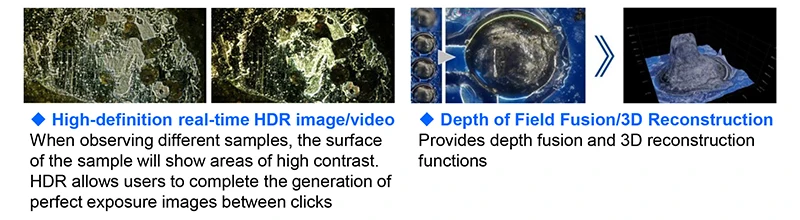

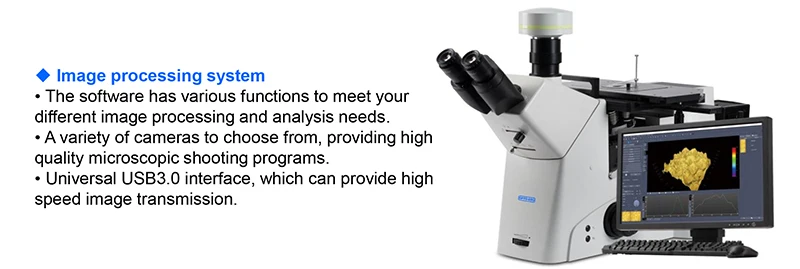

Software | NOMIS Basic Image Processiing Software | ○ | A30.1090 | |||
Note:"●"In Table Is Standard Outfits,"○" Is Optional Accessories "-" Is Unavailable | ||||||
