Heat assisted flat bed sheet applicator with LED rolling laminator FY1325/FY1530/FY1737
- Category: Laminating Machines >>>
- Supplier: Henan Yingkai Technology Development Co. Ltd.
Share on (60785087882):
Product Overview
Description
Product Description

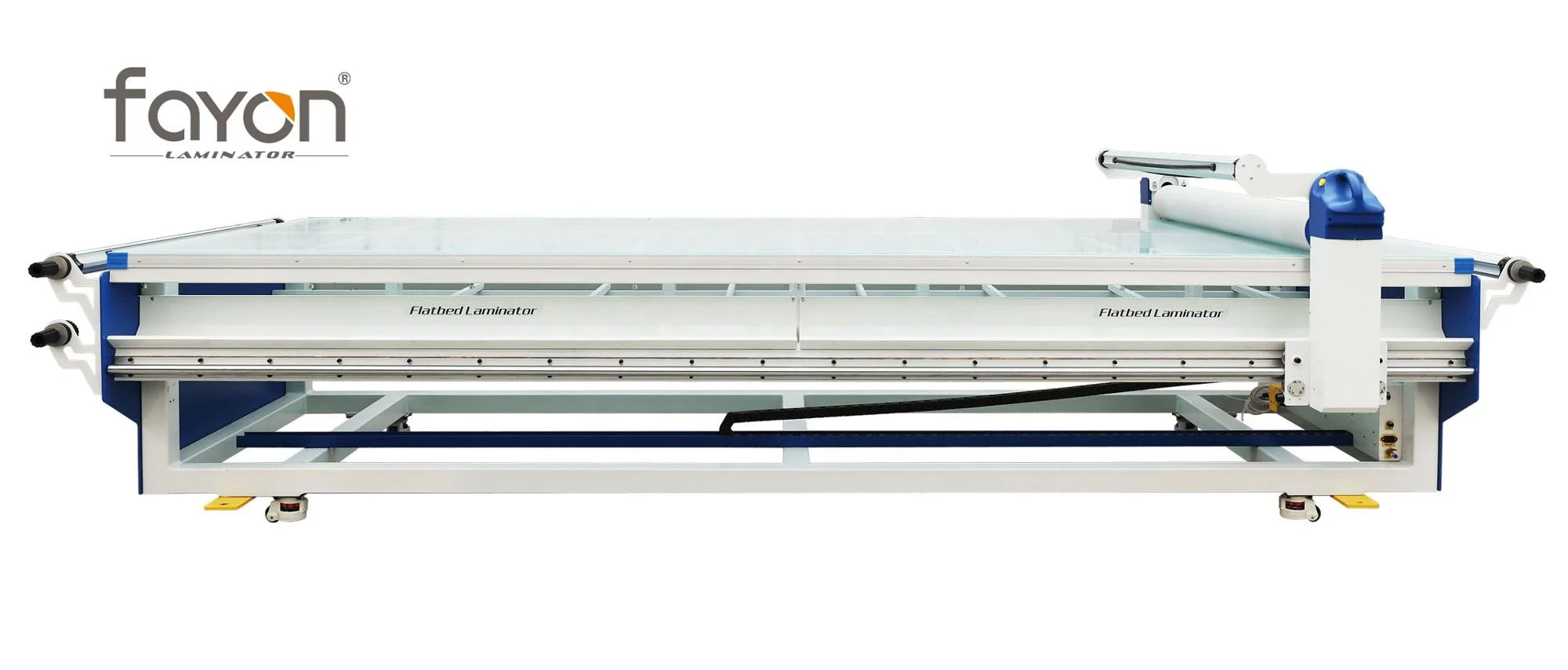

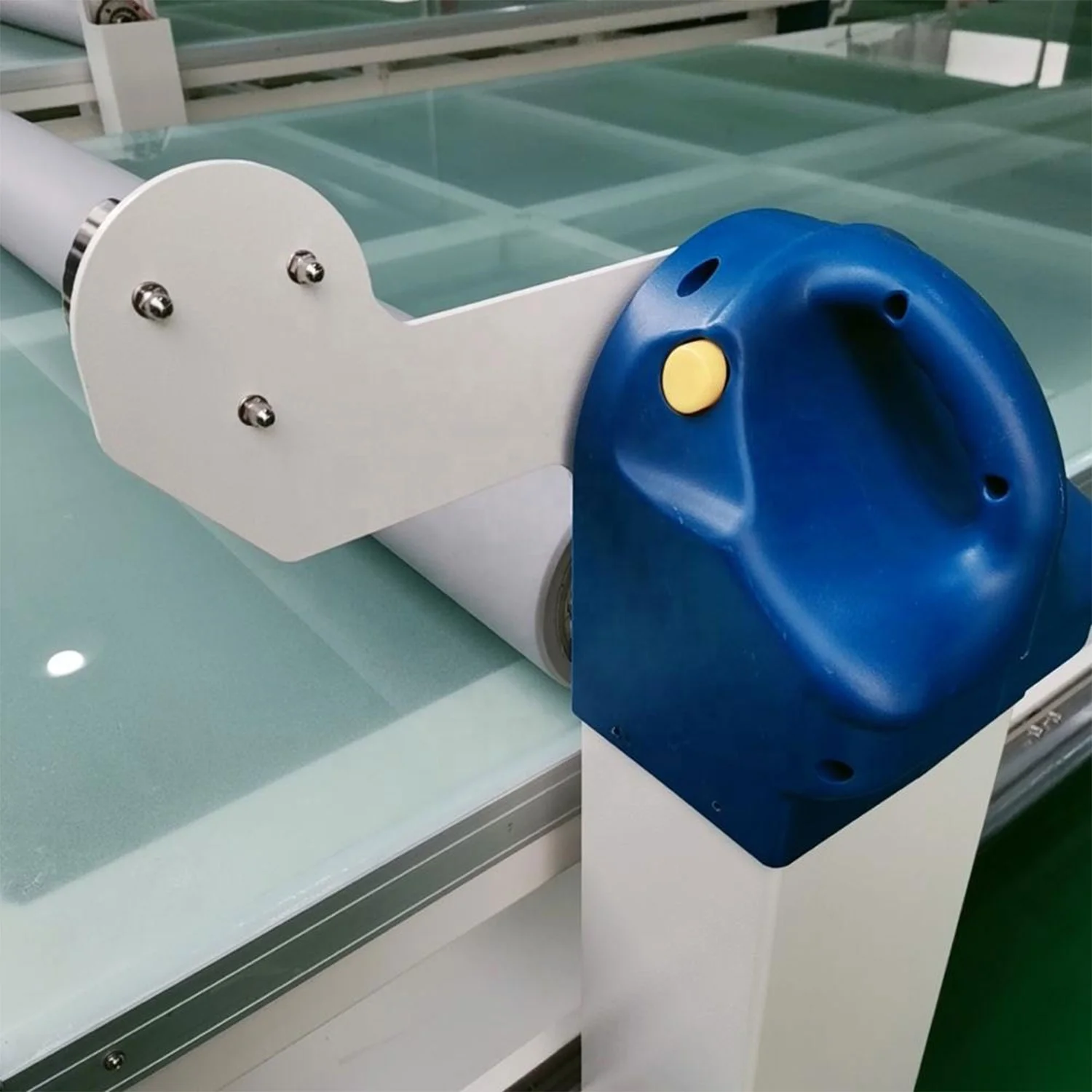

Heat assisted flat bed sheet applicator with LED rolling laminator
FAYON flat bed sheet applicator is a professional equipment in the printing and post-processing, cater to your varying needs, widely used in the advertising, exhibition organizers, picture production, studio and many other fields, Flat bed sheet applicator workstation could save the time-consuming steps in Mounting, Laminating and Masking. Many traditional manual Operation are time-costly, complex and technically demanding, but result effect are still uneven. FAYON workstation could finish all the job in a third of time result in a perfect effect!
Features
✓ LED table lighting system

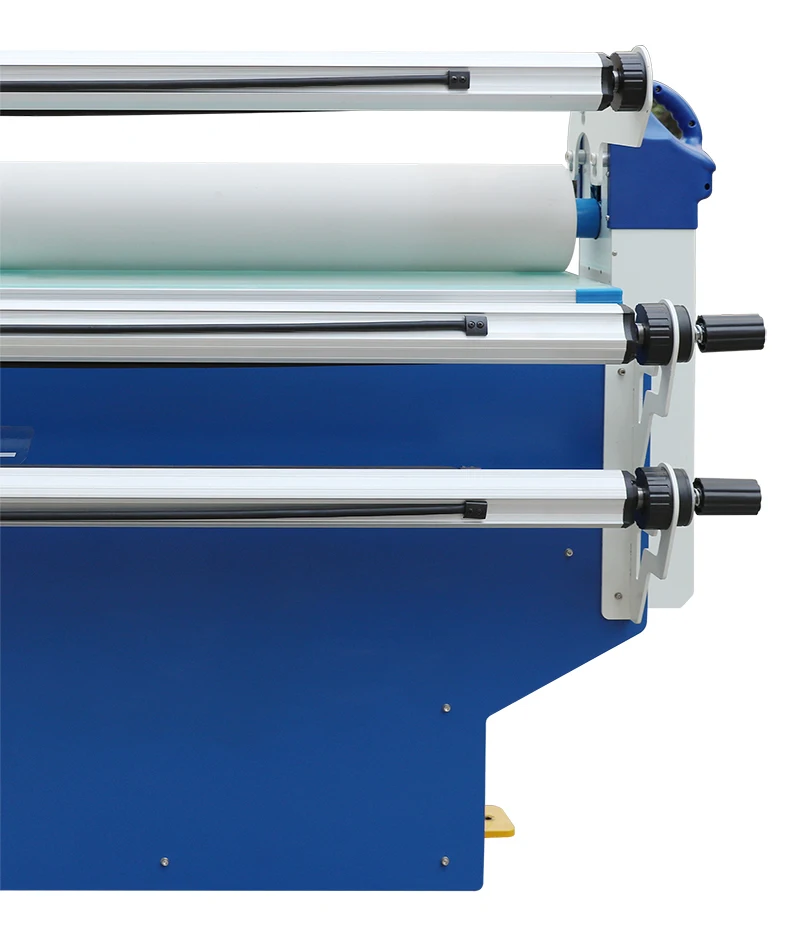

✓ Tension Media feed shafts

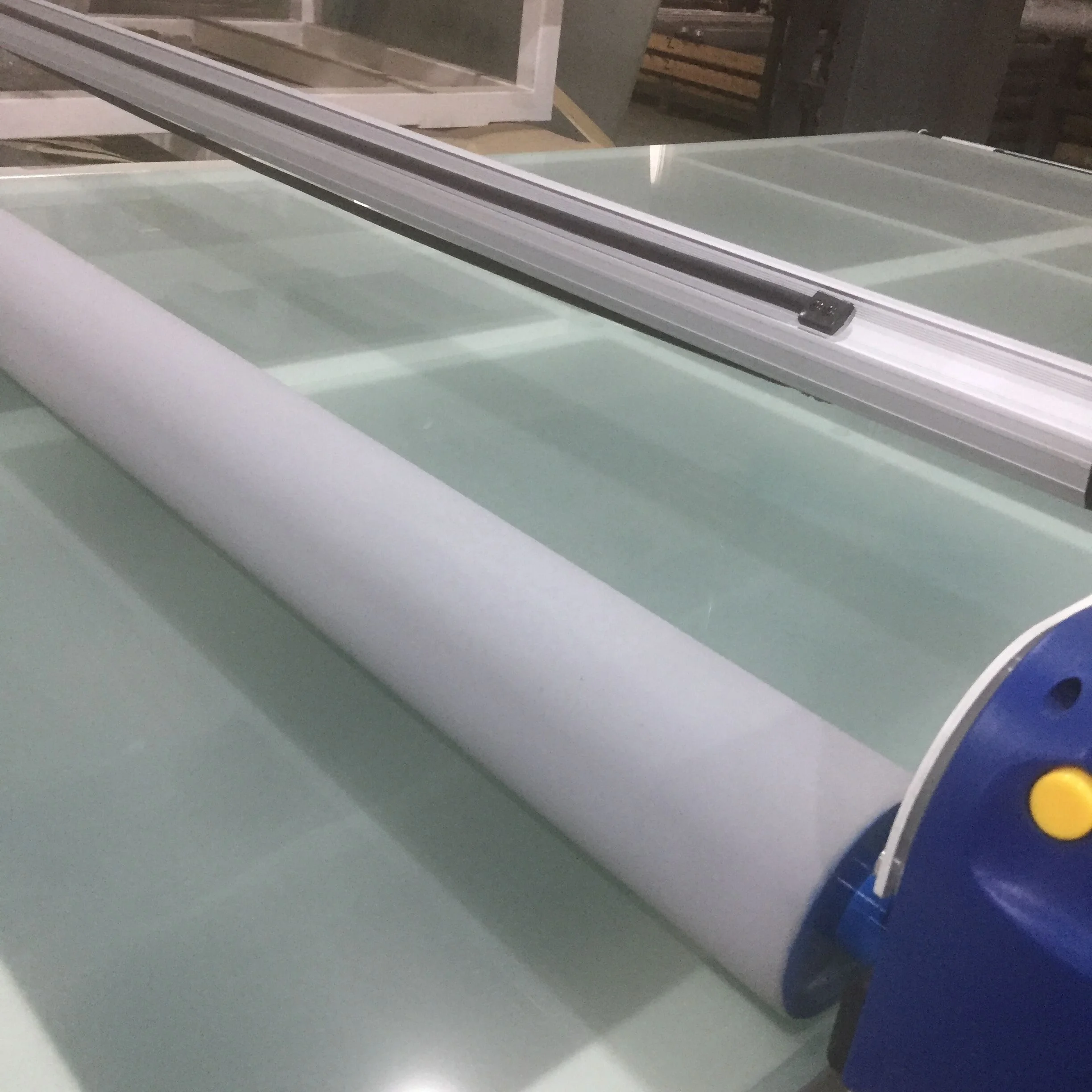

✓ Heat assisted roller
✓ Solid steel chassis
✓ Built in silent air compressor
✓ Side media roll holders
Advantages
✓ Reduce production time dramatically
✓ Consistent high quality work flow
✓ Time savings equals more profit
✓ Ergonomically designed, easy to use
✓ Only minimal training required to operate
✓ Consistent high quality work flow
✓ Time savings equals more profit
✓ Ergonomically designed, easy to use
✓ Only minimal training required to operate
✓ Requires only one person to operate .
Item | Heat assisted flat bed sheet applicator with LED rolling laminator | ||||
Model | FY1325 | FY1530 | FY1737 | ||
Diameter of roller: | 130mm | ||||
Material of rollers: | Silicon dioxide | ||||
Max.effective working size: | 1300mm*2500mm | 1500mm*3000mm | 1700mm*3700mm | ||
Table glass: | 12mm tempered glass | ||||
Illumination | LED tube illumination | ||||
Machine frame | Steel chassis | ||||
Max.filming thickness | 50mm | ||||
Roller heating: | Internal heating by infrared | ||||
Temperature range | Adjustable,environmental-60°C | ||||
Warm up time | 10-15min | ||||
Power Consumption | 0.8~1.0kw/h | ||||
Power consumption | 2500w | ||||
Laminating mode | Manual | ||||

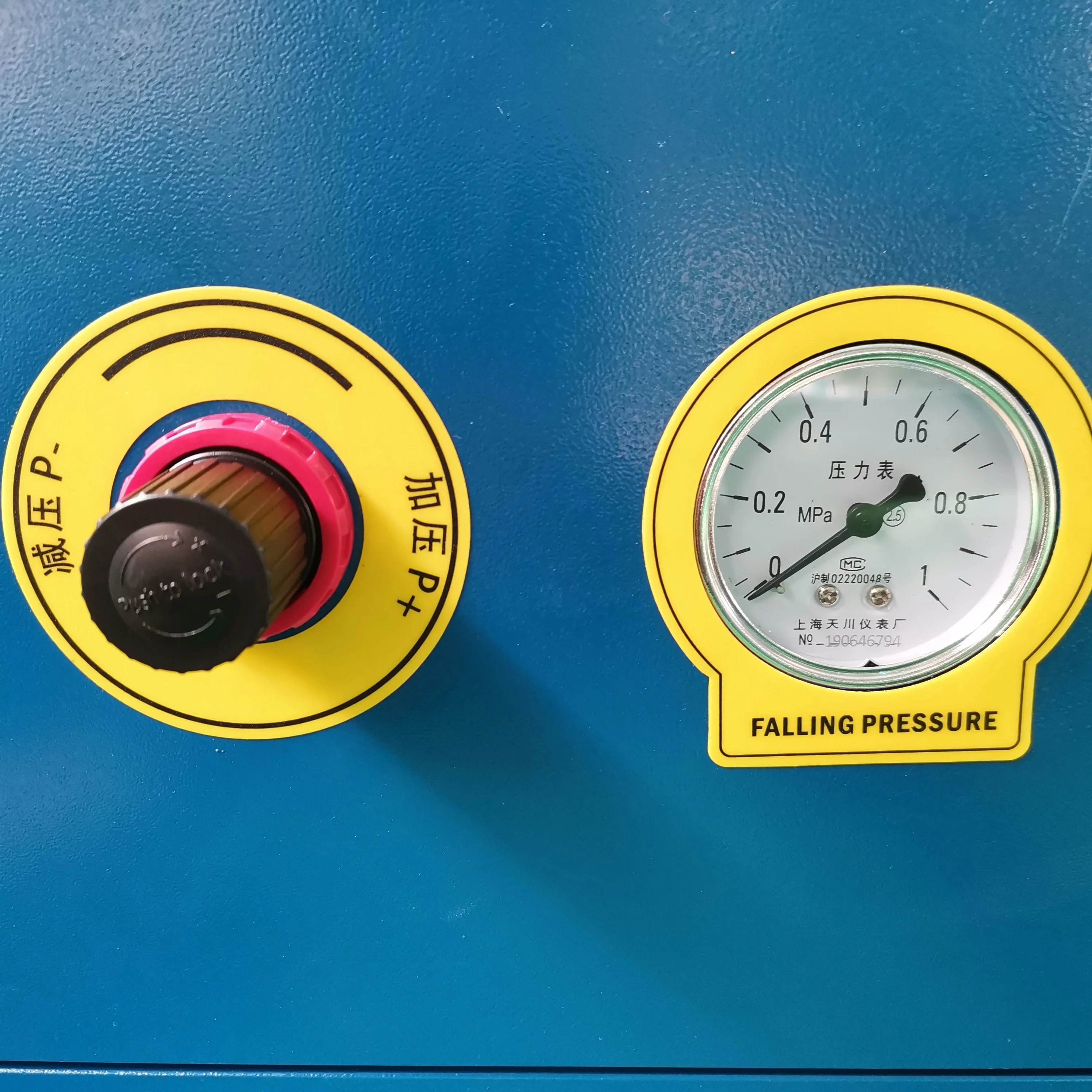

Pressure adjustable mode | Pneumatic/non-noise air compressor | ||||
Input Frequency | 50-60 Hz | ||||
Rated input voltage | 220V | ||||
Weight | 660KGS | 880KGS | 1000KGS | ||
Package | Plywood case with steels around for protection | ||||
Warranty | Broken parts changed for free within 1 year | ||||
Lead time | 10-15 work days after receiving the payment | ||||
Certifications
Detailed Images

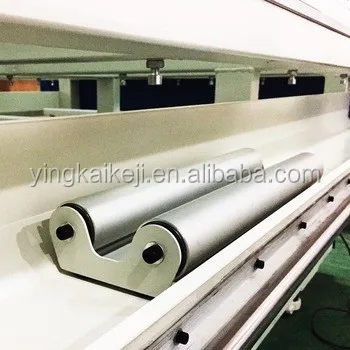

Side pocket media holder
Funtion:
Put it inside the machine side pocket or the end of the table, used to load the Rolling Media when Laminating/Mounting the oversize Materials.

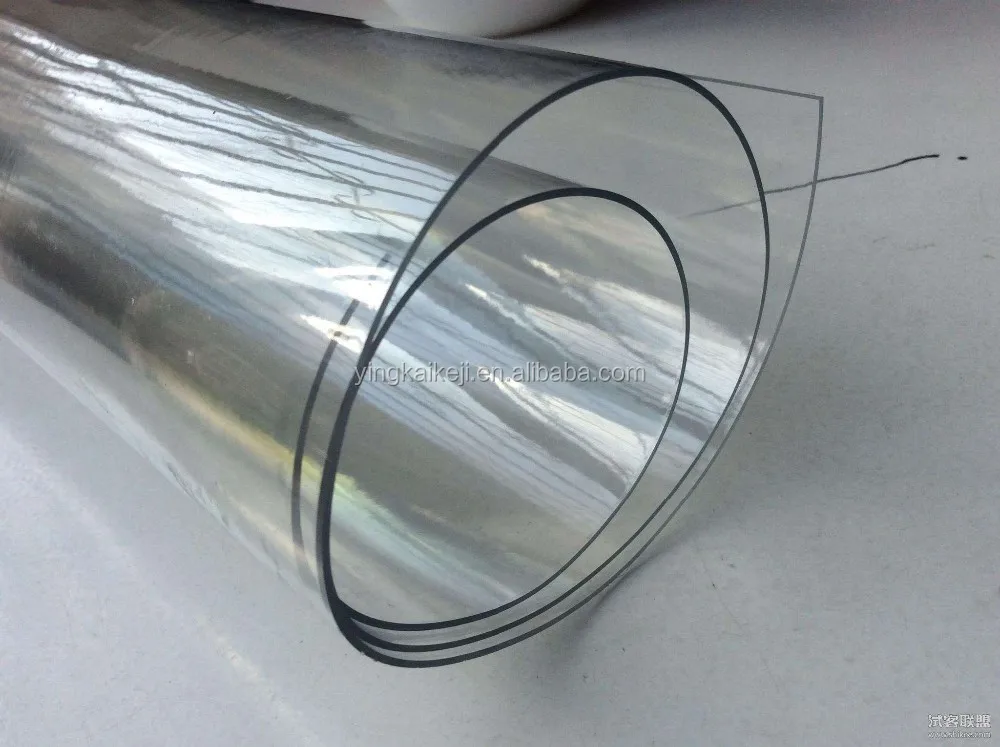

Transparent cutting mats
Function:
Protect the table from damage, with a certain self-healing ability.
Our Service
Service
We are the factory----the advantage of choosing factory.
Better Price
As a factory, you can do business directly with us. It saves the profits of trading company. The price will be much better and favorable.
Better Quality
We have quality inspection during processing to ensure the quality of the product.
Guarantee Service
We have our own professional sellers and after sales service team. We can supply the better professional service for you.
More Professional
We have more than 8 years of experience on the Laminating machine. We can provide OEM service.
Customized Accepted
We are the factory----the advantage of choosing factory.
Better Price
As a factory, you can do business directly with us. It saves the profits of trading company. The price will be much better and favorable.
Better Quality
We have quality inspection during processing to ensure the quality of the product.
Guarantee Service
We have our own professional sellers and after sales service team. We can supply the better professional service for you.
More Professional
We have more than 8 years of experience on the Laminating machine. We can provide OEM service.
Customized Accepted
We have our own design team, and we can design and manufacture any kind of laminator as customers' requirement.
Packing & Delivery
Packaging | ||
Size | 385cm (L) * 225cm (W) * 140cm(H) | |
Weight | 900kgs | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |

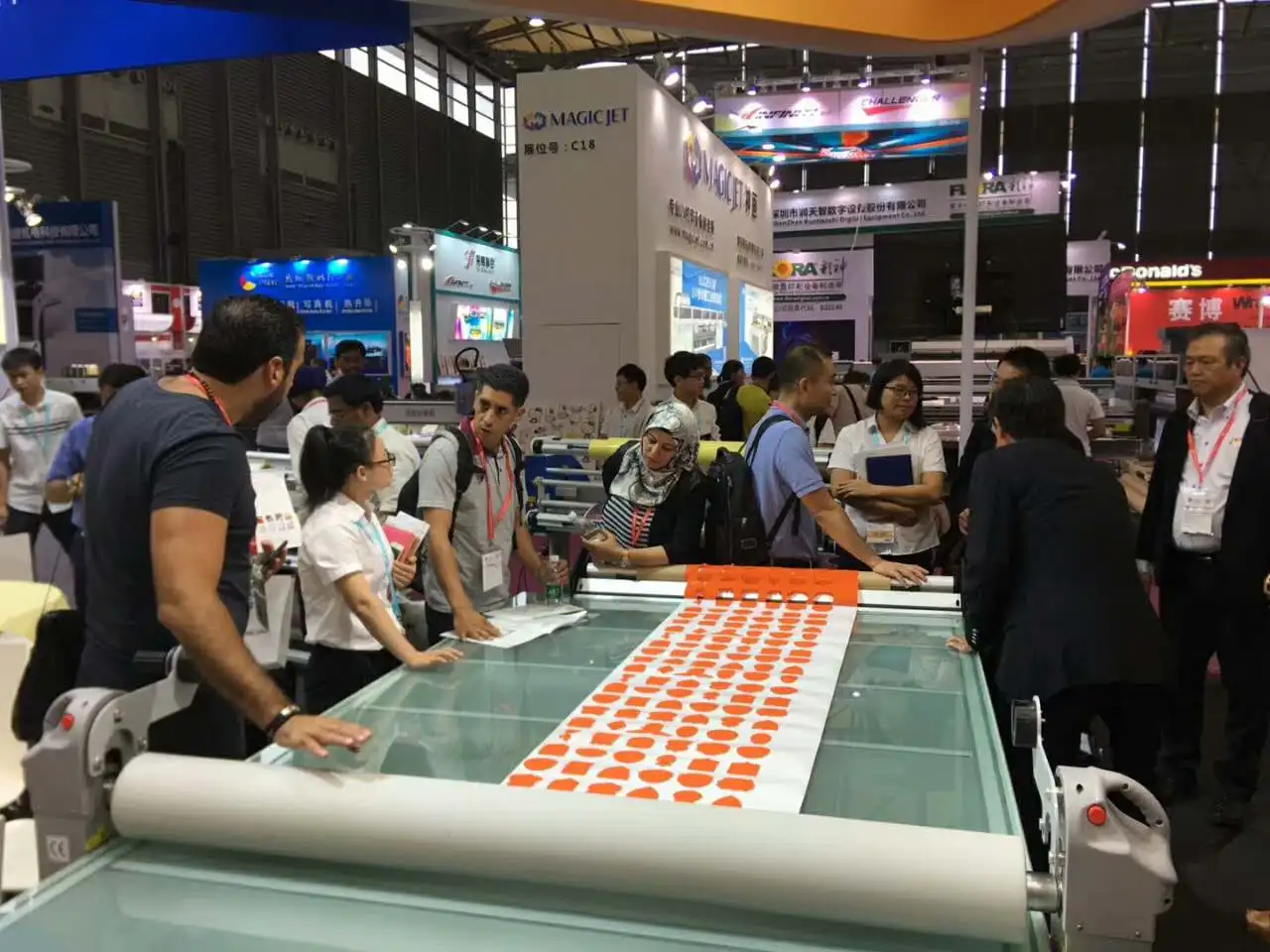

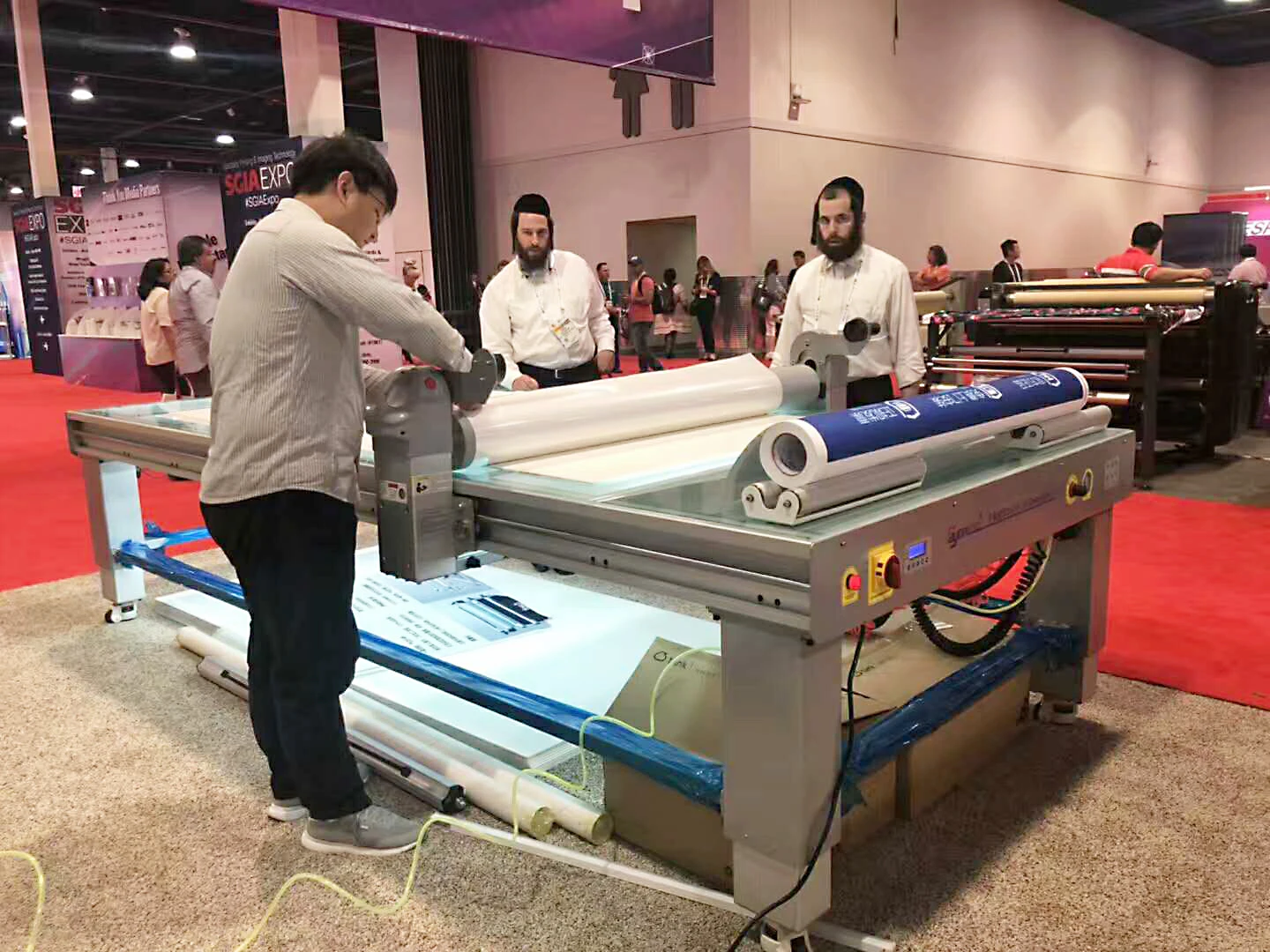

EXHIBITION
