SA2200,1000Vrms 3 phase power analyzer

































































































































































Selection Guide
Model SA2100SA2200
IEC61000-4-30 standard compliance Class S Class A, Ed.3
Measurement ItemsAC/DCYY
Voltage/CurrentYY
Frequency 50Hz,60Hz,400Hz50Hz,60Hz,400Hz
Dips /swellYY
Harmonics1-50th  (50/60Hz) 1-100th (50/60Hz)
Power / EnergyYY
UnbalanceYY
MonitorYY
InrushYY
FlickerYY
Transients 20kS/s 200kS/s
LoggerYY
Mains signalingNOY
Wave Recording NOY
Input Characteristics Channel        (Voltage/Current)4/4
Voltage Range1-1000Vrms, 6000V transient voltage
Current Rangedepends on supplied current clamp
StorageMicro SD card
 (build-in)		8GB32GB
BatteryCapacity/LifeNI-MH, 3800mAh/>7hLithium ion, 5200mAh/>8h
Time SynchronizationGPS/Beidou NO (option)
CommunicationInterfaceUSB Host, LANUSB Host, LAN, WIFI
WIFI AppNO (option)
General CharacteristicScreen5.6' TFT LCD /320*2405.6' TFT LCD /640*480
Language9- Chinese, English,French, German,Korean, Polish,Portuguese, Spanish, Turkish14-Chinese, English,French, German, Italian,Japanese, Korean, Polish,Portuguese(Brazil/Portugal), Russian,Spanish (Latin/Spain), Turkish
Dimension/Weight262× 173×66 mm/1.6kg270 × 190×66mm/2.0kg
Wire Combinations1Ø+NEUTRAL,1Ø SPLIT PHASE,1Ø IT NO NEUTRAL,3Ø WYE,3Ø DELTA, 3Ø IT, 3Ø HIGH LEG, 3Ø OPEN LEG, 2-ELEMENT, 2 1/2-ELEMENT
Electrical SafetyIEC61010-1 ,Safety Degree: 600V CAT IV    1000V CAT III





Contact Us Directly


For quick reply


For more discounts


For update info : www.weLLzion.com





Product Overview


SA2200 power quality analyzer adopts DSP+ARM dual processor hardware platform and embedded operation system (uClinux), which can calculate a large number of electrical parameters and process all data quickly. The device offers extensive and powerful measurements functions to check power distribution system, so it can detect quality of power grid and electrical characteristics rapidly and conveniently. The analyzer has large-screen color LCD display interface, and easy-to-use keyboard.

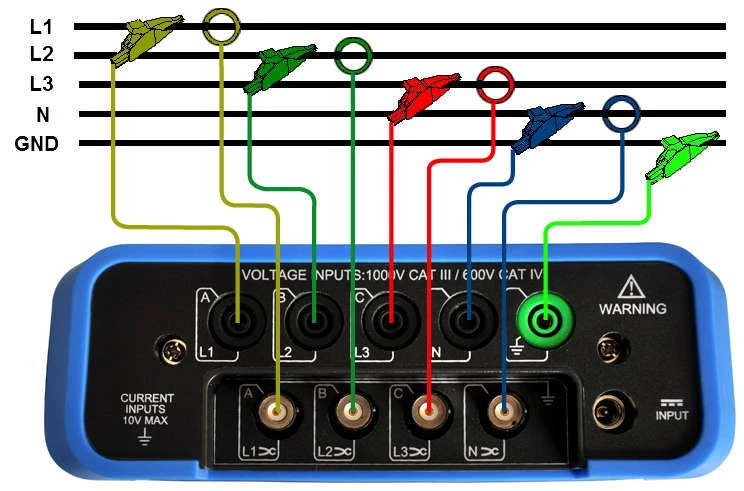

Input Connections.jpg





Function & Benefits



  • 5.6 inch TFT LCD with resolution 640*480

  • Standard compliance:IEC61000-4-30 Class A

  • Waveform real-time display(4 voltages/4 currents)

  • Half cycle RMS measurement (voltage and current)

  • Measurement of harmonics can be up to 100 times

  • Vector, Trend, Bar Graph and events table display

  • Three-phase unbalance (voltage and current)

  • Built-in 32G memory card

  • WIFI communication is supported





Specifications































































































































































































































































































MeasurementMeasurement RangeResolutionAccuracy
Voltage / Current / Frequency
Vrms(AC+DC)1~120Vrms0.001Vrms±0.1% of nominal voltage
120Vrms~400Vrms0.01Vrms
400Vrms~1000Vrms0.1Vrms
Vpk1~1400Vpk0.01Vpk±0.5% of nominal voltage
V(Crest Factor)1.0~>2.80.01±5%
Arms(AC)10mV/A0~150A0.01A±0.1% ±0.1A
1mV/A1~2000A0.01A±0.1% ±0.1A
65mV/1000A10~6000A0.01A±0.1% ±0.2A
A(Crest Factor)1~100.01±5%
Frequency42.5~57.5(50Hz nominal)0.01Hz±0.01Hz
51~69(60Hz nominal)0.01Hz±0.01Hz
320~480(400Hz nominal)0.01Hz±0.01Hz
Dips&Swells
Vrms1/20~200% of nominal voltage0.01Vrms±0.2%
Arms1/2depends on current clamps0.01A±1%
Harmonic(IEC61000-4-7)
Harmonic Number1~100(50/60Hz)  1~12(400Hz)
Harmonic Voltage % of 0.0~100.0%0.01%±0.1% ± nx0.1%
Harmonic Current % of0.0~100.0%0.01%±0.1% ± nx0.1%
THD0.0~100.0%0.01%±2.5%
Phase-180°~180°0.1°± nx0.1°
Power and Energy
P,S,Q1Max.6000MW0.1kW±1% ± 10 digits
PF & CosΦ0~10.01±0.01
kWh,kVAh,kvarhdepends on nominal voltage and current clamps±1% ± 10 digits
Flicker(IEC61000-4-15)
Pst(10 min) / Plt(2 hrs)0.00~20.000.01±5%
Unbalance
Voltage0.0~20.0%0.1%±0.1%
Current0.0~20.0%0.1%±1%
Voltage Phase-360°~0°0.1°±0.1°
Current Phase-360°~0°0.1°±0.5°
Voltage Transient
Vpk±6000Vpk0.01V±15%
Vrms10~1000Vrms0.01V±2.5%
Min.Test Time5us
Inrush Current
Armsdepends on current clamps0.01A±1% ± 5 digits
Inrush Duration1~32min selectable10ms±20ms
Mains Signaling
Signaling Frequency 60~3000Hz0.1Hz
Relative V% 0%~100%0.10%±0.4%
Absolute V3s(3s average) 0.0~1000V0.1V±5% of Nominal voltage
Logger
Recordinguser defined parameters for 4 phases at the same time
MemoryData stored in TF card, 32GB
Duration Time2 hrs to 1 year,depends on the recording items and time interval
Interval1s to 60 minutes
General Characteristic
Display5.6 inch TFT LCD with resolution 640*480
InterfaceUSB Host,LAN,WIFI
Wire Combinations1Ø+NEUTRAL,1Ø SPLIT PHASE,1Ø IT NO NEUTRAL,3Ø WYE,
 3Ø DELTA, 3Ø IT, 3Ø HIGH LEG, 3Ø OPEN LEG,
2-ELEMENT, 2 1/2-ELEMENT
Electrical SafetyIEC61010-1 ,Safety Degree: 600V CAT IV    1000V CAT III
Dimensions270mm*190mm*66mm
Weight2kg







Accessories

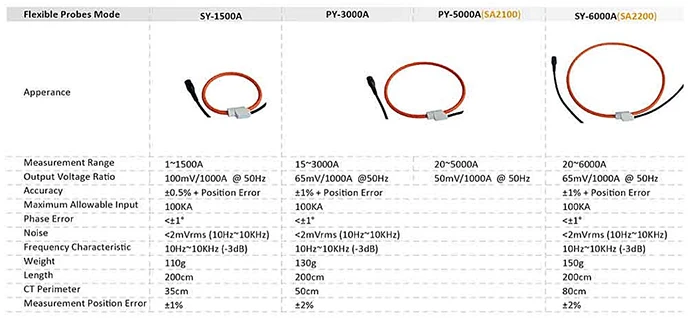

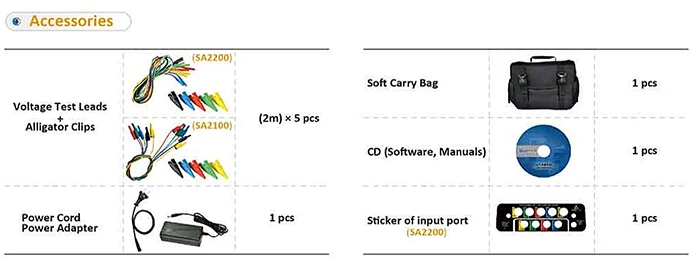

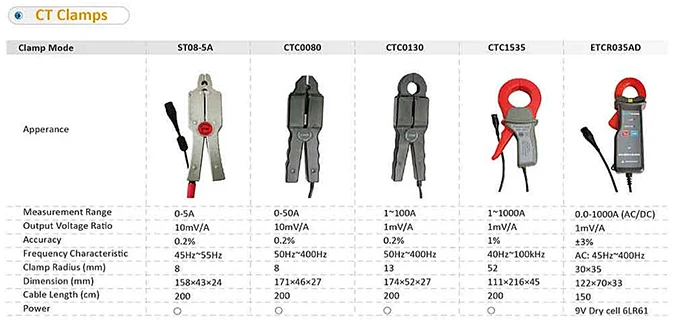

 Accessories.jpgClamp Probes.jpgFlexible Porbes.jpg
