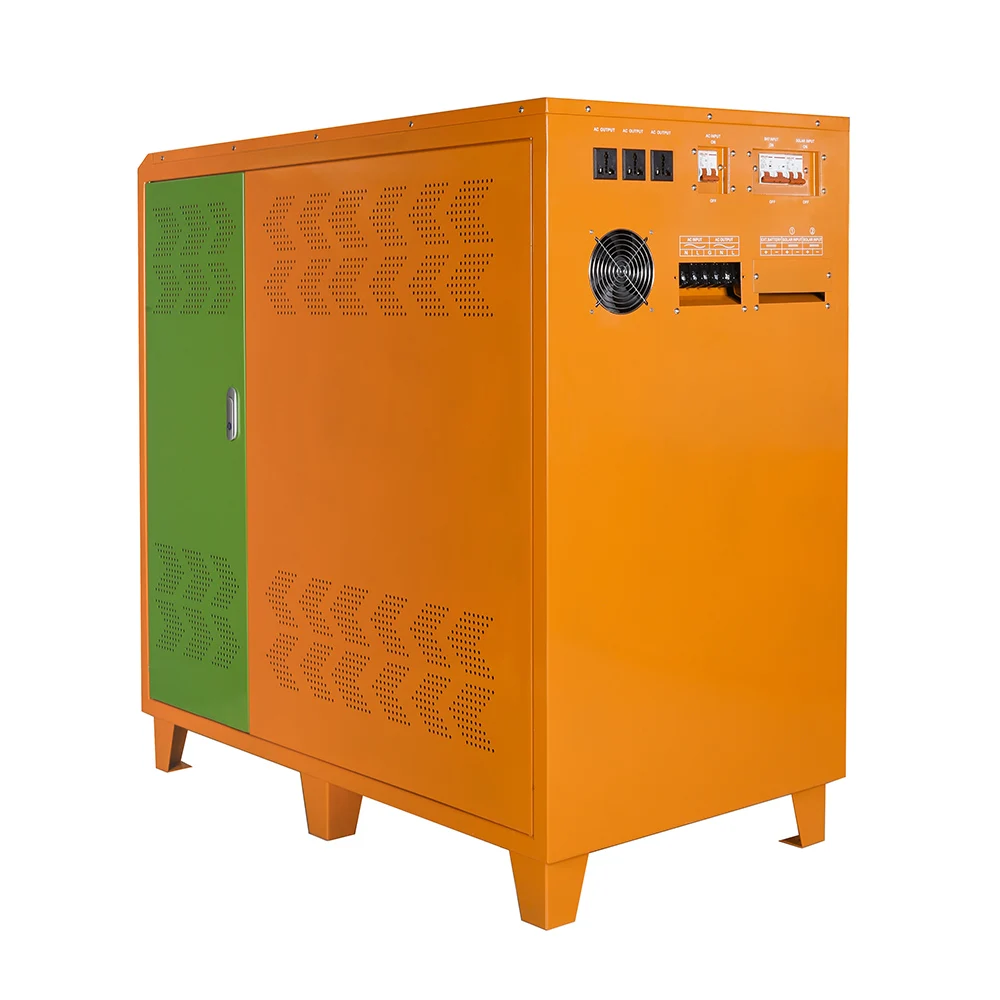

10KW Solar Energy All in One 96V Solar Power Generator Built with MPPT Controller And Pure Sine Wave Inverter

Share on (60785134876):


Price:

Quantity:


Product Overview

Description


Product Description

 Off-grid portable solar generator is mainly used for application with relatively-small power consumption, and the areas have no grid network coverage, or grid power is inserious unstable or outage condition. It’s composed of solar panels, controller, inverter,battery bank, solar panel mounting racks, and other accessories required for acomplete system. The solar panels generate electricity at daytime and charge the battery bank through the controller. The battery bank gives a stable power output to theinverter which converts DC to AC to power loads, and provides power backup in rainyor cloudy days. The controller gives an intelligent control of whole system process andprovides various protections. The Solar Panel System provides grid power bypassin case of battery power shortage when sunshine is not enough. All the systemconfigurations are worked out by scientific calculation and design.

Product Overviews

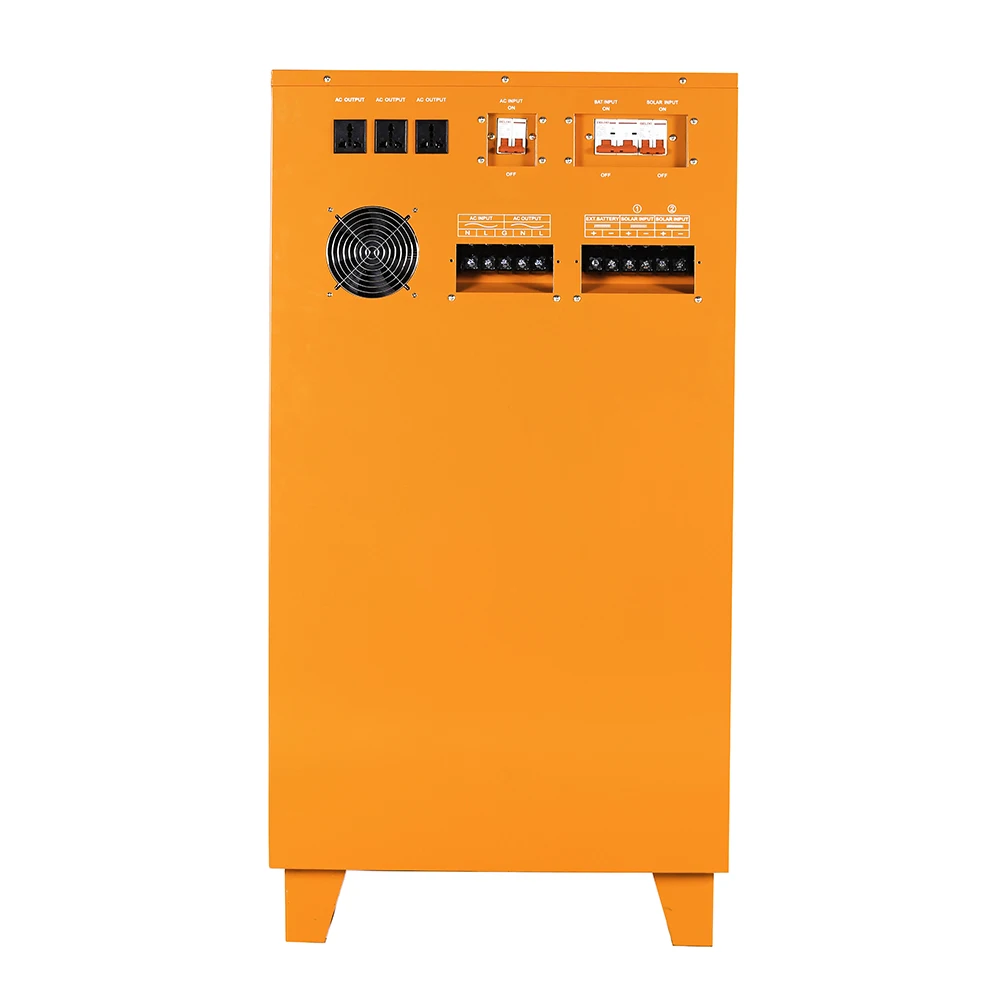

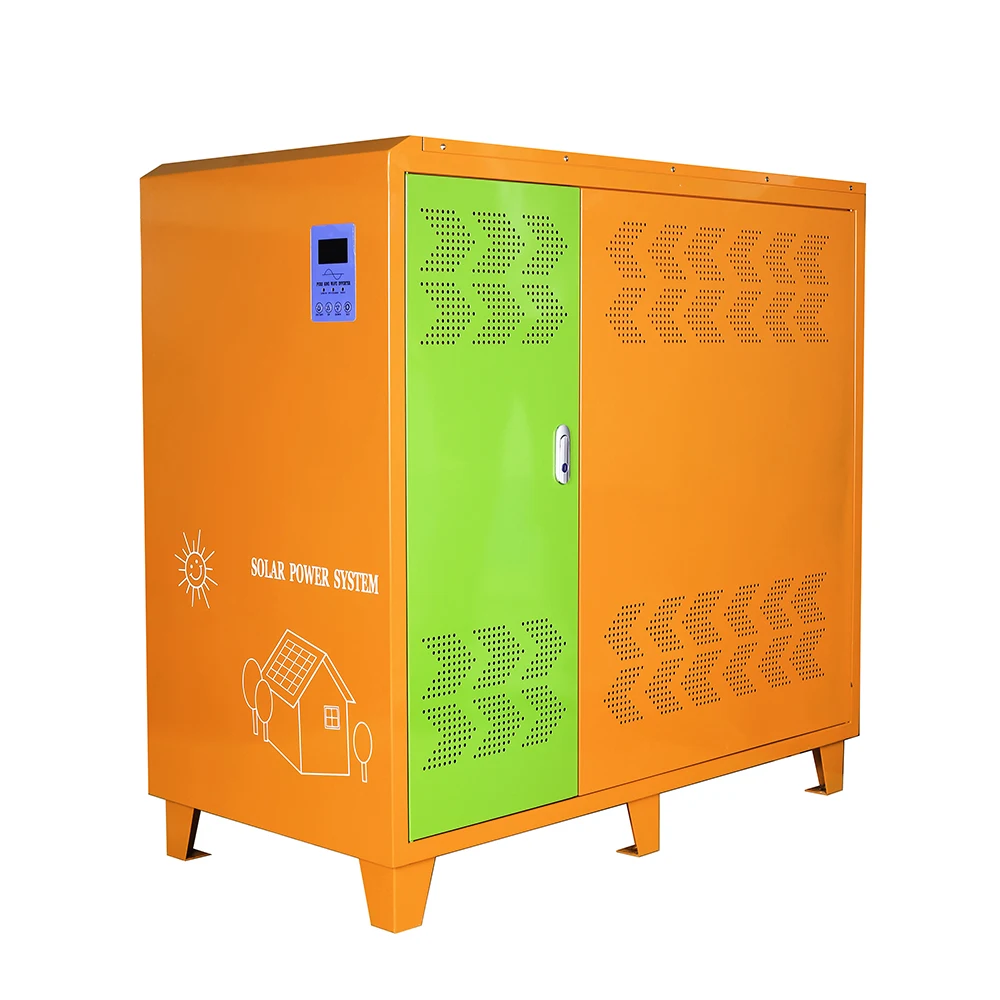

 solar system.jpgsolar system  ( (5).jpgsolar system  ( (2).jpg



Speicifications



Model

AP-

SG3048

AP-

SG5048

AP-

SG6048

AP-

SG8048

AP-

SG10048

AP-

SG12048

Rated capacity3000W5000W6000W8000W10000W12000W
Peak Power9000W15000W18000W24000W30000W36000W
Nominal battery voltage48VDC48VDC48VDC48VDC48VDC48VDC
Input
DC input voltage range48VDC:44-60VDC
Mains input voltage rangeAC220V:170-270VAC AC220V:180-260VAC
Mains input frequency range45-65HZ
Protection
Battery low voltage alarm48VDC:42V
Battery low voltage protection48VDC:40V
Battery over voltage protection48VDC:66.8V
Battery over voltage alarm48VDC:60V
Over power protection110% more than rated capacity
Temperature protection≥85℃ alarm;≥90℃ machine shut off
Output
Efficiency≥85%
Output voltage (battery mode)220VAC±2%
Output frequency (battery mode)50/60HZ±1%
Output wave formpure sine wave
Output voltage range (mains mode)

Stabilization output:

220VAC±10%

Follow the grid power voltage

output:220VAC

Output voltage range (mains mode)Tracking automatically
Other
Transfer time≤8ms
DisplayLCD
Thermal methodCooling fan in intelligent control
≤42℃ fan rotates slowly;to ≥45℃ fan rotates fast
MPPT Controller
 MPPT
Controller

PV current rating

(optional)

50A60A100A
DC Voltage48V

MPPT working

voltage and scope

72VDC-160VDC

Maximum power

 of solar panel

2400W2880W4800W
Machine efficiency99%
Packaging & Shipping



ModelAP-SG3048AP-SG5048AP-SG6048AP-SG8048AP-SG10048AP-SG12048
Built-in battery space
Battery capacity/PCS200AH×4PCS
Battery Size522×240×244mm
Comnunication
ComnunicationRS232:optional
 Environment
Temperature-20~70℃
Humidity<95%
Appearance
Size720×580×1100mm
Packing Size780×645×1230mm
N.W80KG90KG95KG100KG110KG120KG
G.W90KG100KG105KG110KG120KG130KG
Our Services



Amplec is a R&D company of solar energy supply serving for remote areas.

We design and supply quality solar generator for both OEM and ODM.
We carry everything you need for your grid-tied or off-grid system, including plans, permits and diagrams.

Our solar panels, Inverters, Controllers and Battery charger are in good quality, reliable, efficiency and lifespan. When choose solar with us, we help you every step of the way in sourcing the products that matter for your investment.
Shop confidently with us and receive expert technical help from start to finish, and watch your investment produce free renewable energy for years to come.
