PE PPR PPRT pipe extrusion line consists of conical Single-screw extruder, Extrusion die mould, Vacuum forming calibrator, Spraying machine, Haul-off machine, Cutting machine, Stacker and other components, with good stability and high capacity, easy to operate, reliable. The production line can produce water supply and drainage pipe, widely used to hot water supply,gas transportation,and so on. Full automatic control by SIMENS PLC computer.
SPECIFICATION OF PE PIPE EXTRUSION LINE
Extruder model
Driven motor power (KW)
Extrusion capacity (kg/h)
Pipe OD (mm)
SJ-60/38
90
350
16-63
90
400
20-110
50-160
110
500
75-250
75-315
SJ-75/38
160
600
110-400
125-450
160-500
SJ-90/38
280
900
315-630
SJ-120/38
355
1200-1400
355-800
630-1200
710-1600
The parameters is for your reference, Specifications and standard equipment are subject to charge without notification.

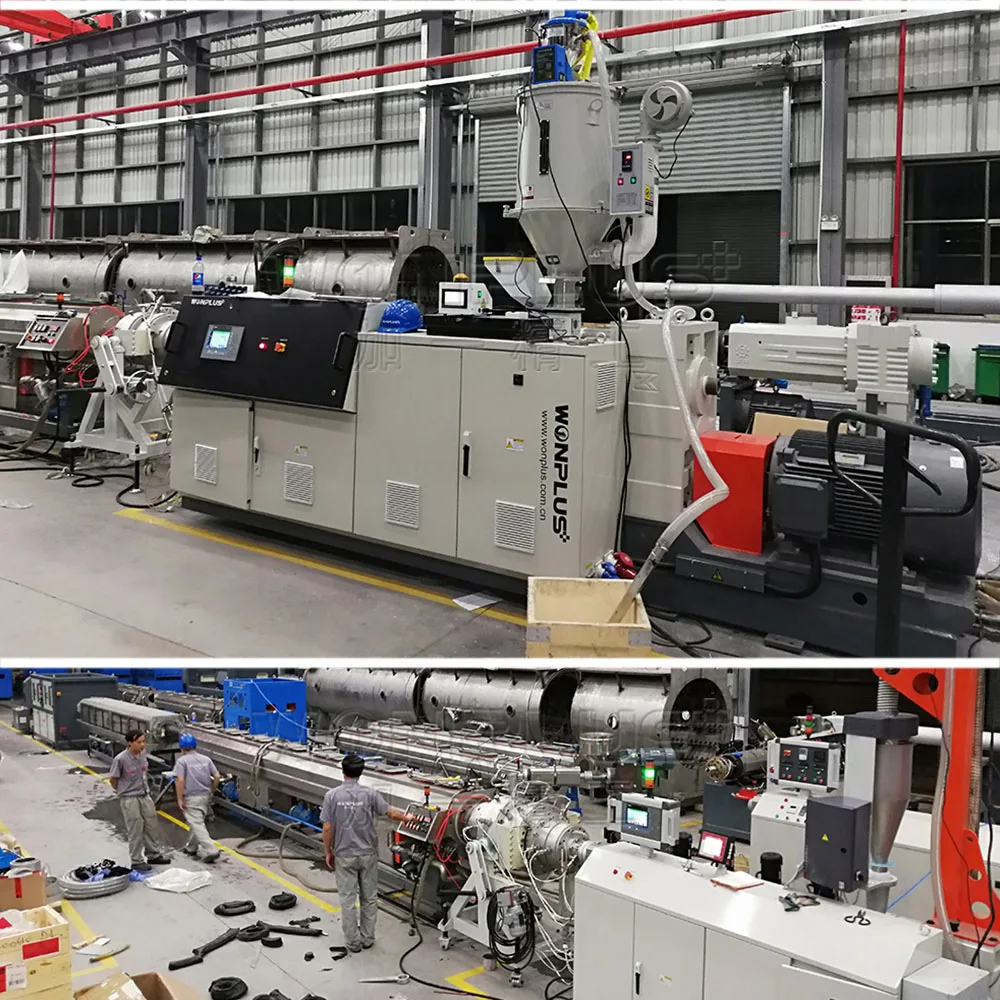

Machine Overview
Machine Main Parts

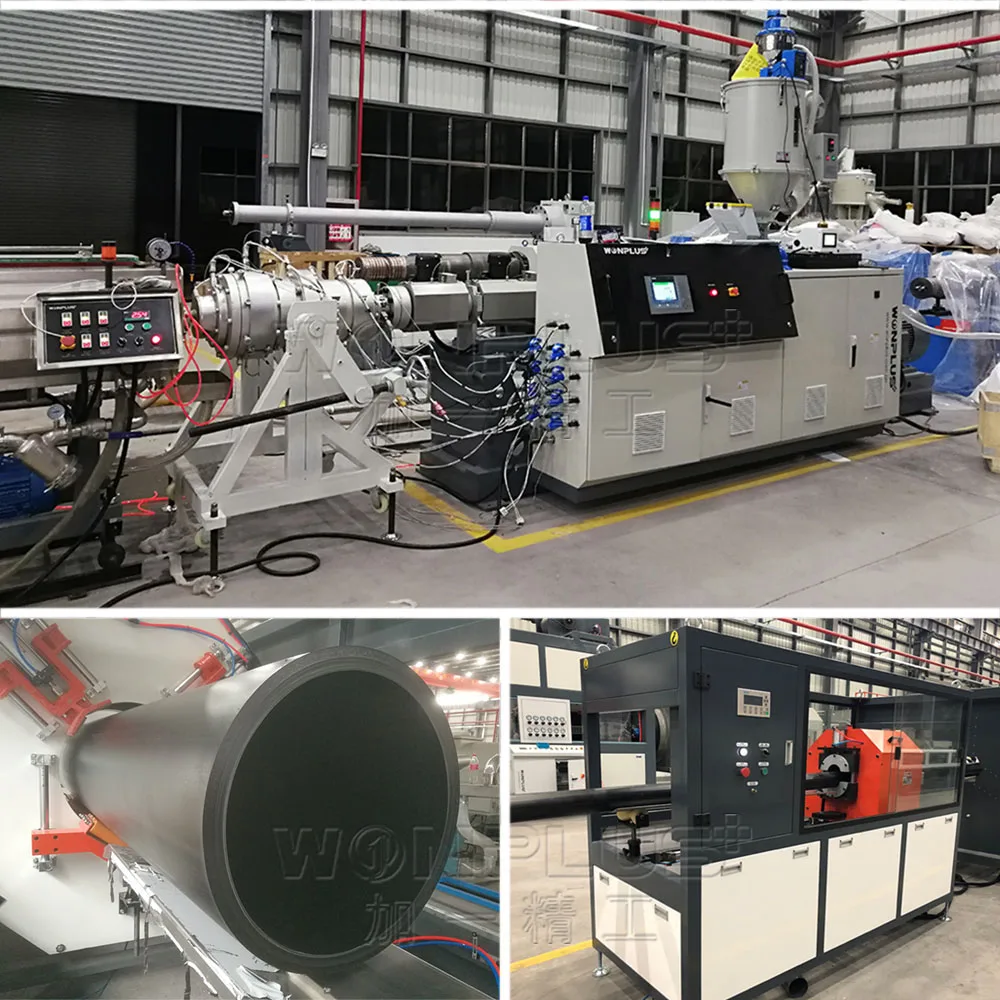

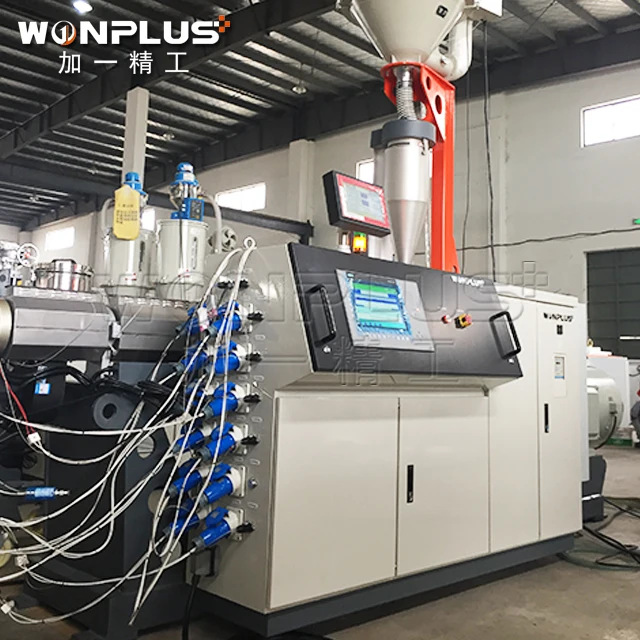

Single Screw Extruder
Driven motor: Siemens brand
Temperature control: Siemens computer
Inverter: ABB brand
Cotactor & Relay: Schneider brand
Circuit breaker: DELIXI
Extrusion Mould
Material: 40Cr Calibrator: Stainless steel The inner flow channel is plated with hard chrome, the outer surface is treated with high temperature paint, the corrosion resistance is strong.

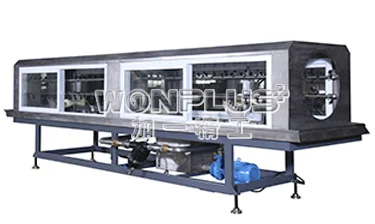

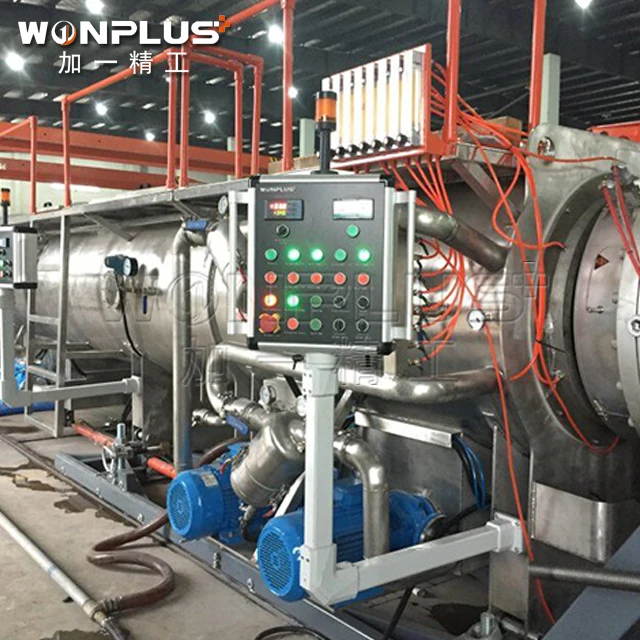

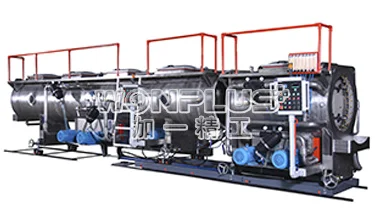

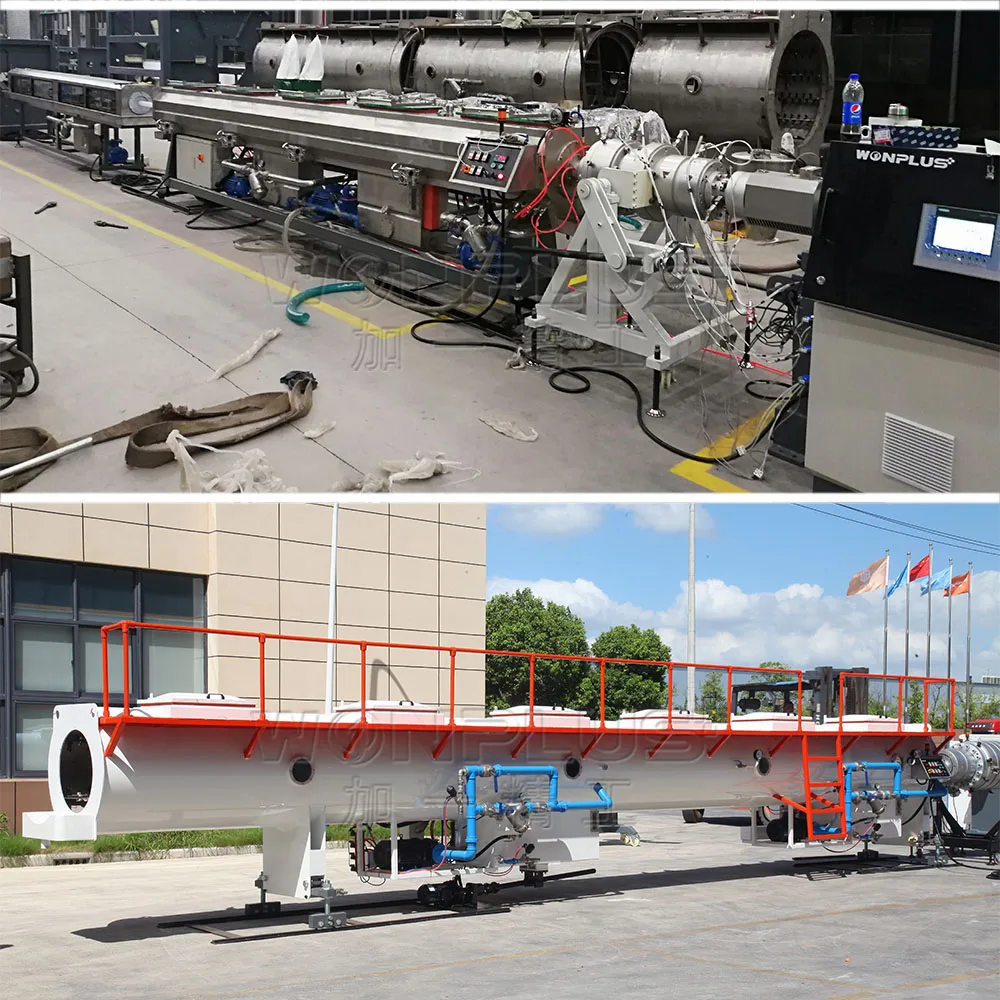

Calibration Tank
Material: Stainless steel Tank Movement : Forth and back by motor driven , Up and down by food screw adjust
Spraying tank
Material: Stainless steel Length: 6m or customized

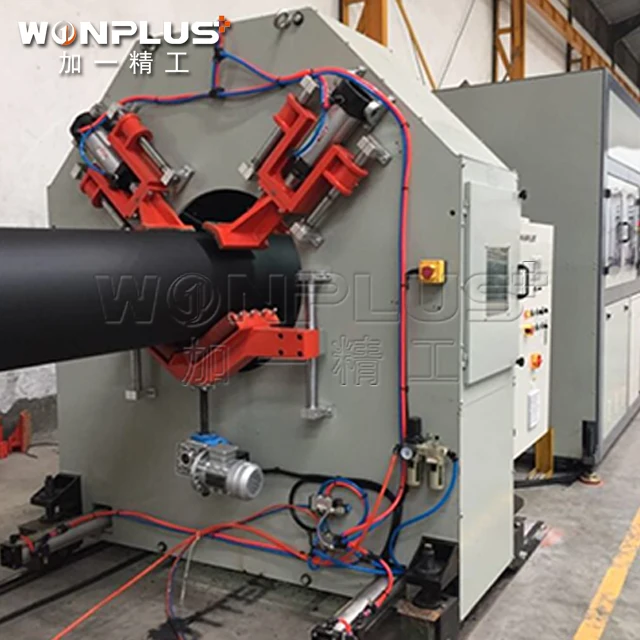

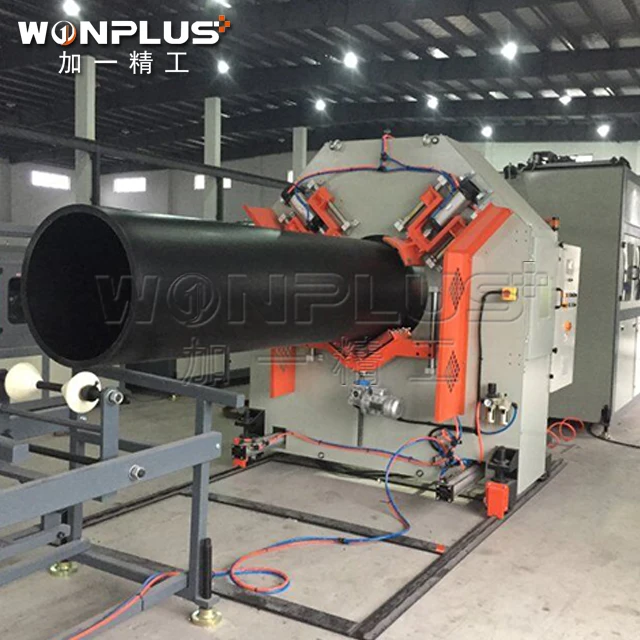

Hauler
Traction motor reducer: Servo motor, INNOVANCE brand
Electricity components: Schneider brand

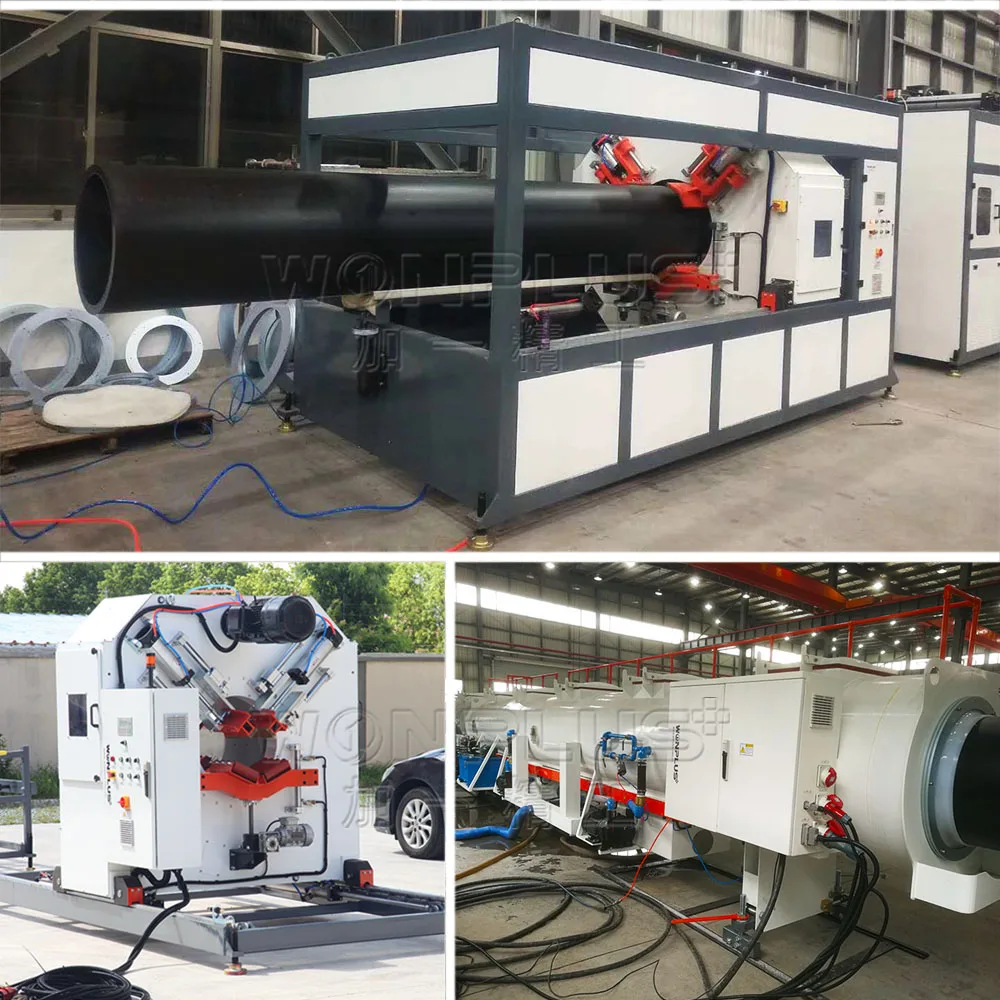

Non-dust Cutter
Cutting control: SIEMENS PLC computer
Cutting type: Non-dust cutter
Stacker
Humanized design, humanpower saving

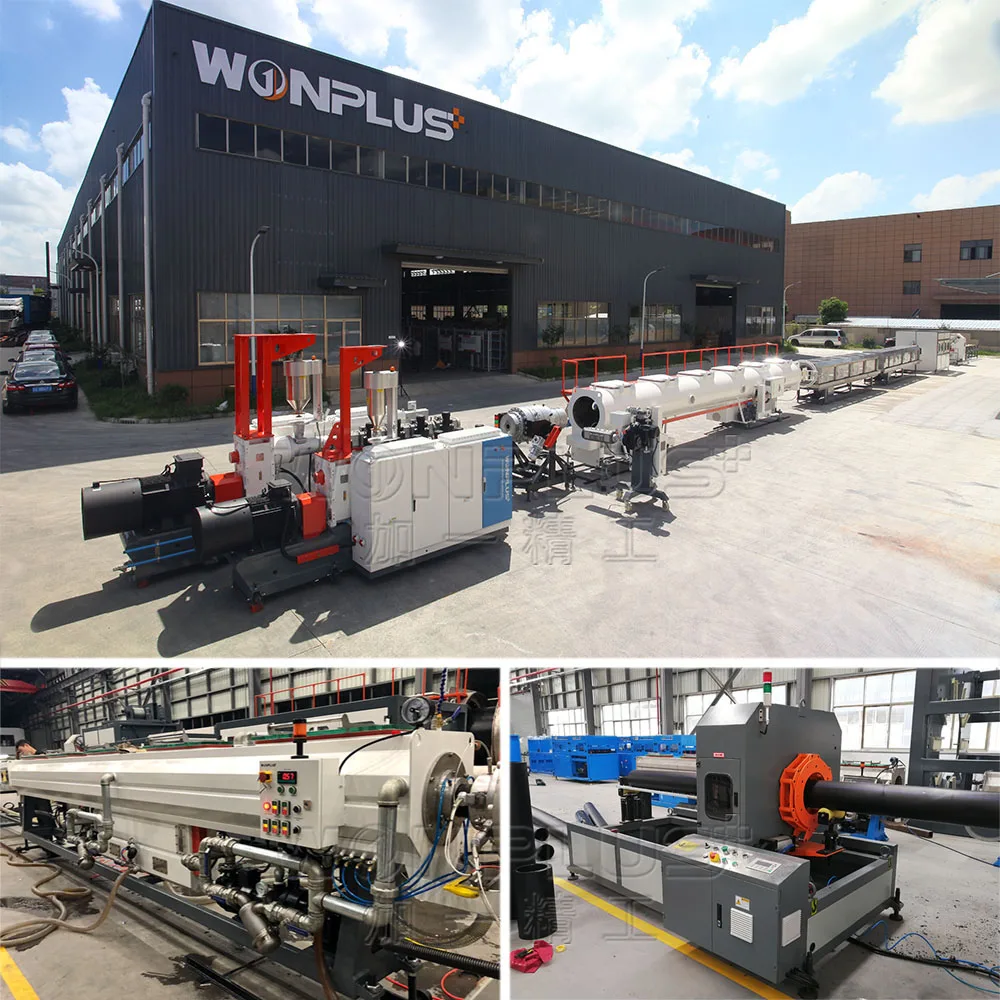

Turnkey Project
Company Information
---Specialized In Plastic Extrusion Machinery---
Kunshan Oneplus Machinery Co.,Ltd. is specialized in twin and single screw extrusion line for pipes, profile,sheet and board, plastic recycling granulator. We manufacture both conical and parallel types of extrusion lines depending on the applications. The product has been exported to South East Asia, the Middle East, Africa,Europe and other regions.
