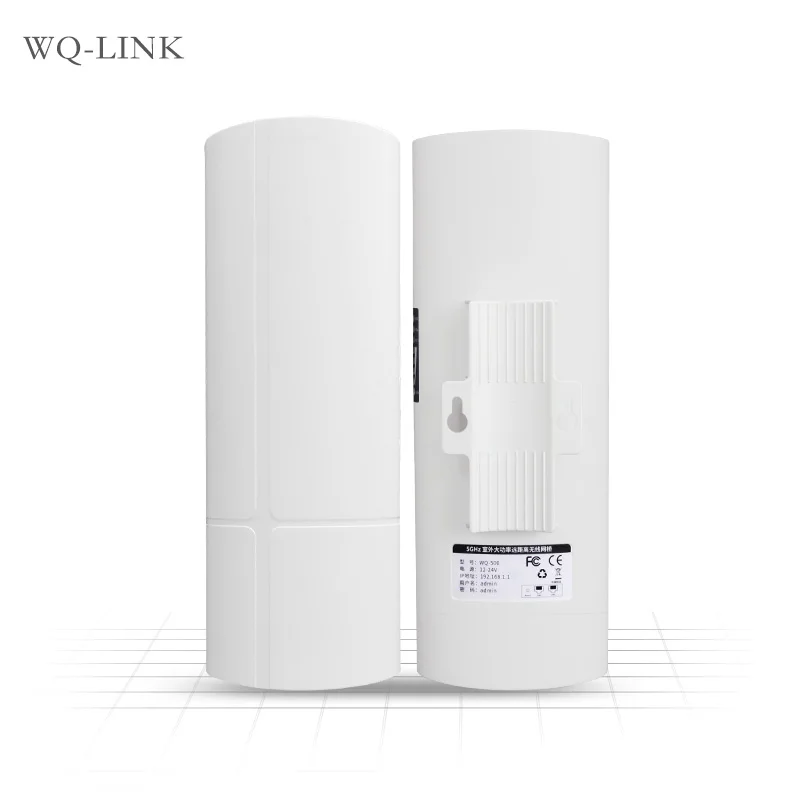

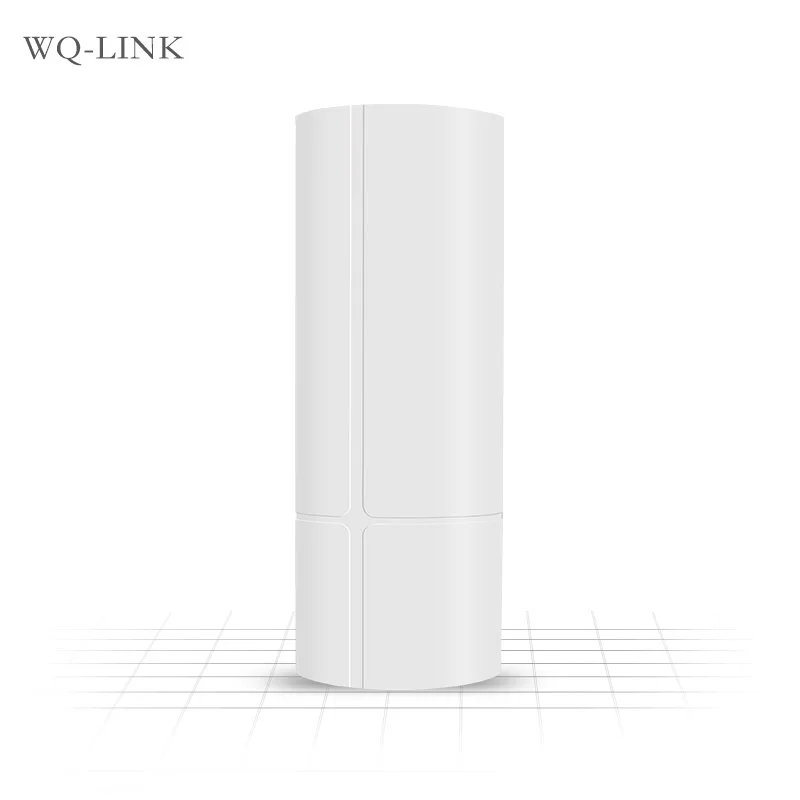

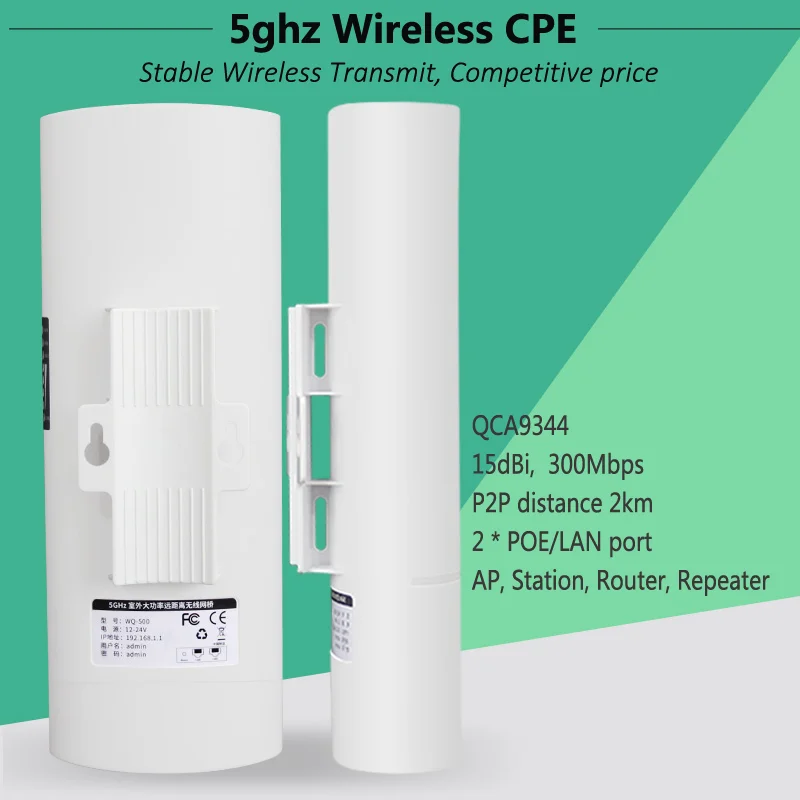

5 ГГц 2 км P2P наружная беспроводная антенна wisp cpe беспроводной маршрутизатор

Specification
Device Name	5ghz 2km P2P outdoor wimax antenna wisp cpe wireless router
Model Number	WQ-CPE500
Wireless
WLAN standard	IEEE 802.11 b/g/n
Wireless operating modes	Bridge-AP,Bridge-Station,Bridge-Repeater,Router-AP,Router-Station,Router-repeater
Networking Interface	2*10/100 BASE-TX(Cat.5, RJ-45) Ethernet Interface
Frequency band	5.8 GHz models: 5.150 - 5.850 GHz
Transmit power	27 dBm (country dependent)
Transmission Rate	300Mbps
Channel size	20, 40 MHz
Services	DHCP SNMP server, ping watchdog
Tools	Site survey, link test, antenna alignment
Electrical
Power supply	POE 12-24V (AC to 24 VDC adapter is included in the package)
Power method	passive Power over Ethernet(pairs 4,5+; 7,8 return)
Max Power consumption	12Watts
System
Processor Specs	AR9344 560MHz
Memory Information	64M
Physical
Dimensions	17.4×9.2×4.5cm (310×100×75mm)
Weight	202 g (808g)
Enclosure Characteristics	ABS Plastic
Mounting Kit	Pole mounting kit included
Environmental
Operating temperature	-40°C (-40 F) ~ +65°C (+149 F)
Operating Humidity	0 ~ 90 % (non-condensing)
Antenna
Type	dual-polarized directional antenna
Frequency range	5.8 GHz
Gain	15dBi
Polarization	Dual
H-pol BeamWidth	60degree
V-pol BeamWidth	30degree
Elecvation Beamwidth	60degree
Antenna Technical Specifications
VSWR	H-Pol Azlmuth, H-Pol Elevation, V-Pol Azlmuth, V-Pol Elevation
Trade information
EXW Price	USD20-30/ Pieces
MOQ	1 Pieces
Payment Options	T/T, Western Union, Alibaba Trade Assurance
Logistics  information
Processing Time	1 Day
Port	Qingdao
Supply Ability	500 Pieces/ Day
Packaging Details	Carton Box. As per your requirements

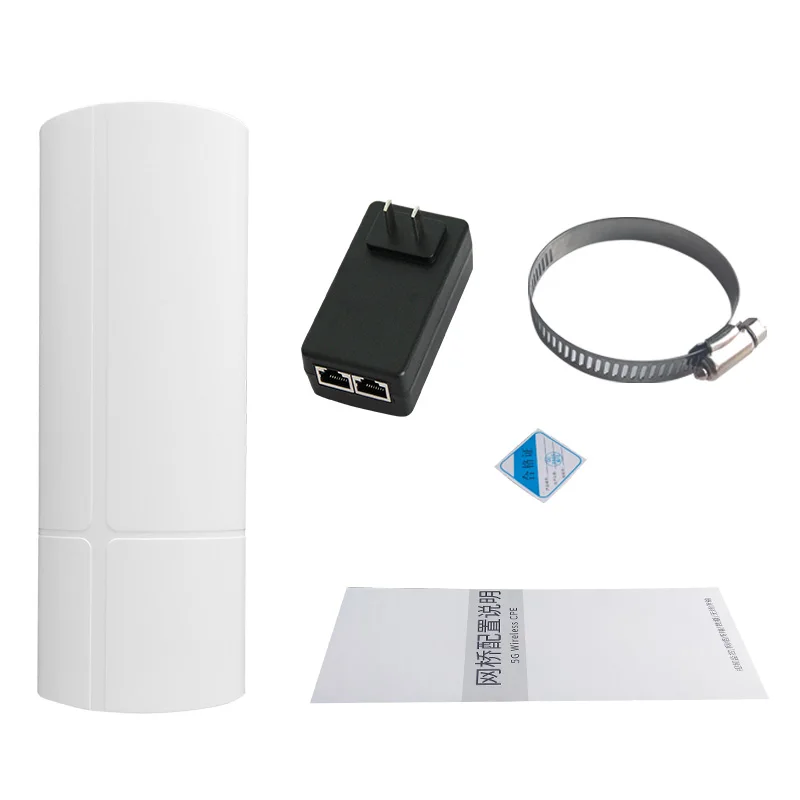

Package

All customers are very satisfied with our product quality and service. If you do not know what type you should choose, please click the picture below. We are always ready to provide you with professional consulting services.

4-Layers PCB Board

In order to minimize the size of the product, WQ-Link uses the 4-Layer PCB to put more and more components.

       · Chipset: AR9344     · Integration PHY

OEM Part for this PCB:  · Dual Frequency Available    · 2*LAN Ports Available

      ·Ping Dog    ·6 Modes    ·Cloud Management    ·Schwarze Liste

MAINLY USED FOR:

Traditional wired connections are impractical when linking areas separated by natural barriers, such as mountains or water. Instead, wireless point-to-point network connections are required to carry the signal over long distances. WQ-Link’s CPE and AP products have been carefully engineered to provide secure, stable wireless links to deal with these cases.

Connecting the networks of two sites, for example, to connect the networks of two separate offices of a company.

Providing network access to remote areas, for instance, internet access to remote farms, oil fields and coal mines

Remote monitoring and operation of equipment, for example, to operate lifting equipment remotely, or controlling street lamps.

For CCTV system:

There are two connecting method: P2P and P2MP

You can see its detailed connecting method at the Solution Part.

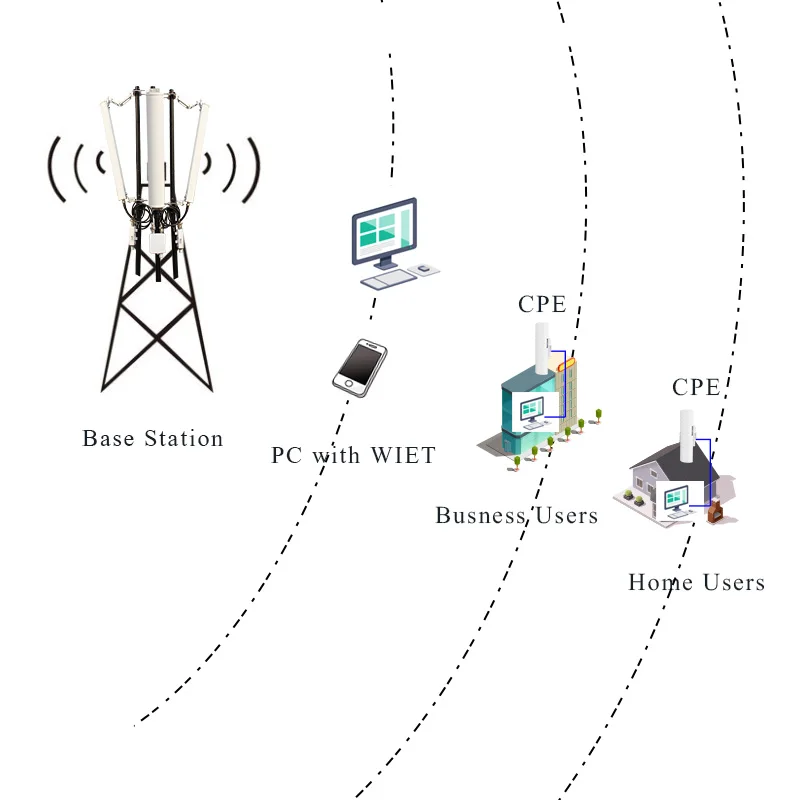

For ISP system:

Engineering Show

Julie Duan (Sales manager)

 MOB/WHATSAPP/WECHAT: +86 130 5334 3538

SKYPE:  live: dbde8b47563e9012

FAQ

How can i get product price list?

Contact us by email, trademanager, skype or send inquiry to us.

Can i get samples to test before placing an order?

Yes, welcome to get samples to test and check their quality.

Can we use our logo and design?

Yes, customization is acceptible for bulk order.

What is the product warrenty policy?

Twelve-month warranty. If any problems appear when you use, please feel free to contact us.

I don’t know how to install it. Can you help me?

Of course. You can contact us for solution. Once we receive your enquiry, we will reply back to you within 12 - 24 hours.

How do we pay you?

We accept T / T , Western Union, Money Gram, L/C and Alibaba Trade Assurance Order.
