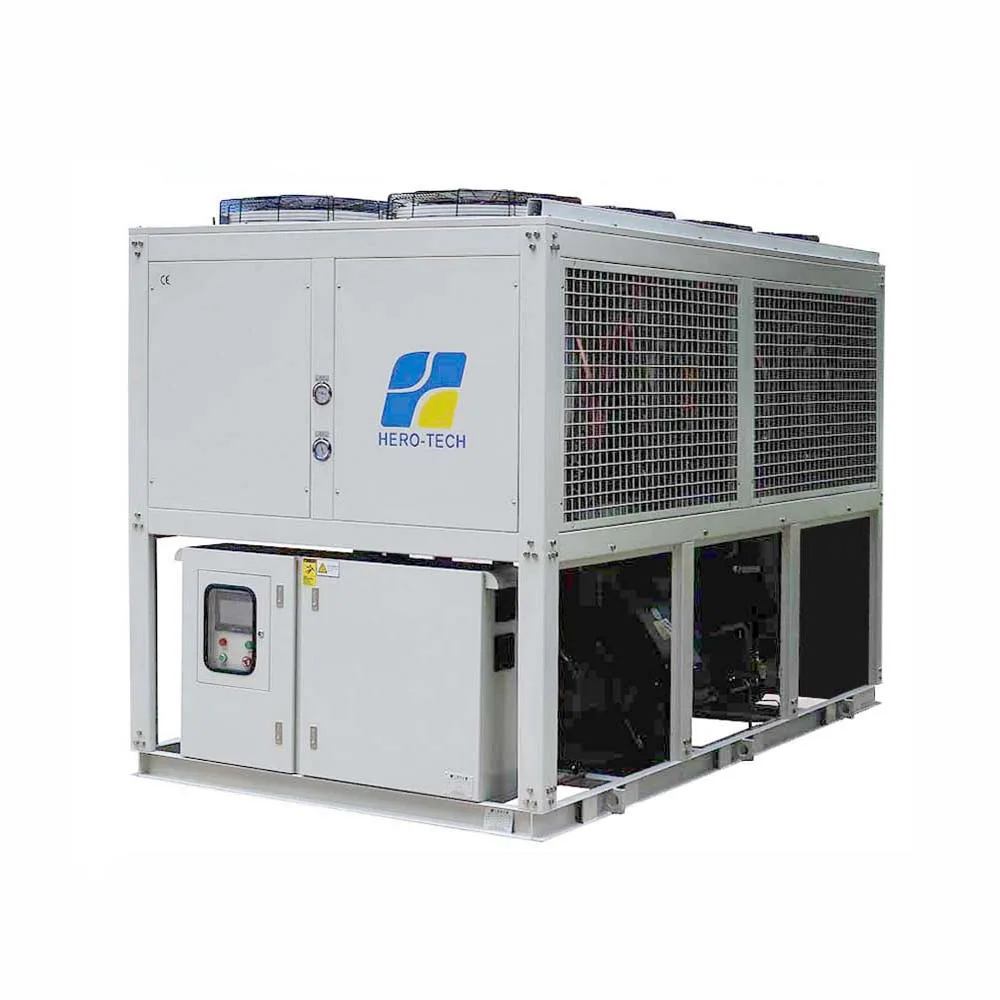

40hp 40ton High COP CE standard Screw type Air cooled water chiller

Product Overview

Description

HERO-TECH AIR COOLED SCREW CHILLER

CE Screw type Air cooled Industrial water chiller 40hp/40ton with shell and tube Evaporator

Model:HTS-40A

HTS-A series industrial chiller is mainly applied in Plastic & Rubber industry. It can accurately control the molding temperature and shorten the molding cycle, increase the product quality and improve the production efficiency. They are also widely used in medium and large scale industrial cooling, central air conditioning system, cold room, thermostatic chamber, Metal working, Mechanical & Engineering, Chemical & Pharmaceutical, Food & Beverage, Laser, Electronics industry, Textile, Electroplate, Semi-conductor testing, Water jet, Vacuum coating, Construction and Military.

Product Parameters

Model		HTS-40A
Nominal cooling capacity	kcal/h	96148
	kw	111.8
Input power	kw	36.1
Power source		3PH 380V~415V 50HZ/60HZ
Refrigerant
Type		R22
Charge	kg	28
Control		Thermostatic expansion valve
Compressor
Type		Semi-Hermetic screw
Power	KW	33.7
Start mode		Staged start-up
Capacity control	%	0-25-50-75-100
Evaporator
Type		Shell and tube(ss plate heat exchanger)
Chilled water volume	m3/h	18
Tank volume	Iiter	32
Pipe connection	Inch	3
Condenser
Type		air cooled type high efficiency finned copper tube
Fan
Type		Big volume & low noise axial fan
Power	kw	0.6*4
Air volume	m³/h	40000
Safety devices		Compressor inner protection, over current protection, high/low pressure protection, over temperature protection, flow rate protection, phase sequence/phase missing protection, low level coolant protection, anti freezing protection, exhaust overheat protection
Dimension
Length	mm	2180
Width	mm	1800
Height	mm	2050
Net weight	kg	1300
Running weight	kg	1450
The above specifications are according to the following design conditions: 1. Chilled water inlet/outlet temperature 7ºC/12ºC. 2. Cooling air inlet/outlet temperature 30ºC/38ºC. Cooling capacity of R407C unit will be 5% lower than R22 unit We reserve the right to modify the specifications without further notice.

Design features

Well Known Brand Compressor
Unit adopts Germany BITZER or Taiwan HANBELL brand semi-hermetic screw compressor. The latest 5 to 6 patented screw rotor profile with excellent efficiency.
Adjustable infinite or closely stepped capacity control, features energy efficient, stable and quiet running. Compressor start-up in stages, minimize the impact to electricity. Steady and safe running with low vibration.
Most advanced patented highest precision manufacturing process.
Built-in full intelligent monitoring and protection including thermal motor temperature monitoring, phase sequence monitoring, manual reset lock-out, oil temperature sensor.
Microprogramming Control System
LCD touch screen interface. Industrial Siemens PLC centralized control combined with compressor capacity control system, precisely monitor.  Integrated protection for low temperature, high/low pressure, anti-freezing, phase missing, anti-phase, overload, motor over temperature, oil differential, flow switch, start up latency. Optional operation language, menu leading, unit running state easy to adjust.

A variety of refrigerants and power source are available

Standard design charged R22 CFC Free R407C, R410A, R404A, R134A for option.
380V-415V/50Hz 3pH for standard design. 380V~415V, 50HZ/60HZ, different design on customers' request.

Easy installation, quality is assured

Compact structure, less space demand and light in weight, easy for transport and installation.
Completely wired, inspected and tested pre-delivery, saving installation time and cost.



Application

                       Our chillers are exported to more than 50 countries all over the world

About us

Hero-Tech refrigeration Equipment Co., Ltd, subordinated to Hero-Tech Group, was founded in Shenzhen Guangdong Province in 2005, with registered capital RMB5,000,000.00. And we have our own heat exchanger processing factory and Casing processing factory.

Since its inception, Hero-Tech adhered to Germany technique and management and passed certification of ISO9001:2000 and CE. 20 years experience in industrial refrigeration made Hero-Tech front-runner status in China. Meanwhile, oversea sales network was built and improved, covering dozens of countries and areas, such as the Occident, Middle-East, South-East Asia and Australia. It brings continuing rapid growth of annual export volume. Till the end of 2019, export value contributes more than 70% of the annual sales turnover.

“Professional, therefore take the lead”. After years of development, Hero-Tech has domestic and foreign customers consistent high praise because of excellent product performance and high efficiency service.



Q1: Could you help us to recommend the model for our project?
A1: Yes, we have engineer to check the details and choose the correct model for you. Based on the following:

Cooling capacity; If you don’t know, you can offer the flow rate to your machine, temperature in and temperature out from your using part; Environment

temperature; Refrigerant type, R22, R407c or other, pls clarify; Voltage; Application industry; Pump flow and pressure requirements;

Any other special requirements.

Q2: How to ensure your product with good quality?
A2: All our products with CE certificate and our company Strictly comply with ISO900 quality management system. We use the worldwide famous brand accessories, such as DANFOSS, COPELAND, SANYO, BITZER, HANBELL compressors, Schneider electrical components, DANFOSS/EMERSON refrigeration components.

The units will be fully tested before package and The packing will be carefully checked.

Q3: What's the warranty?
A3: 1 year warranty for all parts; Whole life labor free!

Q4: Are you a manufacturer?
A4: Yes, we have more than 23 years in industrial refrigeration business. Our factory located in Shenzhen; Welcome to visit us at anytime. Also have patent on the chillers’ design.

Q5: How can I place an order?
A5: Contact our online customer service, or call us via Cel number +86 15920056387 directly.
