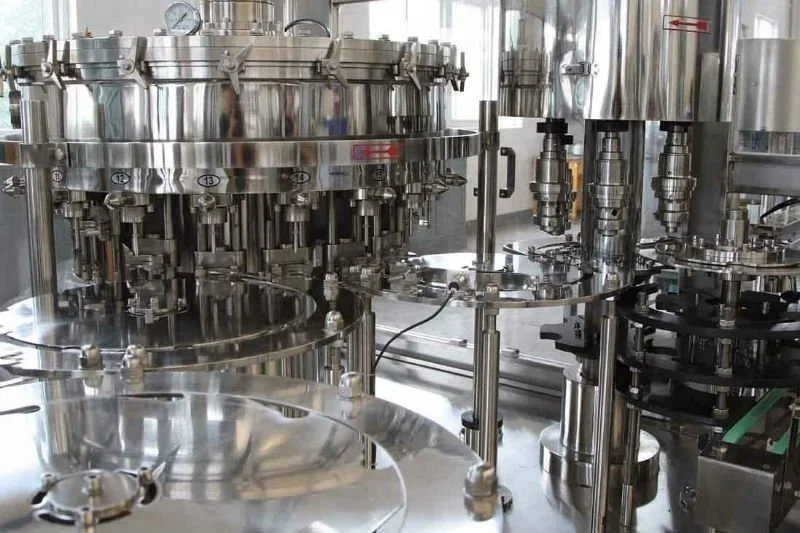

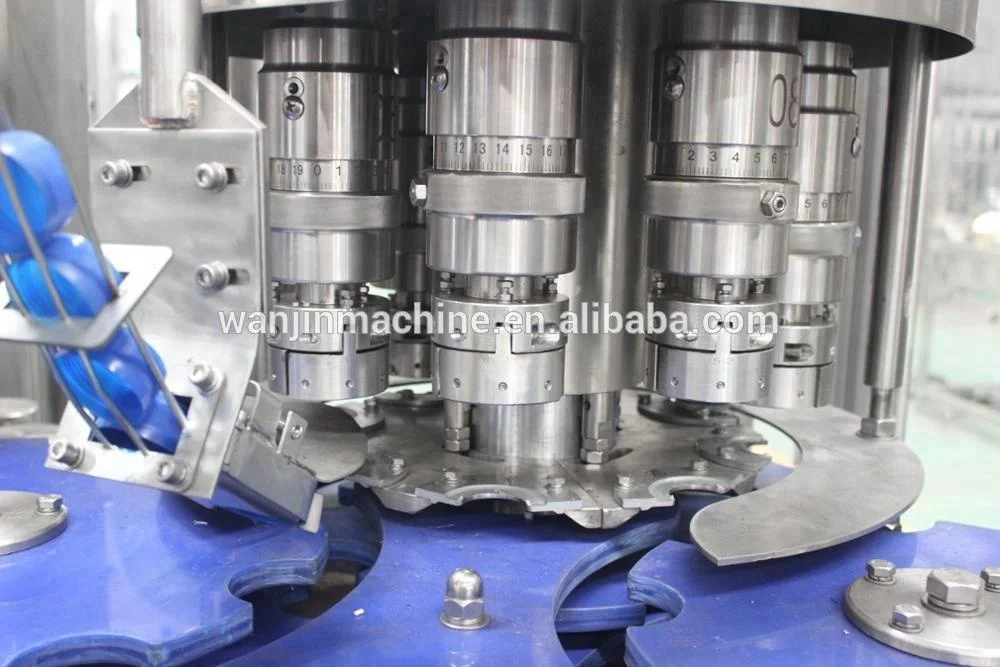

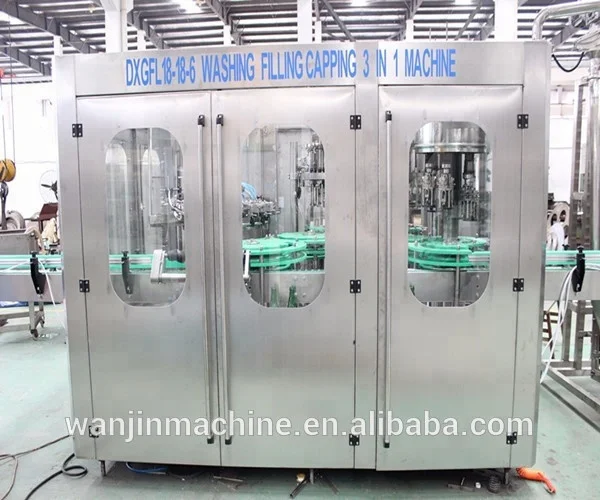

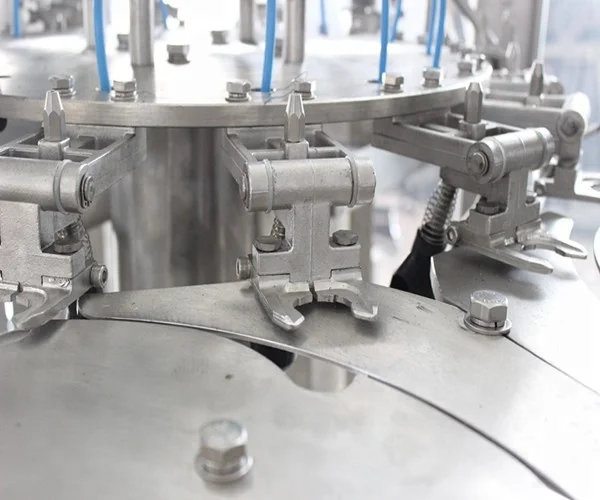

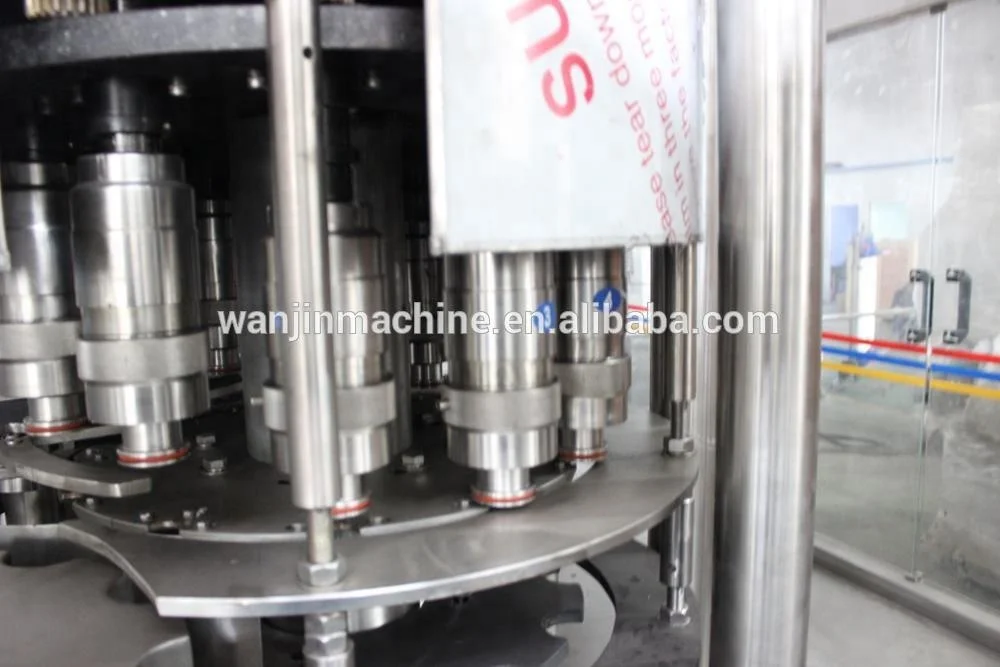

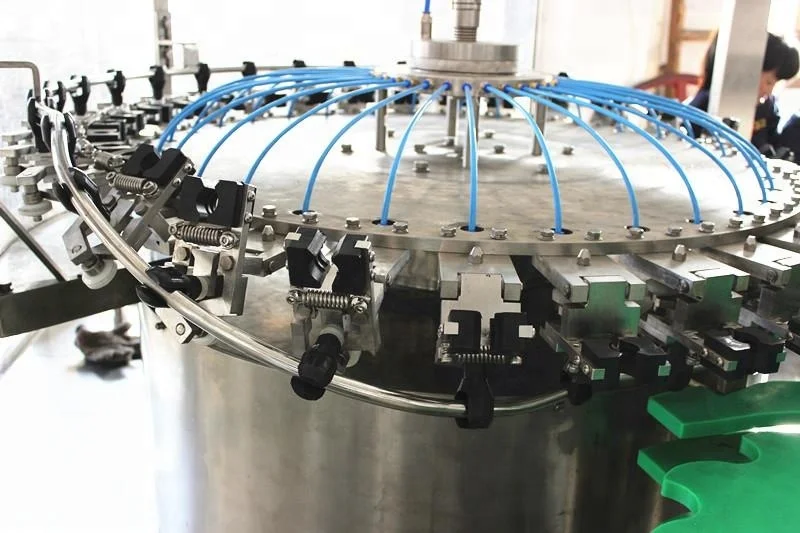

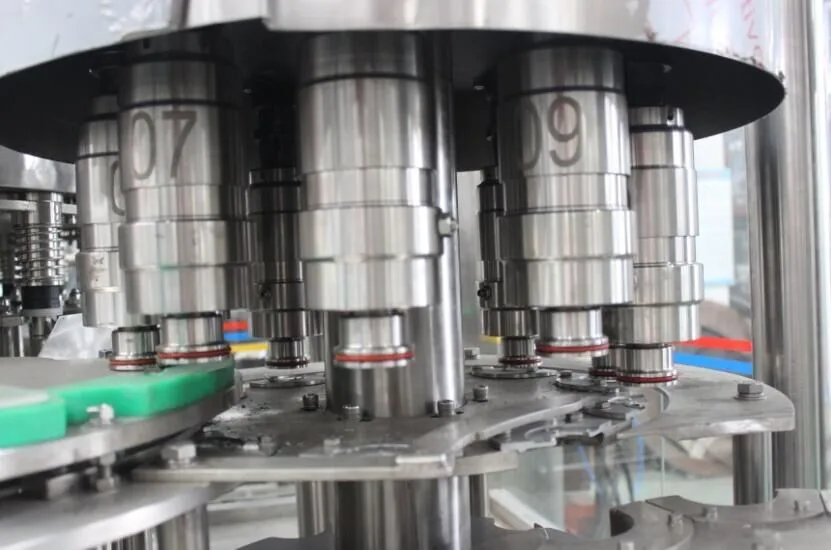

Type DXGF 3-in-1 set is used for aerated water filling.The machine combines washing,filling and cover spinning with coplete automatic,suitable for aerated water filling into poltester bottles and PET bottles.It can be used for all kinds of bottles.The bottleneck blocking makes the process of changing bottles easy by only adjusting the height of conveyor chain .The filling process adopts the height of conveyor chain.The filling process adopts the micro-pressure techinology,which makes filling process faster and more stable.Compared with other equipment of the same kind,this machine possesses a better quality and thus enjoys a high ratio of function against price. We have been engaged in this job for more than ten years,and we have rich experience.The technical force is first-rate.You can trust us and we can provide you with the best service.Looking forward to working with you.
Technical parameters
Model
DXGF
14-12-5
DXGF
18-18-6
DXGF
24-24-8
DXGF
32-32-10
DXGF
40-40-12
DXGF
50-50-15
DXGF
60-60-15
Number of rinsing head
14
18
24
32
40
50
60
Number of filling head
12
18
24
32
40
50
60
Number of capping head
5
6
8
10
12
15
15
Rated production capacity
2000-3000
4000-5000
6000-7000
8000-10000
12000-15000
18000-20000
22000-24000
Installed capacity
3.5
4
4.8
7.6
8.3
9.6
9.6
Overall size
2200x1600x2300
2450x1900x2300
2750x2180x2400
4000x2300x2300
4550x2650x2300
5450x3210x2300
5450x3210x2300
After-sale service
If the machine have quality problem.the seller should solve the problem when the buyer face about the machine in 24hours.After one-year guarantee period.We assure you maintenance and offer the parts at reasonable price for life-long.The seller should offer the buyer solve all the problem lifelong. no matter on product technical or opration. wanjin machinety is sincerely hope to establish a long term business relations with your esteemed company.
