Corrosion Resistance 99% Al2O3 Ceramic Protection Alumina Ceramic Tube mgo tube
- Category: >>>
- Supplier: Shanghai Huto Ceratric Co. Ltd.
Share on (60785446409):
Product Overview
Description
Product Description

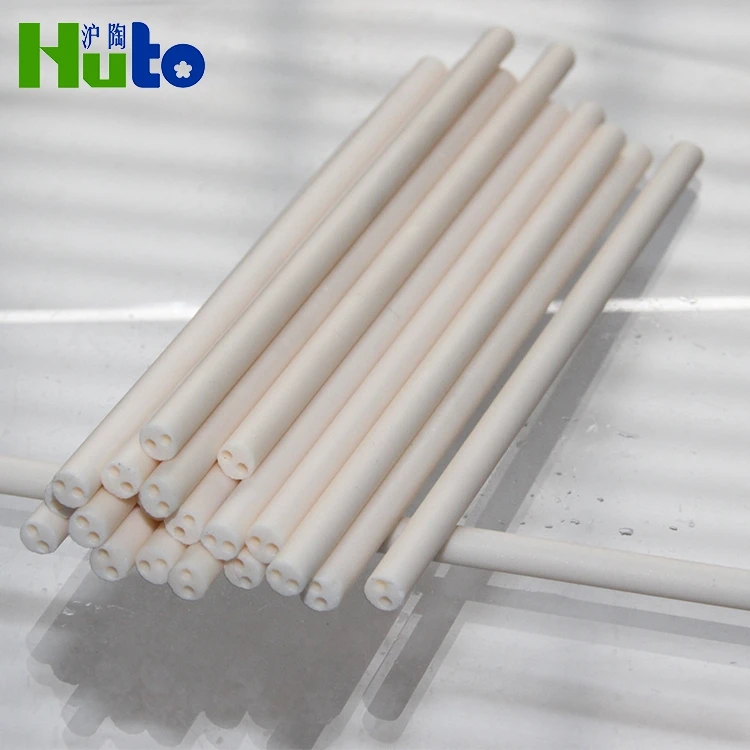

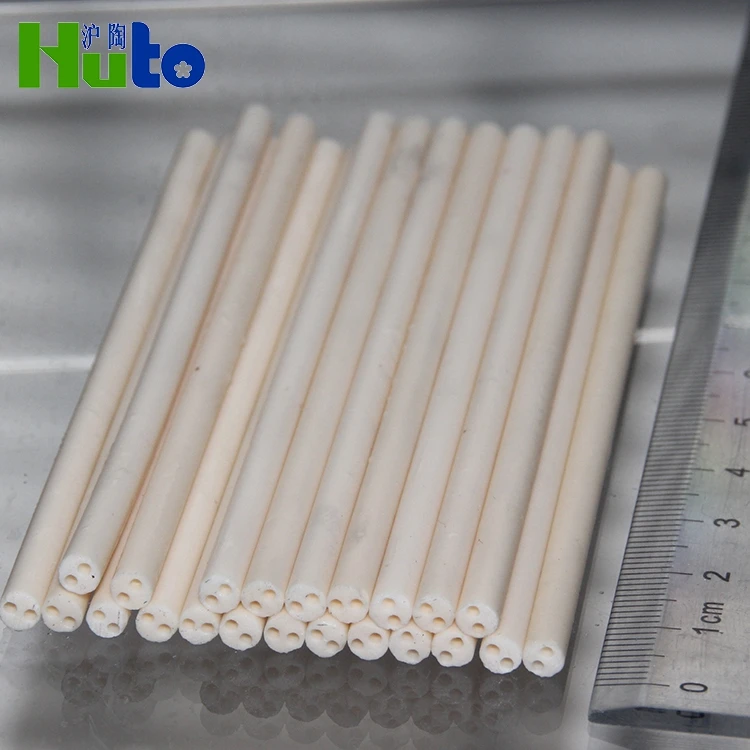

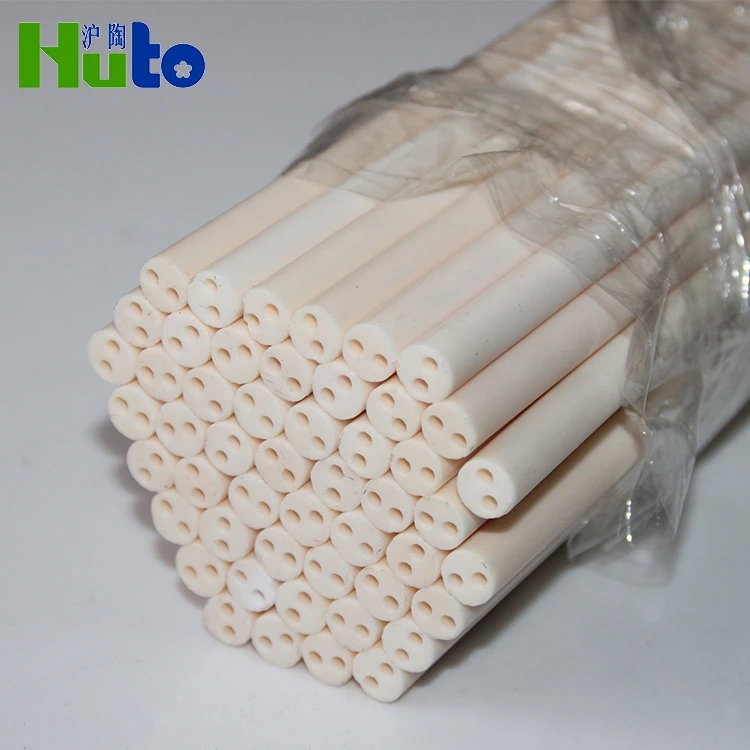

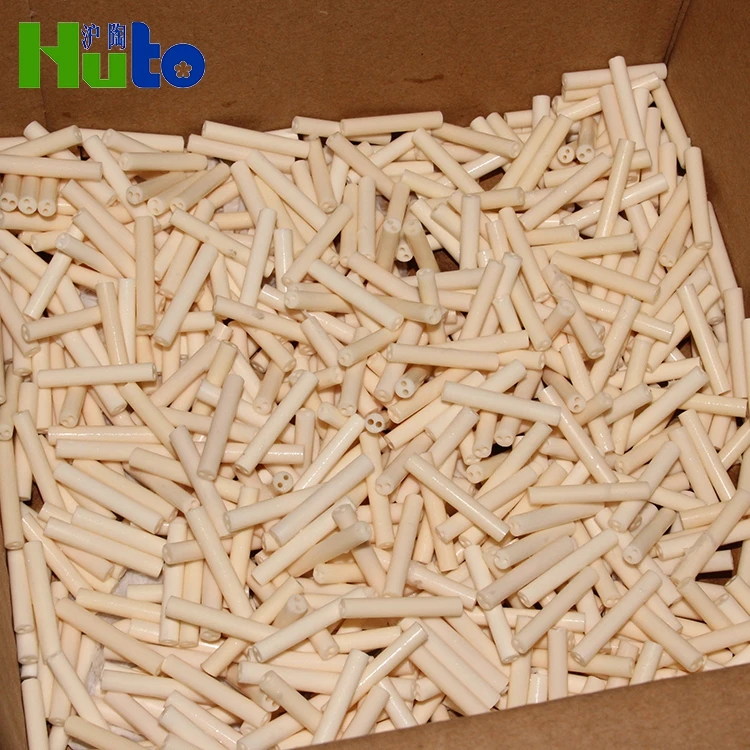

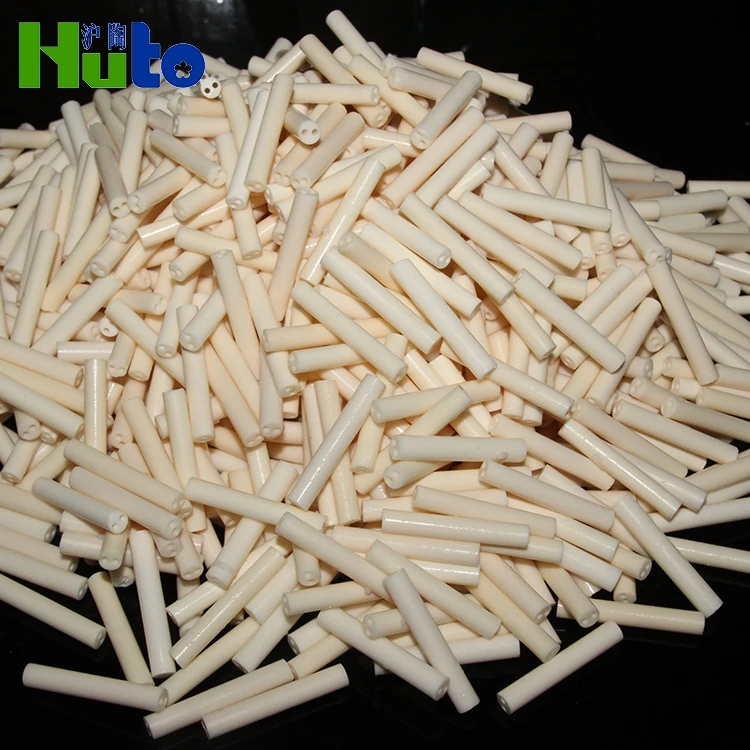

99 High Purity Alumina Tube HUTO 99% Al2O3 ceramic thermocouple protection tube
We can customize for you according to your samples or drawings .
Welcome to contact us!
Property of material:
| Material | 85 Al2o3 | 95 Al2o3 | 99.7 Al2o3 |
| Al2o3 | 0.85 | 0.94 | 0.996 |
| Fe2o3 | ≤ 1.0 | ≤ 0.5 | ≤ 0.3 |
| Density: g / cm3 | 3.4 | 3.6 | 3.85 |
| Vickers Hardness | ≥ 8.6 | 9 | 9 |
| Water Absorption:% | ≤ 0.2 | ≤ 0.085 | ≤ 0.01 |
| Refractoriness:°C | 1200 °C | 1600 °C | 1800°C |
| Flexural Strength:Mpa | 180 | 240 | 280 |
Wear Rate( at room temperature, erosion, 100 grinding)% | ≤ 3 | ≤ 1 | ≤ 0.5 |
| Specification | OD (mm) | ID (mm) | Length (mm) | Remark | |
| Thermocouple protection tube | 7-120 | 5-110 | 10-2000 | we can customize as per your requirements! | |
| Insulated tube | Single hole | 3-120 | 1-110 | 10-2000 | |
| Double holes | 2-10 | 0.5 - 2 | 10-2000 | ||

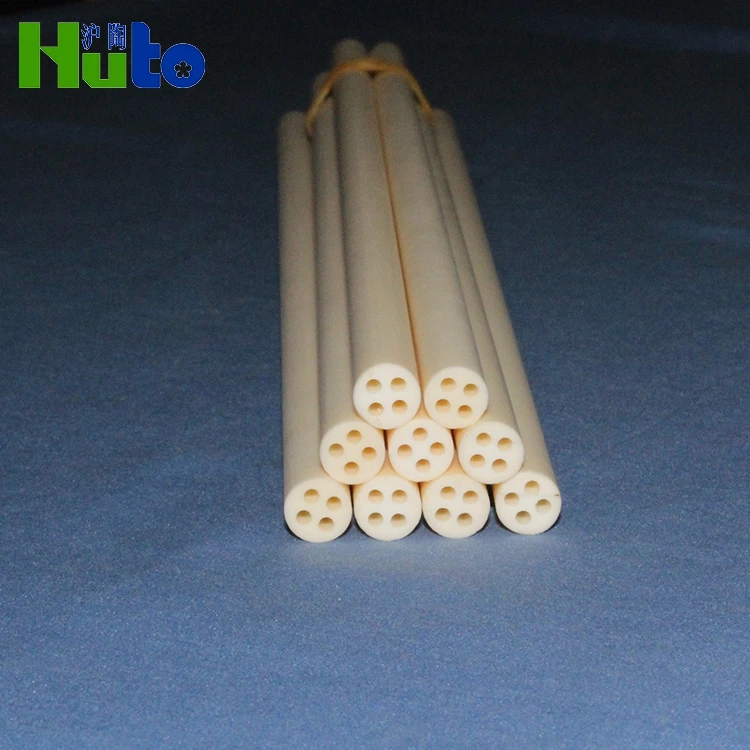

| Four holes | 2-10 | 0.5 -2 | 10-2000 |
Delivery term:
1. Can ship out in 1-2days if in stock;
2. About 30days to produce if no in stock
Payment term:
1. Do payment of deposit after make sales contract,and pay balance before shipping.
2. can pay by T/T to HUTOGROUP's bank, or by Westunion etc.
