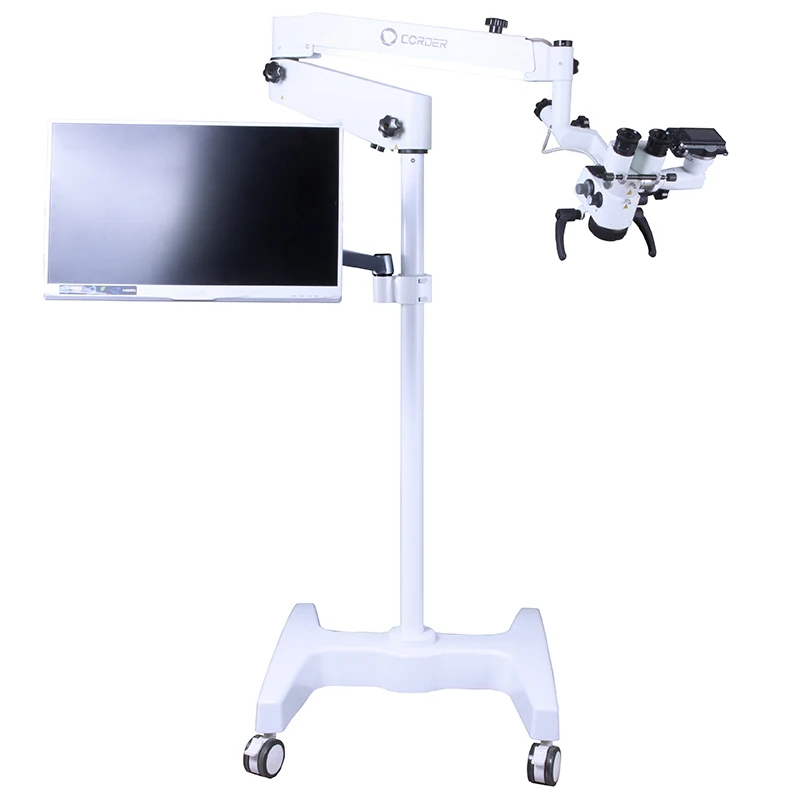

Portable ENT ear nose throat surgical neurosurgery stereo binocular microscope prices LED light hospital equipment factory510 5A
- Category: >>>
- Supplier: Chengdu Corder Optics & Electronics Co. Ltd.
Share on (60785463265):
Product Overview
Description
Recommend Products
Products Description
Corder professional surgery microscope, you see a fashionable, smooth lines, beautiful shape with a sense of modern design of high-end microscope, and modern consulting room perfect fit.
Under the fashionable appearance is full of excellent optical quality, you have upgraded to a higher level of clinical treatment,bringing you a higher quality, more efficient work experience.
Corder operating microscope allows users to easily adjust the focal length without changing the sitting position or opening and moving the lens. Easier operation to prevent prolonged strain of cervical and lumbar spine.
Convenient positioning, Angle adjustment, comfortable feel.
LED lighting system, providing you with excellent lighting effect, Brightness control and filter selection, can meet your different treatment needs.
Eyepiece adopts 12.5/ 10x wide-angle eyepiece, which can provide large field of view and 3D stereoscopic imaging. Diopter +6- 6D diopter range, eye cup height adjustable, the operator of the glasses can be comfortable without the glasses to complete the work.

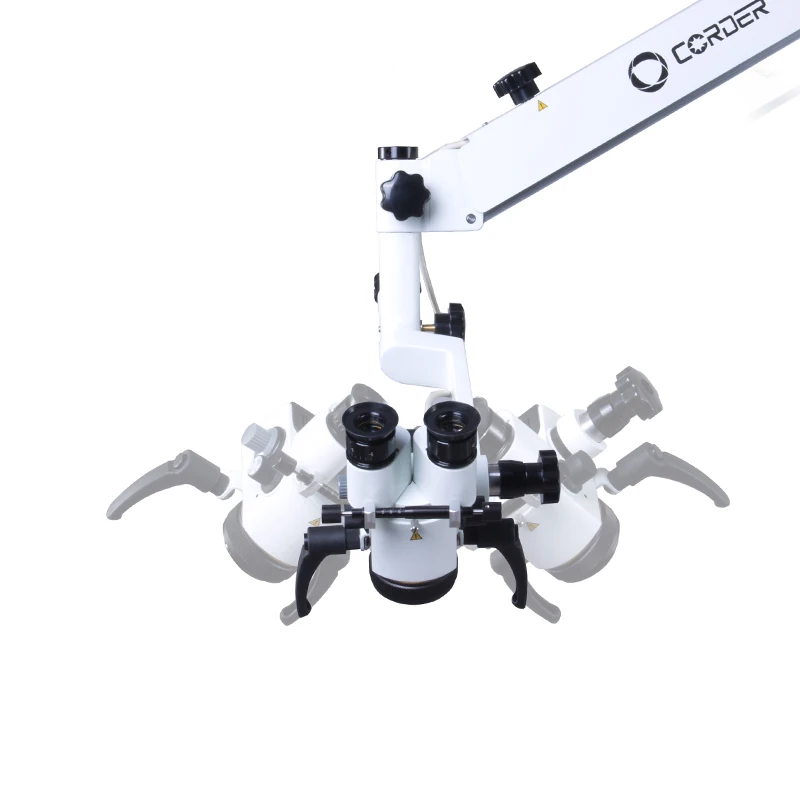

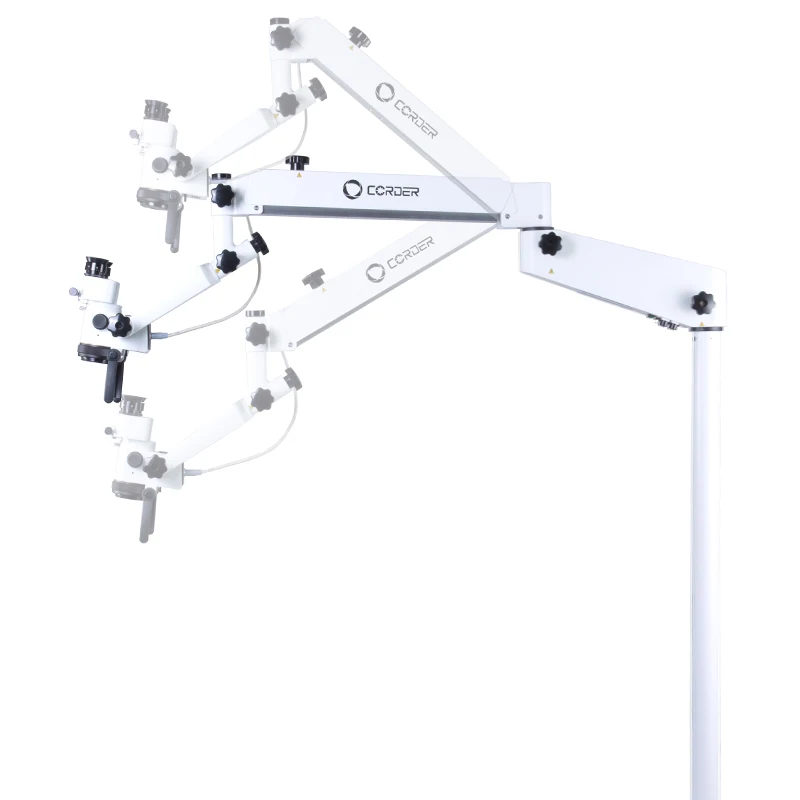

German imported gas spring, the optimized force word structure enables you to move microscope any desired working Angle
conveniently and precisely.
conveniently and precisely.
The main characteristics of corder operating microscope are compact design, excellent performance and simple operation. Maintaining a comfortable work position throughout your treatment can prevent back and shoulder strain, pain, and more serious spinal problems.
A modular solution to fit your needs

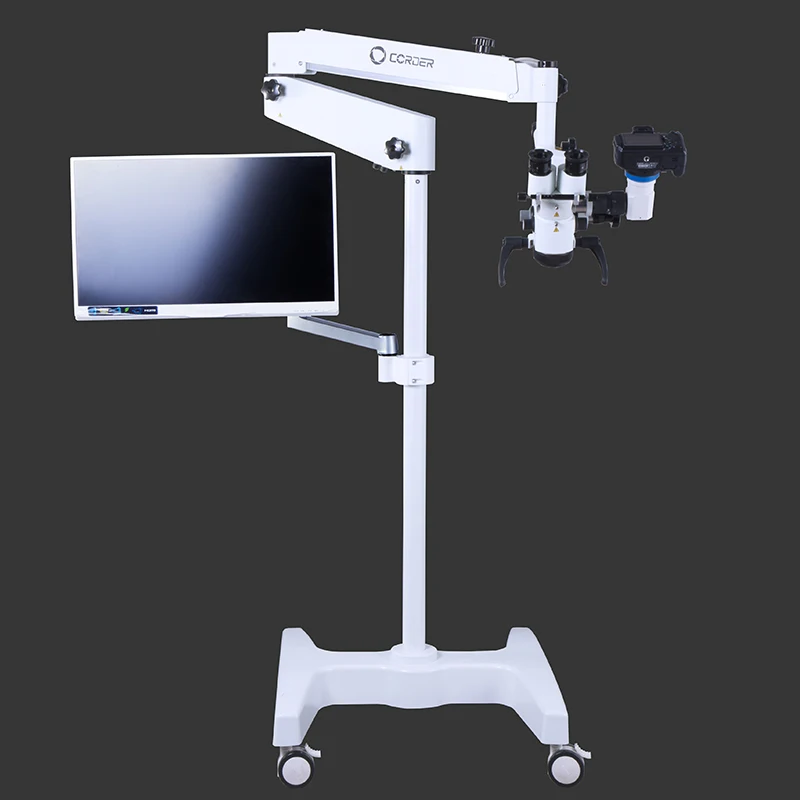

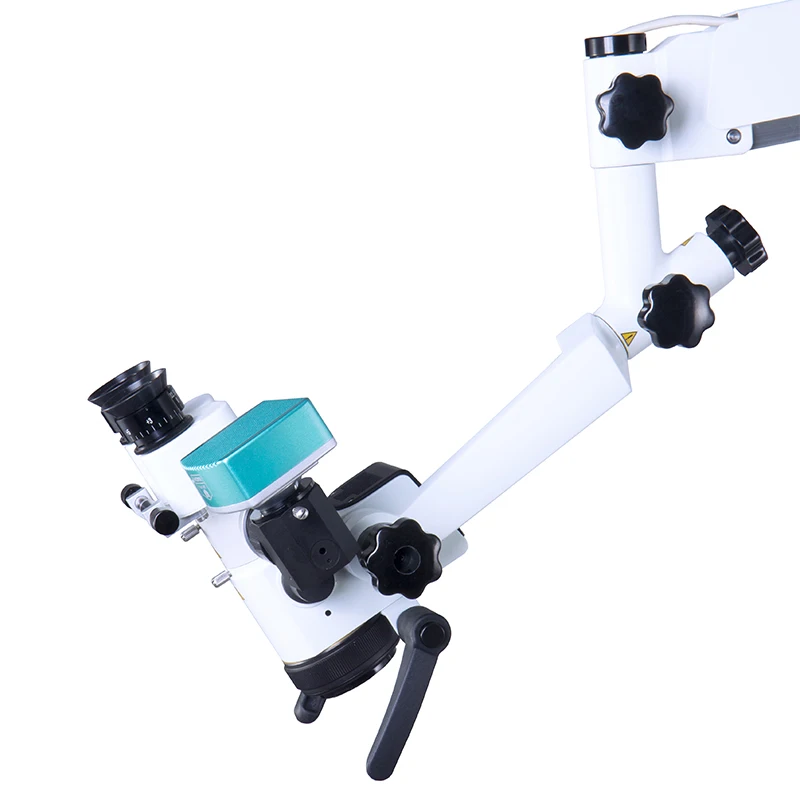

1080P full hd image quality, efficient image management during the operation. Integrate your digital workflow to facilitate case management and facilitate more intuitive patient communication.
Product Paramenters
Model | ASOM-510-5A | |
Function | ENT | |
Electrical data | ||
Power socket | 220v(+10%/-15%) 50HZ/110V(+10%/-15%) 60HZ | |
Power consumption | 40VA | |
Safety class | class I | |
microscope | ||
Tube | 90 degree binocular tube | |
Magnification | manual 3-step changer, ratio 0.6，1.0，1.6 , total magnification 3.75x, 6.25x，12x ( F 250mm)/ 5 steps ,ratio 0.4,0.6,1,1.6,2.5, total magnification:3.6x,5.4x,9x,14.4x,22.5x(F 250mm) | |
Stereo base | 22mm | |
Objectives | F=250mm (200mm,300mm,350mm,400mm or 180mm-300mm adjustable objectives for optional) | |
Objective focusing | 15mm | |
Eyepiece | 12.5x/ 10x | |
pupil distance | 55mm~75mm | |
diopter adjustment | +6D ~ -6D | |
Feild of veiw | 3 steps: Φ53mm，Φ32mm，Φ20mm / 5 steps:55.6mm,37.1mm,22.2mm,13.9mm,8.9mm | |
Reset functions | yes | |
Light source | LED cold light with life time >80000 hours, brightness >60000 lux , CRI>90 | |
filter | OG530, Red free filter, small spot | |
Banlance arm | 120° Banlance arm | |
Automatic switching device | Built-in arm | |
Light intensity adjustment | Using a drive knob on the optics carrier | |
Stands | ||
Max extension range | 1193mm | |
Base | 610 × 610 mm | |
Transportation height | 1476 mm | |
Balancing range | Min 4 kg to max 7.7 kg load on the optics carrier | |
Brake system | Fine adjustable mechanical brakes for all rotation axes with detachable brake | |
System weight | 68 kg | |
Stand options | Ceiling mount,Wall mount,Floor plate,Floor stand | |
Accessories | ||
Binocular tube | 90° fixed or 0-200° | |
Knobs | sterilizable | |
Tube | 90° binocular tube ,0-200° tube | |
Video adapter | Mobile phone adapter, beam splitter, CCD adapter, CCD, SLR digital camera adaper,camcorder adapter | |
Ambient conditions | ||
Use | +10°C to +40°C | |
30% to 75% relative humidity | ||
500 mbar to 1060 mbar atmospheric pressure | ||
Storage | –30°C to +70°C | |
10% to 100% relative humidity | ||
500 mbar to 1060 mbar atmospheric pressure | ||
Limitations on use | ||
The CORDER surgical microscope may be used in enclosed rooms and on flat surfaces with max. 0.3° unevenness; or at stable walls or ceilings that fulfill Leica Microsystems' specifications (see installation manual) | ||
Company Profile
Company Profile
Chengdu Corder Optics and Electronics Co., Ltd. is one of the subsidiary companies of Optoelectronic Technology Research Institute of Chinese Academy of Sciences (CAS).
Our company's main products include ASOM operation microscopes, LX slit lamp microscopes, spotting scopes, bio-chip detectors, photoetching machines, retinal self-adaption optics imaging systems and other optical-electronical equipment. Products have passed the ISO 9001:2000 and ISO 13485:2003 Quality Management System Certifications. We are the leading manufacturer of surgical microscopes in China, and we can accept cooperation by OEM, and provide import-export and other services too. Now Corder's products have been sold all over China and have been exported to several foreign countries, such as the Middle East, Europe, the United States, etc. The brand "CORDER" has became a well-known brand in domestic optical-electronical industry in China.
Chengdu Corder Optics and Electronics Co., Ltd. is a governmental company. We are the first manufacturer who produces operation microscopes in China. We have begun to produce ASOM operation microscopes since 1970s. And from 1991, we began to manufacture other optical-electronical products, such as spotting scope and photoetching machines. And now you can find optical-electronical products made by CORDER all over the world.
Our company's main products include ASOM operation microscopes, LX slit lamp microscopes, spotting scopes, bio-chip detectors, photoetching machines, retinal self-adaption optics imaging systems and other optical-electronical equipment. Products have passed the ISO 9001:2000 and ISO 13485:2003 Quality Management System Certifications. We are the leading manufacturer of surgical microscopes in China, and we can accept cooperation by OEM, and provide import-export and other services too. Now Corder's products have been sold all over China and have been exported to several foreign countries, such as the Middle East, Europe, the United States, etc. The brand "CORDER" has became a well-known brand in domestic optical-electronical industry in China.
Chengdu Corder Optics and Electronics Co., Ltd. is a governmental company. We are the first manufacturer who produces operation microscopes in China. We have begun to produce ASOM operation microscopes since 1970s. And from 1991, we began to manufacture other optical-electronical products, such as spotting scope and photoetching machines. And now you can find optical-electronical products made by CORDER all over the world.
Our goal is to be a global market leader in life science and medical microscopy products with the highest price-to-performance ratio.
reflected through product innovations.
Careful synchronization of design, engineering, and production processes to ensure that our vision of flawless functionality is realized from beginning to end.
Thoughtful execution of quality control and product support to our network of faithful distributors so that our customers realize supreme value in owning a Corder microscope.
Careful synchronization of design, engineering, and production processes to ensure that our vision of flawless functionality is realized from beginning to end.
Thoughtful execution of quality control and product support to our network of faithful distributors so that our customers realize supreme value in owning a Corder microscope.
Captures the essence of optical and mechanical perfection.
With the clarity of vision to respond to evolving needs in modern microscopy, Corder was founded on its unique abilities to deliver high precision microscopes and optical instruments. From design concepts to finished products, the Corder brand captures the essence of optical and mechanical perfection.
MANUFACTURING TECHNIQUE
Optical wool glass is made from a patented raw material formulation
30 production processes are completed by hand
60 quality control checks by experienced technicians to ensure consistent quality
Obtain durable high quality optical glass.
We have more than 30 years experience of QC team and strictly quality control system in our production process.
